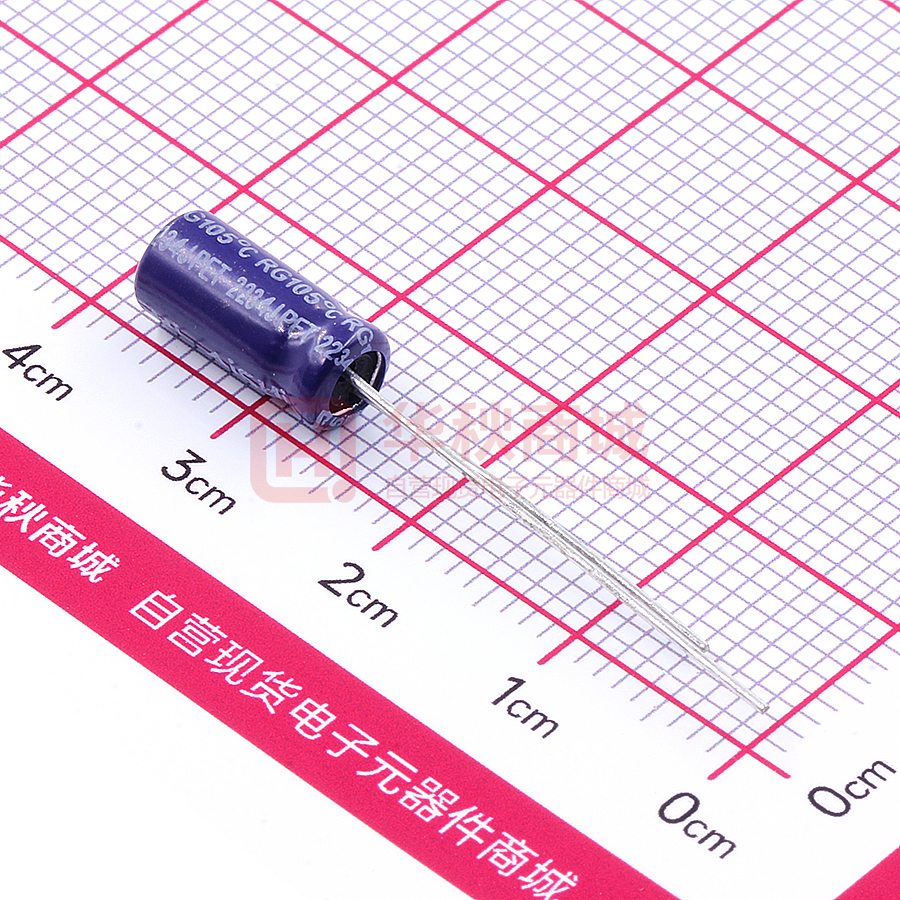

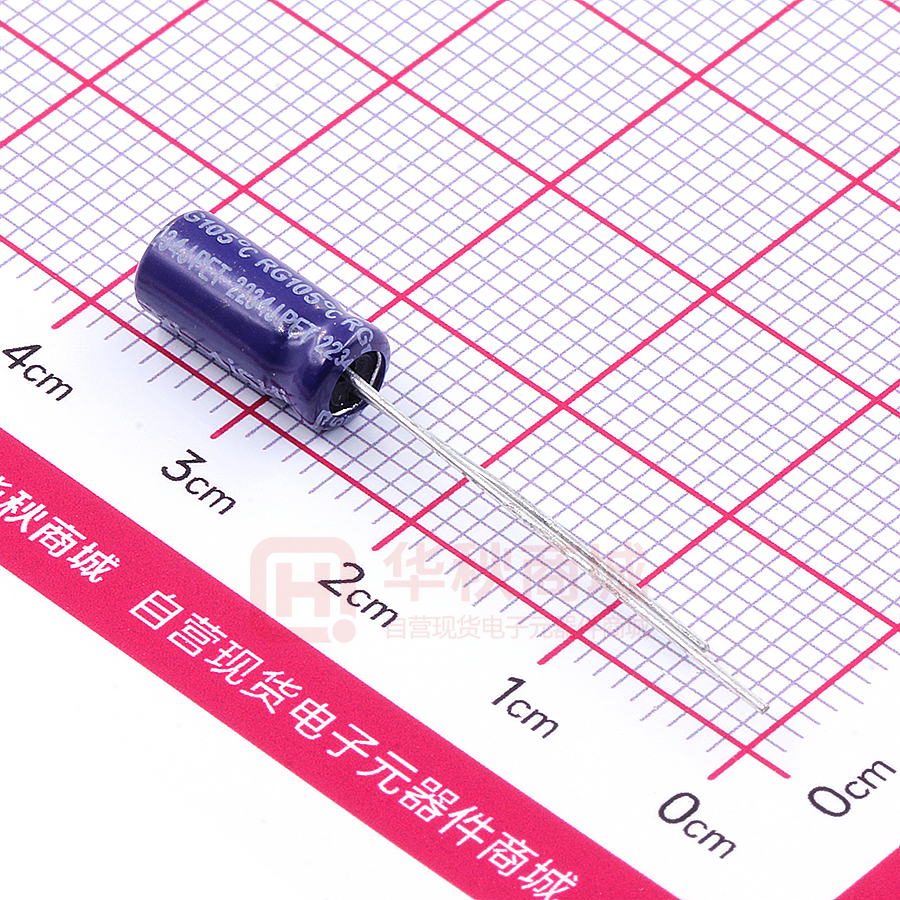

ERG1EM470D11OT

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RG series “GBL” system, high reliability RG 105 C 1808 Low impedance and high ripple current Endurance：+105°C 2,000 ~ 8,000 hours RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -55~+105°C Rated Voltage Range 6.3~63 V dc Capacitance Tolerance ±20%(M) Leakage Current I≤0.01CV or 3μA, whichever is greater. Where, I:Max.leakage current (μA),C:Nominal capacitance (μF),V: Rated voltage (V) (at 20°C,120Hz) Rated Voltage(V dc ) Dissipation Factor (tanδ) 6.3 10 16 25 35 50 0.22 0.19 0.16 0.14 0.12 0.10 tanδ (max.) (at 20°C after 2 minutes) 63 0.08 When nominal capacitance exceeds 1,000μF, add 0.02 to the value above for each 1,000μF increase. Low Temperature Characteristics (Max. Impedance Ratio) Rated Voltage(V dc ) 6.3 10 Z(-25°C)/Z(+20°C) 4 3 Z(-55°C)/Z(+20°C) 8 6 16 25 35 50 (at 20°C,120Hz) 63 2 4 3 (at 120Hz) The following specifications shall be met when the capacitors are restored to 20°C after DC voltage plus rated ripple current is applied for a specified period of time at 105°C, the peak voltage shall not exceed the rated voltage. Dia. Load life (hours) ØD≤6.3 2,000 ØD=8 Capacitance Change ≤±25% of the initial value 3,000 ØD=10 5,000 D.F. (tanδ) ≤200% of the initial specified value ØD=12.5 7,000 Leakage Current ≤The initial specified value ØD≥16 8,000 Endurance The following specifications shall be satisfied when the capacitors are restored to 20 °C after leaving them under no load at 105°C for 1,000 hours. Shelf Life Capacitance Change ≤±25% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤200% of the initial specified value DIMENSIONS[mm] Sleeve(Violet) Ød ØD' F±0.5 L' 4min. 15min. ( Ø 5~ Ø 18) ØD 5 6.3 Ød 0.5 0.5 F ØD' L' 2.0 2.5 8 0.5 0.6 3.5 10 12.5 16 18 0.6 0.6 0.8 0.8 5.0 5.0 7.5 7.5 Ø D+0.5max. L+2max. E RG 1H M 220 D11 O- - Radial Type PART NUMBERING SYSTEM T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) 120 1k 10k 100k Cap.
