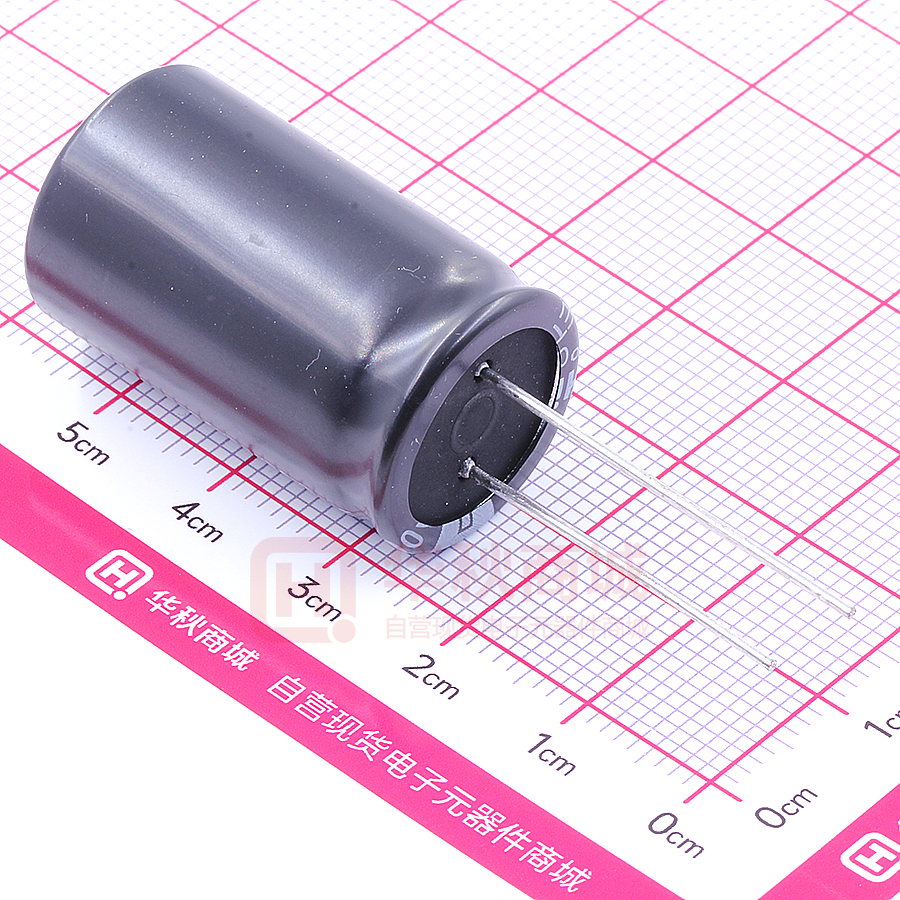

ERH2DM221M30OT

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RH series High frequency,low impedance Endurance：+105°C 2,000~3,000 hours 1808 RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -40~+105°C(160 ~400 V dc ) Rated Voltage Range 160~450 V dc Capacitance Tolerance ±20%(M) Leakage Current I≤0.02CV or 10μA, whichever is greater. Where, I:Max.leakage current (μA),C:Nominal capacitance (μF),V: Rated voltage (V) -25~+105°C(450 V dc ) (at 20°C,120Hz) Rated Voltage(V dc ) 160 200 250 350 400 450 tanδ (max.) 0.12 0.12 0.12 0.15 0.15 0.20 Rated Voltage(V dc ) 160 250 350 400 450 Z(-25°C)/Z(+20°C) 3 5 6 Z(-40°C)/Z(+20°C) 4 7 - (at 20°C after 2 minutes) Dissipation Factor (tanδ) Low Temperature Characteristics (Max. Impedance Ratio) 200 (at 20°C,120Hz) (at 120Hz) The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for a specified period of time at 105°C. Endurance Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤The initial specified value Case Dia.(mm) Load life (hours) ØD≤8 2,000 ØD≥10 3,000 The following specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at 105°C without voltage applied. Shelf Life Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤200% of the initial specified value DIMENSIONS[mm] Sleeve(Black) Ød ØD' F±0.5 L' 4min. 15min. ( Ø 6.3~ Ø 22) ØD 6.3 Ød F ØD' L' 0.5 2.5 8 0.5 0.6 3.5 10 12.5 16 18 22 0.6 0.6 0.8 0.8 0.8 5.0 5.0 7.5 7.5 10.0 Ø D+0.5max. L+2max. PART NUMBERING SYSTEM E RH 2G M 3R3 G12 O- - T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) Cap.(μF) 120 1k 10k 100k Cap.
