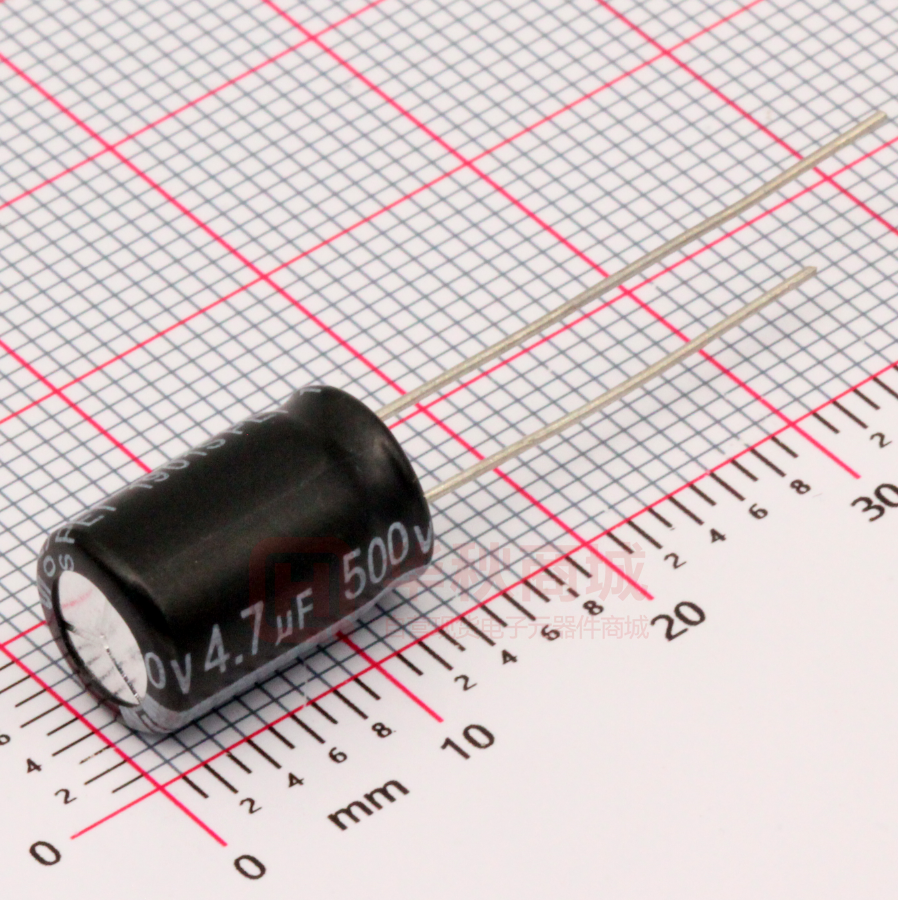

ERK2HM4R7F12OT

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RK series Endurance: +105°C 2,000 hours Especially designed for charger Upgrade Miniaturized,high voltage RK 105 C 1808 RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -40~+105°C(400 V dc ) Rated Voltage Range 400~550 V dc Capacitance Tolerance ±20%(M) (at 20°C,120Hz) 400~450 V dc Leakage Current -25~+105°C(450~550 V dc ) 500~550 V dc I≤0.02CV+10μA I≤0.03CV+10μA Where, I:Max.leakage current (μA),C:Nominal capacitance (μF), V: Rated voltage (V) (at 20°C after 2 minutes) Rated Voltage(V dc ) 400 450 500 550 tanδ (max.) 0.15 0.20 0.24 0.24 Rated Voltage(V dc ) 400 450 500 550 Z(-25°C)/Z(+20°C) 3 5 6 15 Z(-40°C)/Z(+20°C) 6 - - - Dissipation Factor (tanδ) Low Temperature Characteristics (Max. Impedance Ratio) (at 20°C,120Hz) (at 120Hz) The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 2,000 hours at 105°C. Rated voltage(V dc ) Endurance 400~500 V dc 550 V dc Capacitance Change ≤±20% of the initial value ≤±30% of the initial value D.F. (tanδ) ≤200% of the initial specified value ≤300% of the initial specified value Leakage Current ≤The initial specified value ≤The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at 105°C without voltage applied. Shelf Life Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤200% of the initial specified value DIMENSIONS[mm] Ød ØD' F±0.5 L' 4min. 15min. ( Ø 6.3~ Ø 18) ØD 6.3 Ød F ØD' L' 0.5 2.5 8 0.5 0.6 3.5 10 12.5 16 18 0.6 0.6 5.0 5.0 0.8 7.5 0.8 7.5 Ø D+0.5max. L+2max. Radial Type Sleeve(Black) PART NUMBERING SYSTEM E RK 2G M 3R3 F12 O- - T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) WV(Vdc) 400~550 120 1k 10k 100k 0.50 0.80 0.90 1.00 The endurance of capacitors is shortened with internal heating produced by ripple current at the rate of halving the lifetime with every 5°C rise. When long life performance is required in actual use, the rms ripple current has to be reduced. 154 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RK series STANDARD RATINGS WV (V dc ) Cap (µF) 2.2 3.3 4.7 6.8 8.2 400(2G) 10 15 22 33 47 56 68 2.2 3.3 450(2W) 4.7 6.8 8.2 tanδ Rated ripple current (mArms/105°C, 100kHz) Part Number tanδ Rated ripple current (mArms/105°C, 100kHz) Part Number 6.3×9 0.15 64 ERK2GM2R2E09OT 8×7 0.15 66 ERK2GM2R2F07OT 8×16 0.20 220 ERK2WM100F16OT 10×12 0.20 230 6.3×11 0.15 74 ERK2WM100G12OT ERK2GM3R3E11OT 10×14 0.20 250 8×9 0.15 ERK2WM100G14OT 76 ERK2GM3R3F09OT 10×16 0.20 230 8×11 ERK2WM150G16OT 0.15 80 ERK2GM3R3F11OT 12.5×16 0.20 250 ERK2WM150W16OT 6.3×11 0.15 90 ERK2GM4R7E11OT 12.5×20 0.20 295 ERK2WM220W20OT 8×9 0.15 94 ERK2GM4R7F09OT 16×16 0.20 320 ERK2WM220L16OT 8×11 0.15 98 ERK2GM4R7F11OT 12.5×22 0.20 495 ERK2WM330W22OT 8×11 0.15 126 ERK2GM6R8F11OT 16×16 0.20 495 ERK2WM330L16OT 10×9 0.15 132 ERK2GM6R8G09OT 16×20 0.20 550 ERK2WM330L20OT 8×11 0.15 145 ERK2GM8R2F11OT 16×20 0.20 640 ERK2WM470L20OT 10×9 0.15 150 ERK2GM8R2G09OT 16×25 0.20 710 ERK2WM470L25OT 10×10 0.15 158 ERK2GM8R2G10OT 18×20 0.20 870 ERK2WM680M20OT 8×12 0.15 165 ERK2GM100F12OT 18×25 0.20 970 ERK2WM680M25OT 8×14 0.15 180 ERK2GM100F14OT 8×12 0.24 85 ERK2HM3R3F12OT 10×9 0.15 172 ERK2GM100G09OT 8×12 0.24 110 ERK2HM4R7F12OT 10×12 0.15 210 ERK2GM150G12OT 10×9 0.24 110 ERK2HM4R7G09OT 10×14 0.15 230 ERK2GM150G14OT 5.6 10×9 0.24 130 ERK2HM5R6G09OT 10×16 0.15 250 ERK2GM220G16OT 6.8 10×10 0.24 150 ERK2HM6R8G10OT 12.5×16 0.15 300 ERK2GM220W16OT 8.2 10×12 0.24 190 ERK2HM8R2G12OT 12.5×16 0.15 520 ERK2GM330W16OT 10 10×16 0.24 225 ERK2HM100G16OT 12.5×22 0.15 650 ERK2GM470W22OT 12 10×16 0.24 230 ERK2HM120G16OT 16×16 0.15 670 ERK2GM470L16OT 15 10×18 0.24 250 ERK2HM150G18OT 13×25 0.15 780 ERK2GM560K25OT 22 12.5×20 0.24 280 ERK2HM220W20OT 16×23 0.15 880 ERK2GM680L23OT 3.3 8×12 0.24 85 ERK2JM3R3F12OT 18×18 0.15 880 ERK2GM680M18OT 10×10 0.24 110 ERK2JM4R7G10OT 18×20 0.15 920 ERK2GM680M20OT 10×12 0.24 120 ERK2JM4R7G12OT 6.3×11 0.20 65 ERK2WM2R2E11OT 5.6 10×12 0.24 130 ERK2JM5R6G12OT 8×9 0.20 72 ERK2WM2R2F09OT 6.8 10×12 0.24 150 ERK2JM6R8G12OT 8×9 0.20 82 ERK2WM3R3F09OT 8.2 10×14 0.24 190 ERK2JM8R2G14OT 8×11 0.20 100 ERK2WM4R7F11OT 10 10×16 0.24 225 ERK2JM100G16OT 10×9 0.20 110 ERK2WM4R7G09OT 12 10×20 0.24 235 ERK2JM120G20OT 10×9 0.20 130 ERK2WM6R8G09OT 15 12.5×20 0.24 250 ERK2JM150W20OT 10×10 0.20 148 ERK2WM6R8G10OT 22 12.5×25 0.24 280 ERK2JM220W25OT 10×10 0.20 190 ERK2WM8R2G10OT 10×12 0.20 210 ERK2WM8R2G12OT Size ΦDxL(mm) WV (V dc ) Cap (µF) 10 15 22 450(2W) 33 47 68 3.3 4.7 500(2H) 4.7 550(2J) Size ΦDxL(mm) 155
