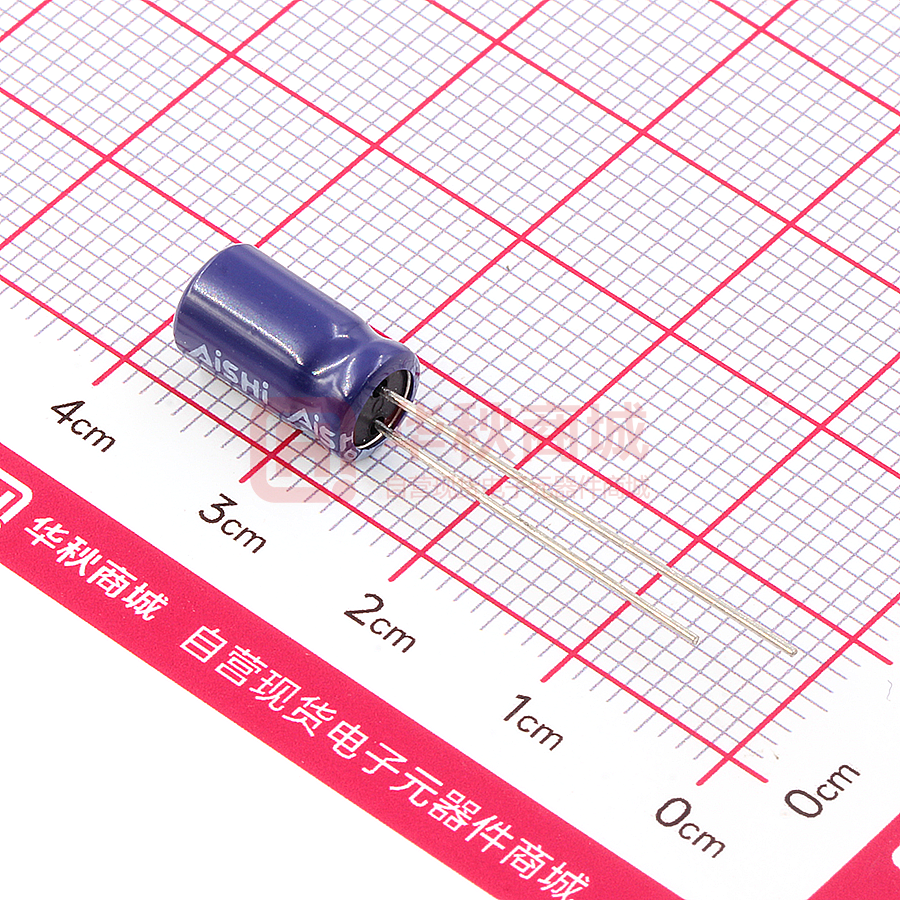

ERM1EM101E11OT

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RM series Endurance：+105°C 10,000 hours Miniaturized,long life RM 105 C 1808 RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -40~+105°C Rated Voltage Range 10~100 V dc Capacitance Tolerance ±20%(M) Leakage Current I≤0.01CV or 3μA, whichever is greater. Where,I:Max.leakage current (μA),C:Nominal capacitance (μF),V: Rated voltage (V) (at 20°C,120Hz) Rated Voltage(V dc ) Dissipation Factor (tanδ) tanδ (max.) 10 16 25 35 50 63 100 0.45 0.35 0.30 0.22 0.19 0.17 0.15 (at 20°C after 2 minutes) When nominal capacitance exceeds 1,000μF, add 0.02 to the value above for each 1,000μF increase. (at 20°C,120Hz) Low Temperature Characteristics (Max. Impedance Ratio) Rated Voltage(V dc ) 10 16 25 35 50 63 Z(-25°C)/Z(+20°C) 8 6 4 3 Z(-40°C)/Z(+20°C) 13 10 8 7 100 (at 120Hz) The specifications listed below shall be met when the capacitors are restored to 20°C after DC voltage plus rated ripple current is applied for 10,000 hours at 105°C. Endurance Capacitance Change ≤±25% of the initial value D.F. (tanδ) ≤300% of the initial specified value Leakage Current ≤The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20°C after leaving them under no load at 105°C for 1,000 hours. Shelf Life Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤200% of the initial specified value DIMENSIONS[mm] Sleeve(Violet) Ød ØD' F±0.5 L' 4min. 15min. ( Ø 5~ Ø 8) ØD 5 6.3 8 Ød F ØD' L' 0.5 0.5 0.5 2.5 3.5 2.0 Ø D+0.5max. L+1.5max. E RM 1H M 2R2 D11 O- - Radial Type PART NUMBERING SYSTEM T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) Cap.(μF) 120 1k 10k 100k Cap.
