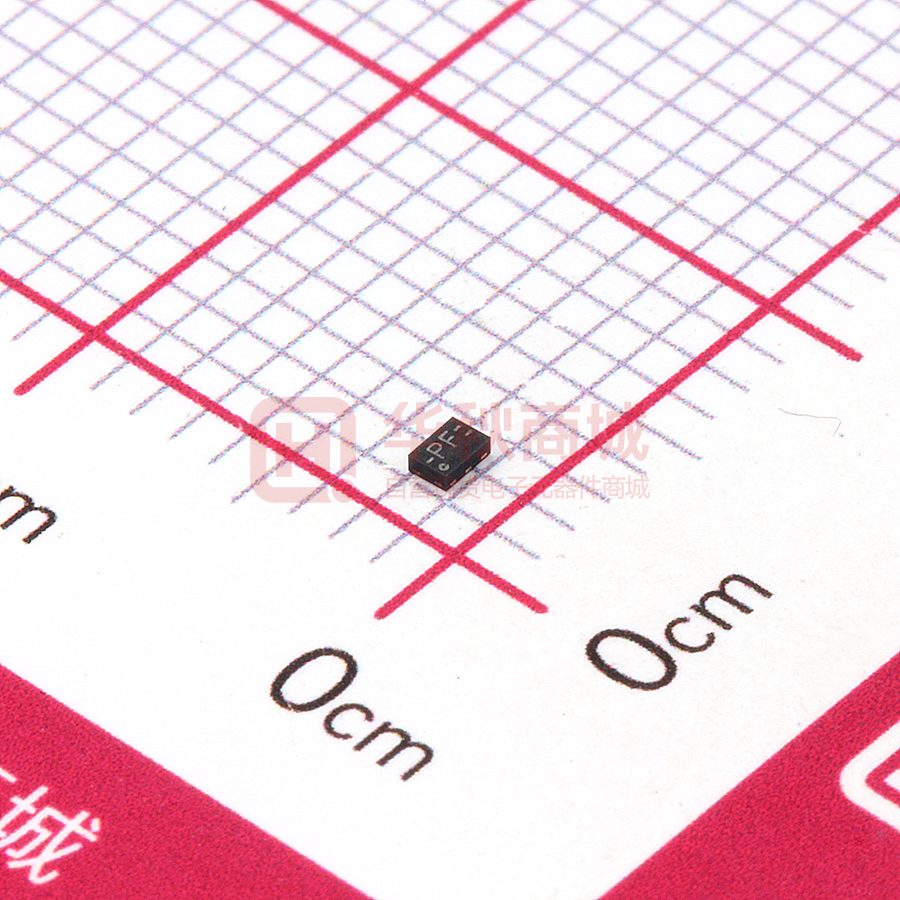

PRTR5V0U2F,115

PRTR5V0U2F; PRTR5V0U2K Ultra low capacitance double rail-to-rail ESD protection Rev. 02 — 19 February 2009 Product data sheet 1. Product profile 1.1 General description Ultra low capacitance double rail-to-rail ElectroStatic Discharge (ESD) protection devices in leadless ultra small Surface-Mounted Device (SMD) plastic packages. The devices are designed to protect two Hi-Speed data lines or high-frequency signal lines from the damage caused by ESD and other transients. PRTR5V0U2F and PRTR5V0U2K integrate two ultra low capacitance rail-to-rail ESD protection channels and one additional ESD protection diode each to ensure signal line protection even if no supply voltage is available. Table 1. Product overview Type number Package Package configuration Nexperia JEDEC PRTR5V0U2F SOT886 MO-252 leadless ultra small PRTR5V0U2K SOT891 - leadless ultra small 1.2 Features n n n n n n n n ESD protection of two Hi-Speed data lines or high-frequency signal lines Ultra low input/output to ground capacitance: C(I/O-GND) = 1 pF ESD protection up to 8 kV IEC 61000-4-2, level 4 (ESD) Very low clamping voltage due to an integrated additional ESD protection diode Very low reverse current AEC-Q101 qualified Leadless ultra small SMD plastic packages 1.3 Applications n n n n n n n USB 2.0 interfaces Digital Video Interface (DVI) / High Definition Multimedia Interface (HDMI) interfaces Mobile and cordless phones Personal Digital Assistants (PDA) Digital cameras Wide Area Network (WAN) / Local Area Network (LAN) systems PCs, notebooks, printers and other PC peripherals PRTR5V0U2F; PRTR5V0U2K Nexperia Ultra low capacitance double rail-to-rail ESD protection 1.4 Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions Min Typ Max Unit C(I/O-GND) input/output to ground capacitance f = 1 MHz; V(I/O-GND) = 0 V [1] - 1.0 1.5 pF C(I/O-I/O) input/output to input/output capacitance f = 1 MHz; V(I/O-I/O) = 0 V [2] - 0.6 - pF reverse standoff voltage [3] - - 5.5 V supply pin to ground capacitance [3] - 16 - pF Per channel Zener diode VRWM Csup [1] Measured from pin 1, 3, 4 or 6 to ground. [2] Measured from pin 1 or 6 to pin 3 or 4. [3] Measured from pin 5 to ground. f = 1 MHz; VCC = 0 V 2. Pinning information Table 3. Pin Pinning Symbol Description Simplified outline Graphic symbol PRTR5V0U2F (SOT886) 1 I/O1 input/output 1 2 GND ground 3 I/O2 input/output 2 4 I/O2 input/output 2 5 VCC supply voltage 6 I/O1 input/output 1 1 2 3 6 5 bottom view 1 6 2 5 3 4 4 006aab349 PRTR5V0U2K (SOT891) 1 I/O1 input/output 1 2 GND ground 3 I/O2 input/output 2 4 I/O2 input/output 2 5 VCC supply voltage 6 I/O1 input/output 1 1 2 3 6 5 4 bottom view 1 6 2 5 3 4 006aab349 © PRTR5V0U2F_PRTR5V0U2K_2 Product data sheet Rev. 02 — 19 February 2009 Nexperia B.V. 2017. All rights reserved 2 of 12 PRTR5V0U2F; PRTR5V0U2K Nexperia Ultra low capacitance double rail-to-rail ESD protection 3. Ordering information Table 4. Ordering information Type number Package Name Description Version PRTR5V0U2F XSON6 plastic extremely thin small outline package; no leads; 6 terminals; body 1 × 1.45 × 0.5 mm SOT886 PRTR5V0U2K XSON6 plastic extremely thin small outline package; no leads; 6 terminals; body 1 × 1 × 0.5 mm SOT891 4. Marking Table 5. Marking codes Type number Marking code PRTR5V0U2F PF PRTR5V0U2K PK 5. Limiting values Table 6. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Conditions Min Max Unit Per device Tamb ambient temperature −40 +85 °C Tstg storage temperature −55 +125 °C Table 7. ESD maximum ratings Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions Min Max Unit [1][2] - 8 kV [2] - 10 kV Per channel VESD electrostatic discharge voltage IEC 61000-4-2 (contact discharge) MIL-STD-883 (human body model) [1] Device stressed with ten non-repetitive ESD pulses. [2] Measured from pin 1, 3, 4 or 6 to pin 2 or 5. © PRTR5V0U2F_PRTR5V0U2K_2 Product data sheet Rev. 02 — 19 February 2009 Nexperia B.V. 2017. All rights reserved 3 of 12 PRTR5V0U2F; PRTR5V0U2K Nexperia Ultra low capacitance double rail-to-rail ESD protection Table 8. ESD standards compliance Standard Conditions Per channel IEC 61000-4-2; level 4 (ESD) > 8 kV (contact) MIL-STD-883; class 3 (human body model) > 4 kV 001aaa631 IPP 100 % 90 % 10 % tr = 0.7 ns to 1 ns t 30 ns 60 ns Fig 1. ESD pulse waveform according to IEC 61000-4-2 © PRTR5V0U2F_PRTR5V0U2K_2 Product data sheet Rev. 02 — 19 February 2009 Nexperia B.V. 2017. All rights reserved 4 of 12 PRTR5V0U2F; PRTR5V0U2K Nexperia Ultra low capacitance double rail-to-rail ESD protection 6. Characteristics Table 9. Characteristics Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions Min Typ Max Unit IR reverse current VR = 5 V [1] C(I/O-GND) input/output to ground capacitance -
