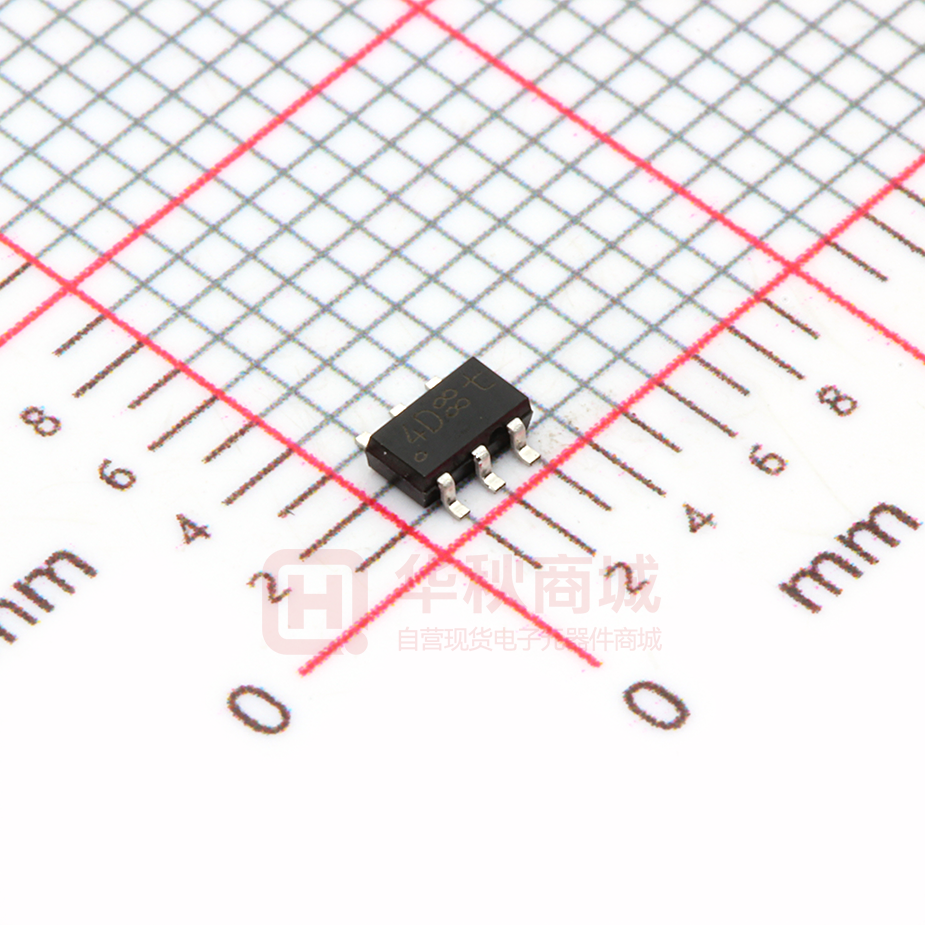

PRTR5V0U4D,125

PRTR5V0U4D,125

  • 厂商:

    NEXPERIA(安世)

  • 封装:

    TSOP-6_2.9X1.5MM

  • 描述:

    ESD VBR(Min)=6V SC74 4单向通道

  • 数据手册
  • 价格&库存
PRTR5V0U4D,125 数据手册
PRTR5V0U4D Ultra low capacitance quadruple rail-to-rail ESD protection Rev. 2 — 5 March 2012 Product data sheet 1. Product profile 1.1 General description Ultra low capacitance quadruple rail-to-rail ElectroStatic Discharge (ESD) protection device in an SOT457 (SC-74) small Surface-Mounted Device (SMD) plastic package. The device is designed to protect four high-speed data lines or high-frequency signal lines from the damage caused by ESD and other transients. PRTR5V0U4D integrates four ultra low capacitance rail-to-rail ESD protection channels and one additional ESD protection diode to ensure signal line protection even if no supply voltage is available. 1.2 Features and benefits         ESD protection of four high-speed data lines or high-frequency signal lines Ultra low input/output to ground capacitance: C(I/O-GND) = 1 pF ESD protection up to 8 kV IEC 61000-4-2, level 4 (ESD) Very low clamping voltage due to an integrated additional ESD protection diode Very low reverse current AEC-Q101 qualified Small SMD plastic package 1.3 Applications        USB 2.0 interfaces Digital Video Interface (DVI) High-Definition Multimedia Interface (HDMI) Mobile phones Digital cameras WAN/LAN systems PC, notebooks, printers and other PC peripherals PRTR5V0U4D Nexperia Ultra low capacitance quadruple rail-to-rail ESD protection 1.4 Quick reference data Table 1. Quick reference data Tamb = 25 C unless otherwise specified. Symbol Parameter Conditions Min Typ Max Unit 1.0 - pF Per channel C(I/O-GND) input/output to ground capacitance V(I/O-GND) = 0 V; VCC = 3 V; f = 1 MHz [1] - 0 - 5.5 V V(I/O-GND) = 0 V; VCC = 3 V; f = 1 MHz [2] - 40 - pF Zener diode VI input voltage Csup supply pin to ground capacitance [1] Measured from pins 1, 3, 4 and 6 to pin 2. [2] Measured from pin 5 to pin 2. 2. Pinning information Table 2. Pinning Pin Symbol Description 1 I/O1 input/output 1 2 GND ground 3 I/O2 input/output 2 4 I/O3 input/output 3 5 VCC supply voltage 6 I/O4 input/output 4 Simplified outline 6 5 4 1 2 3 Graphic symbol 6 5 4 1 2 3 001aag273 3. Ordering information Table 3. Ordering information Type number PRTR5V0U4D Package Name Description Version SC-74 plastic surface-mounted package (TSOP6); 6 leads SOT457 4. Marking Table 4. PRTR5V0U4D Product data sheet Marking code Type number Marking code PRTR5V0U4D 4D All information provided in this document is subject to legal disclaimers. Rev. 2 — 5 March 2012 © Nexperia B.V. 2017. All rights reserved 2 of 10 PRTR5V0U4D Nexperia Ultra low capacitance quadruple rail-to-rail ESD protection 5. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Conditions Min Max Unit Per device Tj junction temperature - 150 C Tamb ambient temperature 55 +150 C Tstg storage temperature 65 +150 C Min Max Unit - 8 kV - 8 kV Table 6. ESD maximum ratings Tamb = 25 C unless otherwise specified. Symbol Parameter Conditions electrostatic discharge voltage IEC 61000-4-2 (contact discharge) Per channel VESD [1][2] MIL-STD-883 (human body model) [1] Device stressed with ten non-repetitive ESD pulses. [2] Measured from pin 1, 3, 4 or 6 to pin 2 or 5. Table 7. ESD standards compliance Standard Conditions Per channel IEC 61000-4-2; level 4 (ESD) > 8 kV (contact) MIL-STD-883; class 3B (human body model) > 8 kV 001aaa631 IPP 100 % 90 % 10 % tr = 0.7 ns to 1 ns t 30 ns 60 ns Fig 1. PRTR5V0U4D Product data sheet ESD pulse waveform according to IEC 61000-4-2 All information provided in this document is subject to legal disclaimers. Rev. 2 — 5 March 2012 © Nexperia B.V. 2017. All rights reserved 3 of 10 PRTR5V0U4D Nexperia Ultra low capacitance quadruple rail-to-rail ESD protection 6. Characteristics Table 8. Characteristics Tamb = 25 C unless otherwise specified. Symbol Parameter Conditions Min Typ Max Unit Per channel IRM reverse leakage current VR = 3 V [1] - - 100 nA C(I/O-GND) input/output to ground capacitance V(I/O-GND) = 0 V; VCC = 3 V; f = 1 MHz [1] - 1.0 - pF VF forward voltage - 0.7 - V 0 - 5.5 V 6 - 9 V - 40 - pF Zener diode VI input voltage VBR breakdown voltage Csup II = 1 mA supply pin to ground capacitance V(I/O-GND) = 0 V; VCC = 3 V; f = 1 MHz [1] Measured from pins 1, 3, 4 and 6 to pin 2. [2] Measured from pin 5 to pin 2. [2] 7. Application information The device is designed for the protection of for example, two USB 2.0 ports against ESD. Each device is capable to protect both, USB data lines and the VBUS supply. VBUS VBUS D+ D− GND USB 2.0 IEEE1394 CONTROLLER 4 3 5 2 6 1 VBUS D+ D− GND 001aah387 Fig 2. Application diagram 8. Test information 8.1 Quality information This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications. PRTR5V0U4D Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 2 — 5 March 2012 © Nexperia B.V. 2017. All rights reserved 4 of 10 PRTR5V0U4D Nexperia Ultra low capacitance quadruple rail-to-rail ESD protection 9. Package outline 3.1 2.7 6 3.0 2.5 1.7 1.3 1.1 0.9 5 4 2 3 0.6 0.2 pin 1 index 1 0.40 0.25 0.95 0.26 0.10 1.9 Dimensions in mm Fig 3. 04-11-08 Package outline SOT457 (SC-74) 10. Packing information Table 9. Packing methods The indicated -xxx are the last three digits of the 12NC ordering code.[1] Type number Package Description PRTR5V0U4D SOT457 [1] PRTR5V0U4D Product data sheet Packing quantity 3000 10000 4 mm pitch, 8 mm tape and reel; T1 [2] -115 -135 4 mm pitch, 8 mm tape and reel; T2 [3] -125 -165 For further information and the availability of packing methods, see Section 14. [2] T1: normal taping [3] T2: reverse taping All information provided in this document is subject to legal disclaimers. Rev. 2 — 5 March 2012 © Nexperia B.V. 2017. All rights reserved 5 of 10 PRTR5V0U4D Nexperia Ultra low capacitance quadruple rail-to-rail ESD protection 11. Soldering 3.45 1.95 0.45 0.55 (6×) (6×) 0.95 solder lands solder resist 3.3 2.825 0.95 solder paste occupied area 0.7 (6×) Dimensions in mm 0.8 (6×) 2.4 Fig 4. sot457_fr Reflow soldering footprint SOT457 (SC-74) 5.3 1.5 (4×) solder lands 1.475 solder resist 0.45 (2×) 5.05 occupied area 1.475 Dimensions in mm preferred transport direction during soldering 1.45 (6×) 2.85 Fig 5. PRTR5V0U4D Product data sheet sot457_fw Wave soldering footprint SOT457 (SC-74) All information provided in this document is subject to legal disclaimers. Rev. 2 — 5 March 2012 © Nexperia B.V. 2017. All rights reserved 6 of 10 PRTR5V0U4D Nexperia Ultra low capacitance quadruple rail-to-rail ESD protection 12. Revision history Table 10. Revision history Document ID Release date Data sheet status Change notice Supersedes PRTR5V0U4D v.2 20120305 Product data sheet - PRTR5V0U4D v.1 Modifications: PRTR5V0U4D v.1 PRTR5V0U4D Product data sheet • • • • • Section 1 “Product profile”: reshaped • • • • • • Section 6 “Characteristics”: reshaped; ILR redefined to IRM Section 1.4 “Quick reference data”: added Section 2: updated Section 4 “Marking”: added Section 5 “Limiting values”: reshaped and updated; junction temperature Tj added; Table 6, Table 7 and Figure 1 added Section 8 “Test information”: added Figure 3: replaced by minimized outline drawing Section 10 “Packing information”: added Section 11 “Soldering”: added Section 13 “Legal information”: updated 20080111 Product data sheet - All information provided in this document is subject to legal disclaimers. Rev. 2 — 5 March 2012 - © Nexperia B.V. 2017. All rights reserved 7 of 10 PRTR5V0U4D Nexperia Ultra low capacitance quadruple rail-to-rail ESD protection 13. Legal information 13.1 Data sheet status Document status[1][2] Product status[3] Definition Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Definitions”. [3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the Internet at URL http://www.nexperia.com. 13.2 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. 13.3 Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia. In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. PRTR5V0U4D Product data sheet Suitability for use in automotive applications — This Nexperia product has been qualified for use in automotive applications. Unless otherwise agreed in writing, the product is not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of a Nexperia product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer's own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. All information provided in this document is subject to legal disclaimers. Rev. 2 — 5 March 2012 © Nexperia B.V. 2017. All rights reserved 8 of 10 PRTR5V0U4D Nexperia Ultra low capacitance quadruple rail-to-rail ESD protection No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. 13.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. 14. Contact information For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com PRTR5V0U4D Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 2 — 5 March 2012 © Nexperia B.V. 2017. All rights reserved 9 of 10 PRTR5V0U4D Nexperia Ultra low capacitance quadruple rail-to-rail ESD protection 15. Contents 1 1.1 1.2 1.3 1.4 2 3 4 5 6 7 8 8.1 9 10 11 12 13 13.1 13.2 13.3 13.4 14 15 © Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . 1 General description . . . . . . . . . . . . . . . . . . . . . 1 Features and benefits . . . . . . . . . . . . . . . . . . . . 1 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Quick reference data . . . . . . . . . . . . . . . . . . . . 2 Pinning information . . . . . . . . . . . . . . . . . . . . . . 2 Ordering information . . . . . . . . . . . . . . . . . . . . . 2 Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 3 Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Application information. . . . . . . . . . . . . . . . . . . 4 Test information . . . . . . . . . . . . . . . . . . . . . . . . . 4 Quality information . . . . . . . . . . . . . . . . . . . . . . 4 Package outline . . . . . . . . . . . . . . . . . . . . . . . . . 5 Packing information . . . . . . . . . . . . . . . . . . . . . 5 Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . 7 Legal information. . . . . . . . . . . . . . . . . . . . . . . . 8 Data sheet status . . . . . . . . . . . . . . . . . . . . . . . 8 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Contact information. . . . . . . . . . . . . . . . . . . . . . 9 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Nexperia B.V. 2017. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 05 March 2012
