EWK1HM100D11OT

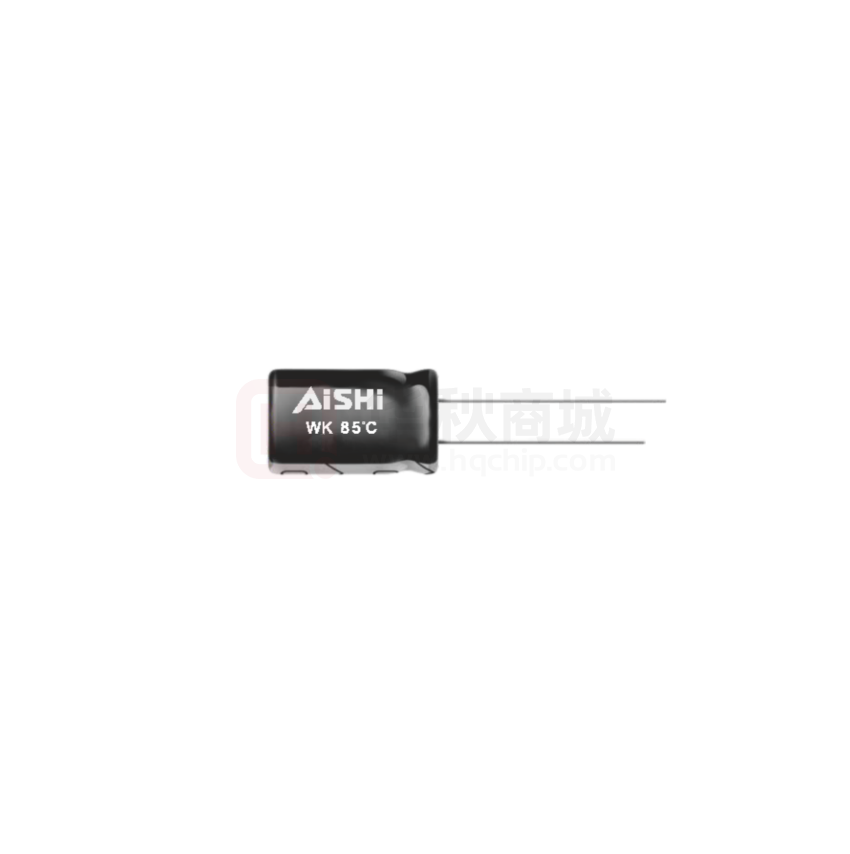

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS WK series Standard series for general purpose WK 8 5 C 1808 Endurance : +85 °C 2,000 hours RoHS Compliant SPECIFICATIONS Items Characteristics Category Temperature Range -40~+85°C(6.3 to 100 V dc ) Rated Voltage Range 6.3~450 V dc Capacitance Tolerance ±20%(M) (at 20°C,120Hz) 6.3~100 V dc Leakage Current -25~+85°C(160 to 450 V dc ) 160~450 V dc I≤0.01CV or 3μA, I≤0.03CV+10μA whichever is greater. Rated Voltage(V dc ) Dissipation Factor (tanδ) 6.3 10 16 Where, I: Max.leakage current (μA),C:Nominal capacitance (μF), V: Rated voltage (V) (at 20°C after 2 minutes) 25 35 50 0.24 0.20 0.16 0.14 0.12 tanδ (max.) 0.10 63 100 160 200 250 350 400 450 0.09 0.08 0.20 0.20 0.20 0.24 0.24 0.24 When nominal capacitance exceeds 1,000μF , add 0.02 to the value above for each 1,000μF increase. (at 20°C,120Hz) Low Temperature Characteristics (Max. Impedance Ratio) Rated Voltage(V dc ) 6.3 10 16 Z(-25°C)/Z(+20°C) 5 4 3 Z(-40°C)/Z(+20°C) 12 10 8 25 35 5 4 50 63 100 160 2 3 200 250 350 400 450 3 6 - - (at 120Hz) The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 2,000 hours at 85°C. Endurance Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hours at 85°C without voltage applied. Shelf Life Capacitance Change ≤±20% of the initial value D.F. (tanδ) ≤200% of the initial specified value Leakage Current ≤200% of the initial specified value DIMENSIONS[mm] Sleeve(Black) Ød ØD' F±0.5 L' 4min. 15min. ( Ø 5~ Ø 18) ØD 5 6.3 Ød 0.5 0.5 F ØD' L' 2.0 2.5 8 0.5 0.6 3.5 10 12.5 16 18 0.6 0.6 0.8 0.8 5.0 5.0 7.5 7.5 Ø D+0.5max. L+2max. E WK 2G M 3R3 G12 O- - Radial Type PART NUMBERING SYSTEM T Sleeve Code: “C” for PVC, “T” for PET Terminal code Size code Capacitance code Capacitance tolerance code Voltage code Series code Category code RATED RIPPLE CURRENT MULTIPLIERS Frequency correction factor for ripple current Freq.(Hz) Cap.(μF) 50 120 300 1k 10k 100k Cap.
