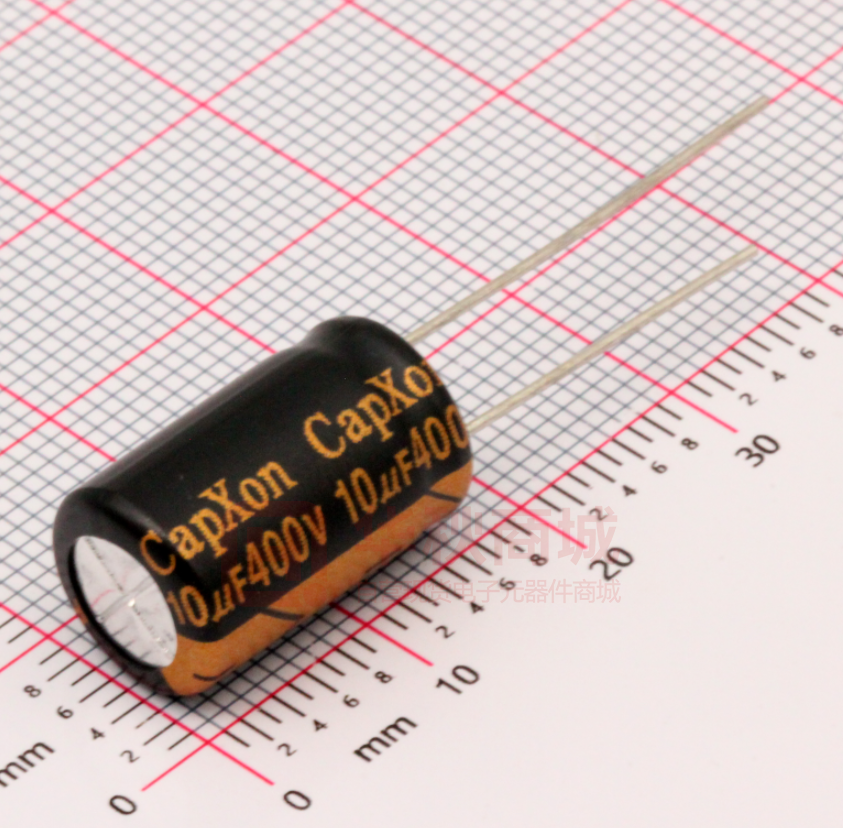

ALUMINUM ELECTROLYTIC CAPACITOR ▪ FK SERIES FK SERIES ▪ HIGH VOLTAGE, AUTOMOTIVE 105°C TYPE KEY FEATURES ▪ ▪ ▪ ▪ ▪ ALUMINUM ELECTROLYTIC CAPACITOR ▪ THT type Endurance: 105°C ▪ 6 000 hours up to 8 000 hours High voltage up to 500V High reliability AEC-Q200 version available SPECIFICATIONS Items Operating Temperature Range Rated Voltage Range VR Surge Voltage VS Capacitance Range CR Cap. Tolerance ΔC Leakage Current ILEAK (20°C ▪ VR applied) Dissipation Factor % (20°C ▪ 120Hz) Low Temperature Characteristics at 120Hz tanδ Z ratio max. Performance Characteristics -40 ~ +105°C -25 ~ +105°C 160 ~ 450V DC 500V DC (VR ≤ 315V): VS = 1.15∙VR (VR > 315V): VS = 1.10∙VR 1 ~ 330µF 4.7 ~ 120µF ±20% (120Hz ▪ 20°C) ≤ 0.1∙CR∙VR + 40µA ▪ After 1 minute [ ILEAK (µA) ; CR (µF) ; VR (V) ] VR (V DC) tanδ (%) 160 15 200 15 250 15 350 20 400 20 450 20 500 24 VR (V DC) 160 3 6 200 3 6 250 3 6 350 5 6 400 5 6 450 6 - 500 6 - Z-25°C/Z+20°C Z-40°C/Z+20°C ~ Lifetime Test Endurance 105°C (VR & IR applied) Shelf Life 105°C (VR = 0) CapXon_Ver. 001 – 03/31/2020 6 000 hours ø D 6.3 ~ 8 mm 6 000 hours ø D 10 x L 9 mm Test 8 000 hours ø D 10 x L 12.5 mm 8 000 hours ø D > 10 mm △C/CR ≤ ±20% of initial measured value tanδ ≤ 200% of initial specified value ILeak ≤ the initial specified value Test 1 000 hours △C/CR ≤ ±20% of initial measured value tanδ ≤ 200% of initial specified value ILeak ≤ the initial specified value Before measurement: Restore capacitor to 20°C, apply VR for 30 min according JIS-C-5101-4 1 For further information please contact sales@capxon.org Document Number: FK series ALUMINUM ELECTROLYTIC CAPACITOR ▪ FK SERIES STANDARD RATINGS Part number shows bulk version with straight leads VR (V) CR (µF) øD (mm) L (mm) IR ▪ Max. Ripple Current +105°C ▪ 120Hz (mA rms) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 160 1 1 1.5 1.5 2.2 2.2 3.3 3.3 4.7 4.7 5.6 5.6 5.6 6.8 6.8 6.8 8.2 8.2 10 10 10 10 15 15 22 22 22 33 33 47 47 68 82 100 100 150 220 270 330 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 8 6.3 8 8 8 8 8 8 8 10 8 10 8 10 10 10 10 10 10 13 13 13 16 16 18 16 18 11 9 11 9 11 9 11 9 11 9 11 9 11.5 11 11.5 9 11.5 9 11.5 16 9 12.5 16 9 20 12.5 16 16 20 16 20 20 20 25 20 25 25 31.5 31.5 20.4 18.4 22.4 20.4 28.4 26 32.4 29.2 36.4 34.4 38.4 36.4 44 44 52 44 60 56 96 110 88 120 110 100 180 160 180 230 250 300 300 470 520 620 630 840 1090 1260 1400 51 46 56 51 71 65 81 73 91 86 96 91 110 110 130 110 150 140 240 275 220 300 275 250 450 400 450 575 625 750 750 1175 1300 1395 1418 1890 2453 2835 3150 FK010M160E110A ꙱ FK010M160E090A ꙱ FK1R5M160E110A ꙱ FK1R5M160E090A ꙱ FK2R2M160E110A ꙱ FK2R2M160E090A ꙱ FK3R3M160E110A ꙱ FK3R3M160E090A ꙱ FK4R7M160E110A ꙱ FK4R7M160E090A ꙱ FK5R6M160E110A ꙱ FK5R6M160E090A ꙱ FK5R6M160F115A ꙱ FK6R8M160E110A ꙱ FK6R8M160F115A ꙱ FK6R8M160F090A ꙱ FK8R2M160F115A ꙱ FK8R2M160F090A ꙱ FK100M160F115A ꙱ FK100M160F160A ꙱ FK100M160F090A ꙱ FK100M160G125A ꙱ FK150M160F160A ꙱ FK150M160G090A ꙱ FK220M160F200A ꙱ FK220M160G125A ꙱ FK220M160G160A ꙱ FK330M160G160A ꙱ FK330M160G200A ꙱ FK470M160G160A ꙱ FK470M160G200A ꙱ FK680M160I200A ꙱ FK820M160I200A ꙱ FK101M160I250A ꙱ FK101M160J200A ꙱ FK151M160J250A ꙱ FK221M160K250A ꙱ FK271M160J315A ꙱ FK331M160K315A ꙱ ꙱: Enter blank for Standard version ꙱: Enter X for AEC-Q200 version See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 001 – 03/31/2020 2 For further information please contact sales@capxon.org Document Number: FK series ALUMINUM ELECTROLYTIC CAPACITOR ▪ FK SERIES STANDARD RATINGS VR (V) 200 250 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) IR ▪ Max. Ripple Current +105°C ▪ 120Hz (mA rms) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 1 1 1.5 1.5 2.2 2.2 3.3 3.3 4.7 4.7 5.6 5.6 5.6 6.8 6.8 8.2 10 10 10 10 22 22 22 33 33 47 47 68 68 100 100 150 220 1 1 1.5 1.5 2.2 2.2 2.2 3.3 3.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 8 6.3 8 8 8 8 8 8 8 10 10 8 10 10 10 10 13 13 13 13 13 16 18 16 6.3 6.3 6.3 6.3 6.3 6.3 8 6.3 6.3 11 9 11 9 11 9 11 9 11 9 11 11.5 9 11.5 9 11.5 11.5 16 12.5 9 20 16 20 16 20 16 20 20 25 25 25 25 31.5 11 9 11 9 11 9 11.5 11 9 22.8 21.2 24.4 22.8 30 27.6 38.8 34.8 52 52 56 64 56 76 64 84 110 120 130 110 220 220 250 260 280 360 390 470 520 630 680 900 1090 23.6 21.2 24.4 22.8 30.4 27.6 38 40 34.8 57 53 61 57 75 69 97 87 130 130 140 160 140 190 160 210 275 300 325 275 550 550 625 650 700 900 975 1175 1300 1418 1530 2025 2453 59 53 61 57 76 69 95 100 87 FK010M200E110A ꙱ FK010M200E090A ꙱ FK1R5M200E110A ꙱ FK1R5M200E090A ꙱ FK2R2M200E110A ꙱ FK2R2M200E090A ꙱ FK3R3M200E110A ꙱ FK3R3M200E090A ꙱ FK4R7M200E110A ꙱ FK4R7M200F090A ꙱ FK5R6M200E110A ꙱ FK5R6M200F115A ꙱ FK5R6M200F090A ꙱ FK6R8M200F115A ꙱ FK6R8M200F090A ꙱ FK8R2M200F115A ꙱ FK100M200F115A ꙱ FK100M200F160A ꙱ FK100M200G125A ꙱ FK100M200G090A ꙱ FK220M200F200A ꙱ FK220M200G160A ꙱ FK220M200G200A ꙱ FK330M200G160A ꙱ FK330M200G200A ꙱ FK470M200I160A ꙱ FK470M200I200A ꙱ FK680M200I200A ꙱ FK680M200I250A ꙱ FK101M200I250A ꙱ FK101M200J250A ꙱ FK151M200K250A ꙱ FK221M200J315A ꙱ FK010M250E110A ꙱ FK010M250E090A ꙱ FK1R5M250E110A ꙱ FK1R5M250E090A ꙱ FK2R2M250E110A ꙱ FK2R2M250E090A ꙱ FK2R2M250F115A ꙱ FK3R3M250E110A ꙱ FK3R3M250E090A ꙱ ꙱: Enter blank for Standard version ꙱: Enter X for AEC-Q200 version See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 001 – 03/31/2020 3 For further information please contact sales@capxon.org Document Number: FK series ALUMINUM ELECTROLYTIC CAPACITOR ▪ FK SERIES STANDARD RATINGS VR (V) 250 350 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) IR ▪ Max. Ripple Current +105°C ▪ 120Hz (mA rms) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 3.3 4.7 4.7 4.7 4.7 5.6 5.6 6.8 6.8 6.8 8.2 8.2 10 10 15 22 22 33 33 33 47 47 56 68 100 150 220 1 1 1 1.5 1.5 2.2 2.2 2.2 3.3 3.3 3.3 4.7 4.7 4.7 5.6 8 8 8 8 10 8 8 8 8 10 8 10 8 10 10 10 10 10 13 13 13 13 13 16 16 16 18 6.3 6.3 8 6.3 6.3 6.3 8 8 8 8 10 8 10 10 8 11.5 11.5 16 9 12.5 11.5 9 11.5 16 12.5 16 9 16 12.5 16 16 20 20 16 20 20 25 25 25 25 31.5 31.5 11 9 11.5 11 9 11 11.5 9 11.5 9 12.5 16 12.5 9 16 56 64 72 52 76 72 64 80 92 100 88 80 120 120 130 180 200 270 270 320 400 430 500 560 680 900 1130 26.4 21.2 30.8 30 26.4 38 48 35.2 56 48 64 72 76 64 84 140 160 180 130 190 180 160 200 230 250 220 200 300 300 325 450 500 675 675 800 1000 1075 1250 1400 1530 2025 2543 66 53 77 75 66 95 120 88 140 120 160 180 190 160 210 FK3R3M250F115A ꙱ FK4R7M250F115A ꙱ FK4R7M250F160A ꙱ FK4R7M250F090A ꙱ FK4R7M250G125A ꙱ FK5R6M250F115A ꙱ FK5R6M250F090A ꙱ FK6R8M250F115A ꙱ FK6R8M250F160A ꙱ FK6R8M250G125A ꙱ FK8R2M250F160A ꙱ FK8R2M250G090A ꙱ FK100M250F160A ꙱ FK100M250G125A ꙱ FK150M250G160A ꙱ FK220M250G160A ꙱ FK220M250G200A ꙱ FK330M250G200A ꙱ FK330M250I160A ꙱ FK330M250I200A ꙱ FK470M250I200A ꙱ FK470M250I250A ꙱ FK560M250I250A ꙱ FK680M250J250A ꙱ FK101M250J250A ꙱ FK151M250J315A ꙱ FK221M250K315A ꙱ FK010M350E110A ꙱ FK010M350E090A ꙱ FK010M350F115A ꙱ FK1R5M350E110A ꙱ FK1R5M350E090A ꙱ FK2R2M350E110A ꙱ FK2R2M350F115A ꙱ FK2R2M350F090A ꙱ FK3R3M350F115A ꙱ FK3R3M350F090A ꙱ FK3R3M350G125A ꙱ FK4R7M350F160A ꙱ FK4R7M350G125A ꙱ FK4R7M350G090A ꙱ FK5R6M350F160A ꙱ ꙱: Enter blank for Standard version ꙱: Enter X for AEC-Q200 version See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 001 – 03/31/2020 4 For further information please contact sales@capxon.org Document Number: FK series ALUMINUM ELECTROLYTIC CAPACITOR ▪ FK SERIES STANDARD RATINGS VR (V) 350 400 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) IR ▪ Max. Ripple Current +105°C ▪ 120Hz (mA rms) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 5.6 6.8 6.8 8.2 10 10 15 22 33 47 47 68 68 82 100 150 1 1 1.5 1.5 2.2 2.2 2.2 3.3 3.3 4.7 4.7 4.7 4.7 5.6 5.6 6.8 6.8 8.2 8.2 8.2 10 10 10 15 15 22 10 8 10 8 8 10 10 13 13 16 16 18 18 18 16 18 6.3 6.3 6.3 8 6.3 8 8 8 8 8 8 10 10 8 10 8 10 8 10 10 8 10 10 10 13 13 12.5 20 16 20 20 16 20 20 25 20 25 20 25 25 31.5 35.5 11 9 9 11.5 11 11.5 9 11.5 9 11.5 16 12.5 9 16 12.5 16 12.5 16 12.5 16 20 16 20 20 16 20 88 110 110 130 130 130 150 260 380 430 460 560 600 610 720 960 30.4 25.2 30.4 36.4 44 48 40 60 52 80 88 92 72 88 100 110 110 110 120 130 140 140 160 190 200 260 220 275 275 325 325 325 375 650 950 1075 1150 1400 1500 1525 1620 2160 76 63 76 91 110 120 100 150 130 200 220 230 180 220 250 275 275 275 300 325 350 350 400 475 500 650 FK5R6M350G125A ꙱ FK6R8M350F200A ꙱ FK6R8M350G160A ꙱ FK8R2M350F200A ꙱ FK100M350F200A ꙱ FK100M350G160A ꙱ FK150M350G200A ꙱ FK220M350I200A ꙱ FK330M350I250A ꙱ FK470M350J200A ꙱ FK470M350J250A ꙱ FK680M350K200A ꙱ FK680M350K250A ꙱ FK820M350K250A ꙱ FK101M350J315A ꙱ FK151M350K355A ꙱ FK010M400E110A ꙱ FK010M400E090A ꙱ FK1R5M400E090A ꙱ FK1R5M400F115A ꙱ FK2R2M400E110A ꙱ FK2R2M400F115A ꙱ FK2R2M400F090A ꙱ FK3R3M400F115A ꙱ FK3R3M400F090A ꙱ FK4R7M400F115A ꙱ FK4R7M400F160A ꙱ FK4R7M400G125A ꙱ FK4R7M400G090A ꙱ FK5R6M400F160A ꙱ FK5R6M400G125A ꙱ FK6R8M400F160A ꙱ FK6R8M400G125A ꙱ FK8R2M400F160A ꙱ FK8R2M400G125A ꙱ FK8R2M400G160A ꙱ FK100M400F200A ꙱ FK100M400G160A ꙱ FK100M400G200A ꙱ FK150M400G200A ꙱ FK150M400I160A ꙱ FK220M400I200A ꙱ ꙱: Enter blank for Standard version ꙱: Enter X for AEC-Q200 version See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 001 – 03/31/2020 5 For further information please contact sales@capxon.org Document Number: FK series ALUMINUM ELECTROLYTIC CAPACITOR ▪ FK SERIES STANDARD RATINGS VR (V) 400 450 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) IR ▪ Max. Ripple Current +105°C ▪ 120Hz (mA rms) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 33 33 47 56 68 82 100 120 150 1 1 1.5 2.2 2.2 2.2 2.2 3.3 3.3 3.3 4.7 4.7 4.7 5.6 6.8 6.8 6.8 8.2 10 15 22 22 33 33 47 47 68 68 82 100 13 16 16 18 18 16 18 18 18 6.3 6.3 8 8 8 8 10 8 10 10 8 10 10 10 8 10 10 10 10 13 13 16 13 16 16 18 16 18 18 18 25 20 25 25 25 31.5 31.5 31.5 35.5 11 9 11.5 11.5 16 9 12.5 11.5 12.5 9 16 12.5 16 16 20 16 20 20 20 20 25 20 25 25 25 25 31.5 25 31.5 35.5 360 360 470 560 590 630 770 830 930 30.4 25.2 36.4 48 56 40 60 64 80 68 100 100 110 110 120 130 140 140 160 220 290 290 360 390 470 500 630 590 680 800 900 900 1175 1400 1475 1575 1733 1868 2093 76 63 91 120 140 100 150 160 200 170 250 250 275 275 300 325 350 350 400 550 725 725 900 975 1175 1250 1575 1475 1700 1800 FK330M400I250A ꙱ FK330M400J200A ꙱ FK470M400J250A ꙱ FK560M400K250A ꙱ FK680M400K250A ꙱ FK820M400J315A ꙱ FK101M400K315A ꙱ FK121M400K315A ꙱ FK151M400K355A ꙱ FK010M450E110A ꙱ FK010M450E090A ꙱ FK1R5M450F115A ꙱ FK2R2M450F115A ꙱ FK2R2M450F160A ꙱ FK2R2M450F090A ꙱ FK2R2M450G125A ꙱ FK3R3M450F115A ꙱ FK3R3M450G125A ꙱ FK3R3M450G090A ꙱ FK4R7M450F160A ꙱ FK4R7M450G125A ꙱ FK4R7M450G160A ꙱ FK5R6M450G160A ꙱ FK6R8M450F200A ꙱ FK6R8M450G160A ꙱ FK6R8M450G200A ꙱ FK8R2M450G200A ꙱ FK100M450G200A ꙱ FK150M450I200A ꙱ FK220M450I250A ꙱ FK220M450J200A ꙱ FK330M450I250A ꙱ FK330M450J250A ꙱ FK470M450J250A ꙱ FK470M450K250A ꙱ FK680M450J315A ꙱ FK680M450K250A ꙱ FK820M450K315A ꙱ FK101M450K355A ꙱ ꙱: Enter blank for Standard version ꙱: Enter X for AEC-Q200 version See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 001 – 03/31/2020 6 For further information please contact sales@capxon.org Document Number: FK series ALUMINUM ELECTROLYTIC CAPACITOR ▪ FK SERIES STANDARD RATINGS Part number shows bulk version with straight leads VR (V) CR (µF) øD (mm) L (mm) IR ▪ Max. Ripple Current +105°C ▪ 120Hz (mA rms) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 500 4.7 5.6 6.8 8.2 10 15 22 33 47 56 68 82 100 120 10 10 10 10 13 13 16 18 16 18 18 18 18 22 20 20 20 20 20 25 25 25 31.5 31.5 35.5 40 45 45 88 92 130 130 140 180 230 390 500 570 630 680 800 840 220 230 325 325 350 450 575 975 1250 1425 1575 1700 1800 1890 FK4R7M500G200A ꙱ FK5R6M500G200A ꙱ FK6R8M500G200A ꙱ FK8R2M500G200A ꙱ FK100M500I200A ꙱ FK150M500I250A ꙱ FK220M500J250A ꙱ FK330M500K250A ꙱ FK470M500J315A ꙱ FK560M500K315A ꙱ FK680M500K355A ꙱ FK820M500K400A ꙱ FK101M500K450A ꙱ FK121M500M450A ꙱ ꙱: Enter blank for Standard version ꙱: Enter X for AEC-Q200 version See “PACKAGING INFORMATION” to taped or formed products. ±0. d±0.02 DIMENSIONS ▪ All dimensions in mm ±0. L±a øD F 6.3 2.5 ød 0.5 8 3.5 L < 20 0.5 1.5 CapXon_Ver. 001 – 03/31/2020 10 5 L ≥ 20 0.6 ø D < 16 a 1 in. i n. 13 5 16 7.5 18 7.5 0.6 22 10 0.8 ø D = 16 ø D = 18 ø D > 18 L = 25 to 35.5 L < 25 and L ≥ 40 L = 25 to 31.5 L < 25 and L ≥ 35.5 1.5 2 1.5 2 7 For further information please contact sales@capxon.org 2 Document Number: FK series ALUMINUM ELECTROLYTIC CAPACITOR ▪ FK SERIES MULTIPLIER Kf for RIPPLE CURRENT vs. FREQUENCY CR (µF) / Frequency (Hz) 100/120 1k 10k 100k 1 ~ 82 ≥ 100 1 1 1.75 1.67 2.25 2.05 2.5 2.25 PRECAUTIONS, GUIDELINES AND PACKAGING INFORMATON Unless otherwise agreed in individual specifications, all products are subject to our “General Precautions and Guidelines” as well as our “Packaging Infor ation”. Please refer to the following links in the table. General Precautions & Guidelines Packaging Information 3D Models DISCLAIMER All product related data (e.g. specification, statements and general information) are subject to change without any notice. It is necessary that the customer observes all product related technical / application information and handling instructions. CapXon products are designed and manufactured according to severe quality and safety standards. Under no circumstance, CapXon warrants that any CapXon product is suitable for the purposes intended for your application, even CapXon knows the application. It is customer's duty and obligation to check and make sure that CapXon products are suitable for the purposes intended and select the correct and proper CapXon product. Customers are requested to perform a sufficient validation and reliability evaluation to assure needed safety level and reliability performance by suitable designs and to apply proper safeguards (e.g. redundancies, protective circuits). Particular operating conditions (ambient temperature, ripple current, voltage, thermal resistance, etc.) as well as storage, production or assembly may affect the performance and the lifetime of the capacitor. Please consult CapXon for lifetime estimation, failure mode considerations or worst-case scenarios according to the product technology, product tolerances / deviations or change of the characteristics of the capacitor due to shipment, storage, handling, production and usage. or aerospace or ilitary application, life‐saving, life‐sustaining, safety critical applications or any application where failure may cause severe personal injury or death, please consult us before design‐in the capacitor in your application. Except for the written expressed warranties, CapXon does not impliedly, by assumption or whatever else, warrant, undertake, promise any other warranty or guaranty for any CapXon product. For further information, please visit our website www.capxongroup.com or contact CapXon directly. CapXon_Ver. 001 – 03/31/2020 8 For further information please contact sales@capxon.org Document Number: FK series
