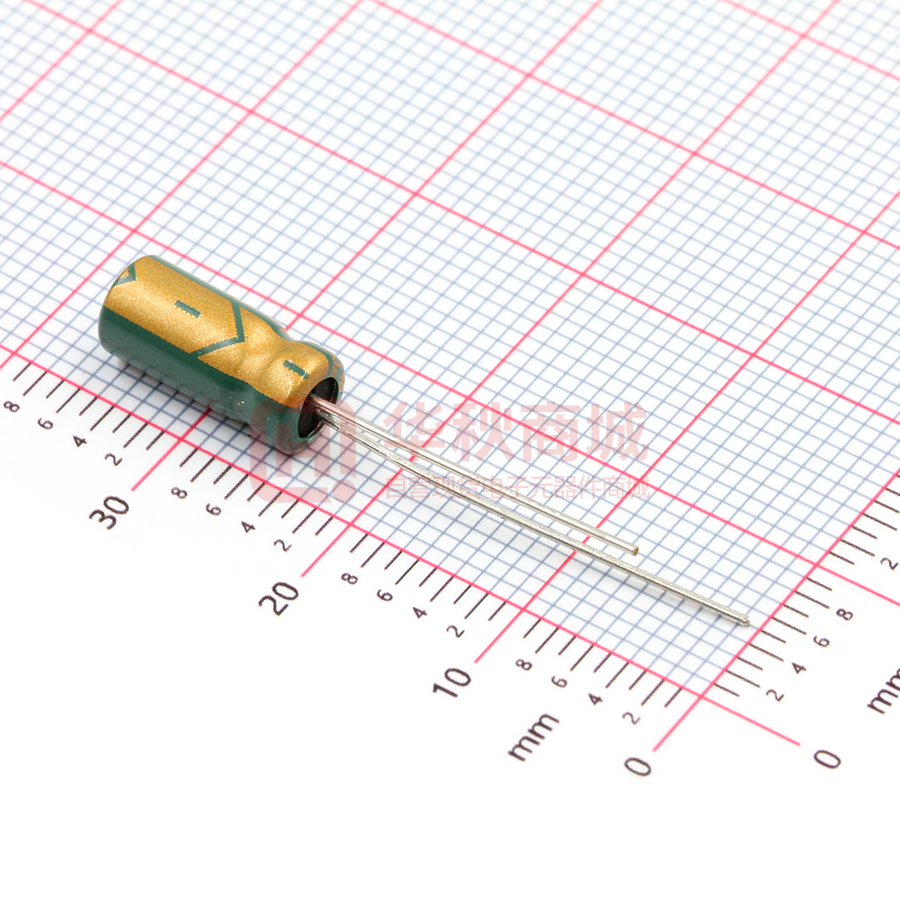

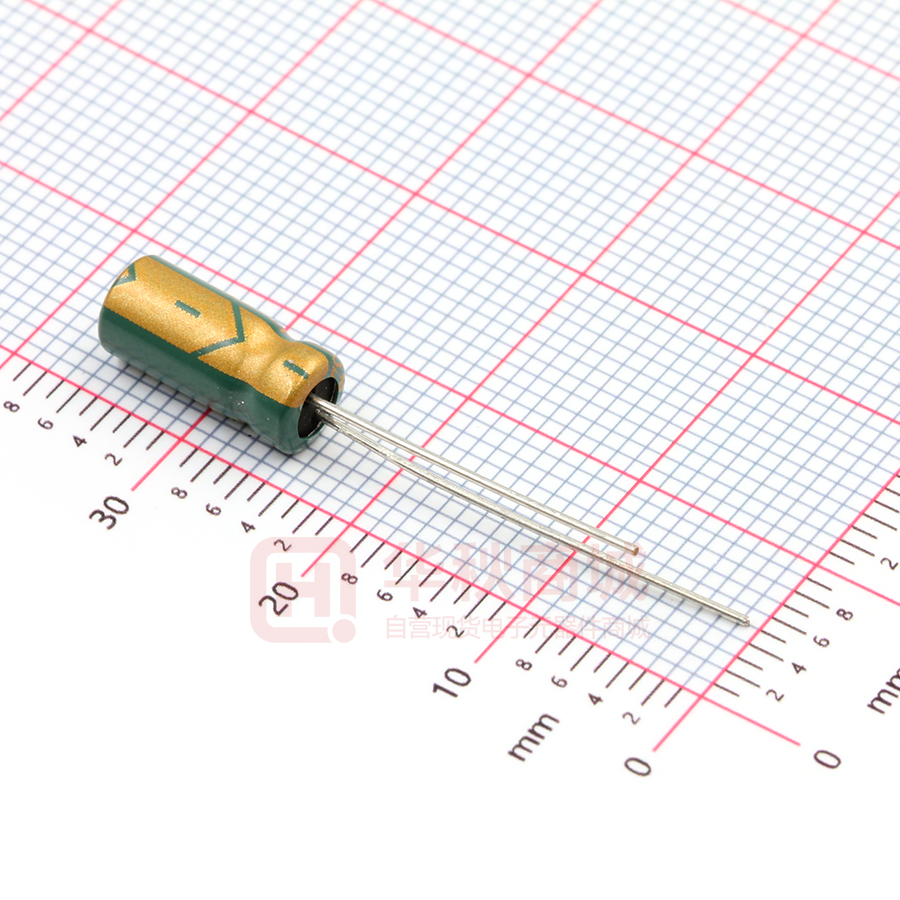

GF101M010C110A

ALUMINUM ELECTROLYTIC CAPACITOR ▪ GF SERIES GF SERIES ▪ LOW IMPEDANCE 105°C TYPE KEY FEATURES ▪ ▪ ▪ ▪ ▪ ALUMINUM ELECTROLYTIC CAPACITOR ▪ THT type Endurance: 105°C ▪ 2 000 hours up to 5 000 hours Low impedance and high ripple current Wide capacitance range Optimized low temperature type SPECIFICATIONS Items Operating Temperature Range Rated Voltage Range VR Surge Voltage VS Capacitance Range CR Cap. Tolerance ΔC Leakage Current ILEAK (20°C ▪ VR applied) Dissipation Factor % (20°C ▪ 120Hz) tanδ Performance Characteristics -40 ~ +105°C 6.3 ~ 100V DC VS = 1.15∙VR 4.7 ~ 6800µF ±20% (120Hz ▪ 20°C) ≤ 0.01∙CR∙VR or 3µA, whichever is greater ▪ After 2 minutes [ ILEAK (µA) ; CR (µF) ; VR (V) ] VR (V DC) 6.3 10 16 25 35 50 63 100 tanδ (%) 16 14 12 10 9 8 8 8 For CR ≥ 1000μF, add 2% per every multiple 1000μF of rated capacitance value VR (V DC) Low Temperature Characteristics at 120Hz Z ratio max. Z-25°C/Z+20°C Z-40°C/Z+20°C Z-25°C/Z+20°C Z-40°C/Z+20°C 6.3 4 8 10 3 6 16 3 4 25 3 3 35 3 3 50 3 3 63 2 3 100 2 3 For capacitance > 1000µF Add 0.5 for every multiple 1000µF of rated capacitance value Add 1 for every multiple 1000µF of rated capacitance value ~ Lifetime Test Endurance 105°C (VR & IR applied) Shelf Life 105°C (VR = 0) CapXon_Ver. 002 – 01/31/2021 2 000 hours ø D 5 ~ 6.3 mm 3 000 hours ø D 8 mm 5 000 hours ø D ≥ 10 mm △C/CR ≤ ±20% of initial measured value tanδ ≤ 200% of initial specified value ILeak ≤ the initial specified value Test 1 000 hours △C/CR ≤ ±20% of initial measured value tanδ ≤ 200% of initial specified value ILeak ≤ the initial specified value Before measurement: Restore capacitor to 20°C, apply VR for 30 min according JIS-C-5101-4 Test 1 For further information please contact sales@capxon.org Document Number: GF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ GF SERIES STANDARD RATINGS VR (V) 6.3 10 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 100 120 150 180 220 270 330 390 470 560 680 680 820 1000 1200 1200 1500 1500 1800 2200 2200 2700 3300 3900 3900 4700 5600 6800 68 82 100 120 150 180 220 270 330 390 470 560 680 820 1000 5 5 5 6.3 6.3 6.3 6.3 8 8 8 8 10 8 10 8 10 10 10 10 10 13 13 13 10 13 13 13 16 5 5 5 5 6.3 6.3 6.3 6.3 8 8 8 8 8 8 8 11 11 11 11 11 11 11 11.5 11.5 16 16 16 20 12.5 20 16 20 25 20 25 20 20 20 30 25 30 35 31.5 11 11 11 11 11 11 11 15 11.5 11.5 11.5 16 20 20 20 400 380 350 320 250 240 200 140 95 87 80 84 70 55 48 50 45 43 41 37 39 34 26 24 22 21 20 18 700 500 310 280 260 220 180 160 110 95 75 72 68 65 50 200 210 225 300 360 377 395 576 600 720 800 814 970 1000 1150 1180 1400 1560 1500 1720 1890 2080 2290 2450 2670 3200 3270 3490 190 210 242 261 300 350 390 460 540 620 750 870 1010 1030 1220 GF101M6R3C110A GF121M6R3C110A GF151M6R3C110A GF181M6R3E110A GF221M6R3E110A GF271M6R3E110A GF331M6R3E110A GF391M6R3F115A GF471M6R3F115A GF561M6R3F160A GF681M6R3F160A GF681M6R3G160A GF821M6R3F200A GF102M6R3G125A GF122M6R3F200A GF122M6R3G160A GF152M6R3G200A GF152M6R3G250A GF182M6R3G200A GF222M6R3G250A GF222M6R3I200A GF272M6R3I200A GF332M6R3I200A GF392M6R3G300A GF392M6R3I250A GF472M6R3I300A GF562M6R3I350A GF682M6R3J315A GF680M010C110A GF820M010C110A GF101M010C110A GF121M010C110A GF151M010E110A GF181M010E110A GF221M010E110A GF271M010E150A GF331M010F115A GF391M010F115A GF471M010F115A GF561M010F160A GF681M010F200A GF821M010F200A GF102M010F200A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 2 For further information please contact sales@capxon.org Document Number: GF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ GF SERIES STANDARD RATINGS VR (V) 10 16 25 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 1000 1200 1500 1800 2200 2700 3300 3900 4700 5600 6800 47 56 68 82 100 120 150 180 220 270 330 390 470 470 560 680 680 820 1000 1200 1500 1500 1800 2200 2700 3300 3900 4700 39 47 56 68 10 10 10 10 13 13 13 13 13 16 16 5 5 5 5 6.3 6.3 6.3 8 8 8 8 8 8 10 8 8 10 10 10 10 10 13 13 13 13 13 16 16 5 5 5 6.3 16 20 20 25 20 20 25 30 35 31.5 31.5 11 11 11 11 11 11 11 11.5 11.5 11.5 11.5 16 16 12.5 20 20 16 20 20 25 25 20 20 25 25 35 25 31.5 11 11 11 11 42 35 32 28 25 23 21 20 19 18 16 400 380 350 310 250 230 210 190 140 120 80 75 62 58 57 55 52 48 35 32 30 29 26 22 22 18 18 17 420 350 310 280 1400 1560 1670 2000 2370 2400 2720 3000 3450 3460 3630 200 220 230 260 360 365 385 520 575 600 740 790 990 1000 1070 1120 1280 1400 1840 1920 2050 2200 2380 2750 3000 3490 3520 3770 210 240 256 300 GF102M010G160A GF122M010G200A GF152M010G200A GF182M010G250A GF222M010I200A GF272M010I200A GF332M010I250A GF392M010I300A GF472M010I350A GF562M010J315A GF682M010J315A GF470M016C110A GF560M016C110A GF680M016C110A GF820M016C110A GF101M016E110A GF121M016E110A GF151M016E110A GF181M016F115A GF221M016F115A GF271M016F115A GF331M016F115A GF391M016F160A GF471M016F160A GF471M016G125A GF561M016F200A GF681M016F200A GF681M016G160A GF821M016G200A GF102M016G200A GF122M016G250A GF152M016G250A GF152M016I200A GF182M016I200A GF222M016I250A GF272M016I250A GF332M016I350A GF392M016J250A GF472M016J315A GF390M025C110A GF470M025C110A GF560M025C110A GF680M025E110A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 3 For further information please contact sales@capxon.org Document Number: GF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ GF SERIES STANDARD RATINGS VR (V) 25 35 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 82 100 120 150 180 220 270 330 330 390 470 470 560 680 820 1000 1200 1500 1800 2200 2700 3300 33 39 47 56 68 82 100 120 150 180 220 220 270 330 330 390 470 560 680 820 1000 6.3 6.3 6.3 8 8 8 8 8 10 10 8 10 10 10 10 13 13 13 13 13 16 16 5 6.3 6.3 6.3 6.3 8 8 8 8 8 8 10 10 8 10 10 10 10 13 13 13 11 11 15 11.5 11.5 11.5 16 16 12.5 12.5 20 16 20 20 25 20 20 25 30 35 31.5 31.5 11 11 11 11 11 11.5 11.5 11.5 11.5 16 16 12.5 16 20 16 20 20 25 20 25 25 240 150 130 110 98 75 63 56 54 51 45 42 40 35 32 25 25 23 21 18 18 18 320 310 200 200 190 170 150 130 110 98 56 52 50 41 38 35 34 31 29 21 19 350 410 490 540 620 750 850 990 1010 1050 1260 1415 1450 1570 1910 2340 2390 2710 3150 3420 3480 3600 230 277 340 375 400 480 560 585 680 810 1000 1060 1190 1210 1400 1550 1850 2040 2260 2630 2780 GF820M025E110A GF101M025E110A GF121M025E150A GF151M025F115A GF181M025F115A GF221M025F115A GF271M025F160A GF331M025F160A GF331M025G125A GF391M025G125A GF471M025F200A GF471M025G160A GF561M025G200A GF681M025G200A GF821M025G250A GF102M025I200A GF122M025I200A GF152M025I250A GF182M025I300A GF222M025I350A GF272M025J315A GF332M025J315A GF330M035C110A GF390M035E110A GF470M035E110A GF560M035E110A GF680M035E110A GF820M035F115A GF101M035F115A GF121M035F115A GF151M035F115A GF181M035F160A GF221M035F160A GF221M035G125A GF271M035G160A GF331M035F200A GF331M035G160A GF391M035G200A GF471M035G200A GF561M035G250A GF681M035I200A GF821M035I250A GF102M035I250A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 4 For further information please contact sales@capxon.org Document Number: GF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ GF SERIES STANDARD RATINGS VR (V) 35 50 63 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 1200 1200 1500 1500 1800 2200 2700 22 27 33 39 47 56 68 82 100 120 120 150 180 180 220 270 330 390 470 560 680 820 820 1000 10 15 18 22 27 33 39 47 56 68 82 82 13 16 13 16 16 16 18 5 6.3 6.3 6.3 8 8 8 8 8 8 10 10 8 10 10 10 10 13 13 13 13 13 16 16 5 6.3 6.3 6.3 6.3 6.3 8 8 8 10 8 10 30 25 35 31.5 31.5 31.5 31.5 11 11 11 11 11.5 11.5 11.5 11.5 11.5 16 12.5 12.5 20 16 16 20 25 20 20 20 25 30 25 25 11 11 11 11 11 11 11.5 11.5 11.5 12.5 16 12.5 19 18 18 17 16 15 14 350 340 320 280 200 190 170 120 75 73 72 68 55 55 45 43 32 31 30 28 26 25 24 20 950 850 820 750 550 380 350 220 220 200 170 160 2950 3150 3350 3600 3670 3750 3850 220 265 280 300 360 385 400 550 730 770 790 870 1060 1090 1385 1500 1850 1910 2000 2150 2490 2770 2960 3000 135 168 170 250 260 270 320 400 420 500 540 570 GF122M035I300A GF122M035J250A GF152M035I350A GF152M035J315A GF182M035J315A GF222M035J315A GF272M035K315A GF220M050C110A GF270M050E110A GF330M050E110A GF390M050E110A GF470M050F115A GF560M050F115A GF680M050F115A GF820M050F115A GF101M050F115A GF121M050F160A GF121M050G125A GF151M050G125A GF181M050F200A GF181M050G160A GF221M050G160A GF271M050G200A GF331M050G250A GF391M050I200A GF471M050I200A GF561M050I200A GF681M050I250A GF821M050I300A GF821M050J250A GF102M050J250A GF100M063C110A GF150M063E110A GF180M063E110A GF220M063E110A GF270M063E110A GF330M063E110A GF390M063F115A GF470M063F115A GF560M063F115A GF680M063G125A GF820M063F160A GF820M063G125A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 5 For further information please contact sales@capxon.org Document Number: GF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ GF SERIES STANDARD RATINGS VR (V) 63 100 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 100 120 120 150 180 220 270 330 330 390 470 470 560 680 820 1000 1000 4.7 5.6 6.8 10 15 18 22 27 33 39 39 47 56 68 82 100 120 120 150 180 220 220 270 270 330 390 470 10 8 10 10 10 10 13 10 13 13 13 16 16 16 16 16 18 5 5 5 6.3 8 8 8 8 8 8 10 10 10 10 10 10 10 13 13 13 13 16 13 16 13 16 16 12.5 20 16 16 20 25 20 30 25 25 30 20 25 31.5 31.5 35.5 31.5 11 11 11 11 11.5 11.5 11.5 11.5 16 16 12.5 12.5 16 20 20 25 25 20 20 25 30 20 35 25 40 31.5 35.5 140 140 130 110 95 75 71 47 45 44 41 43 39 35 31 26 28 1600 1490 1450 700 610 560 480 390 310 290 270 250 210 180 150 120 120 110 95 78 65 75 57 58 45 43 32 720 790 835 900 1200 1315 1400 1750 1870 1920 2225 1970 2350 2600 2650 2780 3230 105 116 120 170 255 270 320 340 400 425 440 450 540 630 720 890 900 980 1100 1250 1420 1270 1630 1570 1650 1850 1900 GF101M063G125A GF121M063F200A GF121M063G160A GF151M063G160A GF181M063G200A GF221M063G250A GF271M063I200A GF331M063G300A GF331M063I250A GF391M063I250A GF471M063I300A GF471M063J200A GF561M063J250A GF681M063J315A GF821M063J315A GF102M063J355A GF102M063K315A GF4R7M100C110A GF5R6M100C110A GF6R8M100C110A GF100M100E110A GF150M100F115A GF180M100F115A GF220M100F115A GF270M100F115A GF330M100F160A GF390M100F160A GF390M100G125A GF470M100G125A GF560M100G160A GF680M100G200A GF820M100G200A GF101M100G250A GF121M100G250A GF121M100I200A GF151M100I200A GF181M100I250A GF221M100I300A GF221M100J200A GF271M100I350A GF271M100J250A GF331M100I400A GF391M100J315A GF471M100J355A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 6 For further information please contact sales@capxon.org Document Number: GF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ GF SERIES STANDARD RATINGS Part number shows bulk version with straight leads VR (V) CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 100 470 560 560 680 18 16 18 18 31.5 40 31.5 35.5 38 32 31 29 1700 2170 2100 2400 GF471M100K315A GF561M100J400A GF561M100K315A GF681M100K355A See “PACKAGING INFORMATION” to taped or formed products. ±0 d±0 02 DIMENSIONS ▪ All dimensions in mm ±0 L±a øD F 5 2 6.3 2.5 ød 8 3.5 L < 20 0.5 0.5 1.5 mi n 10 5 L ≥ 20 0.6 ø D < 16 a 1 min 13 5 16 7.5 0.6 18 7.5 0.8 ø D = 16 ø D = 18 L = 25 to 35.5 L < 25 and L ≥ 40 L = 25 to 31.5 L < 25 and L ≥ 35.5 1.5 2 1.5 2 MULTIPLIER Kf for RIPPLE CURRENT vs. FREQUENCY CR (µF) / Frequency (Hz) 50/60 100/120 400 1k 10k 50k ~ 100k CR ≤ 10 10 < CR ≤ 100 100 < CR ≤ 1000 1000 ≤ CR 0.47 0.52 0.58 0.63 0.59 0.62 0.72 0.78 0.76 0.8 0.84 0.87 0.85 0.89 0.9 0.91 0.97 0.97 0.98 0.98 1 1 1 1 CapXon_Ver. 002 – 01/31/2021 7 For further information please contact sales@capxon.org Document Number: GF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ GF SERIES PRECAUTIONS, GUIDELINES AND PACKAGING INFORMATON Unless otherwise agreed in individual specifications, all products are subject to our “General Precautions and Guidelines” as well as our “Packaging Information” Please refer to the following links in the table. General Precautions & Guidelines Packaging Information 3D Models Reliability Tests DISCLAIMER All product related data (e.g. specification, statements and general information) are subject to change without any notice. It is necessary that the customer observes all product related technical / application information and handling instructions. CapXon products are designed and manufactured according to severe quality and safety standards. Under no circumstance, CapXon warrants that any CapXon product is suitable for the purposes intended for your application, even CapXon knows the application. It is customer's duty and obligation to check and make sure that CapXon products are suitable for the purposes intended and select the correct and proper CapXon product. Customers are requested to perform a sufficient validation and reliability evaluation to assure needed safety level and reliability performance by suitable designs and to apply proper safeguards (e.g. redundancies, protective circuits). Particular operating conditions (ambient temperature, ripple current, voltage, thermal resistance, etc.) as well as storage, production or assembly may affect the performance and the lifetime of the capacitor. Please consult CapXon for lifetime estimation, failure mode considerations or worst-case scenarios according to the product technology, product tolerances / deviations or change of the characteristics of the capacitor due to shipment, storage, handling, production and usage. or aerospace or military application, life‐saving, life‐sustaining, safety critical applications or any application where failure may cause severe personal injury or death, please consult us before design‐in the capacitor in your application. Except for the written expressed warranties, CapXon does not impliedly, by assumption or whatever else, warrant, undertake, promise any other warranty or guaranty for any CapXon product. For further information, please visit our website www.capxongroup.com or contact CapXon directly. CapXon_Ver. 002 – 01/31/2021 8 For further information please contact sales@capxon.org Document Number: GF series
