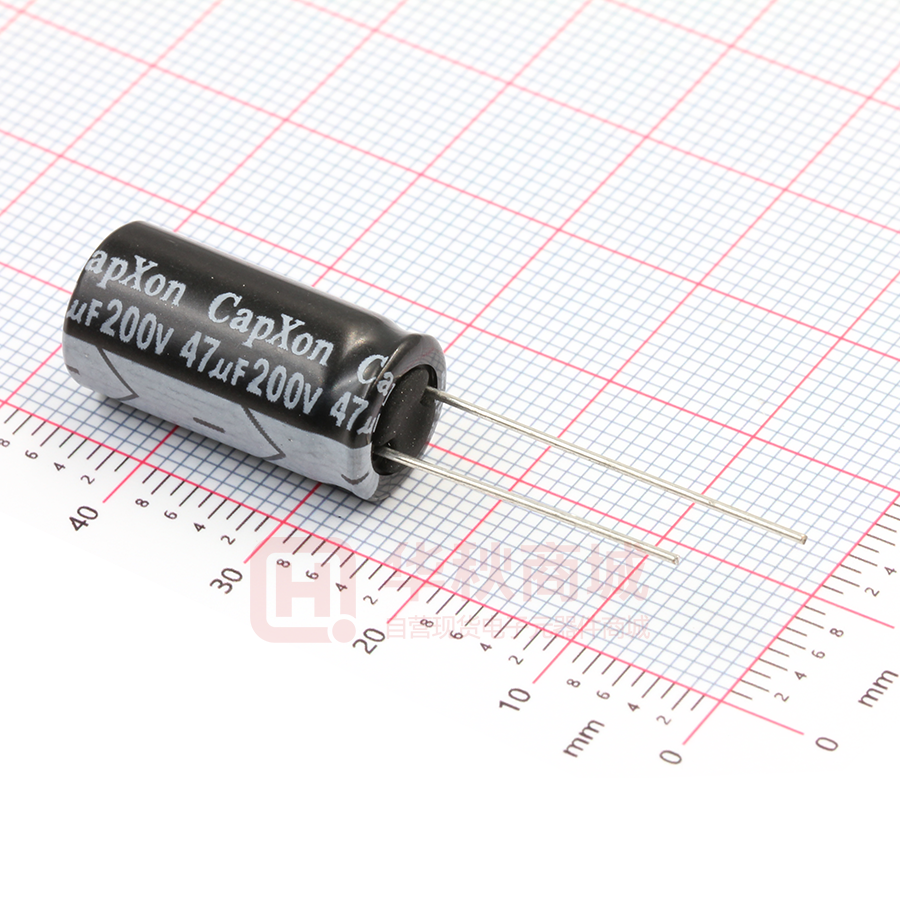

KF470M200G200A

ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES KF SERIES ▪ LOW IMPEDANCE 105°C TYPE KEY FEATURES ▪ ▪ ▪ ▪ ▪ ALUMINUM ELECTROLYTIC CAPACITOR ▪ THT type Endurance: 105°C ▪ 2 000 hours up to 5 000 hours Low impedance and high ripple current High reliability Wide voltage range SPECIFICATIONS Items Operating Temperature Range Rated Voltage Range VR Surge Voltage VS Capacitance Range CR Cap. Tolerance ΔC Leakage Current ILEAK (20°C ▪ VR applied) VR (V DC) tanδ (%) Dissipation Factor % (20°C ▪ 120Hz) Low Temperature Characteristics at 120Hz Performance Characteristics -40 ~ +105°C -25 ~ +105°C 6.3 ~ 100V DC 160 ~ 450V DC (VR ≤ 315V): VS = 1.15∙VR (VR > 315V): VS = 1.10∙VR 0.47 ~ 15000µF 0.47 ~ 330µF ±20% (120Hz ▪ 20°C) ≤ 0.01∙CR∙VR or 3µA ▪ After 2 minutes ≤ 0.03∙CR∙VR or 3µA ▪ After 2 minutes [ ILEAK (µA) ; CR (µF) ; VR (V) ] tanδ Z ratio max. 6.3 18 10 16 16 14 25 12 35 10 50 9 63 8 80 8 100 8 VR (V DC) 160 200 250 350 400 420 450 tanδ (%) 12 12 12 15 15 17 17 For CR ≥ 1000μF, add 2% per every multiple 1000μF of rated capacitance value VR (V DC) Z-25°C/Z+20°C Z-40°C/Z+20°C VR (V DC) Z-25°C/Z+20°C 6.3 4 8 10 3 6 160 2 16 3 4 200 2 25 3 3 250 3 35 3 3 50 3 3 350 5 63 2 3 400 5 80 2 3 100 2 3 450 6 Z-25°C/Z+20°C Add 0.5 for every multiple 1000µF of CR value For CR ≥ 1000μF Z-40°C/Z+20°C Add 1 for every multiple 1000µF of CR value ~ Lifetime Test Endurance 105°C (VR & IR applied) Shelf Life 105°C (VR = 0) CapXon_Ver. 002 – 01/31/2021 2 000 hours ø D 5 ~ 6.3 mm ▪ ≤ 100V 3 000 hours ø D 8 mm ▪ ≤ 100V Test 5 000 hours ø D ≥ 10 mm ▪ ≤ 100V 2 000 hours All ø D ▪ ≥ 160V △C/CR ≤ ±20% of initial measured value tanδ ≤ 200% of initial specified value ILeak ≤ the initial specified value Test 1 000 hours △C/CR ≤ ±20% of initial measured value tanδ ≤ 200% of initial specified value ILeak ≤ the initial specified value Before measurement: Restore capacitor to 20°C, apply V R for 30 min according JIS-C-5101-4 1 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES STANDARD RATINGS VR (V) 6.3 10 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 100 120 150 150 180 220 270 330 470 560 680 820 1000 1000 1200 1500 1800 2200 2200 2700 2700 3300 4700 4700 5600 6800 8200 10000 15000 22 33 47 56 68 100 120 150 180 220 270 330 470 560 5 5 5 6.3 6.3 6.3 6.3 8 8 8 8 8 8 10 10 10 10 10 10 10 13 13 13 13 13 16 16 16 18 5 5 5 5 5 5 6.3 6.3 6.3 6.3 8 8 8 8 11 11 11 11 11 11 11 11.5 11.5 11.5 11.5 16 16 12.5 16 16 20 20 25 25 20 20 30 25 30 25 31.5 35.5 35.5 11 11 11 11 11 11 11 11 11 11 11.5 11.5 11.5 11.5 1000 920 900 810 760 650 540 420 250 230 210 200 180 170 160 140 110 90 95 75 75 36 36 40 34 32 27 24 23 2700 2600 1340 1230 1050 800 750 610 460 350 300 270 250 170 170 175 185 220 240 310 340 390 450 490 550 620 750 770 860 1100 1250 1380 1470 1490 1550 1650 2100 1900 2160 2350 2550 2700 2950 98 100 150 160 170 210 250 290 320 340 400 460 580 550 KF101M6R3C110A KF121M6R3C110A KF151M6R3C110A KF151M6R3E110A KF181M6R3E110A KF221M6R3E110A KF271M6R3E110A KF331M6R3F115A KF471M6R3F115A KF561M6R3F115A KF681M6R3F115A KF821M6R3F160A KF102M6R3F160A KF102M6R3G125A KF122M6R3G160A KF152M6R3G160A KF182M6R3G200A KF222M6R3G200A KF222M6R3G250A KF272M6R3G250A KF272M6R3I200A KF332M6R3I200A KF472M6R3I300A KF472M6R3I250A KF562M6R3I300A KF682M6R3J250A KF822M6R3J315A KF103M6R3J355A KF153M6R3K355A KF220M010C110A KF330M010C110A KF470M010C110A KF560M010C110A KF680M010C110A KF101M010C110A KF121M010E110A KF151M010E110A KF181M010E110A KF221M010E110A KF271M010F115A KF331M010F115A KF471M010F115A KF561M010F115A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 2 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES STANDARD RATINGS VR (V) 10 16 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 560 680 820 1000 1200 1500 1800 2200 2200 2700 3300 4700 5600 6800 8200 10000 10 22 33 47 56 68 100 120 150 180 180 220 270 330 470 560 680 820 1000 1200 1500 1500 1800 1800 2200 2200 2700 10 10 10 10 10 10 10 10 13 13 13 16 16 16 16 18 5 5 5 5 5 5 6.3 6.3 6.3 6.3 8 8 8 8 10 10 10 10 10 10 10 13 10 13 13 13 13 12.5 12.5 16 16 16 20 25 25 20 20 25 25 25 31.5 35.5 35.5 11 11 11 11 11 11 11 11 11 11 11.5 11.5 11.5 11.5 12.5 12.5 16 16 20 25 30 20 25 20 25 20 25 160 110 100 76 67 62 58 52 41 35 31 30 28 26 26 24 4700 2600 2000 1100 820 690 500 470 410 380 340 250 210 156 124 105 92 78 65 61 56 60 50 47 38 40 33 635 765 890 1040 1200 1400 1550 1650 1750 1900 2000 2100 2290 2650 2770 2850 74 100 114 155 180 195 265 270 290 315 370 480 520 590 750 785 1100 1180 1350 1500 1600 1380 1730 1800 2000 1880 2450 KF561M010G125A KF681M010G125A KF821M010G160A KF102M010G160A KF122M010G160A KF152M010G200A KF182M010G250A KF222M010G250A KF222M010I200A KF272M010I200A KF332M010I250A KF472M010J250A KF562M010J250A KF682M010J315A KF822M010J355A KF103M010K355A KF100M016C110A KF220M016C110A KF330M016C110A KF470M016C110A KF560M016C110A KF680M016C110A KF101M016E110A KF121M016E110A KF151M016E110A KF181M016E110A KF181M016F115A KF221M016F115A KF271M016F115A KF331M016F115A KF471M016G125A KF561M016G125A KF681M016G160A KF821M016G160A KF102M016G200A KF122M016G250A KF152M016G300A KF152M016I200A KF182M016G250A KF182M016I200A KF222M016I250A KF222M016I200A KF272M016I250A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 3 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES STANDARD RATINGS VR (V) 16 25 35 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 3300 3300 4700 5600 6800 8200 10000 4.7 5.6 6.8 10 22 33 47 47 56 68 100 120 150 180 220 270 330 470 560 680 820 820 1000 1200 1500 1800 2200 2700 3300 4700 5600 6800 4.7 5.6 6.8 10 13 16 16 16 18 18 18 5 5 5 5 5 5 5 6.3 6.3 6.3 6.3 6.3 8 8 8 10 10 10 10 10 10 10 13 13 13 16 16 16 16 16 18 18 5 5 5 5 30 25 31.5 35.5 35.5 35.5 40 11 11 11 11 11 11 11 11 11 11 11 11 11.5 11.5 11.5 12.5 12.5 16 16 20 20 25 20 25 25 25 25 25 31.5 35.5 35.5 40 11 11 11 11 30 30 26 25 24 24 24 3950 3250 2980 2560 1950 1420 1100 1000 790 650 350 330 310 250 150 125 114 76 72 65 52 52 45 41 38 36 35 31 26 24 24 24 3650 3090 2820 2370 2640 2790 2880 2990 3200 3320 3550 68 75 80 85 125 155 190 220 250 280 370 380 410 455 550 720 820 1200 1250 1320 1400 1530 1650 1980 2210 2510 2650 2820 3240 3650 3720 3850 85 92 97 105 KF332M016I300A KF332M016J250A KF472M016J315A KF562M016J355A KF682M016K355A KF822M016K355A KF103M016K400A KF4R7M025C110A KF5R6M025C110A KF6R8M025C110A KF100M025C110A KF220M025C110A KF330M025C110A KF470M025C110A KF470M025E110A KF560M025E110A KF680M025E110A KF101M025E110A KF121M025E110A KF151M025F115A KF181M025F115A KF221M025F115A KF271M025G125A KF331M025G125A KF471M025G160A KF561M025G160A KF681M025G200A KF821M025G200A KF821M025G250A KF102M025I200A KF122M025I250A KF152M025I250A KF182M025J250A KF222M025J250A KF272M025J250A KF332M025J315A KF472M025J355A KF562M025K355A KF682M025K400A KF4R7M035C110A KF5R6M035C110A KF6R8M035C110A KF100M035C110A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 4 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES STANDARD RATINGS VR (V) 35 50 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 22 33 47 56 68 100 120 150 180 220 270 330 470 560 680 820 1000 1200 1500 1800 2200 2700 3300 4700 0.47 1 2.2 3.3 4.7 5.6 6.8 10 22 33 47 56 68 100 120 150 180 220 270 5 5 6.3 6.3 8 8 8 8 10 10 10 10 10 10 13 13 13 13 16 16 16 16 18 18 5 5 5 5 5 5 5 5 6.3 6.3 6.3 8 8 10 10 10 10 10 10 11 11 11 11 11.5 11.5 11.5 11.5 12.5 12.5 16 16 20 25 20 20 25 30 25 31.5 31.5 35.5 35.5 40 11 11 11 11 11 11 11 11 11 11 11 11.5 11.5 12.5 12.5 12.5 16 16 20 1500 1210 800 640 520 250 220 191 172 114 95 79 65 61 56 48 42 39 36 35 34 29 26 24 5400 4000 2800 2200 2000 1930 1890 1820 1250 800 650 490 330 170 156 132 114 96 78 150 180 280 310 350 450 510 540 650 750 910 1050 1200 1500 1570 1700 1900 2130 2270 2700 2780 2850 3100 3500 25 40 55 60 90 105 110 120 150 250 290 310 375 480 530 590 860 930 1060 KF220M035C110A KF330M035C110A KF470M035E110A KF560M035E110A KF680M035F115A KF101M035F115A KF121M035F115A KF151M035F115A KF181M035G125A KF221M035G125A KF271M035G160A KF331M035G160A KF471M035G200A KF561M035G250A KF681M035I200A KF821M035I200A KF102M035I250A KF122M035I300A KF152M035J250A KF182M035J315A KF222M035J315A KF272M035J355A KF332M035K355A KF472M035K400A KFR47M050C110A KF010M050C110A KF2R2M050C110A KF3R3M050C110A KF4R7M050C110A KF5R6M050C110A KF6R8M050C110A KF100M050C110A KF220M050E110A KF330M050E110A KF470M050E110A KF560M050F115A KF680M050F115A KF101M050G125A KF121M050G125A KF151M050G125A KF181M050G160A KF221M050G160A KF271M050G200A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 5 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES STANDARD RATINGS VR (V) 50 63 80 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 330 470 560 680 820 1000 1200 1500 1800 2200 2700 3300 0.47 1 2.2 3.3 4.7 5.6 6.8 10 22 33 47 56 68 100 120 150 180 220 270 330 470 560 680 820 1000 1200 1500 1800 0.47 1 2.2 10 13 13 13 13 16 16 16 16 18 18 18 5 5 5 5 5 5 5 5 6.3 8 8 8 10 10 10 10 10 10 13 13 13 13 13 16 16 16 18 18 5 5 5 25 20 20 25 30 25 31.5 35.5 35.5 35.5 40 40 11 11 11 11 11 11 11 11 11 11.5 11.5 11.5 12.5 16 16 16 20 20 20 20 25 25 30 25 31.5 35.5 35.5 40 11 11 11 65 55 50 44 39 36 36 34 34 32 27 25 5400 4000 2800 2200 2000 1900 1820 1750 800 610 560 380 210 140 130 110 100 80 65 55 53 49 43 38 34 32 31 27 5850 4300 3200 1150 1590 1740 1930 2100 2300 2650 2750 2850 3040 3070 3100 25 33 45 58 65 95 100 110 180 270 300 330 480 610 620 700 800 920 1150 1250 1620 1680 1950 2150 2350 2550 2710 3000 18 24 36 KF331M050G250A KF471M050I200A KF561M050I200A KF681M050I250A KF821M050I300A KF102M050J250A KF122M050J315A KF152M050J355A KF182M050J355A KF222M050K355A KF272M050K400A KF332M050K400A KFR47M063C110A KF010M063C110A KF2R2M063C110A KF3R3M063C110A KF4R7M063C110A KF5R6M063C110A KF6R8M063C110A KF100M063C110A KF220M063E110A KF330M063F115A KF470M063F115A KF560M063F115A KF680M063G125A KF101M063G160A KF121M063G160A KF151M063G160A KF181M063G200A KF221M063G200A KF271M063I200A KF331M063I200A KF471M063I250A KF561M063I250A KF681M063I300A KF821M063J250A KF102M063J315A KF122M063J355A KF152M063K355A KF182M063K400A KFR47M080C110A KF010M080C110A KF2R2M080C110A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 6 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES STANDARD RATINGS VR (V) 80 100 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 3.3 4.7 5.6 6.8 10 22 33 47 56 68 100 120 150 180 220 270 330 470 560 680 820 1000 1200 1500 0.47 1 2.2 3.3 4.7 5.6 6.8 10 22 33 47 56 56 68 100 120 150 180 220 5 5 5 5 5 6.3 8 8 8 8 8 10 10 10 13 13 13 16 16 18 18 18 18 18 5 5 5 5 5 5 6.3 6.3 8 10 10 10 10 10 10 10 13 13 13 11 11 11 11 11 11 11.5 11.5 11.5 16 20 16 20 20 20 20 25 25 25 25 31.5 31.5 35.5 40 11 11 11 11 11 11 11 11 11.5 12.5 12.5 12.5 16 16 25 25 20 20 25 2700 2500 2300 1850 1700 830 610 550 410 280 220 180 150 112 90 95 85 70 62 59 56 45 42 36 5900 4400 3300 2800 2600 2330 1950 1770 850 690 580 430 420 350 300 220 174 142 130 47 63 85 92 105 175 280 310 360 400 500 580 680 800 900 1080 1210 1500 1640 1680 1780 1850 1960 2160 20 30 42 55 72 100 115 130 220 320 370 400 440 470 560 660 780 820 950 KF3R3M080C110A KF4R7M080C110A KF5R6M080C110A KF6R8M080C110A KF100M080C110A KF220M080E110A KF330M080F115A KF470M080F115A KF560M080F115A KF680M080F160A KF101M080F200A KF121M080G160A KF151M080G200A KF181M080G200A KF221M080I200A KF271M080I200A KF331M080I250A KF471M080J250A KF561M080J250A KF681M080K250A KF821M080K315A KF102M080K315A KF122M080K355A KF152M080K400A KFR47M100C110A KF010M100C110A KF2R2M100C110A KF3R3M100C110A KF4R7M100C110A KF5R6M100C110A KF6R8M100E110A KF100M100E110A KF220M100F115A KF330M100G125A KF470M100G125A KF560M100G125A KF560M100G160A KF680M100G160A KF101M100G250A KF121M100G250A KF151M100I200A KF181M100I200A KF221M100I250A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 7 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES STANDARD RATINGS VR (V) 100 160 200 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 270 330 470 560 680 820 1000 0.47 1 2.2 3.3 4.7 5.6 6.8 10 10 22 33 47 47 56 56 68 100 120 150 180 220 270 330 0.47 0.47 1 2.2 3.3 4.7 4.7 5.6 5.6 6.8 6.8 10 10 13 16 16 16 18 18 18 5 6.3 6.3 8 8 10 10 10 10 10 10 10 13 13 13 13 16 16 16 16 16 18 18 5 6.3 6.3 6.3 8 8 10 8 10 8 10 8 10 30 25 31.5 35.5 35.5 35.5 40 11 11 11 11.5 11.5 12.5 16 12.5 16 16 20 20 20 20 25 25 25 25 31.5 35.5 35.5 35.5 40 11 11 11 11 11.5 11.5 12.5 11.5 12.5 16 16 11.5 16 110 100 90 85 80 71 66 18500 12000 9900 4310 4160 3610 3120 3000 2690 1300 1100 1650 910 670 660 560 470 350 260 220 190 180 160 16500 16500 7760 5180 4250 5000 4120 4500 3550 3250 2710 3750 2020 1120 1440 1650 1720 1790 1840 1930 36 45 55 70 80 91 100 126 140 205 260 276 320 340 370 450 540 560 710 760 820 990 1180 36 41 45 55 71 78 85 90 95 115 140 115 150 KF271M100I300A KF331M100J250A KF471M100J315A KF561M100J355A KF681M100K355A KF821M100K355A KF102M100K400A KFR47M160C110A KF010M160E110A KF2R2M160E110A KF3R3M160F115A KF4R7M160F115A KF5R6M160G125A KF6R8M160G160A KF100M160G125A KF100M160G160A KF220M160G160A KF330M160G200A KF470M160G200A KF470M160I200A KF560M160I200A KF560M160I250A KF680M160I250A KF101M160J250A KF121M160J250A KF151M160J315A KF181M160J355A KF221M160J355A KF271M160K355A KF331M160K400A KFR47M200C110A KFR47M200E110A KF010M200E110A KF2R2M200E110A KF3R3M200F115A KF4R7M200F115A KF4R7M200G125A KF5R6M200F115A KF5R6M200G125A KF6R8M200F160A KF6R8M200G160A KF100M200F115A KF100M200G160A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 8 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES STANDARD RATINGS VR (V) 200 250 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 22 22 33 33 47 47 47 56 68 68 100 100 120 120 150 150 180 220 220 0.47 1 2.2 3.3 4.7 4.7 5.6 5.6 6.8 6.8 6.8 10 10 10 22 22 33 33 33 47 47 56 68 100 10 10 10 13 10 13 13 13 13 16 16 16 16 16 16 16 18 18 18 5 6.3 8 8 8 10 8 10 8 10 10 8 10 10 10 10 10 10 13 13 13 13 16 16 16 20 20 20 20 20 25 20 25 25 25 31.5 25 31.5 31.5 35.5 31.5 35.5 40 11 11 11.5 11.5 11.5 12.5 11.5 12.5 16 12.5 16 16 12.5 16 16 20 20 25 20 20 25 25 25 31.5 1800 1400 1000 800 720 650 620 450 420 350 300 280 280 260 250 230 200 190 160 8850 6540 4120 3850 3500 2950 2930 2900 2800 2800 1860 1800 1750 1600 1400 1300 1400 1250 900 600 450 420 380 270 186 205 280 330 311 360 400 430 480 540 780 820 740 830 840 860 920 1050 1090 40 50 72 75 85 100 95 105 124 126 140 141 144 160 190 210 224 248 310 375 405 420 490 675 KF220M200G160A KF220M200G200A KF330M200G200A KF330M200I200A KF470M200G200A KF470M200I200A KF470M200I250A KF560M200I200A KF680M200I250A KF680M200J250A KF101M200J250A KF101M200J315A KF121M200J250A KF121M200J315A KF151M200J315A KF151M200J355A KF181M200K315A KF221M200K355A KF221M200K400A KFR47M250C110A KF010M250E110A KF2R2M250F115A KF3R3M250F115A KF4R7M250F115A KF4R7M250G125A KF5R6M250F115A KF5R6M250G125A KF6R8M250F160A KF6R8M250G125A KF6R8M250G160A KF100M250F160A KF100M250G125A KF100M250G160A KF220M250G160A KF220M250G200A KF330M250G200A KF330M250G250A KF330M250I200A KF470M250I200A KF470M250I250A KF560M250I250A KF680M250J250A KF101M250J315A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 9 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES STANDARD RATINGS VR (V) 250 350 400 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 120 120 150 150 180 220 220 0.47 1 1 2.2 2.2 3.3 3.3 4.7 4.7 5.6 5.6 6.8 6.8 10 10 22 33 33 47 47 56 68 100 100 100 120 120 150 0.47 1 2.2 2.2 3.3 3.3 4.7 4.7 16 16 16 18 18 18 18 6.3 6.3 8 8 10 10 10 10 10 10 10 10 10 10 10 13 13 13 16 16 16 16 16 18 18 18 18 18 6.3 8 8 10 8 8 8 10 31.5 35.5 35.5 31.5 35.5 31.5 40 11 11 11.5 11.5 12.5 12.5 16 16 20 16 20 16 25 16 25 20 20 25 25 31.5 35.5 31.5 35.5 31.5 35.5 35.5 40 40 11 11.5 11.5 12.5 9 11.5 11.5 12.5 260 250 240 230 210 200 190 8820 7900 6350 5300 4020 3800 3520 3130 2770 2760 2580 2430 1650 1640 1350 1220 1020 860 760 620 600 570 560 560 550 540 520 500 33000 16500 13000 13000 14000 12000 11000 10000 692 730 750 750 830 850 910 40 50 58 75 86 90 100 118 130 120 132 148 180 165 200 220 263 290 389 430 460 475 481 487 513 525 560 590 26 36 65 76 78 86 89 105 KF121M250J315A KF121M250J355A KF151M250J355A KF151M250K315A KF181M250K355A KF221M250K315A KF221M250K400A KFR47M350E110A KF010M350E110A KF010M350F115A KF2R2M350F115A KF2R2M350G125A KF3R3M350G125A KF3R3M350G160A KF4R7M350G160A KF4R7M350G200A KF5R6M350G160A KF5R6M350G200A KF6R8M350G160A KF6R8M350G250A KF100M350G160A KF100M350G250A KF220M350I200A KF330M350I200A KF330M350I250A KF470M350J250A KF470M350J315A KF560M350J355A KF680M350J315A KF101M350J355A KF101M350K315A KF101M350K355A KF121M350K355A KF121M350K400A KF151M350K400A KFR47M400E110A KF010M400F115A KF2R2M400F115A KF2R2M400G125A KF3R3M400F090A KF3R3M400F115A KF4R7M400F115A KF4R7M400G125A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 10 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES STANDARD RATINGS VR (V) 400 420 450 Part number shows bulk version with straight leads CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 5.6 5.6 6.8 6.8 10 10 10 15 22 22 33 33 33 47 47 56 56 68 68 100 100 120 0.47 1 2.2 3.3 4.7 5.6 6.8 10 22 33 47 56 68 100 0.47 1 2.2 3.3 4.7 5.6 6.8 8 10 10 10 10 10 10 10 13 13 13 13 16 16 16 16 16 16 18 18 18 18 6.3 8 10 10 10 10 10 10 13 16 16 16 18 18 8 8 10 10 10 10 10 16 12.5 12.5 16 14 16 20 20 16 20 20 25 20 20 25 25 31.5 31.5 25 31.5 35.5 35.5 11 11.5 12.5 12.5 16 16 16 20 25 25 31.5 35.5 31.5 35.5 11.5 11.5 16 16 20 20 20 8000 9000 7700 7500 5000 3800 3600 3000 2800 2650 1800 1600 1900 1600 1400 1030 850 800 760 700 680 580 34000 17000 12100 11000 8500 6800 6000 3700 2700 1800 1100 900 800 700 34000 17350 10250 10000 5000 4750 4050 105 120 144 160 201 213 235 240 268 295 399 440 459 539 580 587 650 800 774 854 900 930 28 38 58 87 102 109 160 180 330 480 620 670 750 820 30 45 65 89 105 110 135 KF5R6M400F160A KF5R6M400G125A KF6R8M400G125A KF6R8M400G160A KF100M400G140A KF100M400G160A KF100M400G200A KF150M400G200A KF220M400I160A KF220M400I200A KF330M400I200A KF330M400I250A KF330M400J200A KF470M400J200A KF470M400J250A KF560M400J250A KF560M400J315A KF680M400J315A KF680M400K250A KF101M400K315A KF101M400K355A KF121M400K355A KFR47M420E110A KF010M420F115A KF2R2M420G125A KF3R3M420G125A KF4R7M420G160A KF5R6M420G160A KF6R8M420G160A KF100M420G200A KF220M420I250A KF330M420J250A KF470M420J315A KF560M420J355A KF680M420K315A KF101M420K355A KFR47M450F115A KF010M450F115A KF2R2M450G160A KF3R3M450G160A KF4R7M450G200A KF5R6M450G200A KF6R8M450G200A See “PACKAGING INFORMATION” to taped or formed products. CapXon_Ver. 002 – 01/31/2021 11 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES STANDARD RATINGS Part number shows bulk version with straight leads VR (V) CR (µF) øD (mm) L (mm) Z ▪ Max. Impedance +20°C ▪ 100kHz (mΩ) IR ▪ Max. Ripple Current +105°C ▪ 100kHz (mA rms) CapXon Part Number 450 10 10 10 22 33 33 47 47 56 68 68 100 100 120 10 10 13 13 16 18 16 18 18 18 18 18 18 18 20 25 20 25 25 20 35.5 25 31.5 31.5 35.5 35.5 40 40 7000 3750 6800 2800 2200 2700 1050 1650 950 800 750 1100 740 1000 163 180 189 320 460 458 650 596 730 721 760 825 880 980 KF100M450G200A KF100M450G250A KF100M450I200A KF220M450I250A KF330M450J250A KF330M450K200A KF470M450J355A KF470M450K250A KF560M450K315A KF680M450K315A KF680M450K355A KF101M450K355A KF101M450K400A KF121M450K400A See “PACKAGING INFORMATION” to taped or formed products. øD±0. ød±0.02 DIMENSIONS ▪ All dimensions in mm ±0. L±a øD F 5 2 6.3 2.5 ød 8 3.5 L < 20 0.5 0.5 1.5 mi n. 10 5 L ≥ 20 0.6 ø D < 16 a 1 min. 13 5 16 7.5 0.6 18 7.5 0.8 ø D = 16 ø D = 18 L = 25 to 35.5 L < 25 and L ≥ 40 L = 25 to 31.5 L < 25 and L ≥ 35.5 1.5 2 1.5 2 MULTIPLIER Kf for RIPPLE CURRENT vs. FREQUENCY CR (µF) / Frequency (Hz) 50/60 100/120 400 1k 10k 100k CR ≤ 10 10 < CR ≤ 100 100 < CR ≤ 1000 1000 ≤ CR 0.47 0.52 0.58 0.63 0.59 0.62 0.72 0.78 0.76 0.8 0.84 0.87 0.85 0.89 0.9 0.91 0.97 0.97 0.98 0.98 1 1 1 1 CapXon_Ver. 002 – 01/31/2021 12 For further information please contact sales@capxon.org Document Number: KF series ALUMINUM ELECTROLYTIC CAPACITOR ▪ KF SERIES PRECAUTIONS, GUIDELINES AND PACKAGING INFORMATON Unless otherwise agreed in individual specifications, all products are subject to our “General Precautions and Guidelines” as well as our “Packaging Information”. Please refer to the following links in the table. General Precautions & Guidelines Packaging Information 3D Models Reliability Tests DISCLAIMER All product related data (e.g. specification, statements and general information) are subject to change without any notice. It is necessary that the customer observes all product related technical / application information and handling instructions. CapXon products are designed and manufactured according to severe quality and safety standards. Under no circumstance, CapXon warrants that any CapXon product is suitable for the purposes intended for your application, even CapXon knows the application. It is customer's duty and obligation to check and make sure that CapXon products are suitable for the purposes intended and select the correct and proper CapXon product. Customers are requested to perform a sufficient validation and reliability evaluation to assure needed safety level and reliability performance by suitable designs and to apply proper safeguards (e.g. redundancies, protective circuits). Particular operating conditions (ambient temperature, ripple current, voltage, thermal resistance, etc.) as well as storage, production or assembly may affect the performance and the lifetime of the capacitor. Please consult CapXon for lifetime estimation, failure mode considerations or worst-case scenarios according to the product technology, product tolerances / deviations or change of the characteristics of the capacitor due to shipment, storage, handling, production and usage. or aerospace or military application, life‐saving, life‐sustaining, safety critical applications or any application where failure may cause severe personal injury or death, please consult us before design‐in the capacitor in your application. Except for the written expressed warranties, CapXon does not impliedly, by assumption or whatever else, warrant, undertake, promise any other warranty or guaranty for any CapXon product. For further information, please visit our website www.capxongroup.com or contact CapXon directly. CapXon_Ver. 002 – 01/31/2021 13 For further information please contact sales@capxon.org Document Number: KF series
