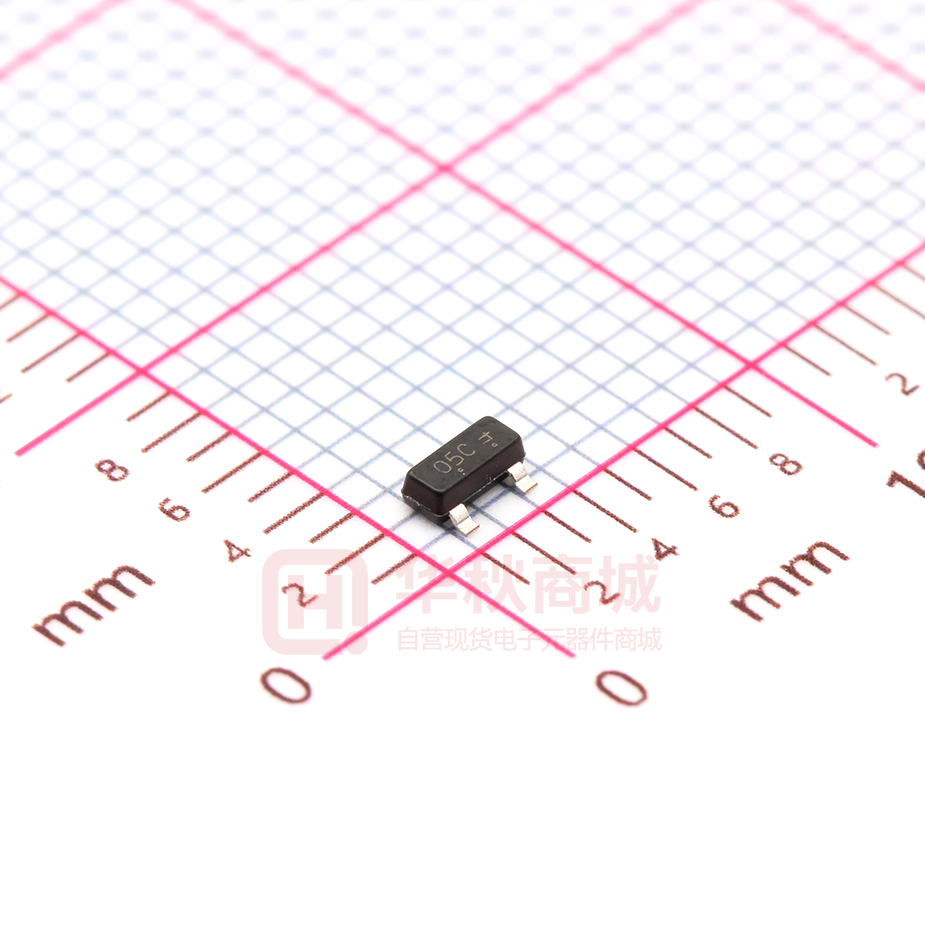

PESD5V2S2UT

PESDxxS2UT Series TVS Array RoHS Device Halogen Free SOT-23 Features  Small package for use in portable electronics  Low leakage current  Low clamping voltage  Response Time is < 1 ns  Protects one bidirectional line or two unidirectional lines  Working voltages : 3.3V,5V,12V,24V   Solid state silicon avalanche technology Device Meets MSL 1 Requirements  ROHS compliant - Main applications  Data lines  Industrial Controls  Cellular handsets AND accessories  Portable instrumentation  Peripherals  Notebook Computers  Set Top Box  Projection TV - Maximum ratings (Tamb=25℃ Unless Otherwise Specified) Symbol Value Unit P PPP 300 Watts VESD 30 KV Lead Soldering Temperature TL 260 (10 sec.) ℃ Operating Temperature Range TJ -55 ~ 150 ℃ T STG -55 ~ 150 ℃ Parameter Peak Pulse Power (tp=8/20μs waveform) ESD Rating per IEC61000-4-2： Contact Air Storage Temperature Range 1 PESDxxS2UT Series TVS Array Electrical characteristics ( Tamb=25℃ Unless Otherwise Specified) VBR @ 1 mA VRWM Device Capacitance VC Max IPP IR @ VRWM (Volts) @1A @ VR = 0 V, 1 MHz (pF) (V) (uA) Min (V) (A) Typ Max PESD3V3S2VT 3.3 10 5 7.8 16 120 180 PESD5V2S2UT 5.2 5.5 6 9.8 20 190 220 PESD12VS2UT 12 1 13.3 19 12 60 90 PESD24VS2UT 24 1 26.7 43 5 35 50 Junction capacitance is measured in VR=0V,F=1MHz I Symbol V RWM Parameter VF Working Peak Reverse Voltage VBR Breakdown Voltage @ IT VC Clamping Voltage @ IPP IT Test Current IRM Leakage current at V RWM IPP Peak pulse current CO Off -state Capacitance CJ Junction Capacitance VC V BR VRWM IR IT I PP 2 IF V PESDxxS2UT Series TVS Array Typical electrical characterist applications 10 Waveform Parameters: tr=8us td=20us Peak Pulse Power-PPK（KW) PP 110 100 90 80 70 60 50 40 30 20 10 0 td=IPP/2 0 5 10 15 20 25 1 0.1 0.01 0.1 30 1 Cj(VR)/Cj(VR=0V) % of Rated Power or Ipp 110 100 90 80 70 60 50 40 30 20 10 0 2 1.8 1.6 1.4 1.2 1.0 0.8 0.6 0.4 0.2 0 -25 50 75 1000 Non-Repetitive Peak Pulse Power vs. Pulse Time Pulse Waveform 25 100 Pulse Duration-tp（us) Time (us) 0 10 100 125 -20 -15 -10 -5 0 150 Voltage-VR(v) Ambient Temperature-TA Power Derating Curve Junction Capacitance vs. Reverse Voltage 3 5 PESDxxS2UT Series TVS Array Package Information  Mechanical Data Case: SOT-23 A Dim L A B C D G H J K L S 3 S B 1 2 D G C J H  Millimeters Min Max 2.80 3.04 1.20 1.40 0.89 1.11 0.37 0.50 1.78 2.04 0.013 0.100 0.085 0.177 0.35 0.69 0.89 1.02 2.10 2.64 Inches Min Max 0.1102 0.1197 0.0472 0.0551 0.0350 0.0440 0.0150 0.0200 0.0701 0.0807 0.0005 0.0040 0.0034 0.0070 0.0140 0.0285 0.0350 0.0401 0.0830 0.1039 K Recommended Pad outline 0 9mm 2 0mm 1 9mm 0 8mm  Product Orientation (continued) K Direction of feedTop cover tape T P0 E D0 A0 W F P2 B0 K0 D 1 P1 center lines of cavity Pocket Size Tape B0×A0×K0(mm) Width 2.32×2.92×1.0 2.70×3.10×1.15 D0 D1 1.5mm 1.0mm Package Chip Size SOT-23 Reel Diameter Quantity Per Reel P0 P1 8mm 178mm(7") 3000 4mm 4mm E F K T W 1.75mm 3.5mm 1.10mm 0.2mm 8mm 4
