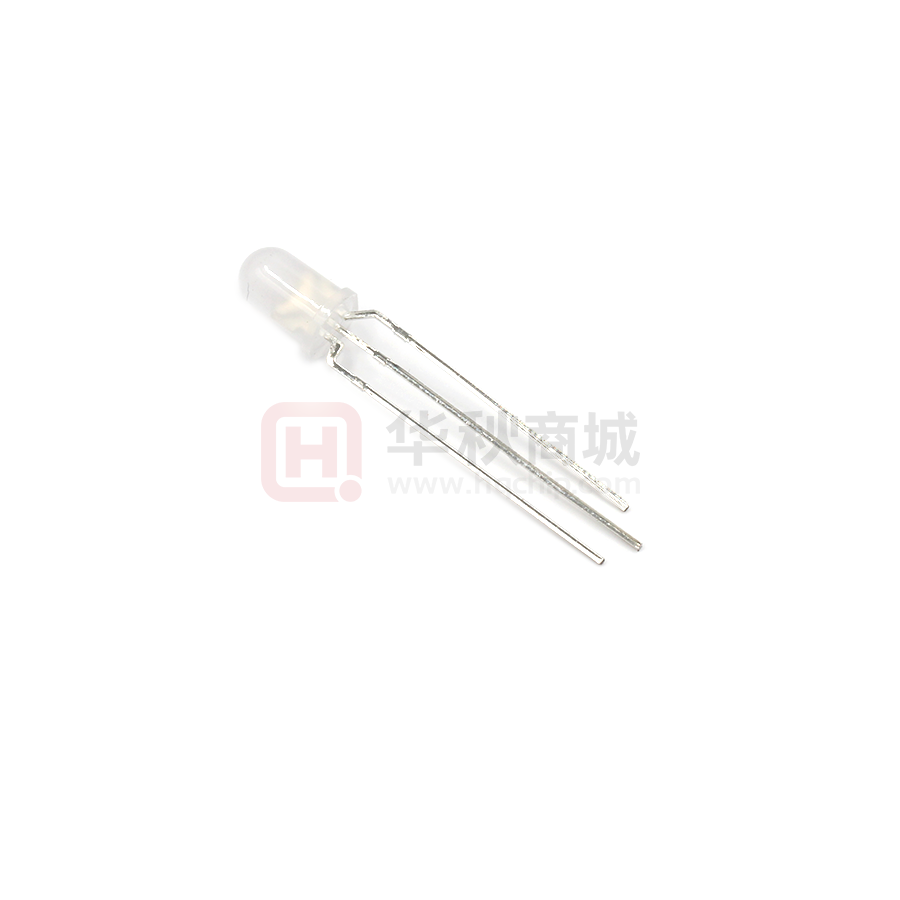

CX-5ARG9HW08-B

产 品 规 格 产品名称：直插式发光二极管 书 产品型号： CX-5ARG9HW08-B 深圳市创亿电子有限公司 SHEET APPROVAL Cussomter: 客户 Product Line: LED LAMP 产品类型 Part NO： CX-5ARG9HW08-B 机种型号 Issued Date: 2020-05-25 日期 APPROVER CHECKER 王 翔 ENGINEER 龙 梁 寒 APPROVED 花 此承认书一式 1 份, 请签回一份给我司. 1.SPECIFICATIONS （Ta=25℃） (1).Absolute Maximum Rating Item Symbol Absolute Maximum Rating Unit Forward Current IF 20 mA IFP 160 mA VR 5 V Peak Forward Reverse Current Voltage 1 产 品 规 产品名称：直插式发光二极管 格 书 产品型号： CX-5ARG9HW08-B Power Dissipation PD 80 mw Electtostayic Discharge ESD 1000 V Operatinge Temperature TOP -40~80℃ ℃ Storage Temperature TSTG -40~100℃ ℃ Lead Soldering Temperature TSOL 260℃FOR 5 SECONDS IFP Conditions: pulse Width≤10msec and duty≤1/10 （Ta=25℃） (2).Initial Electrical/Optical Characteristics Item Symbol Condition Min Typ Max Unit Forward Voltahe VF IF=20mA 1.8 2.1 2.4 V Reverse Current Viewing Angle Luminous Intensity Peak Wavelength Dominant Wavleength IR 2θ1/2 IV λp λp VR=5V IF=20mA IF=20mA IF=20mA IF=20mA / / 40 630 625 / 120 15 635 630 60 640 635 uA deg mcd nm nm Recommend Forward Current IF(Rec) / / 20 / mA 2.TYPICAL INTIAL OPICAL/ELECTRICALCHARACTERISTICS please refer to Figures: In page5 3.OUTLINE DIMENSIONS AND MATERIALS please refer to drawinge: In page4 Material as follows: Resin :Epoxy Lead frame:Ag plating Copper ally 1.SPECIFICATIONS （Ta=25℃） (1).Absolute Maximum Rating Item Symbol Absolute Maximum Rating Unit Forward Current IF 20 mA IFP 160 mA VR 5 V Peak Forward Reverse Current Voltage 2 产 品 规 产品名称：直插式发光二极管 格 书 产品型号： CX-5ARG9HW08-B Power Dissipation PD 80 mw Electtostayic Discharge ESD 1000 V Operatinge Temperature TOP -40~80℃ ℃ Storage Temperature TSTG -40~100℃ ℃ Lead Soldering Temperature TSOL 260℃FOR 5 SECONDS IFP Conditions: pulse Width≤10msec and duty≤1/10 （Ta=25℃） (2).Initial Electrical/Optical Characteristics Item Symbol Condition Min Typ Max Unit Forward Voltahe VF IF=20mA 1.9 2.2 2.5 V Reverse Current Viewing Angle Luminous Intensity Peak Wavelength Dominant Wavleength IR 2θ1/2 IV λp λp VR=5V IF=20mA IF=20mA IF=20mA IF=20mA / / 10 570 568 / 120 15 573 571 0 575 573 uA deg mcd nm nm Recommend Forward Current IF(Rec) / / 20 / mA 2.TYPICAL INTIAL OPICAL/ELECTRICALCHARACTERISTICS please refer to Figures: In page6 3.OUTLINE DIMENSIONS AND MATERIALS please refer to drawinge: In page4 Material as follows: Resin :Epoxy Lead frame:Ag plating Copper ally 3 产 品 规 产品名称：直插式发光二极管 2.Package 格 书 产品型号： CX-5ARG9HW08-B Dimnsion Part Number Chip Lens Color Material Emitting Color InGaAlP/GaAs RED/GREEN CX-5ARG9HW08-B NOTES: 1.All dimensions are millimeters. 2.Tolerance is ± 0.25mm unless otherwise noted. 4 White Diffuse 产 品 规 产品名称：直插式发光二极管 格 书 产品型号： CX-5ARG9HW08-B RED 5 产 品 规 产品名称：直插式发光二极管 格 书 产品型号： CX-5ARG9HW08-B 6
