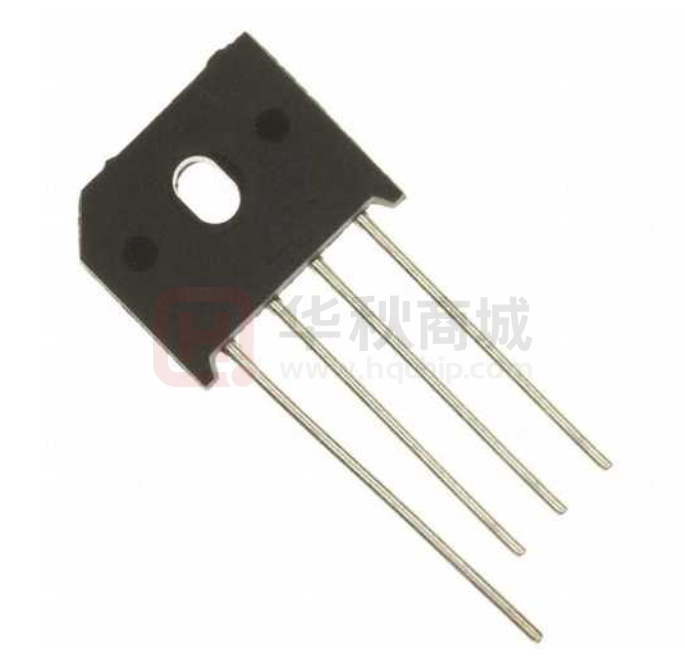

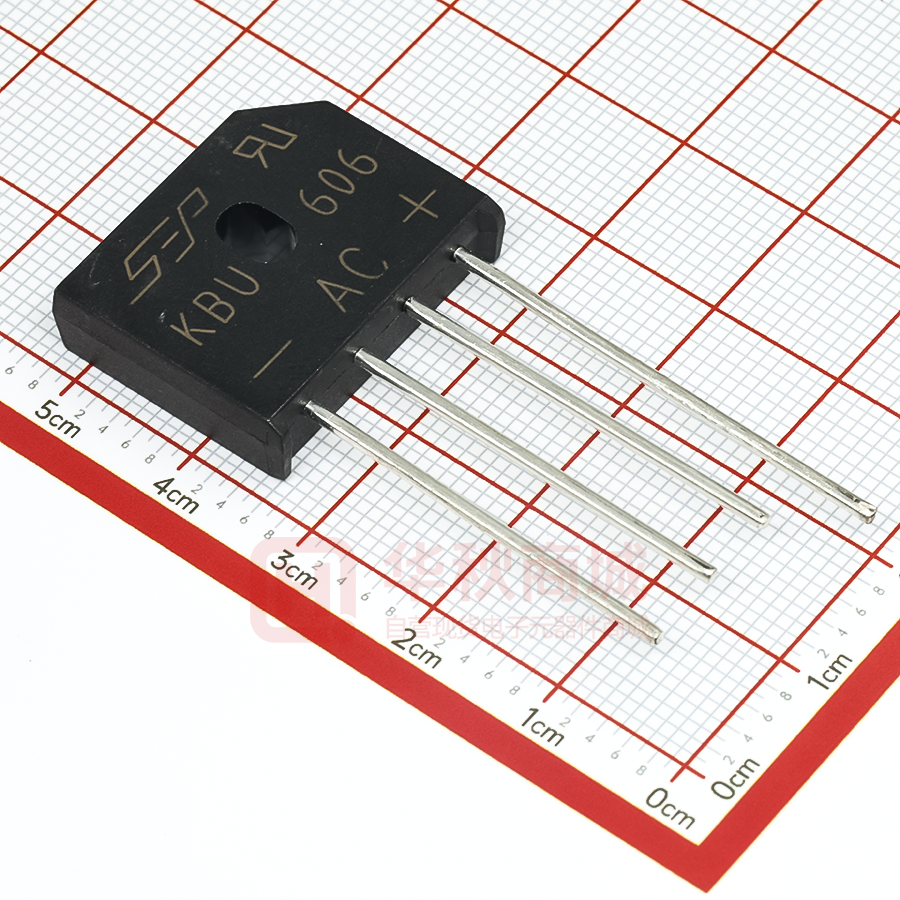

KBU606

KBU6005 thru KBU610 SEP ELECTRONIC CORP. 6.0 A Single-Phase Silicon Bridge Rectifier Rectifier Reverse Voltage 50 to 1000V 6.1 + 0.2 23.2 + 0.5 3.45 + 0.25 4.4 + 0.2 1.95 + 0.25 Features Ideal for P.C. Board mounting High surge current capability This series is UL listed under the Recognized Component Index, file number E142814 The plastic material used carries Underwriters Laboratory flammability recognition 94V-0 High temperature soldering guaranteed 265 C /10 seconds at 5 lbs (2.3kg) tension 17.3 + 0.5 19.3 MAX. _ 1.9 R. TYP. (2PLACES) ~ ~ + 10.8 + 0.5 4.3 + 0.2 22.0 MIN. + - 0.5 Mechanical Data Case: Molded plastic body Terminals: Plated leads solderable per MIL-STD-202, Method 208 Polarity: Polarity symbols molded on body Mounting Position:: Any Mounting Torque: 5 in-lbs max. Weight: 0.3 ounce, 8.0 grams (approx) 5.1 + 0.5 5.6 + 0.5 0 1.3 + 0.1 Dimensions in millimeters =0.0394＂） Maximum Ratings & Thermal Characteristics Rating at 25 C ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz. For Capacitive load derate current by 20%. KBU KBU KBU KBU KBU Parameter Symbol KBU 6005 601 602 604 606 608 VRRM 600 50 100 200 400 800 Maximum repetitive peak reverse voltage Maximum RMS bridge input voltage Maximum DC blocking voltage KBU unit 610 1000 V VRMS 35 70 140 280 420 560 700 V VDC 50 100 200 400 600 800 1000 V Maximum average forward rectified output current at TA=100 C IF(AV) 6.0 A Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) IFSM 250 A I t 2 300 A sec Typical thermal resistance per element (1) ReJA 2.7 Operating junction and storage temperature range TJ, TSTG -55 to + 150 Rating for fusing ( t
