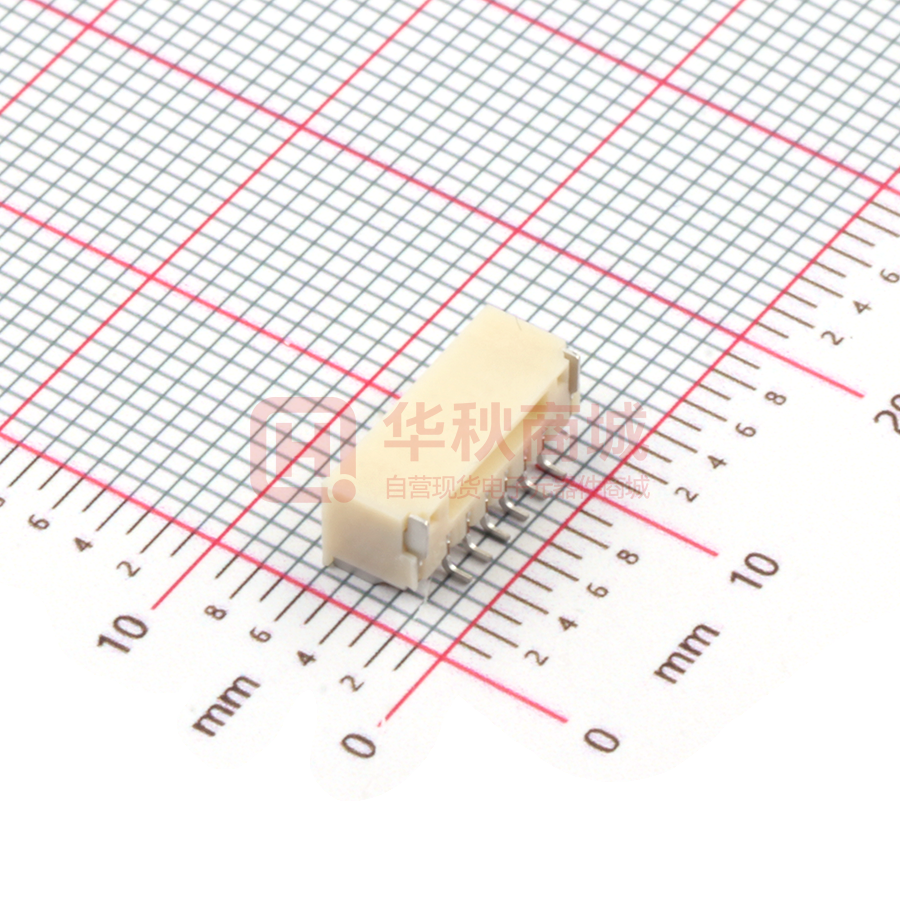

C1259RS10611M0101RA

1 2 3 4 5 6 7 RoHS COMPLIANT 8 9 SPECIFICATIONS 1. Current rating: 1A AC, DC 2. Voltage rating:50V AC,DC 3. Temperature range: -40°C ~ +105°C 4. Insulation resistance: 100MΩ/ min. 5. Withstanding voltage: 500V AC/ minute. 6. Contact resistance: 30mΩ/ max. Material: Insulator: PA6T UL94V-0 Contact: Phosphor bronze Solder tabs: Brass Finish: Tin plated or selective gold plated over nickel Mate With KR1259 series housing A B A B Ordering code: 8-16P Has card slot 2-7P Has no card slot There are two tapping holes above 7P C1259RS *** 09 M01 ** RA 102: 2P 114: 14P 09: PA6T Natural 11: PA9T Natural C 1: Has card slot 3: Has no card slot M01: Matte TIN B01:Half Gold & Matte Tin D C D CONNECTOR EDGE E E Add specification F ZSZ 2022.8.9 Uniformly arrange the drawings Shen 2021.9.3 ADD 14P Specification Arvin 2021.2.2 MARK REVISION DESCRIPTION 1 2 SIGNATURE 3 DATE TITLE: TOLERANCE X.X ±0.30 GH 1.25 SMT 90° X.XX ±0.20 Wafer X.XXX ±0.10 Angle ±2° UNIT:mm SCALE:1/1 4 5 Shen 2021.09.03 DRAWN: 东莞市康瑞电子有限公司 CHECKED DongGuan Konnra Electronics C o.,Ltd. F APPROVED PART NO.:C1259RS***09*****RA SHEET:1/1 PROJECTION REV.:A6 DRAWING NO.:1259WHS01-A-S 6 7 8 9
