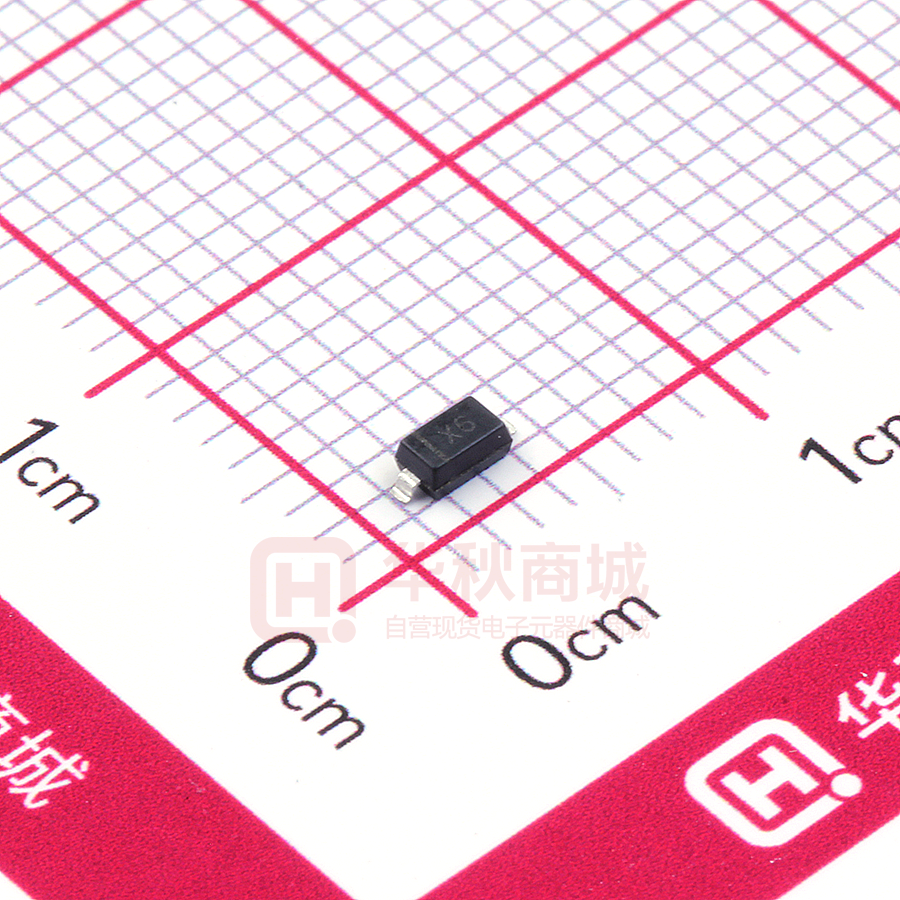

MBRX160

MBRX120 THRU MBRX160 Reverse Voltage 20-60 Volts Forward Current - 1.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features SOD-123  Fast switching speed  Surface mount package ideally suited 0.071(1.80) 0.028(0.70) 0.020(0.50) 0.059(1.50)  for automatic insertion  For general purpose switching applications High 0.008(0.20)max. Cathode bar 0.110(2.80) 0.098(2.50)  conductance 0.154 (3.90) 0.019 (0.475) ref. 0.0035 (0.09) 0.010 (0.25) 0.0087 (0.22) 8° 0.008 (0.2 ) 0.018 (0.45) 0° to 1.250 (0.049) Mechanical Data 1.050 (0.041) 0.142 (3.60) Case: JEDEC SOD-123 molded plastic body Terminals: Plated leads solderable per MIL-STD-750, Method 2026 Polarity: Polarity symbols marked on case Weight : 0.0007 ounce, 0.02 grams Marking: MBRX120:X2, MBRX130:X3 MBRX140:X4, MBRX160:X6 Dimensions in inches and (millimeters) Absolute Maximum Ratings at 25 °C SYMBOLS MDD Catalog Number MBRX120 MBRX130 MBRX140 MBRX160 UNITS Maximum repetitive peak reverse voltage VRRM 20 30 40 60 VOLTS Maximum RMS voltage VRMS 14 21 28 42 VOLTS Maximum DC blocking voltage VDC 20 30 40 60 VOLTS Maximum average forward rectified current at TL=90 C I(AV) 1.0 Amps Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) IFSM 20.0 Amps Maximum instantaneous forward voltage at 1.0A VF Maximum DC reverse current rated DC blocking voltage IR 0.3 mA CJ 30 pF TJ, -55 to +150 C TSTG -50 to +150 C 0.5 0.55 TJ =25 C at Typical junction capacitance (NOTE 1) Operating junction temperature range Storage temperature range 0.72 Volts Note: 1.. High Temperature Solder Exemption Applied, see EU Directive Annex 7 http://www.microdiode.com Rev:2024A2 Page :1 MBRX120 THRU MBRX160 Reverse Voltage 20-60 Volts Forward Current - 1.0 Ampere Typical Characterisitics Figure 1 Typical Forward Characteristics MBRX130~140 MBRX120 Ta= MBRX160 Ta= Ta= Ta= Ta= Ta= Amps Amps Ta= Ta= Amps Ta= Volts Instantaneous Forward Current -VS Instantaneous Forward Voltage Volts Instantaneous Forward Current -VS Instantaneous Forward Voltage Volts Instantaneous Forward Current -VS Instantaneous Forward Voltage Figure 2 Junction Capacitance 100 60 40 20 pF TJ=25°C 10 6 4 2 1 .1 .2 .4 1 Volts 2 4 10 20 40 100 200 400 1000 The curve above is for reference only. http://www.microdiode.com Rev:2024A2 Page :2 MBRX120 THRU MBRX160 Reverse Voltage 20-60 Volts Forward Current - 1.0 Ampere Packing information unit:mm P0 P1 d Item Symbol Tolerance A B C d D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 SOD-123 E F B A W P D2 T D1 C W1 D Carrier width Carrier length Carrier depth Sprocket hole 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width 2.1 4.0 1.60 1.55 178.00 50.0 13.00 1.75 3.50 4.00 4.00 2.00 0.25 8.15 10.5 Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE REEL SIZE REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) CARTON SIZE (m/m) CARTON (pcs) SOD-123 7" 3,000 4.0 45,000 210*208*203 178 430*430*235 180,000 APPROX. GROSS WEIGHT (kg) 9.0 Suggested Pad Layout Symbol A http://www.microdiode.com Unit (mm) Unit (inch) 0.047 B 1.2 1.2 C 3.2 0.126 D 2.0 0.079 E 4.4 0.173 0.047 Rev:2024A2 Page :3
