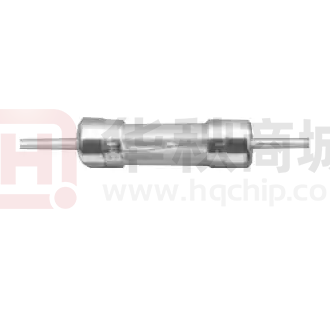

3SB 15-R

500mA-15A 3SBP EOL – Last Buy Date is Aug 31, 2021 No replacements for the axial leaded fuses Type 3SB / 3SBP Slow Blow Fuse Series 3SB/3SBP Series, 6x32mm Glass Tube Slow Blow Fuse RoHS 2 Compliant Description 6x32mm Slow Blow, glass tube body cartridge fuse designed, approved and complied with UL and CSA standard 248-14. Features - Meet UL and CSA standard 248-14 - Wide operating temperature range - Bulk packing available - RoHS 2 compliant - Halogen Free - Lead Free Applications Provide individual protection for components or internal circuits. - Power supplies - Battery charger - Monitor LEAD FREE = - Adapter HALOGEN FREE = Physical Specifications Body : Glass Materials Cap : Nickel Plated Brass Caps Leads : Matte Tin Plated Copper On Fuse : Marking “bel”, “3SB”, “Current Rating”, “Voltage Rating”, ”Appropriate Safety Logos”, ”  ”（ RoHS 2 compliant） On Label : "bel", "3SB”or”3SBP", "Current Rating", "Voltage Rating", "Interrupting Rating", "Appropriate Safety Logos" and " Electrical Characteristics (UL/CSA STD,248-14) Blow Time Testing Current Minimum Maximum 100% 4 hrs. N/A 135% N/A 1 Hr 200% 5 sec 30 sec ", " "(China RoHS compliant). Safety Agency Approvals Safety Agency Safety Agency Certificate E20624 LR39772 JET1037-31003-1010 JET1037-31003-1011 JET1037-31003-1007 Voltage Rating (V) Ampere Range / Volt @ I.R. ability* 500mA-8A/125V AC@10,000A 500mA-8A/250V AC@200A 8.1A-15A/125V AC@10,000A 500mA-8A/ 500mA-1A/250V AC@35A 250V AC >1A-3.5A/250V AC@100A >3.5A-8A/250V AC@200A 8.1A-15A/125V AC@10,000A 8.1A-15A/ 125V AC 1A-5A/125V AC@500A >5A-15A/125V AC@300A *I.R.= Interrupting Rating = Short Circuit Rating(Amps) Specifications subject to change without notice belfuse.com/circuit-protection 500mA-15A 3SBP EOL – Last Buy Date is Aug 31, 2021 No replacements for the axial leaded fuses Type 3SB / 3SBP 2/4 Environmental Specifications Shock Resistance MIL-STD-202G, Method 213B, Test Condition 1 (100 G's peak for 6 milliseconds; Sawtooth waveform) Vibration Resistance MIL-STD-202G, Method 201A (10-55 Hz, 0.06 inch, total excursion). Salt Spray Resistance MIL-STD-202G, Method 101E, Test Condition B (48 hrs). Insulation Resistance MIL-STD-202G, Method 302, Test Condition A (After Opening) 10,000 ohms minimum. Solderability MIL-STD-202G, Method 208H Resistance to solder Heat MIL-STD-202G, Method 210F, Test Condition B (260+/-5℃,10+/-1 sec) Thermal Shock MIL-STD-202G, Method 107G, Test Condition B (-65℃ to +125℃). Operating Temperature -55℃ to +125℃ Terminal Strength IEC-68-2-21 Electrical Specifications Last Buy Date is Aug 31, 2021 Melting I²T @10 In (A²Sec) Maximum Power Dissipation (W) Agency Approvals Ampere Rating 3SB(P) 500-R 500mA 1.38 1.07 4.4 5.4 0.8 Y Y 3SB(P) 750-R 750mA 0.642 0.68 9 10 0.8 Y Y 1A 0.374 0.59 16 21 0.9 Y Y Y 3SB(P) 1.25-R 1.25A 0.248 0.43 25 32 0.9 Y Y Y 3SB(P) 1.6-R 1.6A 0.155 0.38 39 50 1.0 Y Y Y 2A 0.115 0.36 61 79 1.0 Y Y Y 2.5A 0.079 0.29 94 123 1.1 Y Y 3SB(P) 3-R 3A 0.058 0.27 146 192 1.1 Y Y Y 3SB(P) 4-R 4A 0.039 0.23 226 300 1.2 Y Y Y 3SB(P) 5-R 5A 0.029 0.22 349 469 1.3 Y Y Y 3SB(P) 6-R 6A 0.018 0.19 286 455 1.6 Y Y Y 3SB(P) 7-R 7A 0.016 0.18 372 592 1.8 Y Y Y 3SB(P) 8-R 8A 0.013 0.17 483 769 1.9 Y Y Y 3SB(P) 10-R 10A 0.010 0.17 817 1300 2.3 Y Y Y 3SB(P) 12-R 12A 0.008 0.15 1277 2031 2.6 Y Y Y 3SB(P) 15-R 15A 0.006 0.15 2123 3377 3.0 Y Y Y 3SB(P) 2-R 3SBP EOL– Melting I²T
