罗孝金
罗孝金
罗孝金
李春凤 2022.3.17
钟华华 2022.3.17 型号:
IPEX1-TXZ 142
天线座
深圳市首韩科技有限公司
罗孝金 2022.3.17 名称:
司
取消塑胶底面凹槽特征
修改颜色备注,符合实物,由原黑色改为白色
备注中增加技术参数规格
深圳市首韩科技有限公司
SHENZHEN SHOUHAN TECHNOLOGYCO.,LTD
Tel: 0755-27597601 Fax: 0755-27597491
认
FOR APPROVAL
产品名称 Project:
韩
科
规格型号 Part No:
有
户 Customer:
技
客
限
公
SPECIFICATION
书
司
承

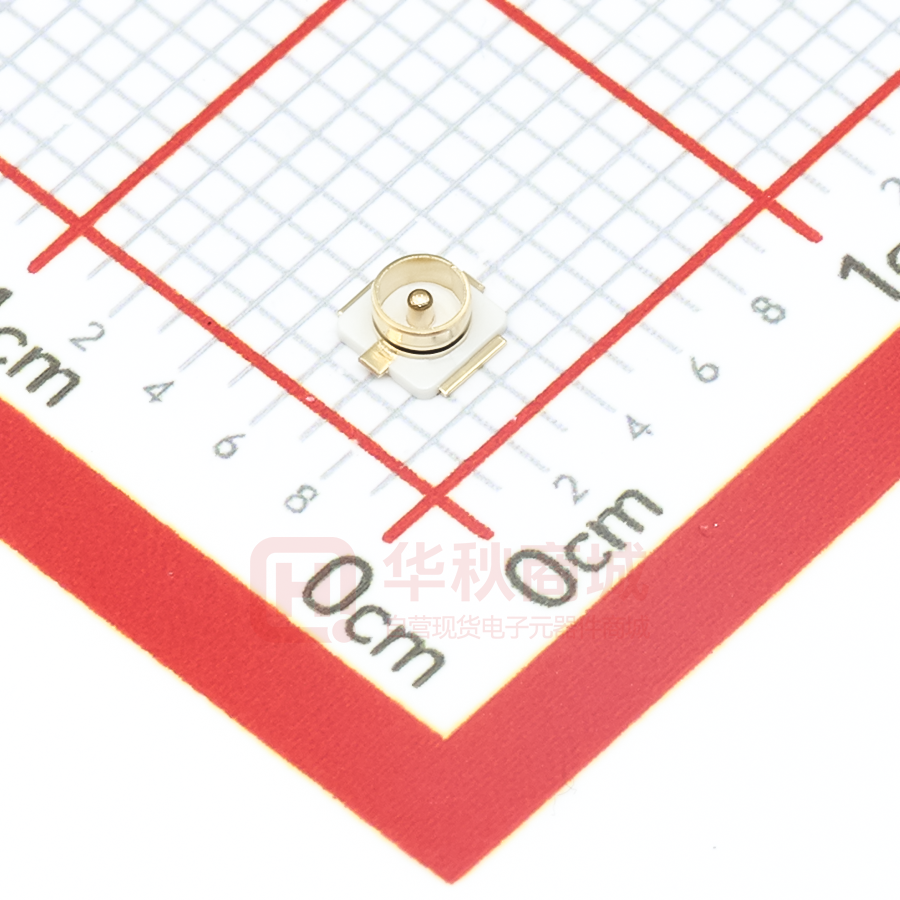

天线座
IPEX1-TXZ 142
贵公司承认印 Approal slgnatures
签
章/Signatures
圳
市
首
料 号/Part No.
深
日期 Date:
拟制/Drawn
李春风
审核/Check
钟华华
批准/Approved
罗孝金
1
深圳市首韩科技有限公司
Rev:A
Doc. No:
Drafter:
RF Receptacle Connector Spec
Date:2022.3.17
ELLI
Approved: ELLI
1. Scope
1.1 Content
This specification covers performance, tests and quality requirements for the RF
receptacle Connector
司
1.2 Qualification
公
When tests are performed on the subject product line, procedures specified in
Figure 1 shall be used. All pections shall be performed using the applicable inspection
plan and product drawing.
限
2. Applicable Documents
科
技
有
The following documents form a part of this specification to the extent specified
herein. Unless otherwise specified, the latest edition of the document applies. In the event
of conflict between the requirements of this specification and the product drawing, the
product drawing shall take precedence. In the event of conflict between the requirements
of
this
specification
and
the
referenced
documents,
this
specification
shall take precedence.
2.1 Industry Standard
首
3. Requirements
韩
EIA-364: Electrical Connector/Socket Test Procedures Including Environmental
Classifications
3.1. Design and Construction
市
Product shall be of the design, construction and physical dimensions specified on
the applicable product drawing.
圳
3.2. Applicable cable
1) Description
深
Inner conductor:AWG#30,Silver plating annealed copper wire or silver plating tincopper alloy.
Outer conductor:nominal diameter 1.13mm,tin plating annealed copper wire.
3.3. Ratings
Voltage:60V AC,DC.
Temperature: -40℃ to 90℃
3.4. Performance and Test Description
Product is designed to meet the electrical, mechanical and environmental
performance requirements specified in Figure 1. Unless otherwise specified, all tests shall
be performed at ambient environmental conditions per MIL-STD.
深圳市首韩科技有限公司 Doc. No:
Rev:A
Date:2022.3.17
Drafter:
ELILI
Approved: ELLI
RF Receptacle Connector Spec
3.5. Test Requirements and Procedures Summary
examination
Requirement
Procedure
of Meets requirements of
product.
visual inspection,
product drawing.
司
Test Description
No physical damage
公
ELECTRICAL
Inner contact
After test:25mΩ Max.
assembled in housing to 20mV
Ground contact:
Max open circuit at 10mA Max.
限
Subject mated contacts
有
Contact Resistance.
Initial:: 20mΩ Max.
MIL-STD-202,method 307.
技
Initial:10 mΩ Max.
After testing:15mΩ Max.
韩
Dielectric
withstanding Voltage breakdown.
科
No flashover or insulation
200V AC for 1 minute
Test between adjacent circuits of
unmated connector.
市
首
Current leakage :0.5mAmax MIL-STD-202,method 301.
深
圳
Insulation resistance Initial:500 M Ohm Min.
After testing: 100M Ohm.
Test voltage 100V DC.
Test between adjacent circuits of
unmated connector.
MIL-STD-202,method 302.
Plug: 0.1~3GHZ1.3Max.
Measure the as shown in
VSWR
Fig.1 by the network
analyzer
L
3~6 GHZ1.5Max
Receptacle
0.1~3GHZ1.3Max.
3~6 GHZ1.4Max
深圳市首韩科技有限公司
Rev:A
Date:2022.3.17
Doc. No:
Drafter:
ELLI
Approved: ELIILi
RF Receptacle Connector Spec
Total unmating force
Initial:5N Min.
After 30cycles:3N Min.
Unmating force
Operation Speed:25.4 mm/min.
Unmating force of inner
司
contact:
公
Initial:0.15N Min.
Operation Speed:25.4 mm/min.
specification
Durability Cycles:30 Cycles
有
See contact Resistance
25N Min.
市
首
韩
Crimp strength
科
技
Durability
限
After 30cycler: 0.10N Min.
Contact
圳
Apply force on the cable
深
resistance with force
on the cable
as shown in Fig.3.
During the testing,run
100mA DC to check
electrical discontinuity.
Pull the cable as shown in Fig.2
at a speed 25mm/minutes
by tensile strength machine
Appearance
Looseness between the parts,
Chipping,breakage or
other abnormality shall not occur
Electrical discontinuity grater than
1 micro-sec.shall occur
Contact resistance see
it’s specification.
Subject mated connectors
No electrical discontinuity
Vibration
greater than 1μsec shall
occur.
to10-100-10 Hz traversed in 15
minutes. at single amplitude 1.5
mm,
2 hrs for 3 Directions
5 cycles about each direction
深圳市首韩科技有限公司
Rev:A
Date:2022.3.17
Doc. No:
Drafter:
ELLI
Approved: ELLI
RF Receptacle Connector Spec
2
No electrical discontinuity
Shock
greater than 1μsec shall
Accelerate Velocity:735m/S
Wave form: Half-sine shock
plusDuration:11msec
Wave form:half sinusoidal
occur.
司
6 mutually perpendicular direction
See contact resistance
specification
技
2.Withstanding Voltage No
Thermal Shock
Temperature:-40℃
有
1.Contact Resistance:
限
ENVIRONMENTAL
公
3 cycles about each direction
flash over or breakdown
科
3.Insulation Resistance:
(30 minutes)~+90℃
(30 minutes)
Time:5 cycles
韩
See insulation Resistance
specification
首
1.Withstanding Voltage No
flash over or breakdown
2.Contact Resistance:
市
Temperature life.
90℃ , 96 hours
深
圳
See contact resistance
Humidity
specification
1.Contact Resistance:
See contact resistance
specification
2.Withstanding Voltage No
flash over or breakdown
3.Insulation Resistance:
See insulation Resistance
specification
Temperature:40℃
Humidity:90~95%RH
Period:96hrs
MIL-STD-202,
method 103 condition B
深圳市首韩科技有限公司
Rev:A
Date:2022.3.17
Doc. No:
Drafter:
ELLI
Approved: ELLI
司
RF Receptacle Connector Spec
Fig.3
深
圳
市
首
韩
科
技
有
限
公
Fig.2
3.6 Product Qualification and Requalification Test Sequence
深圳市首韩科技有限公司 Doc. No:
Rev:A
Date:2022.3.17
Drafter:
ELLI
Approved: ELLI
RF Receptacle Connector Spec
Test group
Test or Examination
Number of sample
5
5 5 5 5 5 5
5
5
5
Confirmation of products
1
1 1 1 1 1 1
1
1
1
1
1
2 2 2
2
2
2
2
2
4 4 4
4
5
5
4
4
限
A B C D E F G H I L M N O P
3
3
6
6
司
5
5
1
1
2
技
Dielectric withstanding voltage
5
有
Insulation resistance
公
Contact resistance
5
VSWR
2
首
Durability
韩
Crimp strength
科
Unmating force
2
2
3
市
Contact resistance with force
on the cable
深
圳
Vibration
Shock
Thermal shock
Humidity
Salt water spray
Temperature life
Solder ability
Soldering Heat Resistance
3
3
3
4
4
3
3
2
2
