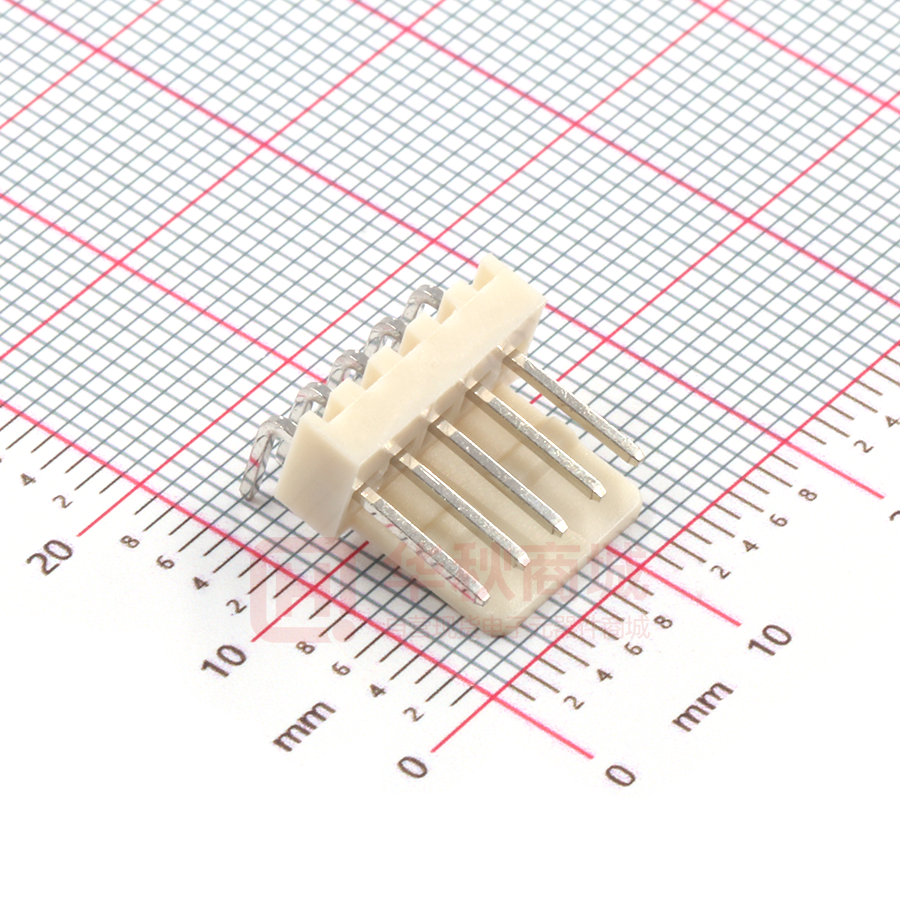

W-2510R05P-0000

2.54 A B 2P~7P A B 8P~20P 2.54 12.8±0.3 SQ0.64 3.3 2.2 5.80 3.2±0.2 .000 .00 ±0.05 ±0.15 TOLERANCE TABLE .0 ±0.20 11.5 SPECIFICATIONS Current rating: 3A AC/DC Voltage rating: 250V AC/DC Contact resistance:20mΩ max. Withstand voltage:1000V AC/min Insulation resistance:1000MΩ/min. Temperature range:-25°C~+85°C Part NO A 2.54 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 B 5.08 7.62 10.16 12.70 15.24 17.78 20.32 22.86 25.40 27.94 30.48 33.02 35.56 38.10 40.64 43.18 45.72 48.26 50.82 Dimension(mm) Material: Part No:2~20 Post:Brass.Tin/plated Base:Nylon66 UL94V-2 Circuits 2510R-2P 2510R-3P 2510R-4P 2510R-5P 2510R-6P 2510R-7P 2510R-8P 2510R-9P 2510R-10P 2510R-11P 2510R-12P 2510R-13P 2510R-14P 2510R-15P 2510R-16P 2510R-17P 2510R-18P 2510R-19P 2510R-20P 深圳市灿科盟实业有限公司 REV. A WD00 CHANKLEMENT INDUSTRYCO.,LTD / SCALE free 2510 R-XP CLIENT P/N mm UNIT FILE NO. / TITLE: 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 DATE： DATE： APPROVED： CHECKED： DATE： 2016-11-24 DRAWN： luli-Liu
