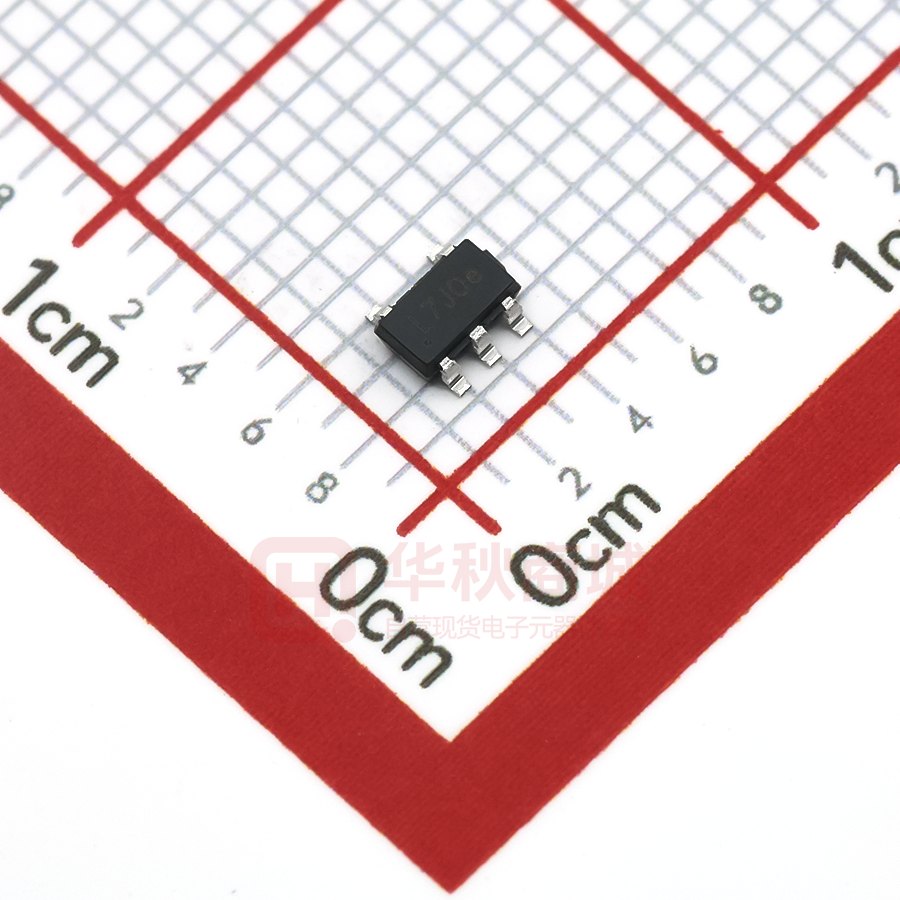

TPL720F33-5TR

TPL720F33-5TR

  • 厂商:

    3PEAK(思瑞浦)

  • 封装:

    SOT-23-5

  • 描述:

    TPL720F33-5TR

  • 数据手册
  • 价格&库存
TPL720F33-5TR 数据手册
TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Features Description ◼ Typical 1.4 µA Ultra-low Quiescent Current The TPL720 series products are CMOS process low Iq linear ◼ Input Voltage Range: 2.4 V to 6 V regulators with enable control function. The TPL720 series ◼ Output Voltage Options: products support maximum 400mA output current, with typically ◆ Fixed: 1 V, 1.2 V, 1.8 V, 2.5 V, 2.8 V, 3 V, 3.3 V, 3.6 V only 1.4 µA ultra-low quiescent current. TPL720 series products ◼ ±1% Output Voltage Accuracy under Room Temperature are stable with low-ESR small ceramic output capacitors from ◼ Maximum Output Current: 400 mA 2.2 μF to 10 μF. ◼ Low Shutdown Current ◼ Low Dropout Voltage: 350 mV at 400 mA The TPL720 series products have fast response performance ◼ Current Limit and Thermal Protection when load dynamic drop or raise, especially for the load ◼ Stable with 2.2 μF Ceramic Capacitor dynamic from with some load. The TPL720 series products have ◼ Active Output Discharge While Disable current limit and thermal protection, which improves TPL720 ◼ Soft-start Limits Input Current Surge During Enable series products with high reliability. ◼ Operating Temperature Range: −40°C to +85°C ◼ Packages: SOT23-3, SOT23-5, SOT89-3, 1×1 DFN-4 The TPL720 series products have a fixed output voltage range from 1 V to 3.6 V with ±1% output voltage accuracy, line Applications regulation and load regulation under room temperature. The ◼ Handheld Devices with Battery Power Supply ◼ Portable Devices with Battery Power Supply ◼ Wearable Application, Bluetooth Headsets ◼ Wireless and IoT modules ◼ Personal Electronics, Personal Healthcare TPL720 series products are guaranteed over the operating temperature range of −40°C to +85°C. The TPL720 series products are available in SOT23-3 package, SOT23-5 package, SOT89-3 package, and 1×1 DFN-4 package. Typical Application Schematic Input VOUT VIN CIN Input Output CIN COUT COUT TPL720 Series TPL720 Series Off On GND TPL720 Series without Enable Pin www.3peakic.com.cn Output VOUT VIN EN GND TPL720 Series with Enable Pin 1 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Product Family Table Transport Media, Output Voltage Order Number Package TPL720F10 Fixed 1.0 V TPL720F10-3TR SOT23-3 Tape and Reel, 3,000 L3 L7C TPL720F12 Fixed 1.2 V TPL720F12-3TR SOT23-3 Tape and Reel, 3,000 L3 L7D TPL720F18 Fixed 1.8 V TPL720F18-3TR SOT23-3 Tape and Reel, 3,000 L3 L7F TPL720F25 Fixed 2.5 V TPL720F25-3TR SOT23-3 Tape and Reel, 3,000 L3 L7G TPL720F28 Fixed 2.8 V TPL720F28-3TR SOT23-3 Tape and Reel, 3,000 L3 L7H TPL720F30 Fixed 3.0 V TPL720F30-3TR SOT23-3 Tape and Reel, 3,000 L3 L7I TPL720F33 Fixed 3.3 V TPL720F33-3TR SOT23-3 Tape and Reel, 3,000 L3 L7J TPL720F36 Fixed 3.6 V TPL720F36-3TR SOT23-3 Tape and Reel, 3,000 L3 L7K TPL720F10 Fixed 1.0 V TPL720F10-5TR SOT23-5 Tape and Reel, 3,000 L3 L7C TPL720F12 Fixed 1.2 V TPL720F12-5TR SOT23-5 Tape and Reel, 3,000 L3 L7D TPL720F18 Fixed 1.8 V TPL720F18-5TR SOT23-5 Tape and Reel, 3,000 L3 L7F TPL720F25 Fixed 2.5 V TPL720F25-5TR SOT23-5 Tape and Reel, 3,000 L3 L7G TPL720F28 Fixed 2.8 V TPL720F28-5TR SOT23-5 Tape and Reel, 3,000 L3 L7H TPL720F30 Fixed 3.0 V TPL720F30-5TR SOT23-5 Tape and Reel, 3,000 L3 L7I TPL720F33 Fixed 3.3 V TPL720F33-5TR SOT23-5 Tape and Reel, 3,000 L3 L7J TPL720F36 Fixed 3.6 V TPL720F36-5TR SOT23-5 Tape and Reel, 3,000 L3 L7K TPL720F10 Fixed 1.0 V TPL720F10-89TR SOT89-3 Tape and Reel, 4,000 L3 L7C TPL720F12 Fixed 1.2 V TPL720F12-89TR SOT89-3 Tape and Reel, 4,000 L3 L7D TPL720F18 Fixed 1.8 V TPL720F18-89TR SOT89-3 Tape and Reel, 4,000 L3 L7F TPL720F25 Fixed 2.5 V TPL720F25-89TR SOT89-3 Tape and Reel, 4,000 L3 L7G TPL720F28 Fixed 2.8 V TPL720F28-89TR SOT89-3 Tape and Reel, 4,000 L3 L7H TPL720F30 Fixed 3.0 V TPL720F30-89TR SOT89-3 Tape and Reel, 4,000 L3 L7I TPL720F33 Fixed 3.3 V TPL720F33-89TR SOT89-3 Tape and Reel, 4,000 L3 L7J TPL720F36 Fixed 3.6 V TPL720F36-89TR SOT89-3 Tape and Reel, 4,000 L3 L7K TPL720F10 Fixed 1.0 V TPL720F10-FR 1×1 DFN-4 Tape and Reel, 12,000 L3 L7C TPL720F12 Fixed 1.2 V TPL720F12-FR 1×1 DFN-4 Tape and Reel, 12,000 L3 L7D TPL720F18 Fixed 1.8 V TPL720F18-FR 1×1 DFN-4 Tape and Reel, 12,000 L3 L7F TPL720F25 Fixed 2.5 V TPL720F25-FR 1×1 DFN-4 Tape and Reel, 12,000 L3 L7G TPL720F28 Fixed 2.8 V TPL720F28-FR 1×1 DFN-4 Tape and Reel, 12,000 L3 L7H TPL720F30 Fixed 3.0 V TPL720F30-FR 1×1 DFN-4 Tape and Reel, 12,000 L3 L7I TPL720F33 Fixed 3.3 V TPL720F33-FR 1×1 DFN-4 Tape and Reel, 12,000 L3 L7J TPL720F36 Fixed 3.6 V TPL720F36-FR 1×1 DFN-4 Tape and Reel, 12,000 L3 L7K www.3peakic.com.cn 2 / 18 Quantity MSL Marking Part Number Information Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Table of Contents Features ........................................................................................................................................................................... 1 Applications ..................................................................................................................................................................... 1 Description....................................................................................................................................................................... 1 Typical Application Schematic....................................................................................................................................... 1 Product Family Table ...................................................................................................................................................... 2 Table of Contents ............................................................................................................................................................ 3 Revision History .............................................................................................................................................................. 4 Pin Configuration and Functions .................................................................................................................................. 5 Specifications .................................................................................................................................................................. 6 Absolute Maximum Ratings .......................................................................................................................................................... 6 ESD, Electrostatic Discharge Protection ...................................................................................................................................... 6 Recommended Operating Conditions .......................................................................................................................................... 6 Thermal Information ..................................................................................................................................................................... 6 Electrical Characteristics .............................................................................................................................................................. 7 Typical Performance Characteristics ............................................................................................................................................ 8 Detailed Description ..................................................................................................................................................... 10 Overview .................................................................................................................................................................................... 10 Functional Block Diagram .......................................................................................................................................................... 10 Feature Description .....................................................................................................................................................................11 Application and Implementation.................................................................................................................................. 12 Application Information ............................................................................................................................................................... 12 Typical Application ...................................................................................................................................................................... 12 Layout Requirements ................................................................................................................................................................. 13 Tape and Reel Information ........................................................................................................................................... 14 Package Outline Dimensions ....................................................................................................................................... 15 SOT23-3..................................................................................................................................................................................... 15 SOT23-5..................................................................................................................................................................................... 16 SOT89-3..................................................................................................................................................................................... 17 1×1 DFN-4.................................................................................................................................................................................. 18 www.3peakic.com.cn 3 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Revision History Date Revision 2018/09/08 Rev.Pre Preliminary Version 2019/01/10 Rev.A.0 Initial Release 2019/08/30 Rev.A.1 Add 3.6V Output Voltage Option 2021/03/29 Rev.A.2 www.3peakic.com.cn Notes 1. Change the Pin 1 Orientation of SOT23-3 package in Page 5 2. Add Tape and Reel Information in Page 14 4 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Pin Configuration and Functions GND TPL720 Series TPL720 Series 3-Pin SOT23 Package 3-Pin SOT89 Package 1 3 OUT IN IN 2 3 OUT 2 IN 1 GND TPL720 Series TPL720 Series 5-Pin SOT23 Package 4-Pin DFN Package IN IN 1 GND 2 EN 3 5 OUT EN 4 3 Thermal Pad 4 1 NC OUT 2 GND Pin Functions Pin Number Name I/O Description SOT23- SOT23- SOT89- DFN- 3 5 3 4 EN − 3 − 3 I GND 1 2 1 2 − Ground reference pin. Connect GND pin to PCB ground plane directly. IN 3 1 2 4 I Input voltage pin. Bypass IN to GND with a 1 μF or greater capacitor. NC − 4 − − − No connection. OUT 2 5 3 1 O Regulator enable pin. Drive EN high to turn on the regulator; drive EN low to turn off the regulator. For automatic startup, connect EN to IN directly. Regulated output voltage pin. Bypass OUT to GND with a 2.2 μF or greater capacitor. Note: Thermal pad must be connected to PCB ground plane to maximum the thermal performance. www.3peakic.com.cn 5 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Specifications Absolute Maximum Ratings Parameters Min Max Unit VIN, VEN Input Voltage −0.3 6.5 V VOUT Output Voltage −0.3 6.5 V TJ Junction Temperature Range −40 150 °C TSTG Storage Temperature Range −65 150 °C TL Lead Temperature (Soldering 10 sec) 260 °C (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. (2) All voltage values are with respect to GND. ESD, Electrostatic Discharge Protection Symbol Parameter Condition Minimum Level Unit HBM Human Body Model ESD ANSI/ESDA/JEDEC JS-001 ±4 kV CDM Charged Device Model ESD ANSI/ESDA/JEDEC JS-002 ±1 kV Recommended Operating Conditions Parameters Min Max Unit 2.4 6 V VIN Input Voltage VEN Enable Voltage 0 VIN V VOUT Output Voltage 0 5 V IOUT Output Current 0 400 mA TJ Operating Junction Temperature Range −40 125 °C TA Operating Ambient Temperature Range −40 85 °C Thermal Information θJA θJC Unit SOT23-3 280 62 °C/W SOT23-5 280 62 °C/W SOT89-3 55 88 °C/W 1×1 DFN-4 210 110 °C/W Package Type www.3peakic.com.cn 6 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Electrical Characteristics All test condition: VIN = VOUT(NOM) + 2 V or 2.4 V, whichever is greater; COUT = 2.2 µF, TA = +25°C, unless otherwise noted. Symbol Parameter Conditions Min Typ Max Unit 6 V Supply Input Voltage and Current VIN Input voltage range IGND Ground pin current ISHDN Shutdown current UVLO VIN under-voltage lock-out 2.4 IOUT = 0 mA 1.4 µA IOUT = 1 mA 2.8 µA EN = GND (4-/5-Pin Package Only) 0.1 µA VIN rising 1.8 V Hysteresis 200 mV Enable Input Voltage and Current (4-/5-Pin Package Only) VIH(EN) EN logic-input high level (enable) 1.2 VIN V VIL(EN) EN logic-input low level (disable) 0 0.4 V IEN EN pin leakage current EN = VIN 20 IOUT = 30 mA, TJ = +25°C 1% nA Regulated Output Voltage and Current VOUT ΔVOUT Output voltage accuracy Line regulation Load regulation VDO (1) Dropout voltage IOUT = 30 mA, –40°C ≤ TJ ≤ +125°C −3% VIN = VOUT(NOM) + 2 V to 6 V, or VIN ≥ 3% 3 mV IOUT = 1 mA to 400 mA 40 mV VIN = 0.98 × VOUT(NOM), IOUT = 100 mA 80 mV VIN = 0.98 × VOUT(NOM), IOUT = 200 mA 170 mV VIN = 0.98 × VOUT(NOM), IOUT = 400 mA 350 mV 2.4V,IOUT = 1 mA IOUT Output current VOUT in regulation ICL Output current limit VOUT = 0.9 × VOUT(NOM) RDIS Output discharge resistance VIN = VOUT(NOM) + 2 V, EN = GND 190 Ω IOUT = 10 mA, f = 100 Hz, COUT = 2.2 µF 55 dB IOUT = 10 mA, f = 1 kHz, COUT = 2.2 µF 54 dB IOUT = 10 mA, f = 10 kHz, COUT = 2.2 µF 50 dB IOUT = 10 mA, f = 1 MHz, COUT = 2.2 µF 53 dB IOUT = 10 mA, BW = 10Hz to 100 kHz 90 μVRMS IOUT = 200 mA, COUT = 2.2 μF 680 μs Thermal shutdown temperature 165 ºC Thermal shutdown hysteresis 15 ºC PSRR VN tSTR Power supply rejection ratio Output noise voltage Start-up time from EN assertion to 0.98 × VOUT(NOM) 0 410 560 400 mA 800 mA Temperature Range TSD *Note: (1). Dropout voltage is the minimum input to output voltage differential needed to maintain regulation at a specified output current. In dropout, the output voltage will be equal to: VIN – VDROPOUT. www.3peakic.com.cn 7 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Typical Performance Characteristics All test condition: VIN = VOUT(NOM) + 2 V or 2.4 V, whichever is greater; COUT = 2.2 µF, TA = +25°C, unless otherwise noted. 1000 5 –40°C 800 Ground Current (µA) Ground Current (µA) –40°C 25°C 85°C 600 400 200 0 4 25°C 85°C 3 2 1 0 0 100 200 300 400 3 4 Load Current (mA) VOUT = 3.3V 7 Figure 2 Quiescent Current vs Input Voltage 2 0.6 1.8 VIN = 2.1V VIN = 2.5V 1.6 VIN = 3V VIN = 3.3V 1.4 VIN = 5V VIN = 5.5V 1.2 VIN = 6V Dropout Voltage (V) Shutdown Current(uA) 6 VOUT = 3.3V Figure 1 Ground Current vs Output Current 1 0.8 0.6 0.4 0.2 –40°C 0.5 25°C 0.4 85°C 0.3 0.2 0.1 0 0 -40 -15 10 35 60 0 85 100 200 300 400 Load Current (mA) Temperature(℃) With Enable Pin VOUT = 3.3V Figure 3 Shutdown Current vs Ambient Temperature Figure 4 Dropout Voltage vs Output Current 4.0 Output Voltage (V) 3.4 Output Voltage (V) 5 Supply Voltage (V) 3.35 3.3 3.25 3.2 3.0 2.0 1.0 0.0 -40 -25 -10 5 20 35 50 65 80 95 110 125 0 Ambient Temperature (°C) 2 3 4 5 6 Supply Voltage (V) VOUT = 3.3V VOUT = 3.3V Figure 5 Output Accuracy vs Ambient Temperature www.3peakic.com.cn 1 Figure 6 Output Voltage vs Input Voltage 8 / 18 Rev.A.2 7 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Typical Performance Characteristics (continued) Test condition: VIN = VOUT(NOM) + 2 V or 2.4 V, whichever is greater; COUT = 2.2 µF, TA = +25°C, unless otherwise noted. 3.40 Output Voltage (V) Output Voltage (V) 3.40 3.35 3.30 –40°C 3.25 25°C 3.35 3.30 –40°C 3.25 25°C 85°C 85°C 3.20 3.20 3 4 5 6 7 0 100 Supply Voltage (V) 200 300 400 Load Current (mA) VOUT = 3.3V VOUT = 3.3V Figure 7. Line Regulation Figure 8. Load Regulation 4.0 80 3.0 60 PSRR (dB) Output Voltage (V) 70 2.0 1.0 50 40 30 20 10 0.0 0 0 200 400 600 800 10 Load Current (mA) 1K 10K 100K 1M Frequency (Hz) VOUT = 3.3V VOUT = 3.3V Figure 9. Current Limit www.3peakic.com.cn 100 IOUT = 10 mA COUT = 2.2 µF Figure 10. PSRR 9 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Detailed Description Overview The TPL720 series products are CMOS process low Iq linear regulators with ultra-low quiescent power consumption. The TPL720 series products support maximum 400mA output current, with typically only 1.4 µA quiescent current. TPL720 series products are stable with low-ESR small ceramic output capacitor from 2.2μF to 10μF. The TPL720 series products are available in fixed voltage versions of 1V, 1.2 V, 1.8 V, 2.5 V, 2.8 V, 3 V, 3.3 V and 3.6 V. Functional Block Diagram IN OUT UVLO Ban dgap Regula tor Control + – VBG GND Thermal Shu tdo wn Curren t Limit TPL720 Series without Enable Pin IN OUT UVLO Ban dgap Regula tor Control + – VBG Thermal Shu tdo wn EN GND Curren t Limit TPL720 Series with Enable Pin www.3peakic.com.cn 10 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Feature Description Enable (4-/5-Pin Package Only) The enable pin (EN) is active high. Connect this pin to the GPIO of an external processor or digital logic control circuit to enable and disable the device. Or connect this pin to the IN pin for self-bias applications. Under-voltage Lockout (UVLO) The TPL720 series use an under-voltage lockout circuit (UVLO = 1.8 V) to keep the output shut off until the internal circuitry operates properly. Regulated Output Voltage The TPL720 series are available in fixed voltage versions of 1V, 1.2 V, 1.8 V, 2.5 V, 2.8 V, 3 V, 3.3 V and 3.6 V. When the input voltage is higher than VOUT(NOM) + VDO or 2.4V, output pin is the regulated output based on the selected voltage version. When the input voltage falls below VOUT(NOM) + VDO or 2.4V, output pin tracks the input voltage minus the dropout voltage based on the load current. When the input voltage drops below UVLO threshold, the output keeps shut off. Current Limit The TPL720 series integrate an internal current limit that helps to protect the regulator during fault conditions. When the output is overloaded or shorted to ground, the LDO supplies output current with limited value to prevent the regulator from damage. Output voltage is not regulated when the device is in current limit mode, and the value is VOUT = ICL × RLOAD. Thermal Shutdown During normal operation, LDO junction temperature should not exceed 125°C. When the junction temperature exceeds the thermal shutdown threshold, the LDO shut down the output immediately. Until when the junction temperature falls below the thermal shutdown threshold minus thermal shutdown hysteresis, the output turns on again. www.3peakic.com.cn 11 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Application and Implementation NOTE Information in the following applications sections is not part of the 3PEAK’s component specification and 3PEAK does not warrant its accuracy or completeness. 3PEAK’s customers are responsible for determining suitability of components for their purposes. Customers should validate and test their design implementation to confirm system functionality. Application Information The TPL720 devices are a series of 400 mA high PSRR, low-dropout linear regulator with low quiescent current. The following application schematic shows a typical usage of the TPL720 series. Typical Application Figure 11 shows the typical application schematic of the TPL720 series. Input VOUT VIN CIN Output COUT TPL720 Series Off On (1) EN(1) GND EN pin is only available in 4-/5-pin package Figure 11 TPL720 Series Application Schematic Input Capacitor and Output Capacitor 3PEAK recommends adding a 1 μF or greater capacitor with a 0.1 μF bypass capacitor in parallel at IN pin to keep the input voltage stable. The voltage rating of the capacitors must be greater than the maximum input voltage. To ensure loop stability, the TPL720 series requires an output capacitor with a minimum effective capacitance value of 2.2 μF. 3PEAK recommends selecting a X5R- or X7R-type 4.7 μF or larger ceramic capacitor with low ESR over temperature. Both input capacitors and output capacitors must be placed as close to the device pins as possible. Power Dissipation During normal operation, LDO junction temperature should not exceed 125°C. Using below equations to calculate the power dissipation and estimate the junction temperature. The power dissipation can be calculated using Equation 1. PD = ( VIN − VOUT )  IOUT + VIN  IGND (1) The junction temperature can be estimated using Equation 2. θJA is the junction-to-ambient thermal resistance (See Section Thermal Information). TJ = TA + PD  JA www.3peakic.com.cn (2) 12 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Layout Requirements • Both input capacitors and output capacitors must be placed as close to the device pins as possible. • It is recommended to bypass the input pin to ground with a 0.1 μF bypass capacitor. The loop area formed by the bypass capacitor connection, IN pin and the GND pin of the system must be as small as possible. • It is recommended to use wide trace lengths or thick copper weight to minimize I×R drop and heat dissipation. www.3peakic.com.cn 13 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Tape and Reel Information Order Number Package D1 W1 A0 B0 K0 P0 W0 Pin1 Quadrant TPL720Fxx-3TR SOT23-3 180 13.1 3.18 3.28 1.32 4 8 Q3 TPL720Fxx-5TR SOT23-5 180 13.1 3.2 3.2 1.4 4 8 Q3 TPL720Fxx-89TR SOT89-3 330 17.6 4.8 4.4 1.8 8 12 Q3 TPL720Fxx-FR 1×1 DFN-4 180 12.3 1.16 1.16 0.5 4 8 TBD (1) Output voltage value, xx = 10 to 36. e.g. 33 means 3.3 V output voltage. www.3peakic.com.cn 14 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO Package Outline Dimensions SOT23-3 www.3peakic.com.cn 15 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO SOT23-5 www.3peakic.com.cn 16 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO SOT89-3 www.3peakic.com.cn 17 / 18 Rev.A.2 TPL720 Series 400 mA output, 1 µA Ultra-Low Quiescent Current LDO 1×1 DFN-4 3PEAK and the 3PEAK logo are registered trademarks of 3PEAK INCORPORATED. All other trademarks are the property of their respective owners. www.3peakic.com.cn 18 / 18 Rev.A.2
TPL720F33-5TR 价格&库存
