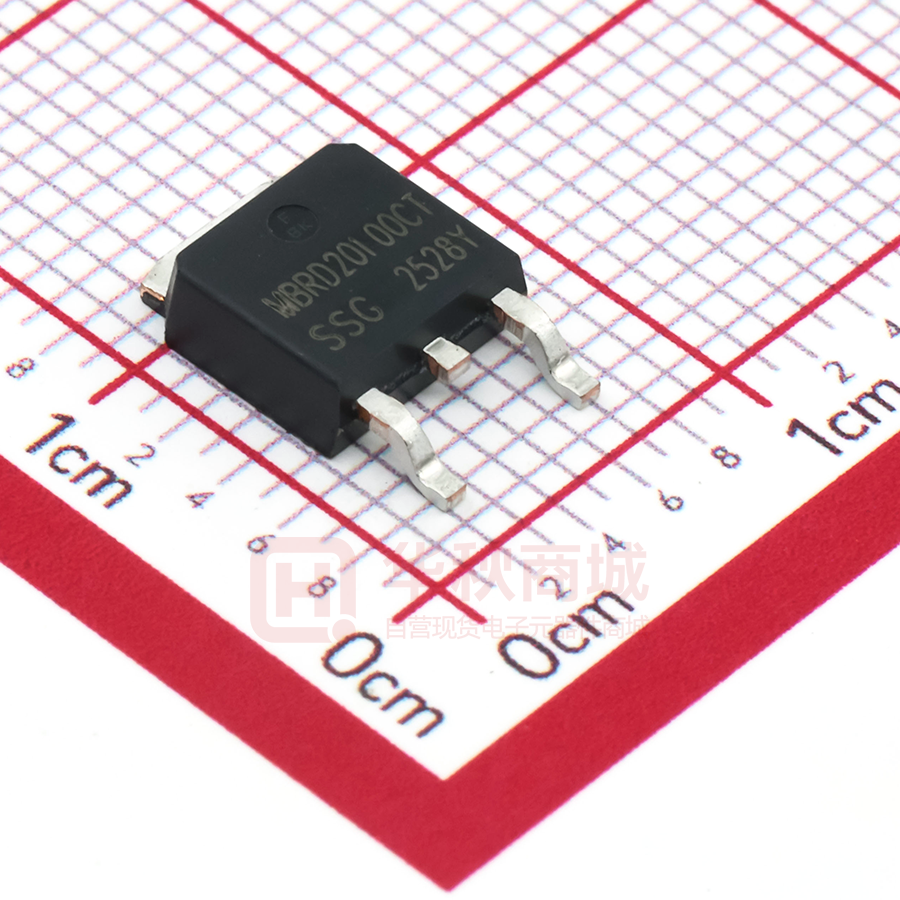

MBRD20100CT

MBRD20100CT Technical Data Data Sheet N0068, Rev. A MBRD20100CT SCHOTTKY RECTIFIER Features 150℃ TJ operation Center tap configuration Low forward voltage drop High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance High frequency operation Guard ring for enhanced ruggedness and long term reliability “-A” is an AEC-Q101 qualified device This is a Pb − Free Device All SMC parts are traceable to the wafer lot Additional testing can be offered upon request           DPAK Circuit Diagram Applications      Switching power supply Converters Free-Wheeling diodes Reverse battery protection Battery charging Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Symbol VRRM VRWM VR Condition Max. Units - 100 V 10(peg leg) 20(peg device) A 120 A Average Rectified Forward Current IF (AV) 50% duty cycle @TC =105°C, rectangular wave form Peak One Cycle Non-Repetitive Surge Current(peg leg) IFSM 8.3 ms, half Sine pulse Electrical Characteristics: Characteristics Symbol Condition Typ. Max. 0.75 0.90 @ 10A, Pulse, TJ = 125 C 0.64 0.84 V @VR = rated VR, TJ = 25 C 0.006 1.0 mA IR2 @VR = rated VR, TJ = 125 C 1 6.0 mA CT @VR = 5V, TC = 25 C, fSIG = 1MHz 230 250 pF Forward Voltage Drop (per leg) * VF1 @ 10A, Pulse, TJ = 25 C VF2 Reverse Current (per leg) * IR1 Junction Capacitance(per leg) * Pulse width < 300 µs, duty cycle < 2%  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  Units V MBRD20100CT Technical Data Data Sheet N0068, Rev. A Thermal-Mechanical Specifications: Characteristics Symbol Condition Specification Units TJ Tstg - -55 to +150 -55 to + 150 C C RJC - 3.5 C/W wt - 0.39 g Junction Temperature Storage Temperature Typical Thermal Resistance Junction to Case(per leg) Approximate Weight Case Style DPAK Ratings and Characteristics Curves 10 TJ=25℃ 100 10 0 5 10 15 20 25 30 35 40 Instantaneous Reverse Current (mA) 1000 1 TJ=125℃ 0.1 0.01 0.001 TJ=25℃ 0.0001 10 20 30 40 50 60 70 80 Fig.1-Typical Junction Capacitance Fig.2-Typical Reverse Characteristics 100 TJ=125℃ 10 TJ=25℃ 1 0.3 0.4 0.5 90 Pe r ce nt of Rate d Pe ak Re ve r s e V oltage (%) Reverse Voltage (V) Instantaneous Forward Current (A) Junction Capacitance (PF) 10000 0.6 0.7 0.8 0.9 Forward Voltage Drop (V) Fig.3-Typical Instantaneous Forward Voltage Characteristics  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  1 100 MBRD20100CT Technical Data Data Sheet N0068, Rev. A Mechanical Dimensions DPAK SYMBOL A A1 b c D D1 D2 E e L L1 L2 L3 L4 Φ Θ h V Ordering Information Device MBRD20100CT MBRD20100CTTR Package DPAK (Pb-Free) DPAK (Pb-Free) Millimeters Inches Min. Max. 2.20 2.40 0.00 0.127 0.66 0.86 0.46 0.60 6.50 6.70 5.13 5.46 4.83 REF. 6.00 6.20 2.186 2.386 9.70 10.40 2.90 REF. 1.40 1.70 1.60 REF. 0.60 1.00 1.10 1.30 0° 8° 0.00 0.30 5.35 REF. Min. Max. 0.087 0.094 0.000 0.005 0.026 0.034 0.018 0.024 0.256 0.264 0.202 0.215 0.190 REF. 0.236 0.244 0.086 0.094 0.381 0.409 0.144 REF. 0.055 0.067 0.063 REF. 0.024 0.039 0.043 0.051 0° 8° 0.000 0.012 0.211 REF. Marking Diagram Where XXXXX is YYWWL Shipping MBR D 20 100 CT SSG YY WW L 2500pcs / reel 2500pcs / reel For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel Packaging specification. = Device Type = Package type = Forward Current (20A) = Reverse Voltage (100V) = Configuration = SSG = Year = Week = Lot Number Cautions：Molding resin Epoxy resin UL:94V-0 Carrier Tape Specification DPAK SYMBOL A B C d E F P0 P P1 W Min. Millimeters Max. 6.80 10.40 2.60 Φ1.45 1.65 7.40 3.90 7.90 1.90 15.90  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com  7.00 10.60 2.80 Φ1.65 1.85 7.60 4.10 8.10 2.10 16.30 MBRD20100CT Technical Data Data Sheet N0068, Rev. A DISCLAIMER: 1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product characteristics. Before ordering, purchasers are advised to contact the SMC Diode Solutions sales department for the latest version of the datasheet(s). 2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment, medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by means of users’ fail-safe precautions or other arrangement . 3- In no event shall SMC Diode Solutions be liable for any damages that may result from an accident or any other cause during operation of the user’s units according to the datasheet(s). SMC Diode Solution assumes no responsibility for any intellectual property claims or any other problems that may result from applications of information, products or circuits described in the datasheets. 4- In no event shall SMC Diode Solutions be liable for any failure in a semiconductor device or any secondary damage resulting from use at a value exceeding the absolute maximum rating. 5- No license is granted by the datasheet(s) under any patents or other rights of any third party or SMC Diode Solutions. 6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of SMC Diode Solutions. 7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and regulations..  China - Germany - Korea - Singapore - United States   http://www.smc-diodes.com - sales@ smc-diodes.com 
