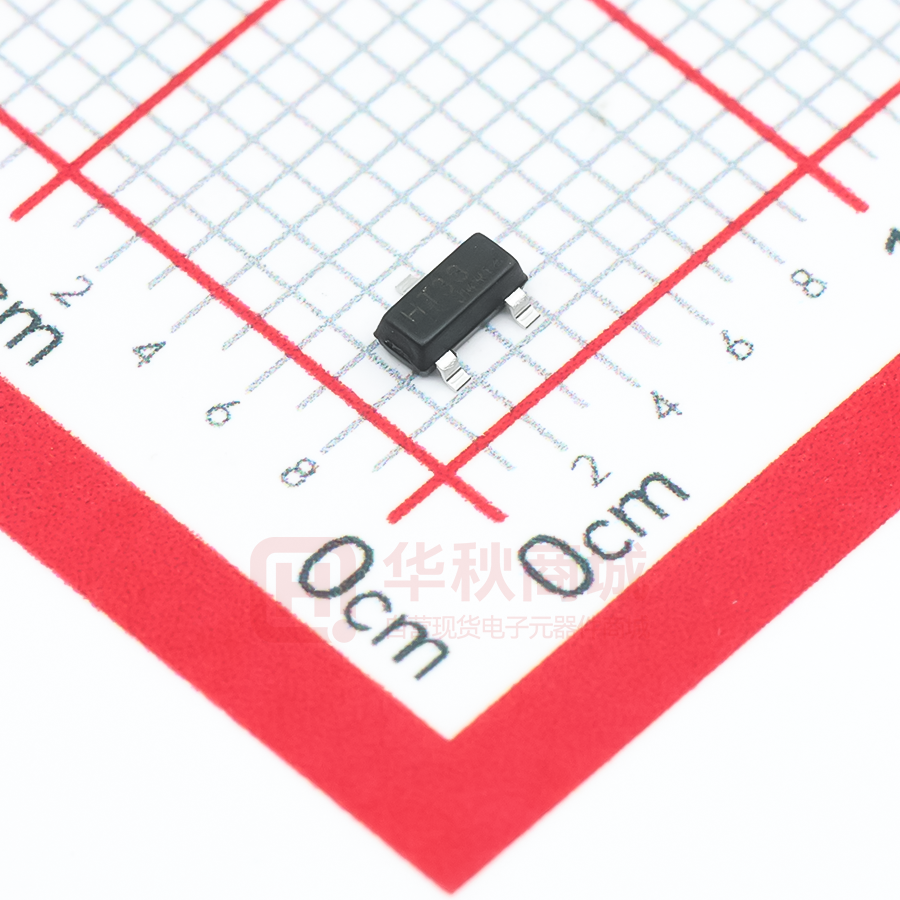

HT7133S

UMW R UMW 71XX LDO high voltage regulator ■ Product introduction The 71XX series is a low-power high-voltage regulator manufactured by CMOS process. The maximum input voltage is 30V and the output voltage range is 1.5v-12.0v.It has the characteristics of high precision output voltage, very low power supply current and very low drop voltage. ■ Product features ● Low power consumption: ≤ 3μA ● Low drop voltage: typical value 0.1V ● Low temperature bleaching: typical 50 ppm / ℃ ● High input voltage: up to 30V ● High precision output voltage: tolerance of + 3% ● Package form: TO-92, sot89-3, sot-23-3 ■ Product use ● Battery power supply equipment ● Various communication equipment ● Audio / video equipment ● Security monitoring equipment ■ Package form and pin function definition SOT-23-3 Pin number Pin Functional TO- 92 SOT89- 3 SOT23 - 3 define specifications 1 1 1 GND Chip ground terminal 2 2 2 VIN 3 3 3 VOUT Chip output terminal Start input ■ Model selection name model Maximum input voltage (V) 71XX www.umw-ic.com Output voltage (V) tolerance 7130 30 3.0 7133 30 3.3 +3% +3% 7136 30 3.6 +3% 7144 30 4.4 +3% 7150 30 5.0 +3% 1 Packaging form TO 92 SOT89-3 SOT-23-3 友台半导 体有限公司 UMW R UMW 71XX LDO high voltage regulator ■ Principle block diagram Vin Vref GND ■ Limit parameter project Symbol Voltage VIN Maximum input voltage 30 V power waste PD power waste 400 mW Tw working temperature -25～70 ℃ Tc Storage temperature -50～125 ℃ Th welding temperature 260 ℃,10s temperature parameter Limit value Company ■ Electrical properties 7130 ( TOPT=25℃) Symbol VOUT Output voltage IOUT Output current △VOUT Load regulation VD I F Voltage sag I SS Quiescent current ΔV /(ΔV * V ) OUT IN Typical value Max 2.91 3 3.09 60 100 VIN＝5V，1mA≤IOUT ≤20mA － 100 150 mV IOUT＝1mA － 100 － mV － 2 3 µA － 0.2 － ％/V － － 30 V parameter OUT Test conditions VIN＝5V，IOUT＝10mA VIN＝5V Vin = 5V, no load 4V≤VIN≤30V，IOUT＝1mA Line Regulation VIN input voltage ΔVOUT /ΔTa temperature coefficient www.umw-ic.com － V ＝5V，I ＝10mA 0℃≤Ta≤70℃ IN OUT 2 Min － ±0.45 Company V mA － mV/℃ 友台半导 体有限公司 UMW R UMW 71XX LDO high voltage regulator (TOPT=25℃) 7133 Symbol Parameter VOUT Output voltage IOUT Output current △VOUT Load regulation VDIF Test conditions VIN＝5.5V，IOUT＝10mA VIN＝5.5V VIN＝5.5V，1mA≤IOUT≤30mA IOUT＝1mA Voltage sag ISS IN 3.201 Typical value 3.3 Max 3.399 Company V 60 100 － mA － 100 150 mV － 100 － mV Quiescent current Vin = 5.5V, no load － 2 3 µA Line Regulation 4.5V≤VIN≤30V，IOUT＝1mA － 0.2 － ％/V － － 30 V － mV/℃ ΔV /(ΔV *V ) OUT Min OUT VIN － Input voltage VOUT /ΔTa //Δ ΔV Temperature coefficient 7136 VIN＝5.5V，IOUT＝10mA， 0℃≤Ta≤70℃ － ±0.5 (TOPT=25℃) Symbol Parameter Test conditions Min Typical value Max Company VOUT Output voltage VIN＝5.6V，IOUT＝10mA 3.492 3.6 3.708 V IOUT Output current △VOUT Load regulation VDIF VIN＝5.6V 100 － mA － 100 150 mV IOUT＝1mA － 100 － mV Voltage sag ISS Quiescent current Vin = 5.6v, no load － 2 3 µA Line Regulation 4.6V≤VIN≤30V，IOUT＝1mA － 0.2 － ％/V － － － 30 V － ±0.6 － mV/℃ ΔV /(ΔV *V ) OUT 60 VIN＝5.6V，1mA≤IOUT≤30mA IN OUT VIN Input voltage ΔVOUT /ΔTa OUT / Temperature coefficient 7144 VIN＝5.6V，IOUT＝10mA， 0℃≤Ta≤70℃ (TOPT=25℃) Symbol Parameter Test conditions Min Typical value Max Company VOUT Output voltage VIN＝6.4V，IOUT＝10mA 4.268 4.4 4.532 V IOUT Output current VIN＝6.4V 60 100 － mA VIN＝6.4V，1mA≤IOUT≤30mA － 100 150 mV IOUT＝1mA － 100 － mV Vin = 6.4v, no load － 2 3 µA 0.2 － ％/V △VOUT Load regulation VDIF Voltage sag ISS Quiescent current ΔV /(ΔV *V ) OUT IN OUT VIN ΔVOUT /ΔTa OUT / www.umw-ic.com 5.4V≤VIN≤30V，IOUT＝1mA － Input voltage － － － 30 V Temperature coefficient V ＝6.4V,I ＝10mA, － +0.7 － mV/℃ Line Regulation IN OUT 0℃≤Ta≤70℃ 3 友台半导 体有限公司 UMW R UMW 71XX LDO high voltage regulator 7150 (TOPT=25℃) Typical value Max Company 4.85 5 5.15 V VIN＝7V 60 100 － mA VIN＝7V，1mA≤IOUT≤30mA － 100 IOUT＝1mA － 100 － mV µA Symbol Parameter Test conditions VOUT Output voltage VIN＝7V，IOUT＝10mA IOUT Output current △VOUT Load regulation VDIF Voltage sag ISS IN mV Quiescent current Vin = 7V, no load － 2 3 Line Regulation 6V≤VIN≤30V，IOUT＝1mA － 0.2 － ％/V － － 30 V － +0.75 － mV/℃ ΔV /(ΔV *V ) OUT Min OUT VIN ΔVOUT /ΔTa OUT / Input voltage Temperature coefficient － VIN＝7V，IOUT＝10mA， 0℃≤Ta≤70℃ ■ Application circuit 1. Basic circuit 71XX GND VIN Vout 1 2 3 Vout Vin C1 10uF C2 10uF 2. High output current regulator 71XX www.umw-ic.com 4 友台半导 体有限公司 UMW R UMW 71XX LDO high voltage regulator 3. Short circuit protection circuit 71XX 4. Circuit for increasing output voltage (1) 71XX VOUT＝Vxx（1＋R2/R1）＋Iss*R2 5. Circuit for increasing output voltage (2) 71XX VOUT＝Vxx＋VD1 www.umw-ic.com 5 友台半导 体有限公司 UMW R UMW 71XX LDO high voltage regulator 6. Current regulating circuit 71XX IOUT = VXX/RX + ISS 7. Dual output circuit 71XX 71XX Note:“××”Represents the output voltage www.umw-ic.com 6 友台半导 体有限公司 UMW R UMW 71XX LDO high voltage regulator ■ Encapsulation information www.umw-ic.com 7 友台半导 体有限公司 UMW R UMW 71XX LDO high voltage regulator www.umw-ic.com 8 友台半导 体有限公司 UMW R UMW 71XX LDO high voltage regulator SOT-23-3 www.umw-ic.com 9 友台半导 体有限公司
