TMI6263
Precision Power Distribution Switch
FEATURES
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
⚫
GENERAL DESCRIPTION
Integrated 60mΩ Power MOSFET
1μA Typical at Switch Off State
Wide Input Voltage Range: 2.5V to 5.5V
Fast Transient Response: 8μs
0.1ms Typical Rise Time
Reverse Current Flow Blocking
Automatic output discharge at
shutdown
Deglitched Open-Drain Over-Current Flag
Output (TMI6263A, TMI6263D, TMI6263E)
Thermal Shutdown Protection
Hot Plug-In Application (Soft-Start)
Two Enable polarities and four current
levels
TMI6263AH: 2.0A/Enable High
TMI6263AL: 2.0A/Enable Low
TMI6263CH: 1.5A/Enable High
TMI6263DH: 2.0A/Enable High
TMI6263EH: 2.5A/Enable High
TMI6263BH: ADJ /Enable High
SOT-23-5 / TSSOP-8 Package
The TMI6263 is a cost-effective, single P-MOSFET load
switch with ultra-low RDS(ON), optimized for self-powered
and bus-powered Universal Serial Bus (USB) applications.
Input voltage from 2.5V to 5.5V, making it ideal for both
3V and 5V systems. A built-in P-channel MOSFET with
true shutdown function to eliminate any reversed
current flow across the switch. When output voltage is
higher than input voltage, power switch is turned off.
The TMI6263B offers a programmable current limit
threshold between 200mA to2.4A via an external resistor.
APPLICATIONS
⚫
⚫
⚫
⚫
USB Bus/Self Powered Hubs
Battery-Charger Circuits
Personal Communication Devices
Notebook Computers
TYPICAL APPILCATION
100kΩ
Vin
1μF
IN
nFLG
EN
OUT
Vout 2A
GND
0.1μF
22μF
Load
Figure 1. TMI6263AH/DH/EH Application Circuit with EN and nFLG
TMI and SUNTO are the brands of TOLL microelectronic .
TMI6263 V1.2 2018.11
www.toll-semi.com
www.suntosemi.com
1
TMI6263
Vin
EN
IN
Vout
5V/2A
1 μF
OUT
ILIM
GND
3 kΩ
1%
0 . 1 μF
22μF
Load
Figure 2. TMI6263BH Application Circuit with Adjustable ILIMIT and EN.
Vout
5V/ 1.5A
Vin
OUT
IN
1 μF
EN
GND
Load
0 . 1 μF
22μF
Figure 3. TMI6263CH Application Circuit with EN.
www.toll-semi.com
2
www.suntosemi.com
TMI and SUNTO are the brands of TOLL microelectronic.
TMI6263 V1.2 2018.11
TMI6263
ABSOLUTE MAXIMUM RATINGS (Note 1)
Description
Value
Unit
IN Input Voltage Range
-0.3~7
V
All other pins Voltage Range
-0.3 to (VIN+0.3)
V
Junction Temperature
-40~160
°C
Storage Temperature Range
-65~150
°C
Junction-to-ambient Thermal Resistance (Note 2)
260(SOT23-5)
°C/W
Junction-to-case Thermal Resistance (Note 2)
160(TSSOP8)
120(SOT23-5)
°C/W
Lead TemperatureSoldering,10Sec
80 (TSSOP8)
260
°C
PIN CONFIGURATION
Package
Type
Pin Configurations
OUT 1
TMI6263B
SOT-23-5
TMI6263C
GND 2
SOT-23-5
nFLG 3
4 EN
OUT 1
5 IN
GND 2
4 IN
GND 1
8 OUT
IN
2
7 OUT
IN
3
6 OUT
EN
4
5 nFLG
TMI6263E
TSSOP8
ILIM 3
5 IN
EN 3
TMI6263D
GND 2
Pin Configurations
OUT 1
5 IN
TMI6263A
SOT-23-5
Package
Type
4 EN
Top Mark: TXXXXX (TXX: Device Code, XXX: Inside code)
Part Number
Package
Top mark Quantity/ Reel

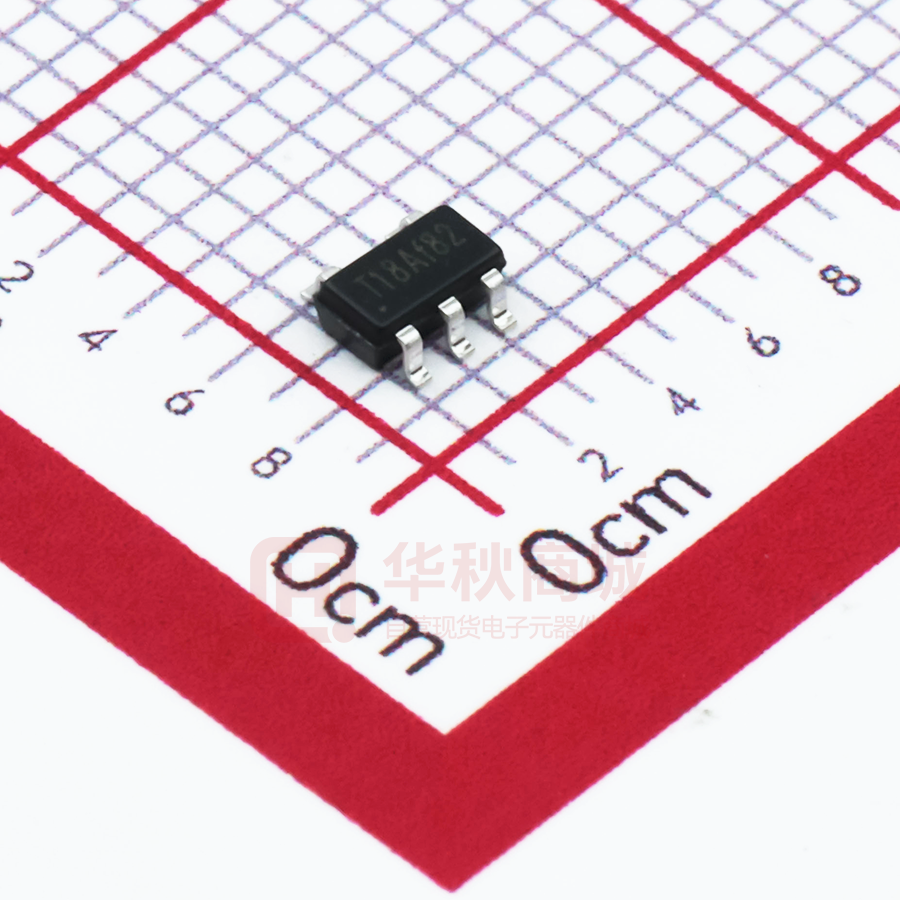

TMI6263AH
SOT-23-5
T17BXX
3000
TMI6263AL
SOT-23-5
T19AXX
3000
TMI6263DH
TSSOP-8
T17CXX
3000
TMI6263CH
SOT-23-5
T17AXX
3000
TMI6263EH
TSSOP-8
T17DXX
3000
TMI6263BH
SOT-23-5
T18AXX
3000
TMI and SUNTO are the brands of TOLL microelectronic .
TMI6263 V1.2 2018.11
www.toll-semi.com
www.suntosemi.com
3
TMI6263
PIN FUNCTIONS
TMI6263A
SOT23-5
TMI6263B
SOT23-5
TMI6263C
SOT23-5
TMI6263D
TMI6263E
MSSOP8
Name
1
1
1
6,7,8
OUT
Switch Output Pin.
2
2
2
1
GND
Ground Pin
5
nFLG
Open-Drain Fault Flag Output.
3
4
4
3
4
EN/nEN
5
5
4,5
2,3
IN
3
ILIM
Function
EN: High Enable. Not floating.
nEN: Low Enable. Not floating.
Power Input Pin
Current limit Set Pin
ESD RATINGS
Items
Description
Value
Unit
VESD
Human Body Model for all pins
±2000
V
JEDEC specification JS-001
RECOMMENDED OPERATING CONDITIONS
Items
Description
Min
Max
Unit
Voltage Range
IN
2.5
5.5
V
TJ
Operating Junction Temperature Range
-40
125
°C
www.toll-semi.com
4
www.suntosemi.com
TMI and SUNTO are the brands of TOLL microelectronic.
TMI6263 V1.2 2018.11
TMI6263
ELECTRICAL CHARACTERISTICS (Note3)
(VIN=5V, CIN=1μF, COUT=1μF, TA = 25°C.)
Symbol
Parameter
Conditions
Min
Typ
2.5
Max
Unit
5.5
V
VIN
Input Voltage
IQ
Quiescent Supply Current
VIN=5.0V, nEN=L, No load
30
60
μA
ISHDN
Shutdown Input Current
VIN=5.0V, nEN=H, No load
0.1
1
μA
IREV
Reverse Leakage Current
VOUT=5.0V, VIN=0V
2
5
μA
VUVLO
UVLO Threshold
VIN rising
2
2.3
V
VUVLO_HY
UVLO Hysteresis
VIN falling
100
VnEN_H
nEN Rising Threshold
VIN=5.0V
VnEN_L
nEN Falling Threshold
VIN=5.0V
nEN Input Current
VEN=5.0V or 0V
-0.5
RILIM=6.8kΩ(TMI6263B)
6263A/D
mV
nEN Section
1.5
V
0.8
V
5
10
μA
0.8
1
1.2
A
2.1
2.5
3
A
6263C
2
2.4
3
A
6263E
2
2.4
3
A
Reverse Voltage Protection
VOUT-VIN
5
20
50
mV
TRISE
Output Rise Time
CL=1uF, RL=100ohm
0.1
ms
TFALL
Output Fall Time
CL=1uF, RL=100ohm
0.3
ms
TIOS
Short Circuit Response time
12
μs
RDIS
OUT Discharge Resistance
10
Ω
InEN
OUT Section
ILIM
VREVERSE
Limit Current
FLG(Fault flag) section(TMI6263A,TMI6263D,TMI6263E)
VOL
Output low voltage
IFLG
Continuous FLG sink
IFLG_LEAK
TFLG
IFLG=1mA
Off-state leakage
Fault flag deglitch time
180
mV
10
mA
1
μA
2.5
ms
60
mΩ
Power Switch
RDS_ON
IOUT=1A
Thermal Shutdown
TOTP
Thermal Shutdown Threshold
150
°C
TOTP_HY
Thermal Shutdown Hysteresis
20
°C
Note 1: Absolute Maximum Ratings are those values beyond which the life of a device may be impaired.
Note 2: TJ is calculated from the ambient temperature TA and power dissipation PD according to the
following formula: TJ = TA + (PD) x (250°C/W).
Note3: 100% production test at +25°C. Specifications over the temperature range are guaranteed by
design and characterization.
TMI and SUNTO are the brands of TOLL microelectronic .
TMI6263 V1.2 2018.11
www.toll-semi.com
www.suntosemi.com
5
TMI6263
Figure 4. Short Circuits Response time
Figure 5. test circuits
Note:
To exactly identify the short circuit characteristic of IC, avoid the test result interfered by parasitic
inductor, output capacitor, and contact resistor. It is necessary to follow the recommendation as follows.
Please,
1. Add 1000μF of capacitor between VIN and GND, and close to IC.
2. Remove output capacitor.
3. Shorter the short circuit device wire.
4. Measure output current (IOUT).
www.toll-semi.com
6
www.suntosemi.com
TMI and SUNTO are the brands of TOLL microelectronic.
TMI6263 V1.2 2018.11
TMI6263
TYPICAL PERFORMANCE CHARACTERISTICS
(Condition: VIN=5V, CIN=1μF, COUT=10μF, unless otherwise noted.)
Output V-I Curve
RDSON VS. Input Voltage
6
85
80
5
RDS(ON) (mΩ)
Voltage(V)
75
4
3
2
70
65
60
55
50
1
TMI6263B
0
0
0.5
1
1.5
2
2.5
45
40
2.5
Current(A)
Enable Response
3
3.5
4
4.5
Input Voltage (V)
5
5.5
Disable Response
VEN=2V/div
VEN=2V/div
Vout=2V/div
Vout=2V/div
Time: 100μs/div
Time: 100μs/div
Input Power on
Input Power off
VIN=2V/div
VIN=2V/div
Vout=2V/div
Vout=2V/div
Time: 1ms/div
Time: 1ms/div
TMI and SUNTO are the brands of TOLL microelectronic .
TMI6263 V1.2 2018.11
www.toll-semi.com
www.suntosemi.com
7
TMI6263
TYPICAL PERFORMANCE CHARACTERISTICS (continued)
nFLG Response during Over Load
nFLG Response during Short Circuit
VIN=5V/div
VIN=5V/div
nFLG=5V/div
nFLG=5V/div
Iout=2A/div
Iout=2A/div
Time: 2ms/div
Time: 2ms/div
FUNCTIONAL BLOCK DIAGRAM
Output Reverse Voltage
Protection
VIN
OUT
EN
PMOS Gate Control
Delay
UVLO
nFLG
OTP
EN
Bias
Current
Limit
GND
Figure 6. TMI6263AH Block Diagram
APPLICATION INFORMATION
The TMI6263 is current-limited, power distribution switches using P-channel MOSFETs for applications
where short circuits or heavy capacitive loads will be encountered and provide up to 2.4A of continuous
load current. Additional device shutdown features include over temperature protection and reverse-voltage
protection. The driver controls the gate voltage of the power switch. The driver incorporates circuitry that
controls the rise and fall times of the output voltage to limit large current and voltage surges and provides
built-in soft-start functionality. The TMI6263 enters constant current mode when the load exceeds the
current-limit threshold.
www.toll-semi.com
8
www.suntosemi.com
TMI and SUNTO are the brands of TOLL microelectronic.
TMI6263 V1.2 2018.11
TMI6263
Input and Output
IN (input) is the power supply connection to the logic circuitry and the drain of the output MOSFET.
OUT(output) is the source of the output MOSFET. In a typical application, current flows through the switch
from IN to OUT toward the load. OUT pin must be connected together to the load.
Soft Start for Hot Plug-In Applications
In order to eliminate the upstream voltage droop caused by the large inrush current during hot-plug events,
the “soft-start” feature effectively isolates the power source from extremely large capacitive loads,
satisfying the USB voltage droop requirements.
Setting Current Limit (TMI6263B Only)
The over-current threshold is user programmable via an external resistor. The TMI6263B use an internal
regulation loop to provide a regulated voltage on the ILIM pin. The current-limit threshold is proportional
to the current sourced out of ILIM. The recommended 1% resistor range for RILIM is 2.5kΩ ≤ RILIM ≤17kΩ to
ensure stability of the internal regulation loop. Many applications require that the minimum current limit is
above a certain current level or that the maximum current limit is below a certain current level, so it is
important to consider the tolerance of the overcurrent threshold when selecting a value for RILIM. The
following Figure 6 can be used to select the resulting type over-current threshold for a given external resistor
value (RILIM).
ILIMT=6800/RILIM
TMI6263B ensure that maximum Current Limit threshold is below 3A, it is important to avoid current limiting
upstream power supplies causing the input voltage bus to drop
ILIMIT vs. RILIM
3
ILIMIT(A)
2.5
2
1.5
1
0.5
0
1
6
11
16
21
RILIM(kΩ)
Figure 6. ILIMIT vs. RILIMIT
FLG Function (TMI6263A TMI6263D TMI6263Eonly)
The nFLG open-drain output is asserted (active low) when an over current condition is encountered after a
7ms deglitch timeout. The nFLG output remains asserted until the over-current condition is removed. Over
temperature condition is also reported by nFLG open-drain output. In addition, nFLG is also asserted (active
low) in output reverse-voltage condition when the output reverse-voltage condition is removed.
TMI and SUNTO are the brands of TOLL microelectronic .
TMI6263 V1.2 2018.11
www.toll-semi.com
www.suntosemi.com
9
TMI6263
Thermal Shutdown
The TMI6263 has internal over temperature protection to shut down the device when its junction
temperature exceeds 150°C with over load current condition, then after the device is disabled, if the junction
temperature drops 20°C hysteresis typically the device will resume and restart to work. The switch continues
to cycle off and on until the over current fault is removed.
EN/nEN, the Enable Input
EN/nEN must be driven logic high or logic low for a clearly defined input. Floating the input may cause
unpredictable operation, so please do not float EN/nEN input pin.
Layout Consideration
For best performance of the TMI6263, the following guidelines must be strictly followed.
1)
Input and output capacitors should be placed close to the IC and connected to ground plane to reduce
noise coupling.
2)
The GND should be connected to a strong ground plane for heat sink.
3)
Keep the main current traces as possible as short and wide.
www.toll-semi.com
10
www.suntosemi.com
TMI and SUNTO are the brands of TOLL microelectronic.
TMI6263 V1.2 2018.11
TMI6263
PACKAGE INFORMATION
SOT23-5
Unit: mm
Symbol
Dimensions In Millimeters
Min
Max
L
2.82
3.02
B
1.50
C
Dimensions In Millimeters
Symbol
Min
Max
E1
0.85
1.05
1.70
a
0.35
0.50
0.90
1.30
c
0.10
0.20
L1
2.60
3.00
b
0.35
0.55
E
1.80
2.00
F
0
0.15
Note:
1) All dimensions are in millimeters.
2) Package length does not include mold flash, protrusion or gate burr.
3) Package width does not include inter lead flash or protrusion.
4) Lead popularity (bottom of leads after forming) shall be 0.10 millimeters max.
5) Pin 1 is lower left pin when reading top mark from left to right.
TMI and SUNTO are the brands of TOLL microelectronic .
TMI6263 V1.2 2018.11
www.toll-semi.com
www.suntosemi.com
11
TMI6263
PACKAGE INFORMATION
TSSOP8
www.toll-semi.com
12
www.suntosemi.com
TMI and SUNTO are the brands of TOLL microelectronic.
TMI6263 V1.2 2018.11
TMI6263
TAPE AND REEL INFORMATION
TAPE DIMENSIONS:
REEL DIMENSIONS:
Note:
1) All Dimensions are in Millimeter
2) Quantity of Units per Reel is 3000
3) MSL level is level 3.
TMI and SUNTO are the brands of TOLL microelectronic .
TMI6263 V1.2 2018.11
www.toll-semi.com
www.suntosemi.com
13
很抱歉,暂时无法提供与“TMI6263BH”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 5+0.52413
- 50+0.42477
- 150+0.37509
- 500+0.33783
- 3000+0.30802
- 6000+0.29312
