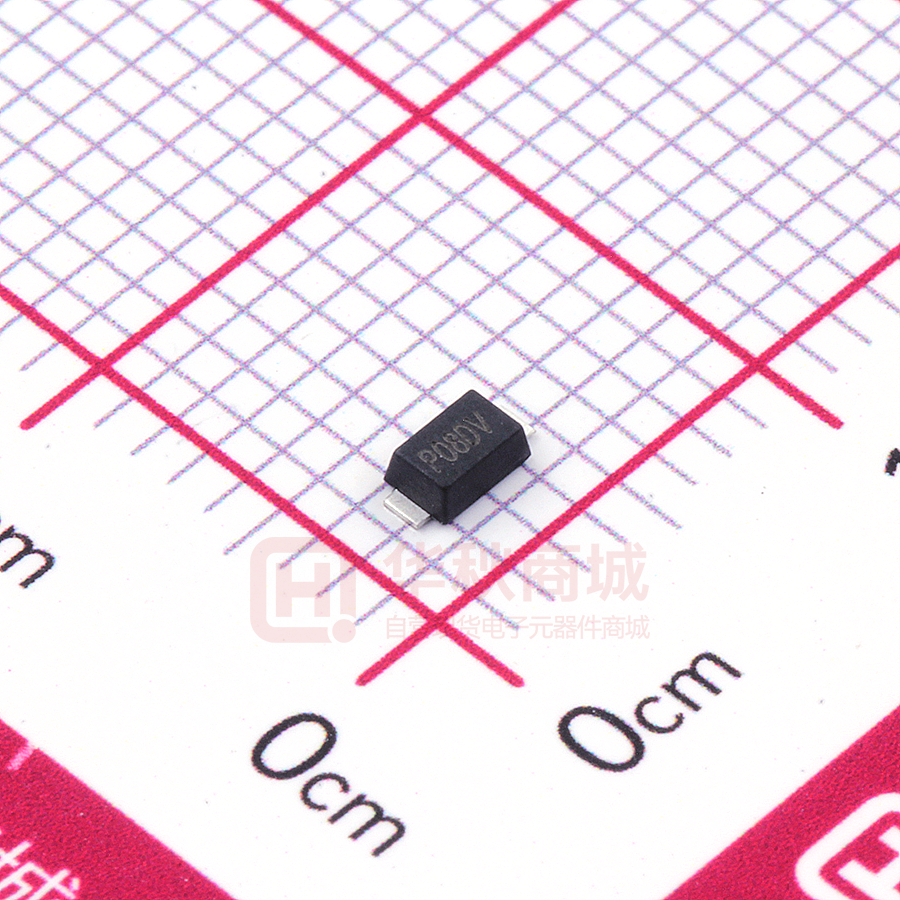

BEP0080MA

TSS-SOD123 Series Thyristor Surge protector TSS-SOD123 ROHS Features ◆ Bi-directional crowbar transient voltage protection ◆ High surge capability ◆ High off-state impedance ◆ Low leakage current ◆ Low on-state voltage ◆ Short-circuit failure mode Main Application BORN’s thyristor surge protector devices are designed to help protect sensitive telecommunication equipment from the hazards caused by lighning ,power contact,and power induction. These devices enable equipment to comply with various regulatory requirements including GR 1089,ITU K.20,K.21and K.45,IEC 60950,UL 60950,and TIA-968-A(formerly known as FCC Part 68). Typical application including: ● Central office switching equipment. Analog and digital linecards(xDSL,T1/E1,ISDN……) ● Customer Premises Equipment(CPE)such as phones, fax machines,modems,POS terminals, ● ● ● ● ● PBX systems and caller ID adjunct boxes. Primary protection modules including Main Distribution Frames(MDF),building entrance equipment and station protection modules. Access network equipment such as remote terminals,line repeaters,multiplexers,cross-connects,WAN equipment,Network Interface Devices(NID). Data lines and security systems. CATV line amplifiers and power inserters. Sprinkler systems. Electrcal Parameters (Tamb=25℃) Part Number BEP0080MA 1/4 VDRM IDRM VBO IBO VT IT CO `IH Min. Max. Max. Max. Max. Max. Max. Min. V uA V mA V A pF mA 6 5 25 800 4 2.2 50 50 TSS-SOD123 Series Thyristor Surge protector TSS-SOD123 ROHS Eletrical Characteristics VDRM Stand-off voltage,is measured at IDRM IH Holding current. VBO Breakover voltage,is measured at 100V/μs. IBO Breadover current. CO Off-state capacitance ismeasured in VDC=2V@1MHZ. IT ON-state current VT On-state voltage. IDRM Leakage current,is measured at VDRM. Part Numbering System BEP 0080 M A (A) (B) (C) (D) (A) BORN’s Semiconductor Surge Arrester (B) Series:0080 (C) Pake:SOD123 (D) Rating Sure Voltage:A:2KV(10/700μs) 2/4 TSS-SOD123 Series Thyristor Surge protector TSS-SOD123 ROHS Electrical Characteristics Curves Figure1 V-I Characteristics Figure2 tr x td Pulse Wave-form Figure 3 Normalized VS Change versus Junction Temperature Figure 4 Normalized DC Holding Current Thermal Considerations Package 3/4 SOD123 Symbol Parameter Value Unit TJ Operating Junction Temperature -40 to +150 ℃ TS Storage Temperature Range -40 to +150 ℃ RθJA Junction to Ambient on printed circuit 90 ℃/W TSS-SOD123 Series Thyristor Surge protector TSS-SOD123 ROHS Solder Reflow Recommendations ●Recommended reflow methods: IR, vapor phase oven, hot air oven, wave solder. ●The device can be exposed to a maximum temperature of 265°C for 10 seconds. ●Devices can be cleaned using standard industry methods and solvents. Notes: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements. Product Dimensions Cathode Band T op View 1.8 ± 0.1 1.0± 0.2 2.8± 0.1 5 0.05 - 0.30 0.98 ± 0.1 5 Z 0.60± 0.25 DetailZ enlarged 0.00 - 0.10 3.7± 0.2 17247 Mounting Pad Layout C A B H D F 4/4 17248 1.6 1.2 A 0.049 0.065 1.250 1.650 B 0.157 0.177 3.990 4.500 C 0.100 0.110 2.540 2.790 D 0.078 0.090 1.980 2.290 E 1.2 F 0.030 0.060 0.780 1.520 - 0.008 - 0.203 G 0.194 0.208 4.930 5.280 H 0.006 0.012 0.152 0.305
