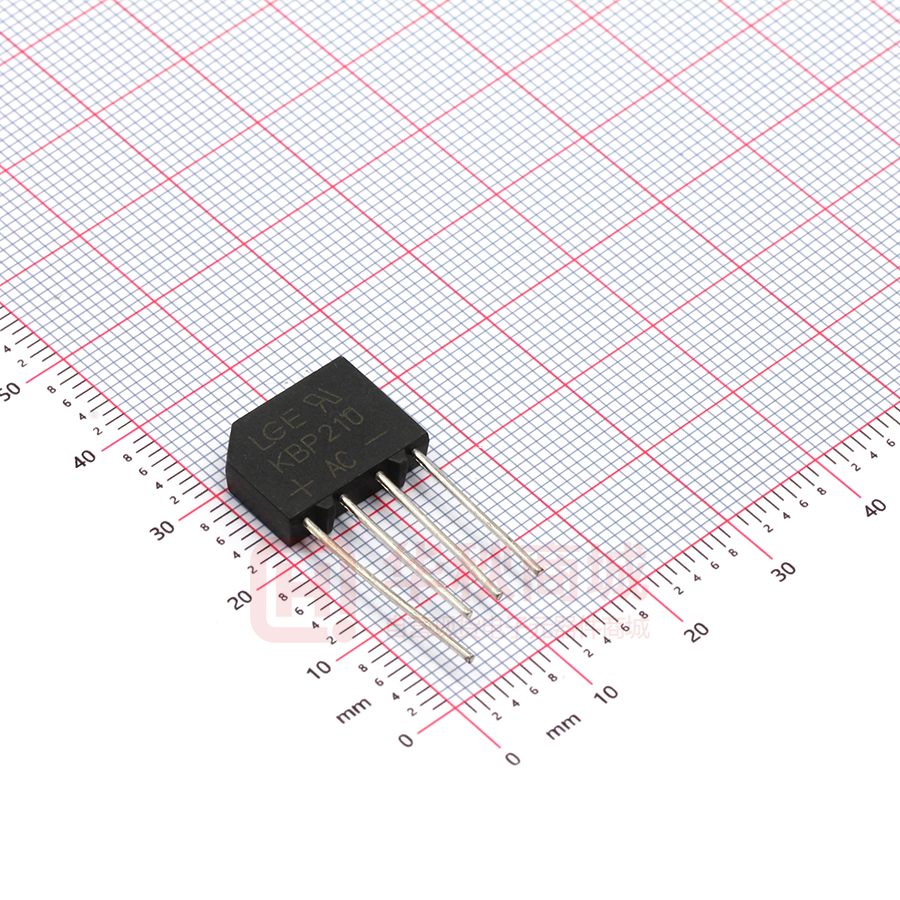

KBP210

KBP2005-KBP210 Silicon Bridge Rectifiers VOLTAGE RANGE: 50 --- 1000 V CURRENT: 2.0 A KBP 1.8 TYP. 1.8 TYP. 1.5 TYP. Rating to 1000V PRV 4.8± 0.2 Features Surge overload rating to 50 Amperes peak 14.5± 0.5 3.2 45° 11.2± 0.5 Ideal for printed circuit board + AC - 15.2 MIN 1.0 TYP. plastic technique results in inexpensive product Lead solderable per MIL-STD-202 method 208 Plastic material has UL flammability classification 12.7 MIN Reliable low cost construction utilizing molded φ 0.8± 0.1 3.7± 0.25 3.7± 0.25 94V-O Weight: 0.050 ounces,1.42 grams Dimensions in millimeters Glass passivated chip junctions MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambient temperature unless otherwise specified. Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%. KBP 2005 KBP 201 KBP 202 KBP 204 KBP 206 KBP 208 KBP 210 UNITS Maximum recurrent peak reverse voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC blocking voltage V DC 50 100 200 400 600 800 1000 V Maximum average forw ard IF(AV) 2.0 A IFSM 50.0 A I²t Rating for fusing @Tj=25℃ I²t 10.4 A²S Maximum instantaneous forw ard voltage @ 2.0 A VF 1.1 V 10.0 μA 1.0 mA Output current @TA=25 Peak forw ard surge current 8.3ms single half-sine-w ave superimposed on rated load Maximum reverse current at rated DC blocking voltage @TA=25 IR @TA =100 Typical Thermal Resistance (Note) RθJA RθJC RθJL 8 TJ - 55 ---- + 150 TSTG - 55 ---- + 150 Operating junction temperature range Storage temperature range Revision:20170701-P1 25 5 ht t p : // www.lgesem i .c o m o C/W mail:lge@lgesemi.com KBP2005-KBP210 Silicon Bridge Rectifiers Ratings AND Charactieristic Curves FIG.2 -- FORWARD DERATING CURVE VVNVVOUTPUT RECTIFIED CURRENT AVERAGE FORWARD OUTPUT CURRENT, AMPERSE PEAK FORWARD SURGE CURRENT, AMPERSE FIG.1 -- PEAK FORWARD SURGE CURRENT 50 40 8.3ms Single Half Sine Wave 30 20 10 0 1 10 100 2.5 2 1.5 1 0.5 0 0 NUMBER OF CYCLES AT 60HZ 0.1 TJ=125 Pulse Width =300uS 0.4 0.6 0.8 1.0 1.2 ht t p : // 100 125 150 10 1.0 TJ=100 0.1 TJ=25 .01 0 20 40 60 80 100 120 140 1.4 INSTANTANEOUS FORWARD VOLTAGE, VOLTS Revision:20170701-P1 75 FIG.4 -- TYPICAL REVERSE CHARACTERISTIC INSTANTANEOUS REVERSE CURRENT, MICRO AMPERSE 1.0 AMPERSE INSTANTANEOUS FORWARD CURRENT, 10 0.2 50 AMBIENT TEMPERATURE, FIG.3 -- TYPICAL FORWARD CHARACTERISTIC 0 25 PERCENT OF RATED PEAK REVERSE VOLTAGE www.lgesem i .c o m mail:lge@lgesemi.com
