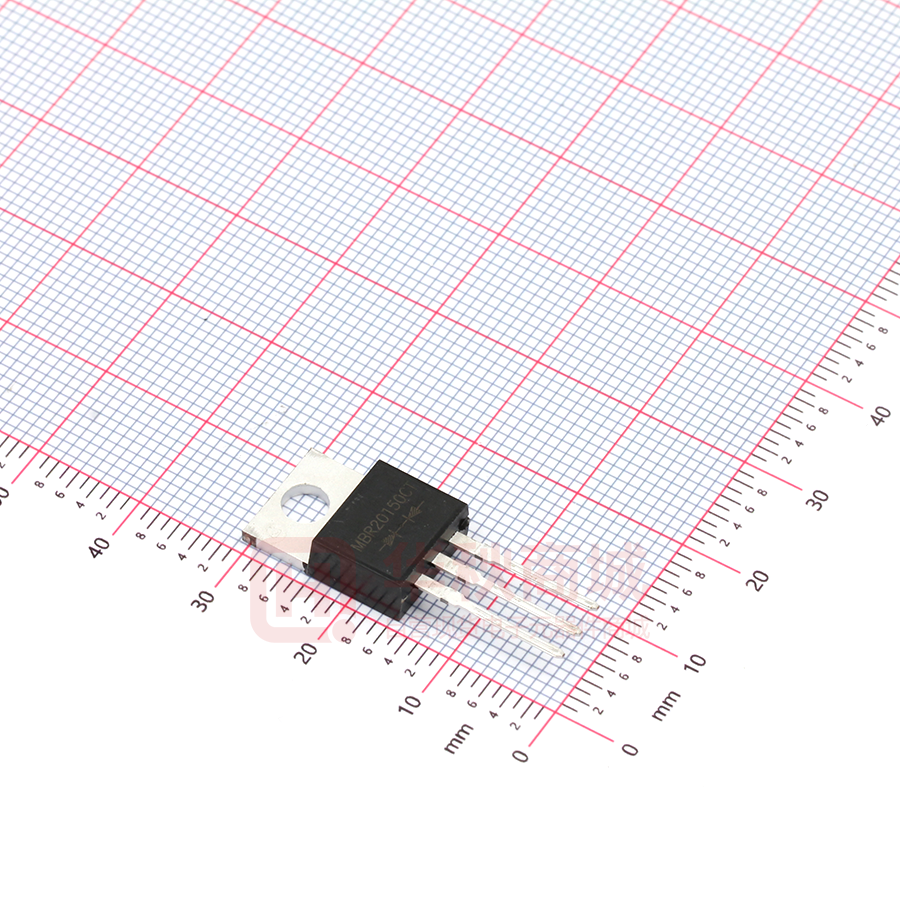

MBR20150CT

MBR20150CT-MBR20200CT Schottky Barrier Rectifiers Reverse Voltage: 150,200V Forward Current: 20A TO-220AB 2.8± 0.1 Features — — — — — Metal-Semiconductor junction with guard ring Epitaxial construction Low forward voltage drop, low swithing losses High surge capacity For use in low voltage, high frequency inverters free wheeling, and polarity protection applications — The plastic material carries U/L recognition 94V-0 4.5± 0.2 10.2± 0.2 1.4± 0.2 1 8.9± 0.2 19.0± 0.5 ? 3.8± 0.15 PIN 2 3 13.8± 0.5 3.5± 0.3 2.6± 0.2 0.9± 0.1 Mechanical Data 0.5± 0.1 2.5± 0.1 PIN 1 — Case: JEDEC TO-220AB, molded plastic body PIN 3 — Polarity: As marked — Mounting Position: Any — Weight: 0.071 ounce, 2.006 grams CASE PIN 2 Dimensions in millimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Parameter Symbol MBR20150CT Maximum recurrent peak reverse voltage VRRM 150 200 V Maximum RMS voltage VRWS 135 140 V Maximum DC blocking voltage VDC 150 200 V Maximum average forward tolal device rectified current @TC=100°C I(AV) 20 A Peak forward surge current 8.3ms single half sine-wave superimposed on rated load IFSM 150 A VF 0.95 V Maximum instantaneous forward voltage @10A Maximum reverse current @TA=25°C IR at rated DC blocking voltage @TA=100°C MBR20200CT 0.2 UNITS mA 50 Maximum thermal resistance (Note1) RθJC 1.5 °C/W Operating junction temperature range TJ -55 --- +150 °C TSTG -55 --- +150 °C Storage temperature range NOTES: 1. Thermal resistance from junction to case. Revision:20170701-P1 ht t p : // www.lgesem i .c o m mail:lge@lgesemi.com MBR20150CT-MBR20200CT Schottky Barrier Rectifiers Ratings AND Charactieristic Curves FIG.1 TYPICAL FORWARD CHARACTERISTICS FIG.2 FORWARD DERATING CURVE 20 Average Forward Rectified Current, (A) Instantaneous Forward Current, (A) 100 10 1.0 16 12 8.0 4.0 0 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 0 1.5 Instantaneous Forward Voltage, ( V ) FIG.3 TYPICAL REVERSE CHARACTERISTICS 75 100 125 150 FIG.4 PEAK FORWARD SURGE CURRENT 150 Peak Forward Surge Current, (A) Instantaneous Reverse Leakage µ ) mA Current, (μ μ 50 Case Temperature, ( °C ) 1000 100 10 TA=100°C 1.0 TA=25°C 0.1 120 90 60 30 0 0.01 0 20 40 60 80 100 120 140 Percent Of Rated Peak Reverse Voltage, % Revision:20170701-P1 25 ht t p : // 1 10 100 Number Of Cycles At 60Hz www.lgesem i .c o m mail:lge@lgesemi.com
