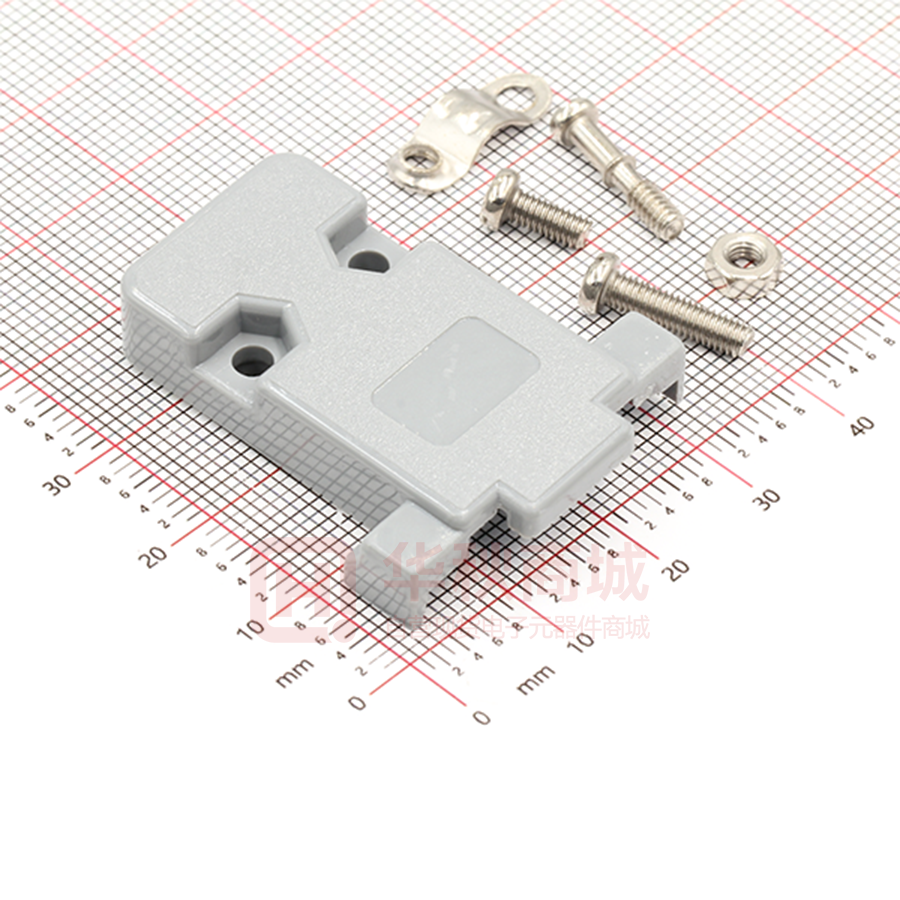

X09DFGY

16 [0.627 ] 30.30[1.190] 5.4 [0.211] 7.80 [0.306] 11.85 [0.462] 9.6 [0.376] 37.55 [1.475] 2.5 [0.097] X 09 D X X 1 2 3 4 1 Series N0. 2 D:D-USB Plastic shell 3 I:OD=8.0mm; F:OD=6.5mm OD 14.7[0.579] 4 Color: B:BLACK W:White BL:Blue Y:Yellow G:Green R:Red GY:Gray 4.1 [0.161] 20.10[0.791] PCS) A1 1 2 3 4 5 6 7 8.4 [0.329] 4.8 [0.189] 5.0[0.198] 13.9 [0.547] units: mm tolerance: X X 1 2 2 2 2 2 2 SCALE: N/A MODEL TYPE: DSND DATE DWN DATE VIEW: CHKD DATE UNIT: mm/in APPD DATE X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED UNSPECIFIED TOLERANCES www.helloxkb.cn ABS SIZE: A4 XKB INDUSTRIAL PRECISION CO.,LIMITED PART NO.: DWG NO.: X09DXX WEIGHT 1.0g SHEET 1/1 REVISION A0
