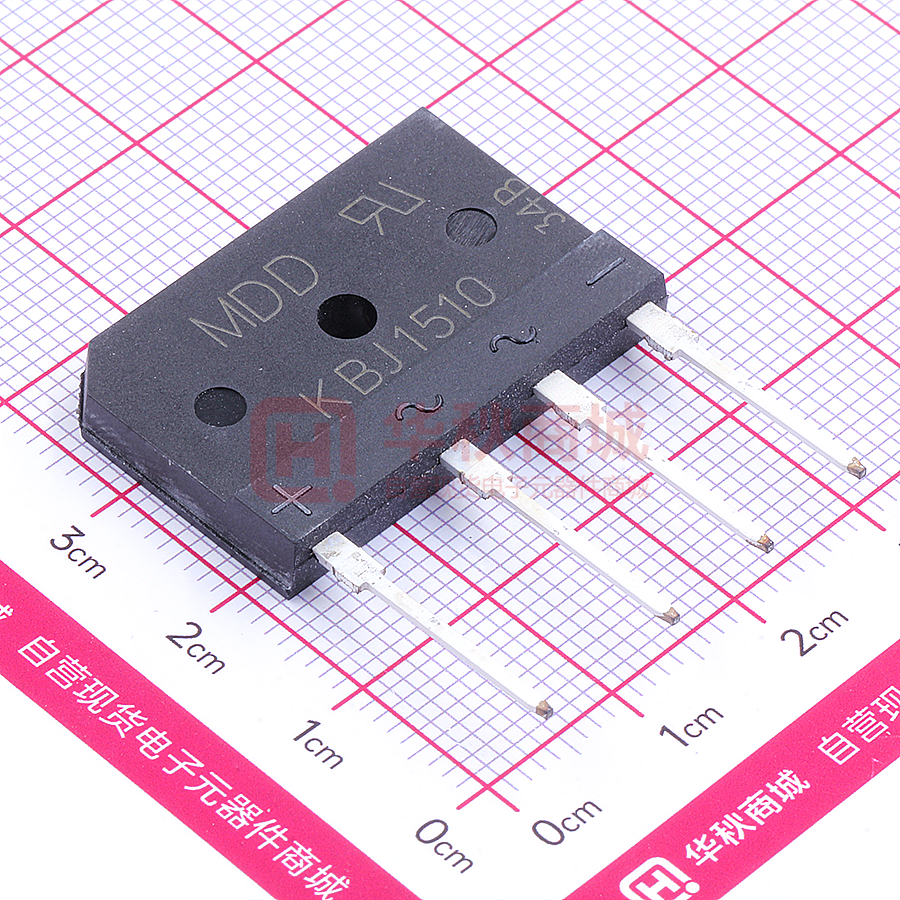

KBJ15005 THRU KBJ1510
Reverse Voltage - 50 to 1000 Volts Forward Current - 15.0 Amperes
SILICON BRIDGE RECTIFIERS
Features
KBJ
? .134(3.4)
? .122(3.1)
.189(4.8)
.173(4.4)
.150(3.8)
.134(3.4)
Low forward voltage drop,high current capability
Case : JEDEC KBJ Molded plastic body
Terminals : Solder plated, solderable per MIL-STD-750,Method 2026
Polarity : Polarity symbol marking on body
Mounting Position : Any
~ ~ _
.165(4.2)
.142(3.6)
.708(18.0)
.669(17.0)
.106(2.7)
.096(2.3)
Mechanical Data
+
.441(11.2)
.425(10.8)
Plastic material has U/L lammability classification 94V-0
? .134(3.4)
? .122(3.1)
1.193(30.3)
1.169(29.7)
.198 MAX
(5.1)
.800(20.3)
.776(19.7)
Ideal for printed circuit board
Reliable low cost construction utilizing molded plastic technique
.094(2.4)
.078(2.0)
.043(1.1)
.035(0.9)
.114(2.9)
.098(2.5)
.031(0.8)
.023(0.6)
.402(10.2) .303(7.7).303(7.7)
SPACING
.386(9.8) .287(7.3).287(7.3)
Maximum Ratings And Electrical Characteristics
Dimensions in inches and (millimeters)
Ratings at 25°C ambient temperature unless otherwisespecified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
Parameter
Marking Code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward(with heatsink NOTE 2)
Rectified current @T c =100°C(without heatsink)
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Rating for Fusing(t
