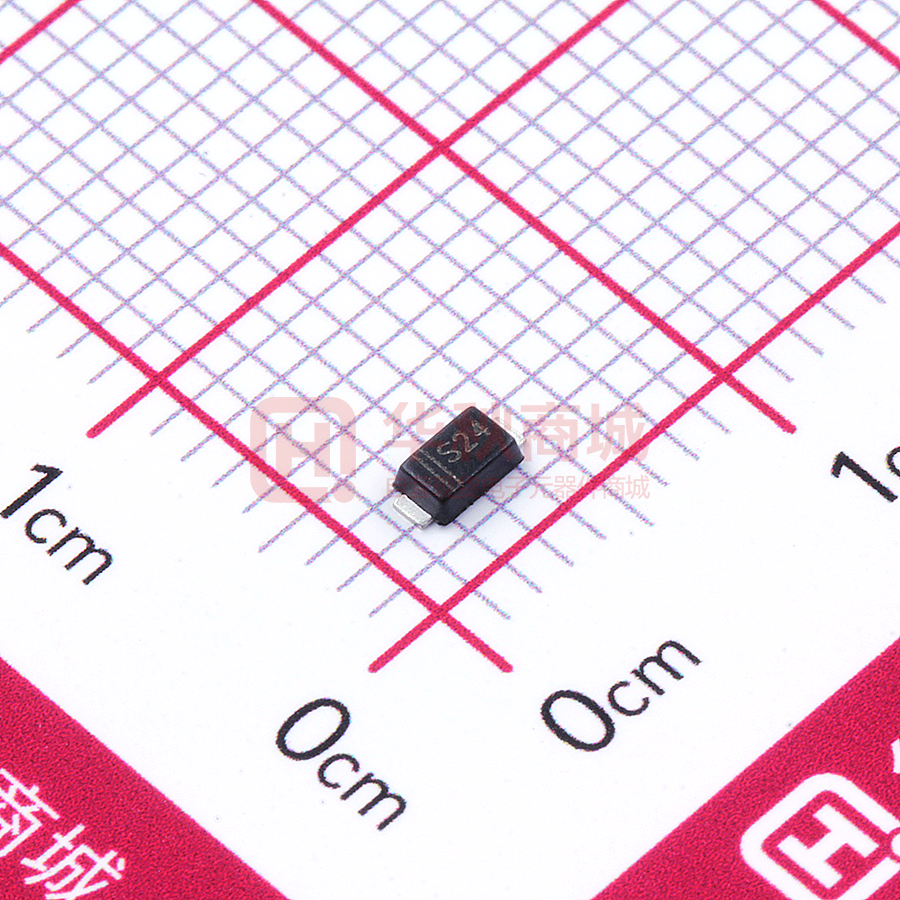

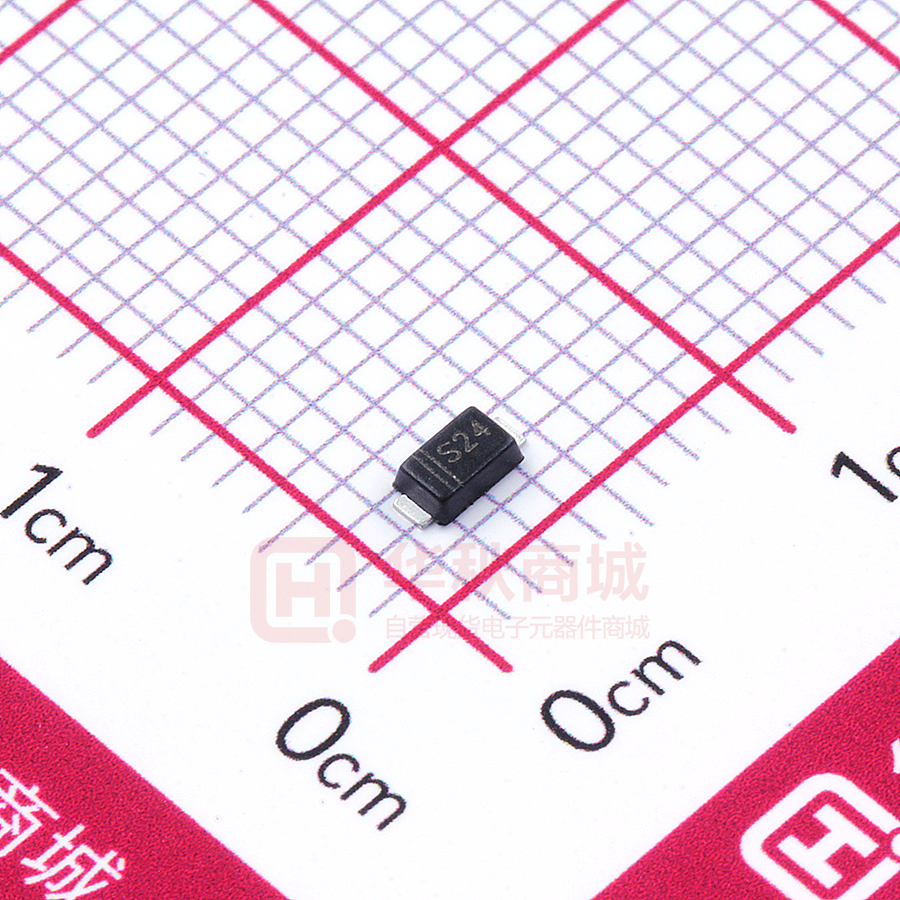

PSBD1DF40V2H

PSBD1DF20V2H THRW PSBD1DF200V2H Switching Diode Description Surface Mount Schottky Barrier Rectifier Rectifiers Reverse Voltage 20 to 200 V 2 1 Forward Current 2.0 A SOD123-FL Maximum Ratings and Electrical characteristics per line@25℃( unless otherwise specified) Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 % Parameter Symbols 20V2H 40V2H 60V2H 80V2H 100V2H 120V2H 150V2H 200V2H Units Maximum Repetitive Peak Reverse Voltage VRRM 20 40 60 80 100 120 150 200 V Maximum RMS voltage VRMS 14 28 42 56 70 84 105 140 V Maximum DC Blocking Voltage VDC 20 40 60 80 100 120 150 200 V Maximum Average Forward Rectified Current IF(AV) 2.0 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load IFSM 50 40 A (JEDEC Method) Maximum Instantaneous Forward Voltage at 2A Maximum DC Reverse Current Ta = 25 ℃ at Rated DC Blocking Voltage Ta =100 ℃ VF IR 0.55 0.70 0.85 0.5 0.3 5 3 220 2 80 0.95 V mA Typical Junction Capacitance 1 Cj Typical Thermal Resistance 2 RθJA 85 ℃/W Operating and Storage Temperature Range Tj，Tstg -55~+150 ℃ ） ） pF 1）Measured at 1 MHz and applied reverse voltage of 4 V D.C 2）Thermal resistance from junction to ambient at 0.375" (9.5 mm) lead length, P.C.B. mounted Rev.06.3 1 www.prisemi.com Switching Diode PSBD1DF20V2H THRW PSBD1DF200V2H 40V2H 200V2H Fig.1 Forward Current Derating Curve Fig.2 Typical Reverse Characteristics 40V2H 80V2H 120V2H 40V2H 200V2H 200V2H Fig.3 Typical Forward Characteristic Fig.4 Typical Junction Capacitance 60V2H 200V2H Fig.5 Maximum Non-Repetitive Peak Fig.6 Typical Transient Thermal Impedance Forward Surage Current Rev.06.3 2 www.prisemi.com Switching Diode PSBD1DF20V2H THRW PSBD1DF200V2H Product dimension (SOD-123FL) Unit:mm 1.2 2.0 1.2 1.4 Suggested PCB Layout Rev.06.3 3 Unit:mm www.prisemi.com Switching Diode Rev.06.3 PSBD1DF20V2H THRW PSBD1DF200V2H 4 www.prisemi.com Switching Diode PSBD1DF20V2H THRW PSBD1DF200V2H IMPORTANT NOTICE and are registered trademarks of Prisemi Electronics Co., Ltd (Prisemi) ,Prisemi reserves the right to make changes without further notice to any products herein. Prisemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Prisemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in Prisemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Prisemi does not convey any license under its patent rights nor the rights of others. The products listed in this document are designed to be used with ordinary electronic equipment or devices, Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance. Website: http://www.prisemi.com For additional information, please contact your local Sales Representative. ©Copyright 2009, Prisemi Electronics is a registered trademark of Prisemi Electronics. All rights are reserved. Rev.06.3 5 www.prisemi.com
