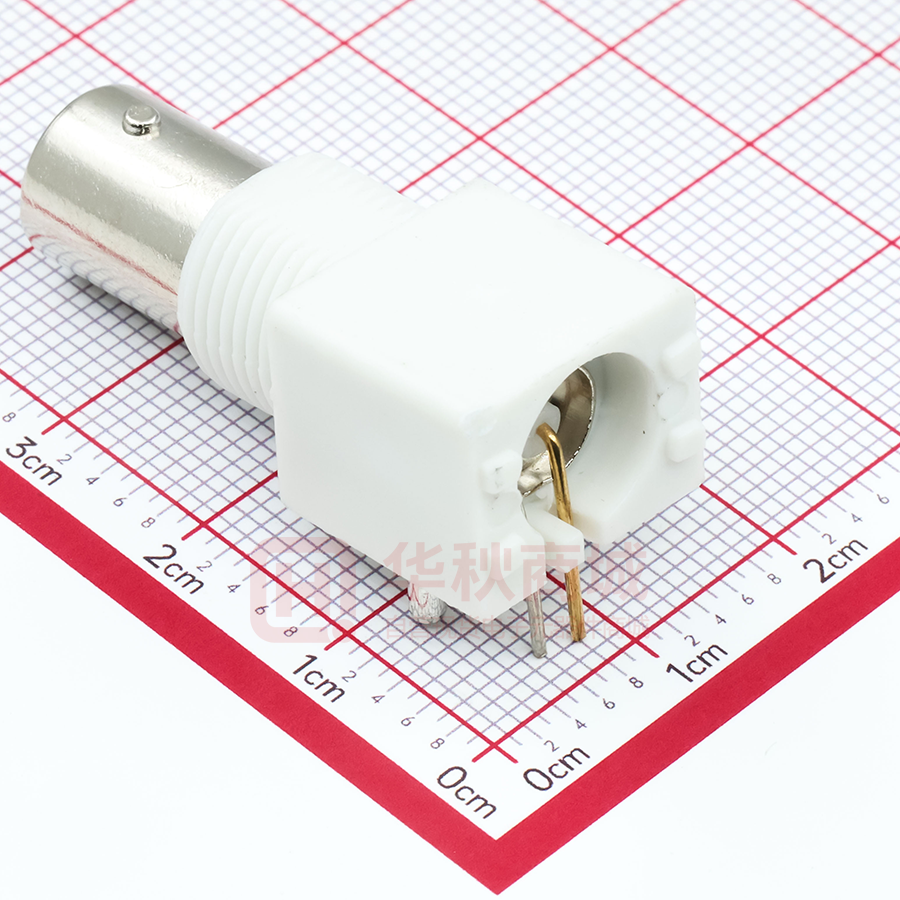

KH-BNC75-3511

Product NO. REV A B DWN First issue 尺寸调整 JIM W.cheng APPROVEN DATE 2012/11/02 2020/05/05 John kine John kine 12.5 1 KH-801-0039 DESCRIPTION 2 1/2-28UNEF-2A 3 Specifications 4 Impedance:75 Ohms Frequency Range:DC~3G VSWR:1.3MAX Working Voltage:500V rms @ sea level Insulation Resistance:5000 Ohms min Temperature Range:-55℃ TO +155℃ Relative Temperature:≤95%(40°C±2°C) Drawings products are in line with ROHS standards PCB 5 6 Body 1 Center contact 2 Lead 3 Fixed footrest 4 Insulator 5 Fixed mount 6 Washer 7 Hex nut 8 9 10 NO Component Number A Zinc Brass Iron Iron POM PBT Brass Brass Material B NI:80-120u" NOTE: AU:1u" AU:1u" NI:80-120u" White DRAWN White NI:80-120u" 贺骏驹 NI:80-120u" CHECKED 赖积任 APPROVALS 张松强 Finish C Tolerance 2012/11/ 10 0-6 6-30 30-120 Angular 深圳市金航标电子有限公司 WWW.BDS666.COM ±O.20 ±0.30 ±0.5 ±2° KH-BNC75-3511 Name: View UNIT MM SCALE 1:1 D BNC WHITE JACK CONNECTOR (12.5MM) SIZE Product NO. KH-801-0039 A DateTime CAD FILE 2012/11/02 E 0755-83044319 F REV B SHEET: 1 OF 1 G
