M20

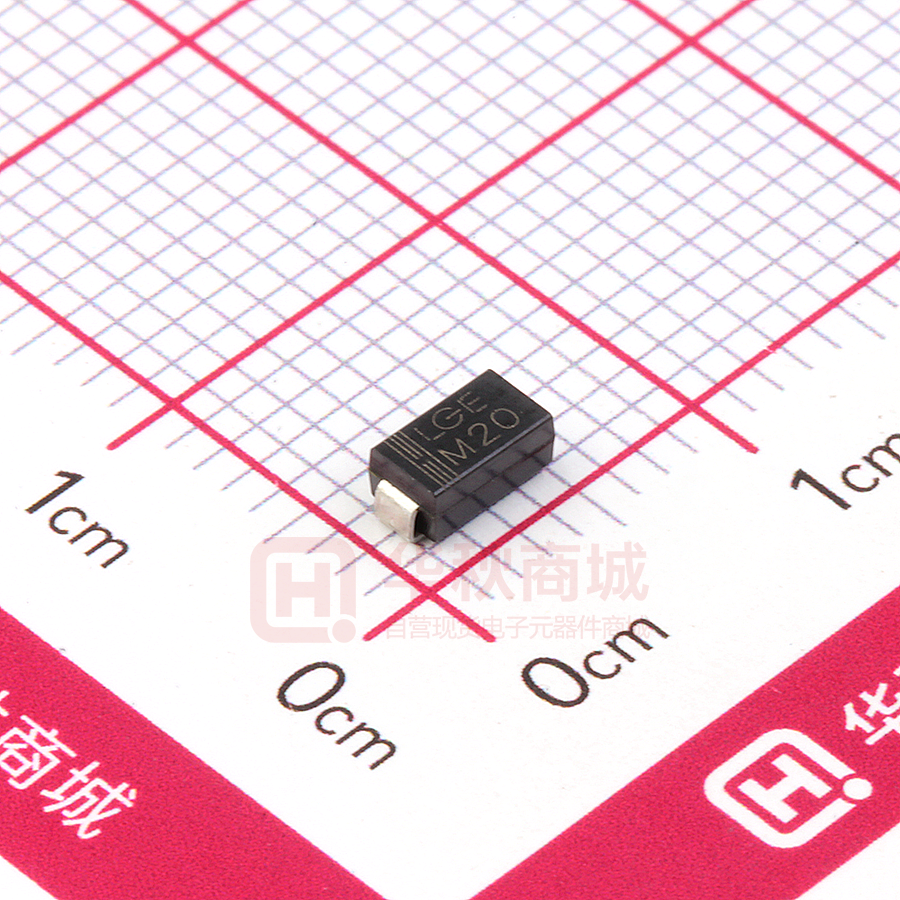

M20 1.0AMP.Surface Mount Fetures ◇ ◇ ◇ ◇ ◇ ◇ ◇ ◇ ◇ ◇ Rectifiers CURRENT:1.0A For surface mounted application Glass passivated junction chip Low forward voltage drop High current capability Easy pick and place High surge current capability Plastic material used carries Underwriters Laboratory Classification 94V-0 High temperature soldering 260 oC / 10 seconds at terminal SMA/DO-214AC Mechanicla Data ◇ Case: Molded plastic SMA/DO-214AC ◇ Polarity: Indicated by cathode band ◇ Mounting Position: Any ◇ Packaging: 12mm tape ◇ Weight: 0.07 gram Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERS Ratings at 25℃ ambient temperature unless otherwise specified. Single phase,half wave,60HZ,resistive or inductive load.For capacitive load,derate by 20%. Type Numger Symbol M20 UNITS Maximum Recurrent Peak Reverse Voltage VRRM 2000 V Maxium RMS Voltage VRMS 1400 V Maxium DC Blocking Voltage VDC 2000 V Maximum Average Forward Rectified Current (Note 1) IF(AV) 1.0 A 30 A I2t 4.5 A2S VFM 1.1 V IR 5 Ua IR 50 Ua Typical Junction Capacitance (Note 1) CJ 12 pF Operating Temperature Range TJ -55 to +150 ℃ TSTG -55 to +150 ℃ @TL=110℃ Peak forward surge current:8.3ms single half-sine-wave IFSM superimposed on rated load (JEDEC Method) I2t Rating for Fusing (t < 8.3ms) Forward Voltage @IF=1.0A Maximum DC Reverse Current at Rated DC Blocking @TA=25℃ Voltage @TA=100℃ Storage Temperature Range Note: 1.Measured at 1.0MHz and applied reverse voltage of 4.0V DC. Revision:20170701-P1 ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com M20 1.0AMP.Surface Mount Rectifiers 102 120 [%] [A] 100 Tj = 125°C 10 80 Tj = 25°C 1 60 40 10-1 20 IF IFAV 0 0 TT 100 50 150 10-2 0.4 [°C] 30a-(1a-1.1v) VF 0.8 1.0 1.2 1.4 [V] 1.8 Forward characteristics (typical values) Durchlasskennlinien (typische Werte) Rated forward current vs. temp. of the terminals Zul. Richtstrom in Abh. v. d. Temp. der Terminals 10 2 100 [µA] Tj = 125°C 101 [%] Tj = 100°C 1 10 10-1 ZthA RthA Tj = 25°C IR 10 -2 0 VRRM 40 60 80 100 [%] 1 0.01 [s] 0.1 1 10 102 [tp] Relative transient thermal impedance vs. pulse duration (typical) Relativer transienter Wärmewiderstand über Impulsdauer (typisch) 103 Typ. instantaneous leakage current vs. rev. voltage Typ. Sperrstrom (Augenblickswert) ü. Sperrspannung 25 102 [pF] 20 [A] 15 10 10 îF 5 1 Cj 10 102 [n] 103 Peak forward surge current versus number of cycles at 50 Hz Durchlaß-Spitzenstrom in Abh. von der Zahl der Halbwellen bei 50 Hz 0 VR 1 [V] Junction capacitance vs. reverse voltage (typical) Sperrschichtkapazität in Abh. v.d. Sperrspg. (typ.) Revision:20170701-P1 ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com
