ASDM100R045NP
100V N-Channel MOSFET
Product Summary
General Features
● High density cell design for ultra low Rdson
V DS
100
V
● Good stability and uniformity with high EAS
R DS(on),Typ@ VGS=10 V
4.5
mΩ
● Excellent package for good heat dissipation
ID
135
A
● Fully characterized avalanche voltage and current
● Special process technology for high ESD capability
Application
●Automotive applications
●Hard switched and high frequency circuits
●Uninterruptible power supply
G
D
S

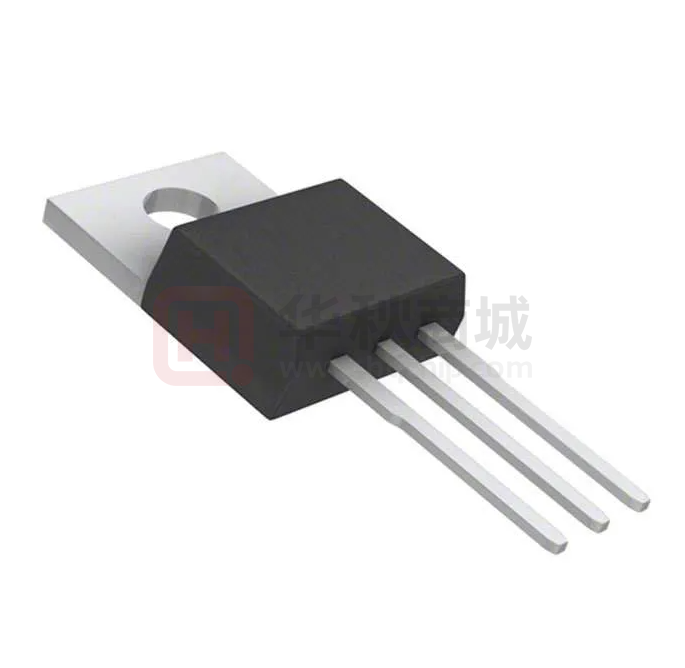

TO-220
Absolute Maximum Ratings (TC=25℃ unless otherwise specified)
Parameter
Symbol
Value
Unit
100
V
TC=25℃
135
A
TC=70℃
48
A
±20
V
TC=25℃
700
A
TC=25℃
100
W
Condition
VDS
Drain-Source Voltage
ID
Continuous Drain Current1
VGS
Gate-Source Voltage
IDM
Pulsed Drain Current
PD
Total Power Dissipation
TSTG
Storage Temperature Range
-55 to 175
℃
TJ
Operating Junction Temperature
-55 to 175
℃
2
Thermal Data
Symbol
Parameter
Typ.
Max
RθJA
Thermal Resistance-Junction to Ambient
--
62
RθJc
Thermal Resistance-Junction to Case
--
0.5
Unit
℃/W
NOV 2018 Version2.0
1/8
www.ascendsemi.com
0755-86970486
ASDM100R045NP
100V N-Channel MOSFET
Electrical Characteristics (TJ=25℃ unless otherwise specified)
Symbol
Parameter
Limit
Min
Typ
Max
Unit
Static Characteristic
BVDSS
Drain-Source Breakdown Voltage
VGS=0V, ID=250uA
100
--
--
V
VGS(th)
Gate Threshold Voltage
VDS=VGS, ID=250uA
2
3.0
4
V
IDSS
Drain-Source Leakage Current
VDS=80V, VGS=0V
--
--
1
VDS=48V, VGS=0V
--
--
100
uA
IGSS
Gate -Source Leakage Current
VGS=±20V, VDS=0V
--
--
±100
nA -
RDS(ON)
Static Drain-Source On-Resistance
VGS=10V, ID=20A
-
4.5
5.0
mΩ
--
2890
--
--
881
--
Dynamic Characteristic
Ciss
Input Capacitance
Coss
Output Capacitance
Crss
Recerse Transfer Capacitance
--
13.2
--
td(on)
Turn-On Delay Time
--
16
--
tr
Turn-On Rise Time
--
13
--
td(off)
Turn-off Delay Time
--
28
--
tf
Turn-Off Fall Time
--
7.5
--
--
23
--
--
5.2
--
--
7.3
--
--
--
1.2
V
--
46
--
nS
--
182
--
nC
VDS=40V,VGS=0V,f=1MHz
VDD=40V,VGS=10V ,
RG=2Ω, ID=20A
pF
nS
Gate Charge Characteristic
Qg
Total Gate Charge
Qgs
Gate-Source Charge
Qgd
Gate-Drain Charge
VDD=30V, VGS=10V,
ID=30A
nC
Reverse diode Characteristic
ISD=20A, VGS=0V
VSD
forward on voltage
trr
Reverse Recovery Time
Qrr
Reverse Recovery Charge
NOV 2018 Version2.0
2/8
VR=0V,IF=20A, DIF/dt=100A/uS
www.ascendsemi.com
0755-86970486
ASDM100R045NP
100V N-Channel MOSFET
Typical Electrical and Thermal Characteristics (Curves)
Figure 2. Safe operating area
Figure 3. Thermal impedance
AM18051v1
ID
(A)
AM18052v1
K
δ=0.5
0.2
100
th
in
n
tio by m
ra
pe ited
O m
Li
10
is
ea
a r (on )
S
RD
ax
0.1
0.05
is
100µs
10 -1
0.02
c
0.01
1ms
1
Tj=175°C
Tc=25°C
Single pulse
0.1
0.1
1
VDS(V)
10
Figure 4. Output characteristics
VGS=10V
400
10 -2
10 -5
10 -4
10 -3
10 -2
10 -1
10 0 tp(s)
Figure 5. Transfer characteristics
AM18042v1
ID (A)
Single pulse
10ms
8V
AM18043v1
ID
(A)
VDS=4V
300
350
7V
300
250
200
250
200
150
6V
150
100
100
50
50
5V
0
0
4
2
6
8
VDS(V)
Figure 6. Gate charge vs gate-source voltage
AM18044v1
VGS
(V)
VDD=50V
ID=110A
12
0
0
2
4
8
6
VGS(V)
Figure 7. Static drain-source on-resistance
AM18054v1
RDS(on)
(mΩ)
VGS=10V
4.50
10
4.40
8
4.30
6
4.20
4.10
4
4.00
2
3.90
3.80
0
0
NOV 2018 Version2.0
40
80
3/8
120
Qg(nC)
0
20
40
60
80
100 ID(A)
www.ascendsemi.com
0755-86970486
ASDM100R045NP
100V N-Channel MOSFET
Figure 8. Capacitance variations
Figure 9. Normalized gate threshold voltage vs
temperature
AM18046v1
C
(pF)
AM18047v1
VGS(th)
(norm)
ID=250µA
1.1
Ciss
8000
1
7000
6000
0.9
5000
0.8
4000
0.7
3000
0.6
2000
0.5
1000
Coss
Crss
100 VDS(V)
0
0
20
60
40
80
Figure 10. Normalized on-resistance vs
temperature
AM18048v1
RDS(on)
0.4
-75
-25
25
75
125
TJ(°C)
Figure 11. Normalized VDS vs temperature
AM18049v1
VDS
(norm)
(norm)
ID=55A
2
1.04
1.8
1.03
1.6
1.02
1.4
1.01
1.2
1
1
0.99
0.8
0.98
0.6
0.97
0.4
-75
-25
25
75
125
TJ(°C)
0.96
-75
ID=1mA
-25
25
75
125
TJ(°C)
Figure 12. Source-drain diode forward
characteristics
AM18055v1
VSD (V)
TJ=-55°C
1
0.9
TJ=25°C
0.8
0.7
TJ=175°C
0.6
0.5
0.4
0.3
0
NOV 2018 Version2.0
20
40
60
4/8
80
100 ISD(A)
www.ascendsemi.com
0755-86970486
ASDM100R045NP
100V N-Channel MOSFET
Test circuits
Figure 13. Switching times test circuit for
resistive load
Figure 14. Gate charge test circuit
VDD
12V
47kΩ
1kΩ
100nF
3.3
μF
2200
RL
μF
IG=CONST
VDD
VGS
100Ω
Vi=20V=VGMAX
VD
RG
2200
μF
D.U.T.
D.U.T.
VG
2.7kΩ
PW
47kΩ
1kΩ
PW
AM01468v1
Figure 15. Test circuit for inductive load
switching and diode recovery times
A
A
AM01469v1
Figure 16. Unclamped inductive load test circuit
L
A
D
G
FAST
DIODE
D.U.T.
S
3.3
μF
B
B
B
VD
L=100μH
25 Ω
1000
μF
D
VDD
2200
μF
3.3
μF
VDD
ID
G
RG
S
Vi
D.U.T.
Pw
AM01470v1
AM01471v1
Figure 17. Unclamped inductive waveform
Figure 18. Switching time waveform
ton
V(BR)DSS
tdon
VD
toff
tr
tdoff
tf
90%
90%
IDM
10%
ID
10%
0
VDD
VDD
VDS
90%
VGS
AM01472v1
NOV 2018 Version2.0
5/8
0
10%
AM01473v1
www.ascendsemi.com
0755-86970486
ASDM100R045NP
100V N-Channel MOSFET
Ordering and Marking Information
Ordering Device No.
Marking
Package
Packing
Quantity
ASDM100R045NP-T
100R045N
TO-220
Tube
50/Tube
MARKING
PACKAGE
100R045
TO-220
NOV 2018 Version2.0
6/8
www.ascendsemi.com
0755-86970486
ASDM100R045NP
100V N-Channel MOSFET
TO-220
NOV 2018 Version2.0
7/8
www.ascendsemi.com
0755-86970486
ASDM100R045NP
100V N-Channel MOSFET
