ASDM40N40E
40V N-Channel MOSFET
Product Summary
General Features
●
Low On-Resistance
100% avalanche tested
● Fast Switching Speed
● Excellent package for good heat dissipation
●
V DS
40
V
R DS(on),Typ@ VGS=10 V
6.0
mΩ
ID
40
A
Application
● DC/DC Converters
● On board power for server
● Synchronous rectification
DFN3.3*3.3-8
Absolute Maximum Ratings (TC=25℃ unless otherwise specified)
Symbol
Parameter
Max.
Units
VDSS
Drain-Source Voltage
40
V
VGSS
Gate-Source Voltage
±20
V
TC = 25℃
40
A
TC = 100℃
32
A
160
A
50
mJ
65
W
1.92
℃/W
-55 to +150
℃
ID
Continuous Drain Current
note1
IDM
Pulsed Drain Current
EAS
Single Pulsed Avalanche Energy
PD
RθJC
TJ, TSTG
Power Dissipation
TC = 25℃
Thermal Resistance, Junction to Case
Operating and Storage Temperature Range
DEC 2018 Version1.0
1/8
www.ascendsemi.com
0755-86970486
ASDM40N40E
40V N-Channel MOSFET
Electrical Characteristics (TC=25°C Unless Otherwise Noted)
Symbol
Parameter
Test Condition
LIMITS
Min.
Typ.
Max.
40
---
---
VDS=40V, VGS=0V
---
---
1
TJ =125°C
---
---
30
Unit
Static Characteristics
BVDSS
IDSS
Drain-Source Breakdown Voltage VGS=0V, IDS=250µA
Zero Gate Voltage Drain Current
VGS(th)
IGSS
①
RDS(ON)
V
µA
Gate Threshold Voltage
VDS=VGS, IDS=250µA
1.1
1.6
2.4
V
Gate Leakage Current
VGS=±20V, VDS=0V
---
---
±100
nA
VGS=4.5V, IDS=20A
---
7.5
12
mΩ
VGS=10V, IDS=30A
---
6.0
8.5
mΩ
ISD=20A, VGS=0V
---
---
1.2
V
---
14
---
ns
---
32
---
nC
Ω
Drain-Source On-state Resistance
Diode Characteristics
VSD
①
Diode Forward Voltage
trr
Reverse Recovery Time
Qrr
Reverse Recovery Charge
ISD=20A, dlSD/dt=100A/µs
②
Dynamic Characteristics
RG
Gate Resistance
VGS=0V,VDS=0V,F=1MHz
---
1.2
---
Ciss
Input Capacitance
---
1733
---
Coss
Output Capacitance
---
283
---
Crss
VGS=0V,
VDS=20V,
Frequency=1.0MHz
Reverse Transfer Capacitance
---
141
---
td(ON)
Turn-on Delay Time
---
6
---
tr
Turn-on Rise Time
---
10
---
---
24
---
---
5
---
---
18
23
---
2.5
---
---
5
---
td(OFF)
tf
Turn-off Delay Time
VDD=20V,IDS=20A,
VGEN=10V,RG=4.7Ω
Turn-off Fall Time
pF
ns
②
Gate Charge Characteristics
Qg
Total Gate Charge
Qgs
Gate-Source Charge
Qgd
Gate-Drain Charge
VDS=32V, VGS=10V,
IDS=20A
nC
Notes:
①Pulse test;Pulse width≤300µs, duty cycle≤2%.
②Guaranteed by design, not subject to production testing.
DEC 2018 Version1.0
2/8
www.ascendsemi.com
0755-86970486
ASDM40N40E
40V N-Channel MOSFET
Test Circuit
Figure1:Gate Charge Test Circuit & Waveform
Figure 2: Resistive Switching Test Circuit & Waveforms
Figure 3:Unclamped Inductive Switching Test Circuit & Waveforms
DEC 2018 Version1.0
3/8
www.ascendsemi.com
0755-86970486
ASDM40N40E
40V N-Channel MOSFET
Typical Electrical and Thermal Characteristics (Curves)
Drain-Source On Resistance
ID - Drain Current (A)
RDS(ON) - On Resistance (mΩ)
10
VGS=4.5V
8
6
VGS=10V
4
2
0
0
20
40
VDS - Drain-Source Voltage (V)
2.0
Drain-Source On Resistance
1.5
1.0
TJ=25°C
Rds(on)=3.5mΩ
10
TJ=150°C
-25
0
25
50
75
100
125
0.1
0.2
150
0.4
Capacitance
VGS - Gate-Source Voltage (V)
C - Capacitance (pF)
Frequency=1.0MHz
Ciss
1500
1000
Coss
Crss
0
1
1
1.2
1.4
10
VDS=24V
IDS=20A
9
8
7
6
5
4
3
2
1
0
10
VDS - Drain-Source Voltage (V)
DEC 2018 Version1.0
0.8
Gate Charge
2500
500
0.6
VSD - Source-Drain Voltage (V)
TJ - Junction Temperature (°C)
2000
TJ=25°C
1
0.0
-50
100
Source-Drain Diode Forward
100
VGS=10V
IDS=20A
0.5
80
ID - Drain Current (A)
IS - Source Current (A)
Normalized On Resistance
2.5
60
4/8
100
0
10
20
30
QG - Gate Charge (nC)
www.ascendsemi.com
0755-86970486
ASDM40N40E
40V N-Channel MOSFET
Power Dissipation
70
Drain Current
ID - Drain Current (A)
PD - Power (W)
60
50
40
30
20
10
0
0
25
50
75
100
125
150
TJ - Junction Temperature (°C)
RDS(ON) limited
100
10
RDS(ON) - On - Resistance (mΩ)
Safe Operation Area
1000
ID - Drain Current (A)
TJ - Junction Temperature (°C)
10µs
100µs
1ms
10ms
DC
1
TC=25°C
0.1
0.01
0.1
1
10
100
Drain Current
10
Ids=26A
8
6
4
2
0
0
1000
1
2
3
7
8
10
VGS - Gate-Source Voltage (V)
VDS - Drain-Source Voltage (V)
ZthJC - Thermal Response (°C/W)
Thermal Transient Impedance
10
Duty=0.5, 0.2, 0.1, 0.05, 0.02, 0.01, Single Pulse
1
0.1
Single Pulse
0.01
RθJC=1.92°C/W
0.001
1E-05
0.0001
0.001
0.01
0.1
1
10
Square Wave Pulse Duration (sec)
DEC 2018 Version1.0
5/8
www.ascendsemi.com
0755-86970486
ASDM40N40E
40V N-Channel MOSFET

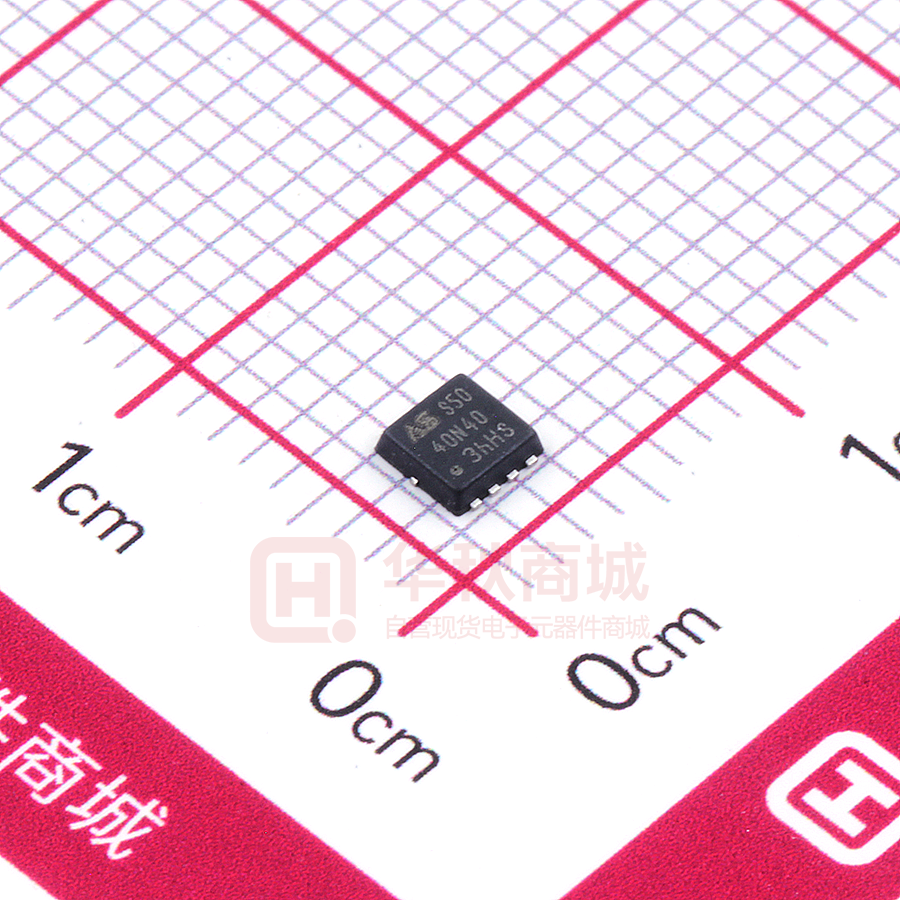

Ordering and Marking Information
Ordering Device No.
Marking
Package
ASDM40N40E-R
40N40
DFN3.3*3.3-8
Quantity
Tape&Reel
5000/Reel
MARKING
PACKAGE
DFN3.3x3.3-8
DEC 2018 Version1.0
Packing
6/8
40N40
www.ascendsemi.com
0755-86970486
ASDM40N40E
40V N-Channel MOSFET
Dimensions(DFN3.3×3.3-8)
DEC 2018 Version1.0
7/8
www.ascendsemi.com
0755-86970486
ASDM40N40E
40V N-Channel MOSFET
IMPORTANT NOTICE
ShenZhen Ascend Semiconductor incorporated MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS
DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
ShenZhen Ascend Semiconductor Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements,
corrections or other changes without further notice to this document and any product described herein. ShenZhen Ascend Semiconductor
Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither
does ShenZhen Ascend Semiconductor Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any
Customer or user of this document or products described herein in such applications shall assume .
all risks of such use and will agree to hold Ascendsemi Incorporated and all the companies whose products are represented on ShenZhen
Ascend Semiconductor Incorporated website, harmless against all damages.
ShenZhen Ascend Semiconductor Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased
through unauthorized sales channel. Should Customers purchase or use ShenZhen Ascend Semiconductor Incorporated products for any
unintended or unauthorized application, Customers shall indemnify and hold ShenZhen Ascend Semiconductor Incorporated and its
representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal
injury or death associated with such unintended or unauthorized application.
www.ascendsemi.com
DEC 2018 Version1.0
8/8
www.ascendsemi.com
0755-86970486
