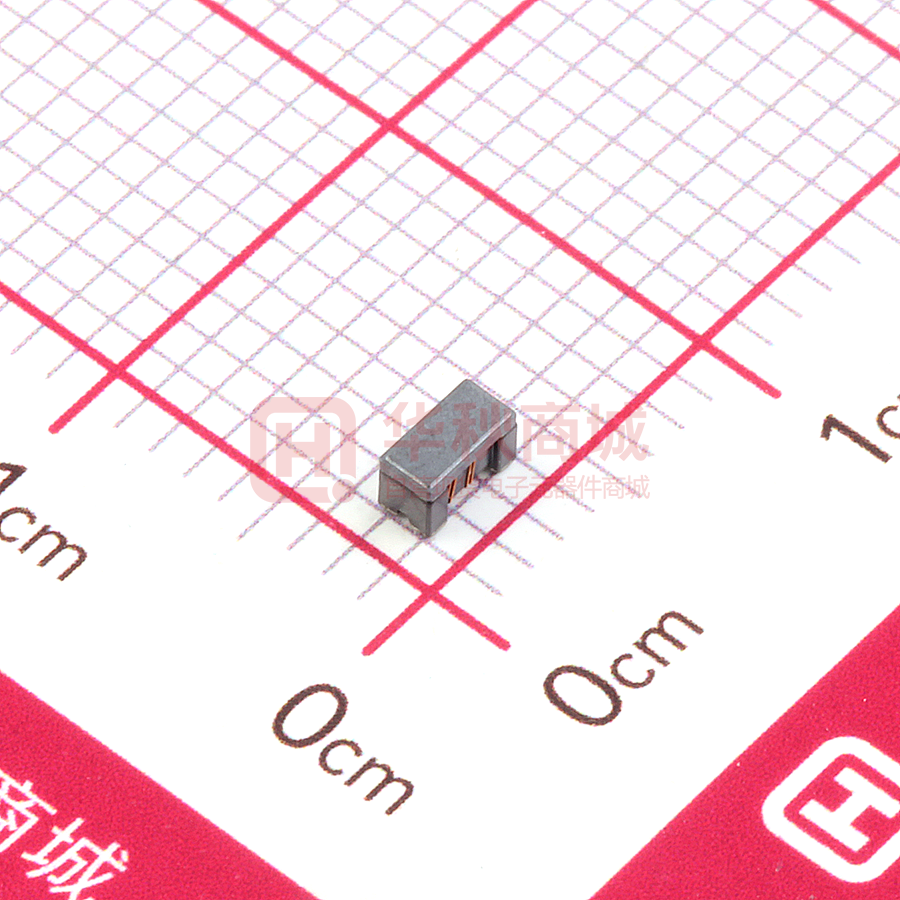

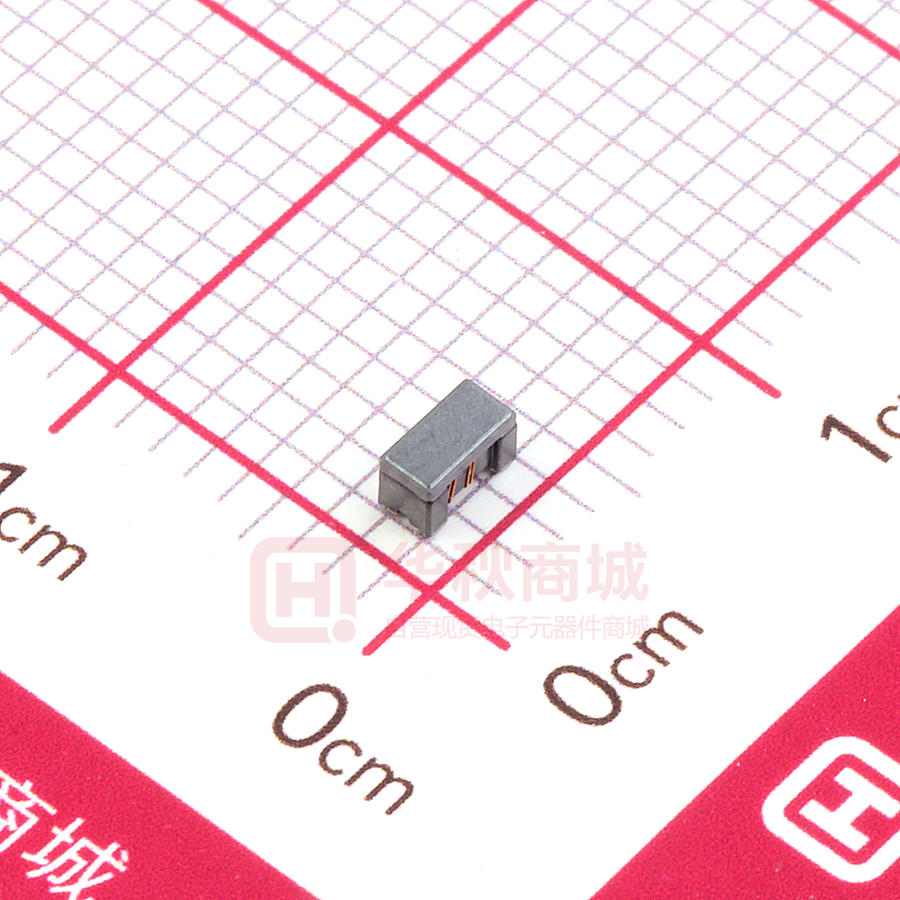

WCM-3216-330T

SPECIFICATION OF WCM SERIES FEATURES Lowprofile and very small size SMD Design, Wound Chip constructure with standard 0805 to 1812 size, with best EMI suppression effect but least impact to data signal wave form. APPLICATIONS Preventive measure against high speed signal radiation emissions such as USB 2.0, IEEE1394 or LAN interface. Best for NB, DSC, mobile device design. ORDERING CODE (1) PRODUCT TYPE CODE (2) PRODUCT SIZE CODE (3) IMPEDANCE (4) TAPING UNIT:mm (inch) APPEARANCE & DIMENSIONS SIZE CODE A B C WCM-2012 2.00±0.20 1.20±0.20 1.20±0.20 (0805) (0.079±0.008) (0.047±0.008) (0.047±0.008) WCM-3216 3.20±0.20 1.60±0.20 2.00±0.20 (1206) (0.126±0.008) (0.063±0.008) (0.079±0.008) WCM-4525 4.80±0.20 2.80±0.20 2.20±0.20 (1810) (0.189±0.008) (0.110±0.008) (0.087±0.008) WCM-4532 4.50±0.20 3.20±0.20 2.80±0.20 (1812) (0.177±0.008) (0.126±0.008) (0.110±0.008) WCM-453226 4.50±0.20 3.20±0.20 2.60±0.20 (1812) (0.177±0.008) (0.126±0.008) (0.102±0.008) WCM-453228 4.50±0.20 3.20±0.20 2.80±0.20 (1812) (0.177±0.008) (0.126±0.008) (0.110±0.008) D1 D2 F G H I TYP TYP TYP TYP TYP TYP 0.45 0.40 0.40 1.20 0.80 2.60 (0.018) (0.016) (0.016) (0.047) (0.031) (0.102) 0.60 0.60 0.40 1.60 1.60 3.70 (0.024) (0.024) (0.016) (0.063) (0.063) (0.146) 0.75 0.75 0.70 2.70 3.00 5.50 (0.030) (0.030) (0.027) (0.106) (0.118) (0.216) 1.00 1.00 0.40 3.60 2.10 4.90 (0.039) (0.039) (0.016) (0.141) (0.082) (0.192) 1.00 1.00 0.40 3.60 2.10 4.90 (0.039) (0.039) (0.016) (0.141) (0.082) (0.192) 1.00 1.00 0.40 3.60 2.10 4.90 (0.039) (0.039) (0.016) (0.141) (0.082) (0.192) ※All the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification. KING CORE ELECTRONICS INC. Tel:886-3-4698855 Fax:886-3-4691395 No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan E-mail:kc@mail.kingcore.com.tw Web Site:http://www.kingcore.com.tw 1 WCM.A07 COMMON MODE CHOKE → WCM-2012 SERIES ELECTRICAL CHARACTERISTICS ORDERING CODE Impedance Tolerance (Ω) ±% Test Frequency DC Resistance (Ω)max (mA)max WCM-2012-120T 12 25% 100 0.20 450 WCM-2012-240T 24 25% 100 0.25 420 WCM-2012-320T 32 25% 100 0.25 400 WCM-2012-500T 50 25% 100 0.25 400 WCM-2012-670T 67 25% 100 0.25 400 WCM-2012-750T 75 25% 100 0.70 280 WCM-2012-900T 90 25% 100 0.30 400 WCM-2012-121T 120 25% 100 0.30 370 WCM-2012-141T 140 25% 100 0.32 360 WCM-2012-161T 160 25% 100 0.35 350 WCM-2012-181T 180 25% 100 0.35 330 WCM-2012-201T 200 25% 100 0.40 300 WCM-2012-221T 220 25% 100 0.40 300 WCM-2012-261T 260 25% 100 0.40 300 WCM-2012-371T 370 25% 100 0.45 280 WCM-2012-120T WCM-2012-240T 100 1000 0.1 1000 WCM-2012-670T IMPEDANCE IMPEDANCE NORMAL MODE 10 100 1000 FREQ(MHZ) 10 1 IMPEDANCE 100 10 1 NORMAL MODE 10 100 1000 FREQ(MHZ) 0.1 1 1 1000 10 100 FREQ(MHZ) 10 1 NORMAL MODE NORMAL MODE 10 100 1000 FREQ(MHZ) 0.1 1 10 100 FREQ(MHZ) WCM-2012-201T COMMON MODE 10 1 100 10 1 NORMAL MODE NORMAL MODE 0.1 1 1000 1000 1000 100 NORMAL MODE 0.1 1 100 COMMON MODE 10 1000 COMMON MODE COMMON MODE WCM-2012-181T 100 10 100 FREQ(MHZ) WCM-2012-121T 1000 NORMAL MODE 10 100 FREQ(MHZ) NORMAL MODE 1 1000 1 COMMON MODE COMMON MODE 1 0.1 1000 10 1000 1 IMPEDANCE 100 WCM-2012-161T WCM-2012-141T 10 WCM-2012-900T 100 0.1 1 1000 10 100 FREQ(MHz) 1000 COMMON MODE COMMON MODE 1 0.1 1 WCM-2012-750T 10 0.1 1 0.1 1000 1000 1000 100 10 100 FREQ(MHZ) 100 NORMAL MODE NORMAL MODE 1 IMPEDANCE 10 100 FREQ(MHZ) 1 1 IMPEDANCE 1 10 IMPEDANCE 0.01 NORMAL MODE 10 COMMON MODE 100 IMPEDANCE 1 COMMON MODE 100 IMPEDANCE IMPEDANCE IMPEDANCE COMMON MODE 10 0.1 WCM-2012-500T WCM-2012-320T 1000 1000 COMMON MODE IMPEDANCE Rated Current (MHz) 10 100 FREQ(MHZ) 1000 0.1 1 10 100 FREQ(MHZ) 1000 ＊Design as Customer's Requested Specifications. ※All the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification. KING CORE ELECTRONICS INC. Tel:886-3-4698855 Fax:886-3-4691395 No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan E-mail:kc@mail.kingcore.com.tw Web Site:http://www.kingcore.com.tw 2 WCM.A07 COMMON MODE CHOKE → WCM-2012 SERIES WCM-2012-221T WCM-2012-261T 1000 100 IMPEDANCE IMPEDANCE COMMON MODE 10 1 COMMON MODE 10 100 FREQ(MHZ) 1000 COMMON MODE 100 10 1 100 10 1 NORMAL MODE NORMAL MODE NORMAL MODE 0.1 1 WCM-2012-371T 1000 IMPEDANCE 1000 0.1 1 10 100 FREQ(MHZ) 0.1 1 1000 10 100 FREQ(MHZ) 1000 ＊Design as Customer's Requested Specifications. ※All the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification. KING CORE ELECTRONICS INC. Tel:886-3-4698855 Fax:886-3-4691395 No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan E-mail:kc@mail.kingcore.com.tw Web Site:http://www.kingcore.com.tw 3 WCM.A07 COMMON MODE CHOKE → WCM-3216 SERIES ELECTRICAL CHARACTERISTICS Impedance ORDERING CODE ±% (MHz) (Ω)max (mA)max WCM-3216-330T 33 25% 100 0.20 400 WCM-3216-500T 50 25% 100 0.25 400 WCM-3216-900T 90 25% 100 0.30 400 WCM-3216-121T 120 25% 100 0.30 400 WCM-3216-161T 160 25% 100 0.40 350 WCM-3216-221T 220 25% 100 0.45 300 WCM-3216-261T 260 25% 100 0.50 310 WCM-3216-501T 500 25% 100 0.80 260 WCM-3216-601T 600 25% 100 0.80 260 WCM-3216-102T 1000 25% 100 1.00 250 WCM-3216-222T 2200 25% 100 1.20 200 WCM-3216-500T WCM-3216-330T 1 10 1 10 100 FREQ(MHZ) 0.1 1 1000 WCM-3216-161T 10 1 100 10 1 1000 IMPEDANCE 10 0.1 1 0.1 1 1000 1000 100 10 1 1000 COMMON MODE 0.1 1 NORMAL MODE 10 100 1000 FREQ(MHZ) WCM-3216-222T 10000 1000 100 10 NORMAL MODE 10 100 1000 FREQ(MHZ) 1000 WCM-3216-501T COMMON MODE 10 100 FREQ(MHZ) 10 100 FREQ(MHZ) 10000 1 COMMON MODE COMMON MODE 100 NORMAL MODE NORMAL MODE 10000 COMMON MODE 1 0.1 1 1000 10 WCM-3216-102T WCM-3216-601T 10000 1 10 100 FREQ(MHZ) 10 100 FREQ(MHZ) 100 NORMAL MODE 0.1 1 10 WCM-3216-261T 1000 NORMAL MODE 100 NORMAL MODE 0.1 1 1000 IMPEDANCE IMPEDANCE 100 1000 1 COMMON MODE COMMON MODE IMPEDANCE 10 100 FREQ(MHZ) 1000 10 100 FREQ(MHZ) 10 WCM-3216-221T 1000 0.1 1 100 NORMAL MODE IMPEDANCE 0.1 1 COMMON MODE COMMON MODE COMMON MODE IMPEDANCE 10 100 WCM-3216-121T 1000 IMPEDANCE COMMON MODE IMPEDANCE IMPEDANCE 100 WCM-3216-900T 1000 1000 NORMAL MODE IMPEDANCE Rated Current Test Frequency DC Resistance (Ω) 1000 IMPEDANCE Tolerance 1000 100 10 NORMAL MODE 1 1 1 1 10 100 1000 FREQ(MHZ) NORMAL MODE 10 100 1000 FREQ(MHZ) ＊Design as Customer's Requested Specifications. ※All the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification. KING CORE ELECTRONICS INC. Tel:886-3-4698855 Fax:886-3-4691395 No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan E-mail:kc@mail.kingcore.com.tw Web Site:http://www.kingcore.com.tw 4 WCM.A07 COMMON MODE CHOKE → WCM-4525 SERIES ELECTRICAL CHARACTERISTICS Impedance ORDERING CODE Rated Current (Ω) ±% (MHz) (Ω)max (mA)max 60 25% 100 0.10 3000 WCM-4525-121A20T 120 25% 100 0.20 2000 WCM-4525-221A20T 220 25% 100 0.20 2000 WCM-4525-601A15T 600 25% 100 0.30 1500 WCM-4525-601A20T 600 25% 100 0.20 2000 WCM-4525-701A20T 700 25% 100 0.15 2000 1000 WCM-4525-102A10T 1000 25% 100 0.40 WCM-4525-122A10T 1200 25% 100 0.40 1000 WCM-4525-142A10T 1400 25% 100 0.40 1000 1000 1000 10 1 NORMAL MODE 100 IMPEDANCE 1 100 IMPEDANCE 10 10 1 10 1 10 100 1000 FREQ(MHZ) 0.1 10 100 1000 FREQ(MHZ) WCM-4525-701A20T 1000 IMPEDANCE 100 10 COMMON MODE 100 10 1 1 1 10 100 FREQ(MHZ) 0.1 1 1000 100 10 100 10 1 1 NORMALMODE NORMAL MODE NORMAL MODE 10 100 1000 FREQ(MHZ) 0.1 1 0.1 1 10 100 1000 FREQ(MHZ) 10 100 1000 FREQ(MHZ) WCM-4525-122A10T 10000 COMMON MODE 1000 WCM-4525-102A10T 10000 COMMON MODE 1000 10000 1000 NORMAL MODE NORMAL MODE IMPEDANCE 0.1 1 WCM-4525-601A20T 10000 COMMON MODE 0.1 1 100 NORMAL MODE IMPEDANCE 0.1 1 WCM-4525-601A15T 10000 COMMON MODE 1000 COMMON MODE COMMON MODE COMMON MODE IMPEDANCE 100 WCM-4525-221A20T WCM-4525-121A20T WCM-4525-600A30T IMPEDANCE Test Frequency DC Resistance WCM-4525-600A30T 1000 IMPEDANCE Tolerance 10 100 1000 FREQ(MHZ) 0.1 1 NORMAL MODE 10 100 1000 FREQ(MHZ) WCM-4525-142A10T 10000 COMMON MODE IMPEDANCE 1000 100 10 1 NORMAL MODE 0.1 1 10 100 1000 FREQ(MHZ) ＊Design as Customer's Requested Specifications. ※All the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification. KING CORE ELECTRONICS INC. Tel:886-3-4698855 Fax:886-3-4691395 No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan E-mail:kc@mail.kingcore.com.tw Web Site:http://www.kingcore.com.tw 5 WCM.A07 COMMON MODE CHOKE → WCM-4532 SERIES ELECTRICAL CHARACTERISTICS Impedance ORDERING CODE Test Frequency DC Resistance ±% (MHz) (Ω)max (mA)max 90 25% 100 0.050 4000 WCM-4532-231A35T 230 25% 100 0.051 3500 WCM-4532-421A32T 420 25% 100 0.052 3200 WCM-4532-601A25T 600 25% 100 0.065 2500 WCM-4532-801A23T 800 25% 100 0.100 2300 WCM-4532-901A22T 900 25% 100 0.100 2200 WCM-4532-102A21T 1000 25% 100 0.110 2100 WCM-4532-142A20T 1400 25% 100 0.120 2000 COMMON MODE IMPEDANCE COMMON MODE IMPEDANCE 1 100 IMPEDANCE IMPEDANCE 10 1000 10 1 COMMON MODE IMPEDANCE 100 10 1 NORMAL MODE 10 100 FREQ(MHZ) 0.1 1000 1 10 100 FREQ(MHZ) 0.1 1000 10 1 1 10 100 FREQ(MHZ) 10 1000 NORMAL MODE 0.1 1 10 100 FREQ(MHZ) 1 NORMAL MODE 1 1000 1000 WCM-4532-142A20T COMMON MODE 1000 IMPEDANCE 100 10 0.1 10 100 FREQ(MHZ) 10000 1 1 NORMAL MODE 0.1 100 10 0.1 1000 COMMON MODE 1000 IMPEDANCE IMPEDANCE IMPEDANCE 100 10 100 FREQ(MHZ) 10000 COMMON MODE 1000 IMPEDANCE COMMON MODE IMPEDANCE 100 WCM-4532-102A21T 10000 1000 1 WCM-4532-901A22T WCM-4532-801A23T 10000 COMMON MODE IMPEDANCE NORMAL MODE NORMAL MODE 1 IMPEDANCE 0.1 WCM-4532-601A25T 1000 IMPEDANCE 1000 100 WCM-4532-421A32T WCM-4532-231A35T WCM-453228-900A40T 1000 IMPEDANCE Rated Current (Ω) WCM-453228-900A40T IMPEDANCE Tolerance 100 10 1 NORMAL MODE NORMAL MODE 0.1 1 10 100 FREQ(MHZ) 1000 1 10 100 FREQ(MHZ) 1000 ＊Design as Customer's Requested Specifications. ※All the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification. KING CORE ELECTRONICS INC. Tel:886-3-4698855 Fax:886-3-4691395 No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan E-mail:kc@mail.kingcore.com.tw Web Site:http://www.kingcore.com.tw 6 WCM.A07 COMMON MODE CHOKE → WCM-453228 SERIES ELECTRICAL CHARACTERISTICS INDUCTANCE IMPEDANCE Rated Voltage Insulation Resistance (uH) (Ω)TYP (Ω) (mA) V (mΩ) 100KHz/100mV 10MHz max max (DC) min WCM-453226-101YT04 100+50(-30)% 5800 2.0 250 50 10 WCM-453228-110YT04 11+50(-30)% 600 0.6 250 50 10 WCM-453228-220YT04 22+50(-30)% 1200 1.0 200 50 10 WCM-453228-510YT04 51+50(-30)% 2800 1.0 200 50 10 WCM-453226-101YT04 WCM-453228-110YT04 10000 COMMON MODE IMPEDANCE 10000 COMMON MODE IMPEDANCE IMPEDANCE 100 10 100 10 1 10 100 FREQ(MHZ) 1000 1 10 100 FREQ(MHZ) COMMON MODE IMPEDANCE 10 1 0.1 1000 100 10 1 NORMAL MODE NORMAL MODE 0.1 1 10 100 FREQ(MHZ) COMMON MODE IMPEDANCE 1000 100 NORMAL MODE 0.1 10000 1000 1 NORMAL MODE 1 10000 1000 1000 WCM-453228-510YT04 WCM-453228-220YT04 100000 IMPEDANCE 100000 IMPEDANCE Rated Current IMPEDANCE ORDERING CODE DC Resistance 1000 1 10 100 FREQ(MHZ) 1000 ※Operating temperature range：–25 to +85°C (including self-generated heat) ＊Design as Customer's Requested Specifications. ※All the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification. KING CORE ELECTRONICS INC. Tel:886-3-4698855 Fax:886-3-4691395 No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan E-mail:kc@mail.kingcore.com.tw Web Site:http://www.kingcore.com.tw 7 WCM.A07
