DOSIN-801-0073

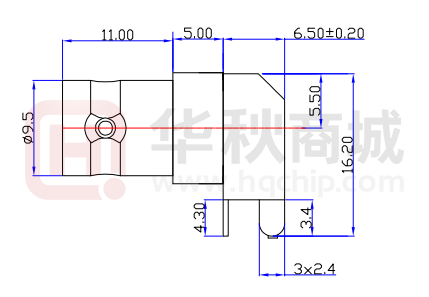

A B D C E F Product NO. DOSIN-801-0073 DWN DESCRIPTION REV G Mr.chen First issue A APPROVEN DATE 2021/12/09 John kine 1 1 2 2 3 3 SPECIFICATIONS: 4 5 6 Impedance: 75 Ohms Frequency Range:DC~3G VSWR:1.3MAX Working Voltage:15 watts continuous Insulation Resistance:5000 Ohms min Temperature Range:-55℃ TO +155℃ Service Life Times:500 Times Drawings products are in line with ROHS standards 1 2 3 4 5 6 7 8 9 10 NO BODY CONDUCTOR LNSULATION STAND BRASS BRASS POM TIN PLATE NICKEL GOLD None NICKEL 1 1 1 1 4 5 NOTE: Tolerance DRAWN chen CHECKED Component Number A Material B APPROVALS Finish Q'TY C Dosin Industrial(H.K)Co.Ltd X. ±O.15 X.X ±0.10 X.XX ±0.05 Angular ±5° 东莞市徳索五金电子制品有限公司 Dosin Hardware Electronics Co.,Ltd Name: View UNIT MM SCALE 1:1 D E-mail:dosin2005@163.com dosin2005@dosin-china.com Web:http://www.dosinconn.com TEL:(0086)769-81153906 FAX:(0086)769-81875836 BNC JACK CONNECTOR DNN REV SIZE Product NO. DOSIN-801-0073 A A DateTime CAD FILE 2021/12/09 H/company drawings/BD SHEET: 1 OF 1 E F G 6
