DOSIN-801-0093

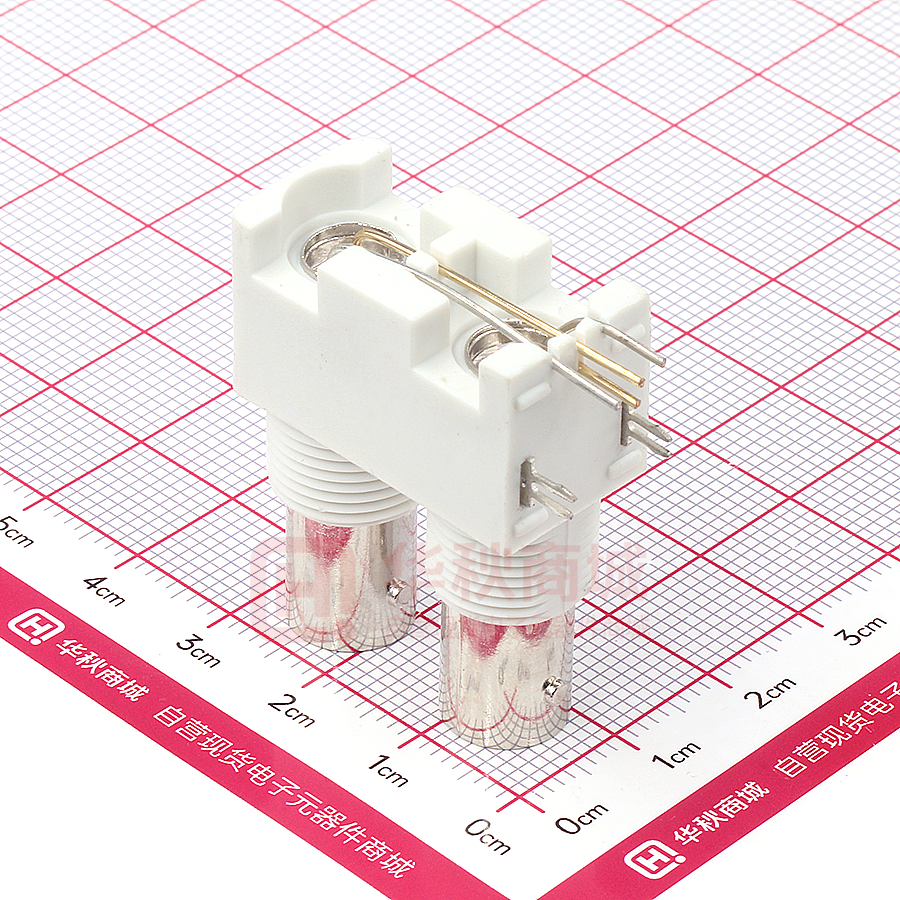

1 2 3 4 5 6 A Specifications: A Component Number BODY PIN INSULATOI PLASTIC BODY EARTH WIRE FIXED FOOT B B Material Zinc Brass POM PBT IRON IRON Finish NICKEL GOLD White White NICKEL NICKEL QTY C NOTE: C APPROVALS 2 DRAWN 2 Zelin.chen CHECKED 2 2 2 1 IMPEDANCE: 50 Ohms Frequency range:0~3GHZ VSWR:1.5MAX Working voltage:500V rms @ sea level Insulation resistance:5000 Ohms min Temperature range:-55℃ TO +155℃ Relative temperature:≤95%(40°C±2°C) 1 2 3 4 5 6 7 8 9 10 NO D Tolerance MM E Customer NO: REV DESCRIPTION F Mr.chen W.cheng DWN DOSIN-801-0093 F DATE G 2016/3/03 2020/09/22 G APPROVEN John kine John kine A SHEET: 1 OF 1 REV E-mail:dosin2005@163.com dosin2005@dosin-china.com Web:http://www.dosinconn.com TEL:(0086)769-81153906 FAX:(0086)769-81875836 SIZE Product NO. DOSIN-801-0093 A DateTime CAD FILE 2016/3/03 H/company drawings/BD Name: BNC Jack PCB Mount Dosin Hardware Electronics Co.,Ltd 东莞市徳索五金电子制品有限公司 Dosin Industrial(H.K)Co.Ltd First issue 以实物调整尺寸 E A B X. ±O.50 X.X ±0.40 X.XX ±0.30 Angular ±5° UNIT 1:1 View SCALE D
