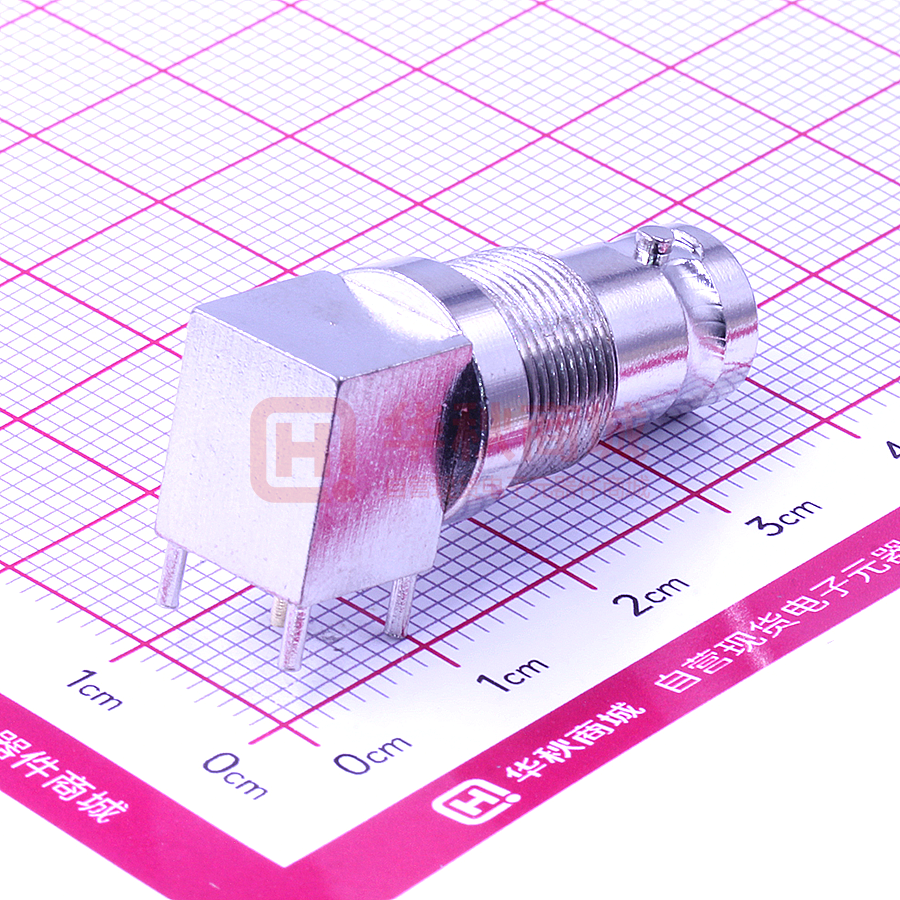

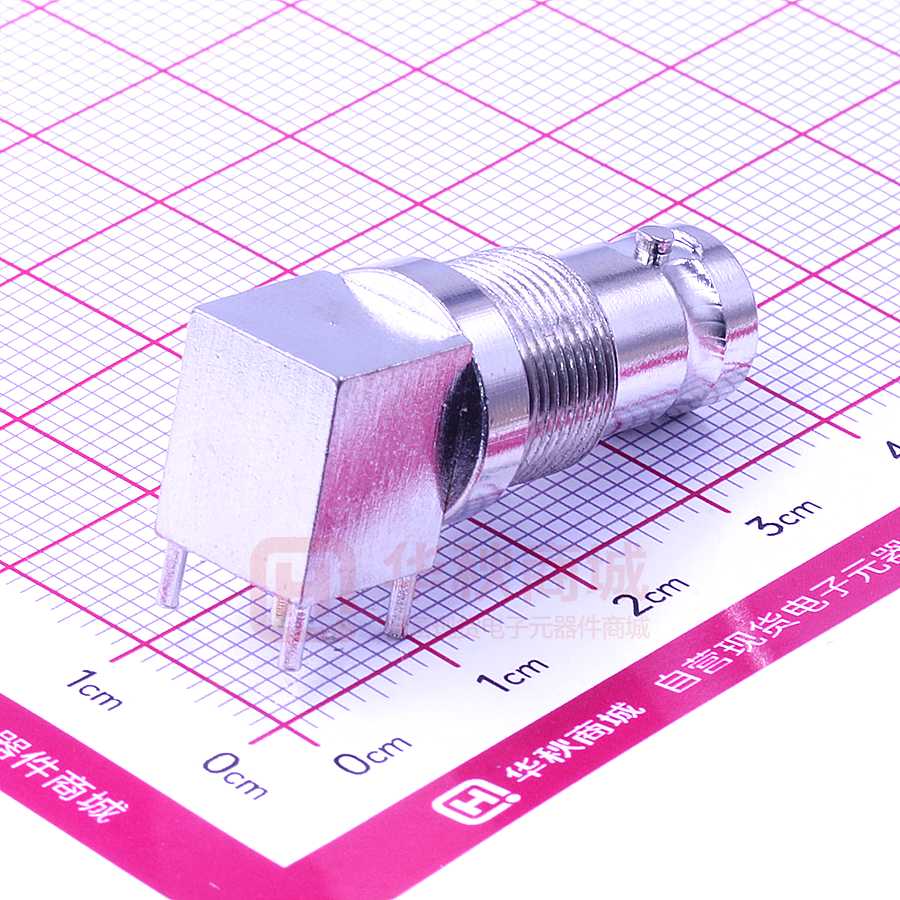

DOSIN-801-0079

A B C D E F Product NO. REV A G DOSIN-801-0079 DESCRIPTION DWN First issue CHEN APPROVEN DATE 2012/11/02 John kine 1 1 33.9 3 5 O D 13.5 Specifications Impedance:75 Ohms Frequency Range:DC~3G VSWR:1.3MAX Working Voltage:500V rms @ sea level Insulation Resistance:5000 Ohms min 16.0 12.2 N I S 15.5 H14.0 4 2 3 10.0 2 M12*0.75 9,6 11.0 2 5.2 3.5 4 Relative Temperature: Drawings products are in line with ROHS standards 5 NOTE: 0-6 Dosin Industrial(H.K)Co.Ltd Tolerance Dosin Hardware Electronics Co.,Ltd DRAWN 2012/11/ Zelin.CHEN 10 CHECKED 6 APPROVALS A B C Name: View UNIT MM SCALE 1:1 D E-mail:dosin2005@163.com dosin2005@dosin-china.com Web:http://www.dosinconn.com TEL:(0086)769-81153906 FAX:(0086)769-81875836 BNC CONNECTOR DNN 6 REV SIZE Product NO. DOSIN-801-0079 A A DateTime CAD FILE SHEET: 1 OF 1 2012/11/02 D/company drawings/BD E F G
