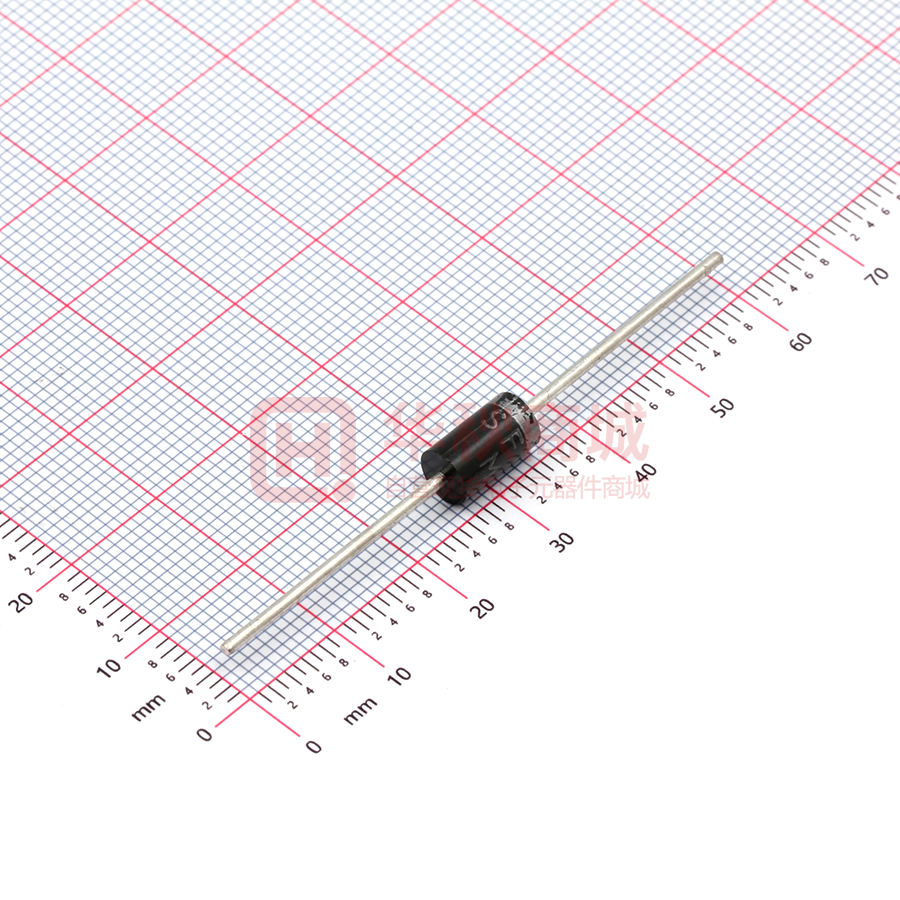

SF58G

SF51G THRU SF58G Reverse Voltage - 50 to 600 Volts Forward Current - 5.0 Ampere SUPER FAST GLASS PASSIVATED RECTIFIER Features DO-201AD  The plastic package carries Underwriters Laboratory Flammability Classification 94V-0  Idea for printed circuit board 1.0 (25.4) MIN.  Super fast switching for high efficiency  Low reverse leakage  High forward surge current capability 0.220(5.6) 0.197(5.0) DIA.  High temperature soldering guaranteed: 0.375(9.5) 0.285(7.2) 250℃/ 10 seconds at terminals Mechanical Data 1.0 (25.4) MIN. Case : JEDEC DO-201AD Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.04 ounce, 1.10 grams 0.052(1.3) 0.048(1.2) DIA. Dimensions in inches and (millimeters) Maximum Ratings And Electrical Characteristics Ratings at 25°C ambient temperature unlss otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage VRRM V RMS V DC Maximum average forward rectified current at TA=55℃ Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) Maximum instantaneous forward voltage at 5.0A Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃ Maximum reverse recovery time SF53G SF54G SF55G SF56G SF58G MDD SF51G MDD SF52G MDD SF53G MDD SF54G MDD SF55G MDD SF56G MDD SF58G 50 100 70 100 150 105 150 200 140 200 300 210 300 400 280 400 600 420 600 35 50 UNITS V V V 5.0 A IFSM 150.0 A 0.95 1.25 10.0 50.0 IR 100.0 1.7 V μA 35 trr CJ Typical junction capacitance (NOTE 2) Operating junction and storage temperature range SF52G I(AV) VF (NOTE 1) Typical thermal resistance (NOTE 3) SF51G ns 50.0 pF RθJA 30.0 ℃/W TJ,T STG -65 to +150 ℃ Note: 1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A 2. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3. Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted DN:T20526A0 http://www.microdiode.com Rev:2020A0 Page :1 SF51G THRU SF58G Reverse Voltage - 50 to 600 Volts Forward Current - 5.0 Ampere FIG. 1- FORWARD CURRENT DERATING CURVE 5 4 3 Single Phase Half Wave 60Hz Resistive or inductive Load 2 1 0 0 25 50 75 100 125 150 PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD RECTIFIED CURRENT, AMPERES Ratings And Characteristic Curves FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 150 125 100 75 50 175 25 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 1 10 AMBIENT TEMPERATURE, C NUMBER OF CYCLES AT 60 Hz 20 TJ=25 C PULSE WIDTH=300 µs 1%DUTY CYCLE 1 0.1 SF51G-SF54G SF55G-SF56G SF58G 0.01 0 0.4 0.8 1.2 1.6 1.8 FIG. 4-TYPICAL REVERSE CHARACTERISTICS INSTANTANEOUS REVERSE CURRENT, MICROAMPERES INSTANTANEOUS FORWARD CURRENT,AMPERES FIG. 3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS 10 1,000 100 10 TJ=25 C 0.1 0.01 0 20 40 60 80 100 400 TJ=25 C 20 SF51G-SF54G SF55G-SF58G TRANSIENT THERMAL IMPEDANCE, C/W PERCENT OF PEAK REVERSE VOLTAGE,% FIG. 5-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE, pF TJ=100 C 1 INSTANTANEOUS FORWARD VOLTAGE, VOLTS 200 100 FIG. 6-TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 10 100 2 0.1 1.0 10 100 t,PULSE DURATION,sec. REVERSE VOLTAGE,VOLTS The curve above is for reference only. http://www.microdiode.com Rev:2020A0 Page :2 SF51G THRU SF58G Reverse Voltage - 50 to 600 Volts Forward Current - 5.0 Ampere Package Information Taping Specifications Item Symbol Specifications(mm) Component Pitch A 10.0±0.5 Inner Tape Pitch B 52.4±1.5 Component alignment Z 1.2 Max Tape width T 6.0±0.5 Exposed adhesive E 0.8 Max Body eccentricity L1-L2 1.0 Max Ammunition Package Specifications Package Inner Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) DO - 201AD 255*74*145 1000 410*275*340 10000 Bulk Package Specifications Package Inner Box Size (mm) QTY/Box (pcs) Carton Size (mm) Q'TY/Carton (pcs) DO - 201AD 198*86*21 200 460*220*250 10000 Important Notice and Disclaimer Microdiode Electronics (Jiangsu) reserves the right to make changes to this document and its products and specifications at any time without notice. Customers should obtain and confirm the latest product information and specifications before final design,purchase or use. Microdiode Electronics (Jiangsu) makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, not does Microdiode Electronics (Jiangsu) assume any liability for application assistance or customer product design. Microdiode Electronics (Jiangsu) does not warrant or accept any liability with products which are purchased or used for any unintended or unauthorized application. No license is granted by implication or otherwise under any intellectual property rights of Microdiode Electronics (Jiangsu). Microdiode Electronics (Jiangsu) products are not authorized for use as critical components in life support devices or systems without express written approval of Microdiode Electronics (Jiangsu). http://www.microdiode.com Rev:2020A0 Page :3
