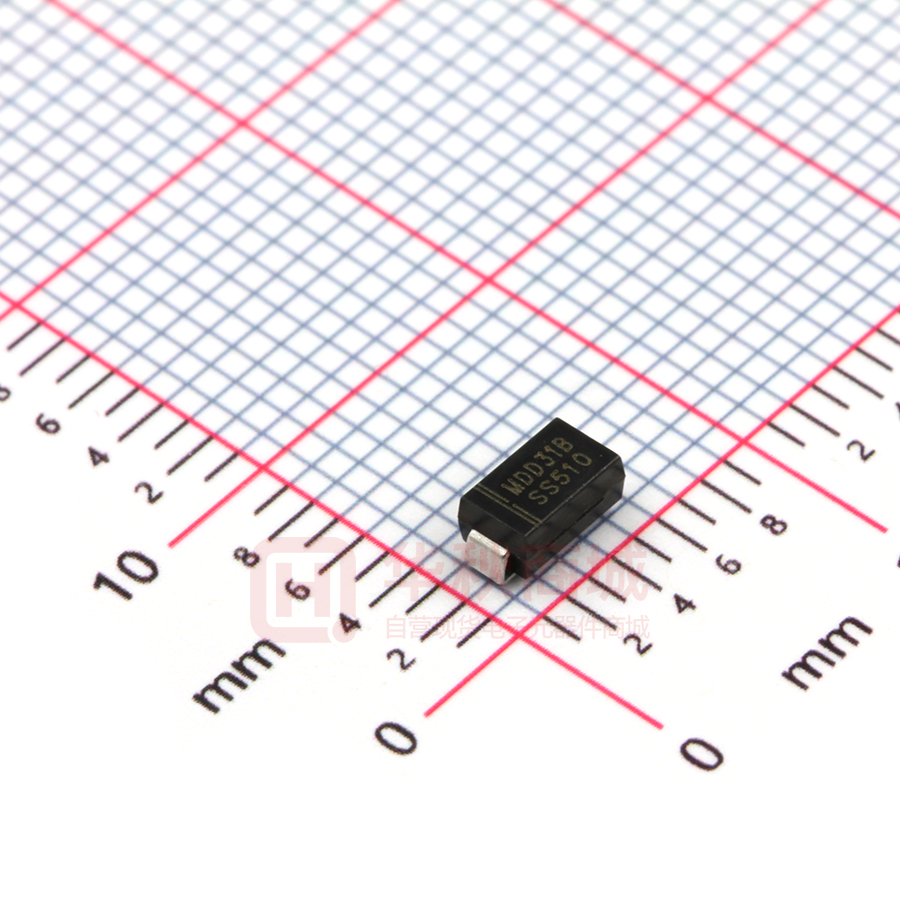

SS510

SS510 Reverse Voltage - 100 Volts Forward Current - 5.0 Ampere SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features DO-214AC/SMA  Metal silicon junction, majority carrier conduction  For surface mounted applications  Low power loss, high efficiency  High forward surge current capability  For use in low voltage, high frequency inverters, 0.110(2.80) 0.094(2.40) 0.067 (1.70) 0.039 (1.00) 0.177(4.50) 0.157(3.99)  free wheeling, and polarity protection applications 0.012(0.305) 0.006(0.152) 0.096(2.42) 0.078(1.98) 0.059(1.50) 0.035(0.90) Mechanical Data 0.008(0.203)MAX. 0.205(5.20) 0.188(4.80) Case: JEDEC DO-214AC/SMA molded plastic body Terminals: Solderable per MIL-STD-750,Method 2026 Dimensions in inches and (millimeters) Weight : 0.0021 ounce, 0.060grams Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Symbols SS510 Units Maximum Repetitive Peak Reverse Voltage V RRM 100 V Maximum RMS voltage V RMS 70 V Maximum DC Blocking Voltage V DC 100 V Maximum Average Forward Rectified Current I F(AV) 5.0 A Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM 100 A Max Instantaneous Forward Voltage at 5 A VF 0.85 V IR 0.3 3 mA Typical Junction Capacitance（1） Cj 127 pF Operating Junction Temperature Range Tj -55 ~ +175 °C T stg -55 ~ +175 °C Parameter Maximum DC Reverse Current at Rated DC Reverse Voltage Storage Temperature Range Ta = 25°C Ta =100°C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 2.0x2.0”(5.0x5.0cm) copper pad areas http://www.microdiode.com Rev:2024A3 Page :1 SS510 Reverse Voltage - 100 Volts Forward Current - 5.0 Ampere Typical Characterisitics Fig.2 Typical Reverse Characteristics Fig.1 Forward Current Derating Curve 5.0 4.0 3.0 2.0 1.0 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 75 50 100 125 150 175 Instaneous Reverse Current (μ uA) Average Forward Current (A) 6.0 10 4 10 3 10 2 TJ=100 °C 10 1 TJ=25°C 10 0 0 Lead Temperature (°C) 20 40 60 80 100 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic Fig.4 Typical Junction Capacitance 10 TJ=25° =25°C 500 JunctionCapacitance (pF) Instaneous Forward Current (A) 1000 1.0 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 200 100 20 10 0.1 1 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Peak Forward Surge Current (A) 125 100 75 50 25 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles at 60Hz The curve above is for reference only. http://www.microdiode.com Rev:2024A3 Page :2 SS510 Reverse Voltage - 100 Volts Forward Current - 5.0 Ampere Packing information unit:mm P0 Item P1 Symbol Tolerance SMA A B C d D D1 D D1 D2 E F P P0 P1 T W W1 0.1 0.1 0.1 0.05 2.0 min 2.0 min 0.5 0.1 0.1 0.1 0.1 0.1 0.1 0.3 1.0 2.80 5.33 2.36 1.50 330.00 50.00 178.00 62.00 13.00 1.75 5.50 4.00 4.00 2.00 0.28 12.00 18.00 d E F B A W P D2 T D1 C W1 D Carrier width Carrier length Carrier depth Sprocket hole 13" Reel outside diameter 13" Reel inner diameter 7" Reel outside diameter 7" Reel inner diameter Feed hole diameter Sprocket hole position Punch hole position Punch hole pitch Sprocket hole pitch Embossment center Overall tape thickness Tape width Reel width Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above. Reel packing PACKAGE SMA REEL SIZE 7" APPROX. GROSS WEIGHT (kg) REEL (pcs) COMPONENT SPACING (m/m) BOX (pcs) INNER BOX (m/m) REEL DIA, (m/m) 2,000 4.0 4,000 183*155*183 178 382*356*392 80,000 16.0 10,000 290*290*38 330 310*310*360 80,000 11.0 15,000 335*335*38 330 350*330*360 120,000 14.5 SMA 11" 5,000 4.0 SMA 13" 7,500 4.0 CARTON SIZE (m/m) CARTON (pcs) Suggested Pad Layout http://www.microdiode.com Symbol Unit (mm) A 1.68 Unit (inch) 0.066 B 1.52 0.060 C 3.90 0.154 D 2.41 0.095 E 5.45 0.215 Rev:2024A3 Page :3
