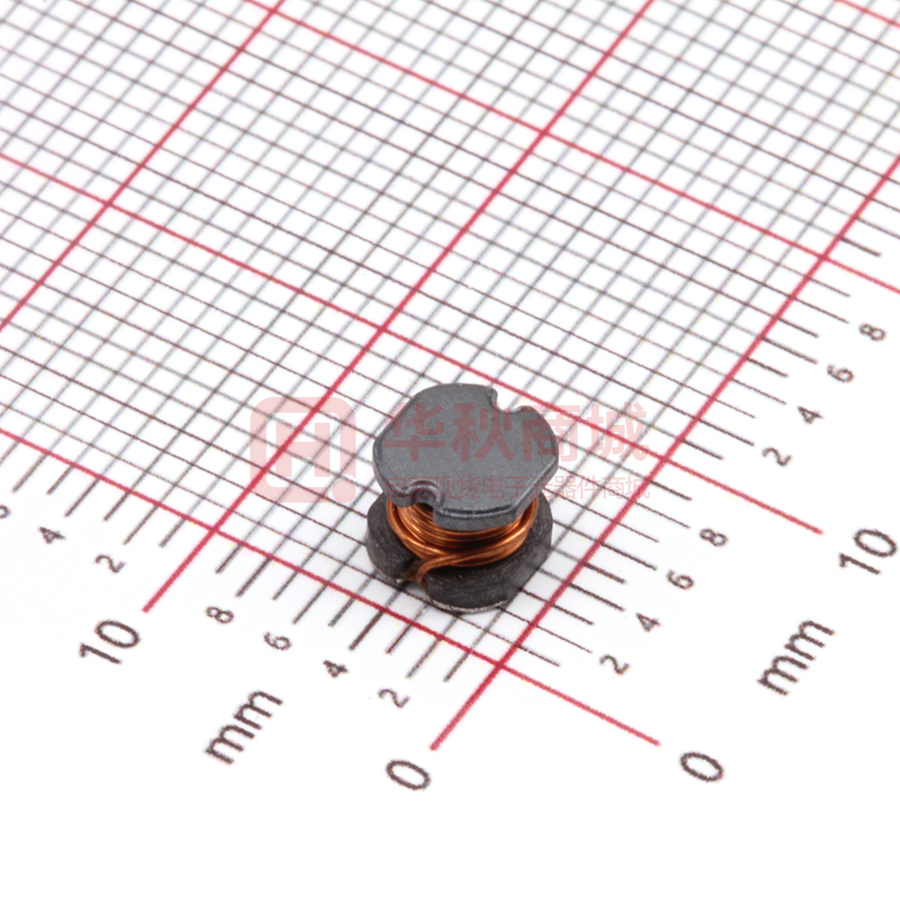

CD54YP0504-4R7M

SMD Power Inductors -YP0504 Series ■ Features ● High current Type. ● Ferrite bobbin core and compact size. ● Low core loss for high frequency power application. ● Large terminal surface for good PCB bonding. ● Operating temperature:-40℃ ~ +125℃. ■ Applications ● Portable communication equipment. ● Notebook PC,digital carmera,LCD television set. ● Power supply for VTR,OA equipment. ● DC/DC converters. ■ Product Identification ⑴ ：Type ⑵ ：Dimensions ⑶ ：Inductance value ⑷：Inductance Tolerance：N=±30%,M=±20%，L=±15%，K=±10% ■ Shapes and Dimensions (Unit：mm) TYPE A B C D1 Ref. D2 Ref. E Ref. F Ref. YP0504 5.8±0.3 5.2±0.3 4.5±0.3 1.5 1.7 6.0 5.5 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -1- SMD Power Inductors -YP0504 Series ■ YP0504 Series Part Number Inductance (uH) L Test Frequency Max.DC Resistance Max.Rated Current (KHz) (Ω) (A) YP0504-1R0□ 1.00 100 0.015 5.90 YP0504-1R2□ 1.20 100 0.020 5.20 YP0504-1R5□ 1.50 100 0.025 4.70 YP0504-1R8□ 1.80 100 0.030 4.00 YP0504-2R2□ 2.20 100 0.035 3.80 YP0504-2R7□ 2.70 100 0.040 3.40 YP0504-3R3□ 3.30 100 0.045 3.30 YP0504-3R9□ 3.90 100 0.050 2.90 YP0504-4R7□ 4.70 100 0.060 2.80 YP0504-5R6□ 5.60 100 0.070 2.40 YP0504-6R8□ 6.80 100 0.080 2.10 YP0504-8R2□ 8.20 100 0.090 2.00 YP0504-100□ 10.0 100 0.100 1.44 YP0504-120□ 12.0 100 0.120 1.40 YP0504-150□ 15.0 100 0.140 1.30 YP0504-180□ 18.0 100 0.150 1.23 YP0504-220□ 22.0 100 0.180 1.11 YP0504-270□ 27.0 100 0.200 0.97 YP0504-330□ 33.0 100 0.230 0.88 YP0504-390□ 39.0 100 0.320 0.80 YP0504-470□ 47.0 100 0.370 0.72 YP0504-560□ 56.0 100 0.420 0.68 YP0504-680□ 68.0 100 0.460 0.61 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -2- SMD Power Inductors -YP0504 Series ■ YP0504 Series Part Number Inductance (uH) L Test Frequency Max.DC Resistance Max.Rated Current (KHz) (Ω) (A) YP0504-820□ 82.0 100 0.600 0.58 YP0504-101□ 100 100 0.700 0.52 YP0504-121□ 120 100 0.930 0.48 YP0504-151□ 150 100 1.100 0.40 YP0504-181□ 180 100 1.380 0.38 YP0504-221□ 220 100 1.570 0.35 YP0504-271□ 270 100 1.650 0.32 YP0504-331□ 330 100 1.700 0.28 YP0504-391□ 390 100 1.800 0.26 YP0504-471□ 470 100 2.300 0.23 YP0504-561□ 560 100 2.500 0.20 YP0504-681□ 680 100 3.000 0.19 YP0504-821□ 820 100 4.500 0.16 YP0504-102□ 1000 100 4.800 0.14 ※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃) ※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃) ※ The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -3- SMD Power Inductors -YP0504 Series ■ Taping Dimensions(Unit:mm) TYPE W A B C D E P K Ref T MPQ YP0504 12±0.3 5.20±0.1 6.40±0.1 4.75 5.5±0.1 4.55±0.1 8.0±0.1 4.75 0.40±0.05 1500 ■ Reel Dimensions(Unit:mm) TYPE W W1 W2 W3 A B C D YP0504 330±2.0 12.8±1.50 18.4MAX 11.9 Min 13.0±0.50 21.0±0.80 2.0±0.50 100 Min 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -4- SMD Power Inductors -YP0504 Series ■ Direction of rolling ■ Cover tape peel off condition Cover tape peel force shall be 0.1N to 1.3N. Reference peel speed 300±10mm/min. 深圳市益嘉源电子有限公司 http://www.yjycoin.com Tel:0755-27803896 Fax:0755-27803897 -5-
