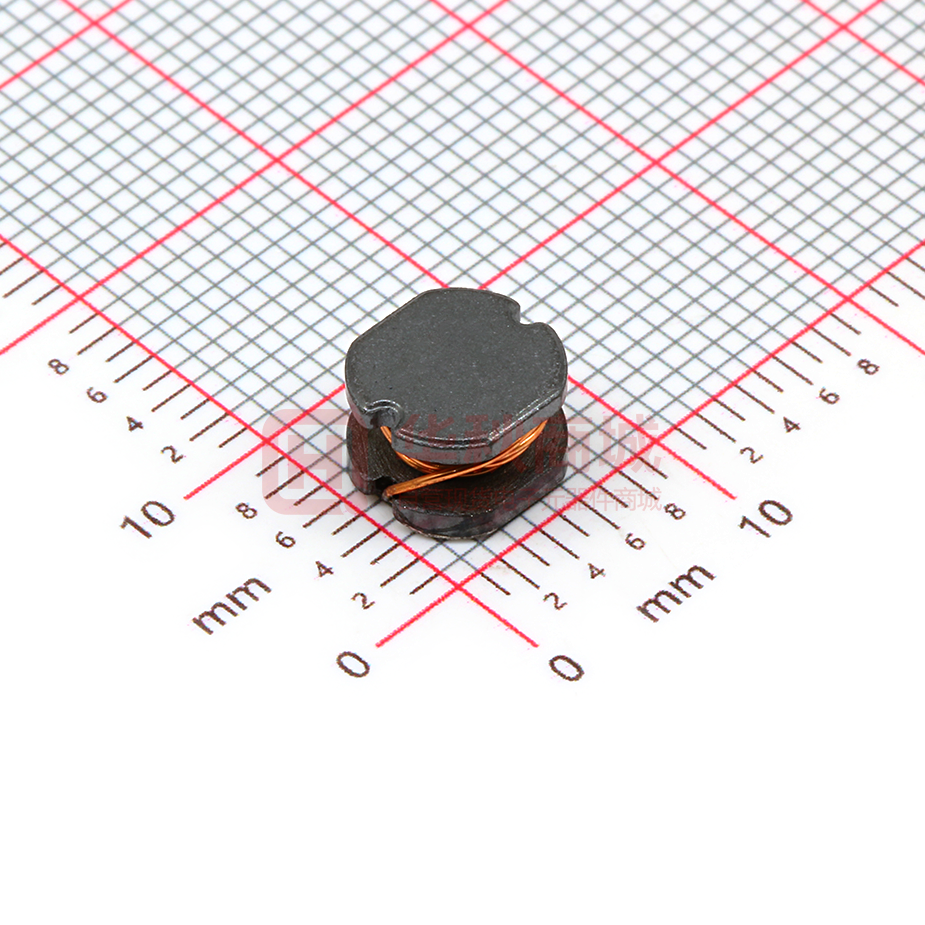

SMD Power Inductors
-YP0705 Series
■ Features
● High current Type.
● Ferrite bobbin core and compact size.
● Low core loss for high frequency power application.
● Large terminal surface for good PCB bonding.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● Portable communication equipment.
● Notebook PC,digital carmera,LCD television set.
● Power supply for VTR,OA equipment.
● DC/DC converters.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷:Inductance Tolerance:N=±30%,M=±20%,L=±15%,K=±10%
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C
D1 Ref.
D2 Ref.
E Ref.
F Ref.
YP0705
7.8±0.3
7.0±0.3
5.0±0.3
2.1
2.0
8.0
7.5
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YP0705 Series
■ YP0705 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
Max.Rated Current
(KHz)
(Ω)
(A)
YP0705-1R0□
1.00
100
0.012
7.00
YP0705-2R2□
2.20
100
0.020
4.50
YP0705-3R3□
3.30
100
0.023
4.00
YP0705-4R7□
4.70
100
0.025
3.50
YP0705-5R6□
5.60
100
0.034
3.30
YP0705-6R8□
6.80
100
0.042
3.20
YP0705-8R2□
8.20
100
0.070
3.10
YP0705-100□
10.0
100
0.070
2.30
YP0705-120□
12.0
100
0.080
2.00
YP0705-150□
15.0
100
0.090
1.80
YP0705-180□
18.0
100
0.100
1.60
YP0705-220□
22.0
100
0.110
1.50
YP0705-270□
27.0
100
0.120
1.30
YP0705-330□
33.0
100
0.130
1.20
YP0705-390□
39.0
100
0.160
1.10
YP0705-470□
47.0
100
0.180
1.10
YP0705-560□
56.0
100
0.240
0.94
YP0705-680□
68.0
100
0.280
0.85
YP0705-820□
82.0
100
0.370
0.78
YP0705-101□
100
100
0.430
0.72
YP0705-121□
120
100
0.470
0.66
YP0705-151□
150
100
0.640
0.58
YP0705-181□
180
100
0.710
0.51
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YP0705 Series
■ YP0705 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
Max.Rated Current
(KHz)
(Ω)
(A)
YP0705-221□
220
100
0.960
0.49
YP0705-271□
270
100
1.110
0.42
YP0705-331□
330
100
1.260
0.40
YP0705-391□
390
100
1.770
0.36
YP0705-471□
470
100
1.960
0.34
YP0705-561□
560
100
2.000
0.33
YP0705-681□
680
100
2.200
0.32
YP0705-821□
820
100
2.900
0.25
YP0705-102□
1000
100
3.600
0.23
YP0705-222□
2200
100
7.440
0.15
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YP0705 Series
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
C
D
E
P
K
Ref
T
MPQ
YP0705
16±0.3
6.85±0.1
7.95±0.1
6.75
7.5±0.1
5.50±0.1
12.0±0.1
5.70
0.40±0.05
1000
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YP0705
330±2.0
16.4±1.50
22.4MAX
15.9 Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YP0705 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
