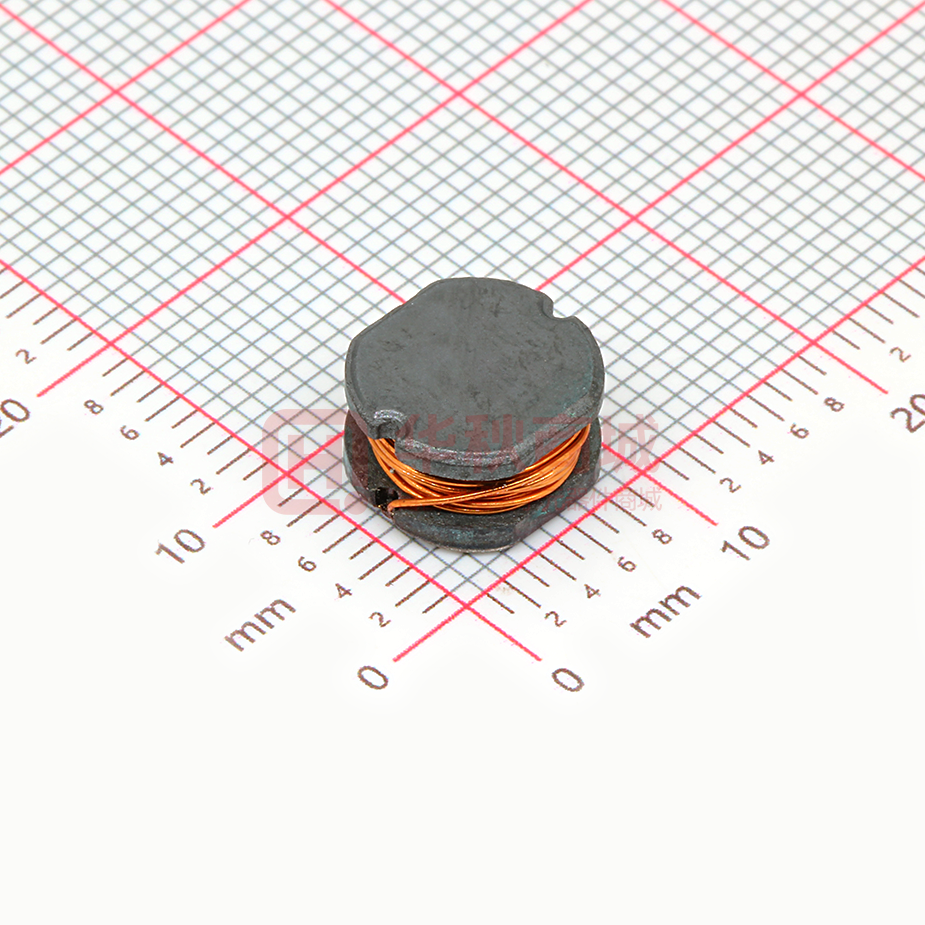

SMD Power Inductors
-YP1005 Series
■ Features
● High current Type.
● Ferrite bobbin core and compact size.
● Low core loss for high frequency power application.
● Large terminal surface for good PCB bonding.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● Portable communication equipment.
● Notebook PC,digital carmera,LCD television set.
● Power supply for VTR,OA equipment.
● DC/DC converters.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷:Inductance Tolerance:N=±30%,M=±20%,L=±15%,K=±10%
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C
D1 Ref.
D2 Ref.
E Ref.
F Ref.
YP1005
10.0±0.3
9.0±0.3
5.4±0.3
2.9
2.5
10.0
9.5
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YP1005 Series
■ YP1005 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
Max.Rated Current
(KHz)
(Ω)
(A)
YP1005-1R0□
1.00
100
0.008
10.50
YP1005-1R5□
1.50
100
0.010
9.50
YP1005-2R2□
2.20
100
0.013
8.50
YP1005-3R3□
3.30
100
0.030
5.84
YP1005-4R7□
4.70
100
0.035
4.50
YP1005-5R6□
5.60
100
0.040
3.88
YP1005-6R8□
6.80
100
0.050
3.64
YP1005-8R2□
8.20
100
0.050
3.50
YP1005-100□
10.0
100
0.060
2.60
YP1005-120□
12.0
100
0.070
2.45
YP1005-150□
15.0
100
0.080
2.27
YP1005-180□
18.0
100
0.090
2.15
YP1005-220□
22.0
100
0.100
1.95
YP1005-270□
27.0
100
0.110
1.76
YP1005-330□
33.0
100
0.120
1.50
YP1005-390□
39.0
100
0.140
1.37
YP1005-470□
47.0
100
0.170
1.28
YP1005-560□
56.0
100
0.190
1.17
YP1005-680□
68.0
100
0.220
1.11
YP1005-820□
82.0
100
0.250
1.00
YP1005-101□
100
100
0.350
0.97
YP1005-121□
120
100
0.400
0.89
YP1005-151□
150
100
0.470
0.78
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YP1005 Series
■ YP1005 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
Max.Rated Current
(KHz)
(Ω)
(A)
YP1005-181□
180
100
0.630
0.72
YP1005-221□
220
100
0.730
0.66
YP1005-271□
270
100
0.970
0.57
YP1005-331□
330
100
1.150
0.52
YP1005-391□
390
100
1.300
0.48
YP1005-471□
470
100
1.480
0.42
YP1005-561□
560
100
1.900
0.33
YP1005-681□
680
100
2.250
0.28
YP1005-821□
820
100
2.550
0.24
YP1005-102□
1000
100
2.700
0.20
YP1005-222□
2200
100
5.220
0.17
YP1005-472□
4700
100
10.400
0.15
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YP1005 Series
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
C
D
E
P
K
Ref
T
MPQ
YP1005
24±0.3
9.20±0.1
10.20±0.1
10.75
11.5±0.1
5.60±0.1
16.0±0.1
5.80
0.40±0.05
1000
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YP1005
330±2.0
24.4±1.50
30.4MAX
23.9 Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YP1005 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
深圳市益嘉源电子有限公司
http://www.yjysmd.com.cn
Tel:0755-27803896
Fax:0755-27803897
-5-
