CT03NR007Q
»Features
■ Simple Drive Requirement
■ Small Size & Low RDS(ON)
BVDSS
■ RoHS Compliant & Halogen-Free
RDS(ON)typ
6.5 mΩ
ID
15.5 A
30 V

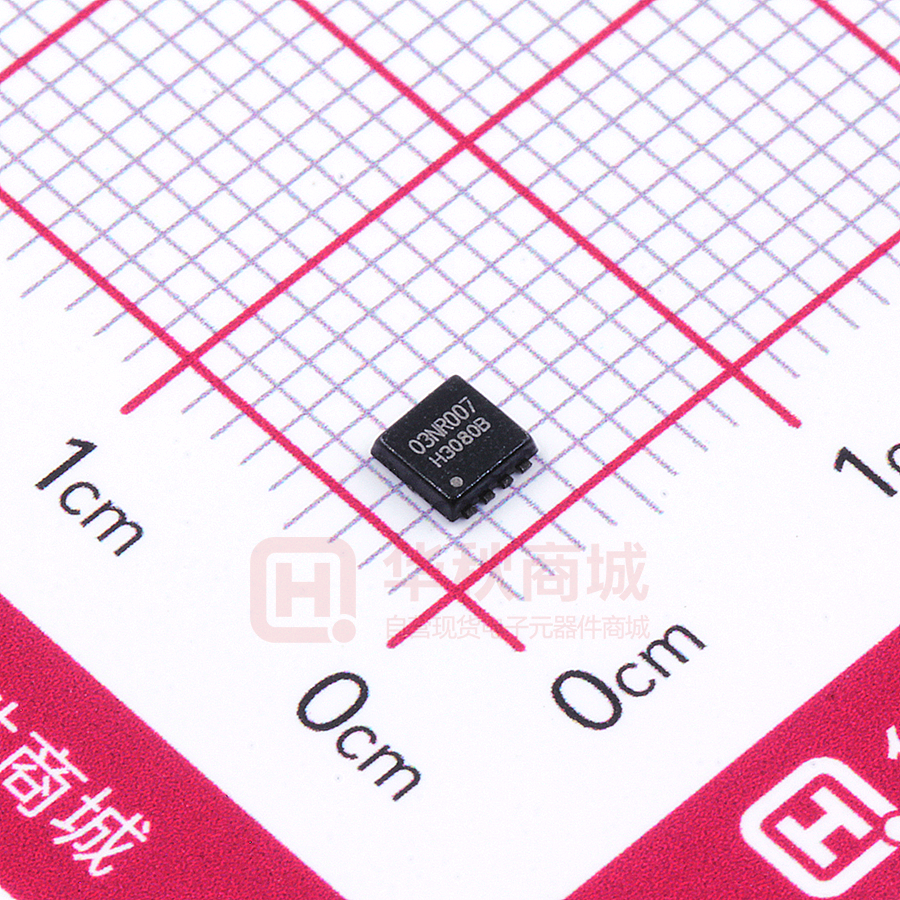

PDFN3*3
»Description
CT03NR007Q is from Coretong innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide
range of power applications.
»Schematic & PIN Configuration
PDFN3x3
www.coretong.com
1/6
CT03NR007Q
»Absolute Maximum Ratings@Tj=25oC(unless otherwise specified)
Symbol
Parameter
VDS
VGS
ID@TA=25℃
Drain-Source Voltage
Gate-Source Voltage
Drain Current, VGS @ 10V3
Rating
30
±20
15.5
ID@TA=70℃
IDM
Drain Current, VGS @ 10V3
12.4
A
60
A
3.2
W
-55 to 150
℃
-55 to 150
℃
Value
5
35
Unit
℃/W
℃/W
Current1
Pulsed Drain
PD@TA=25℃ Total Power Dissipation
TSTG
Storage Temperature Range
Operating Junction Temperature Range
TJ
Units
V
V
A
»Thermal Data
Symbol
Rthj-c
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-case
Maximum Thermal Resistance, Junction-ambient3
»Electrical Characteristics@Tj=25 oC(unless otherwise specified)
Symbol
BVDSS
Parameter
Drain-Source Breakdown Voltage
RDS(ON) Static Drain-Source On-Resistance2
Test Conditions
Min.
Typ.
Max.
Units
VGS=0V, ID=250uA
30
-
-
V
VGS=10V, ID=12A
-
6.5
10.8
8.5
13
mΩ
mΩ
VGS(th)
Gate Threshold Voltage
VGS=4.5V, ID=8A
VDS=VGS, ID=250uA
1
1.3
3
V
gfs
Forward Transconductance
VDS=10V, ID=12A
-
24
-
S
IDSS
Drain-Source Leakage Current
VDS=24V, VGS=0V
-
-
10
uA
IGSS
Gate-Source Leakage
VGS=±20V, VDS=0V
-
-
±100
nA
Qg
Qgs
Total Gate Charge2
ID=12A
VDS=15V
VGS=4.5V
-
12
-
nC
-
6
5.5
-
nC
nC
-
10
-
ns
-
5
-
ns
-
27
-
ns
-
7
-
ns
-
1050
170
-
pF
pF
-
150
-
pF
-
2
-
Ω
Min.
Typ.
Max.
Units
Qgd
Gate-Source Charge
Gate-Drain ("Miller") Charge
td(on)
Turn-on Delay Time
tr
Rise Time
td(off)
Turn-off Delay Time
tf
Ciss
Fall Time
VDS=15V
ID=1A
RG=3.3Ω
VGS=10V
Coss
Input Capacitance
Output Capacitance
Crss
Reverse Transfer Capacitance
VGS=0V
VDS=15V
f=1.0MHz
Rg
Gate Resistance
f=1.0MHz
»Source-Drain Diode
Symbol Parameter
VSD
Forward On Voltage²
trr
Reverse Recovery Time
Qrr
Reverse Recovery Charge
Test Conditions
IS=2.9A, VGS=0V
-
-
1.2
V
IS=12A, VGS=0V
dI/dt=100A/µs
-
21
-
ns
-
12
-
nC
www.coretong.com
2/6
CT03NR007Q
Notes:
1.Pulse width limited by Max. junction temperature.
2.Pulse test
3.Surface mounted on 1 in2 2oz copper pad of FR4 board, t
