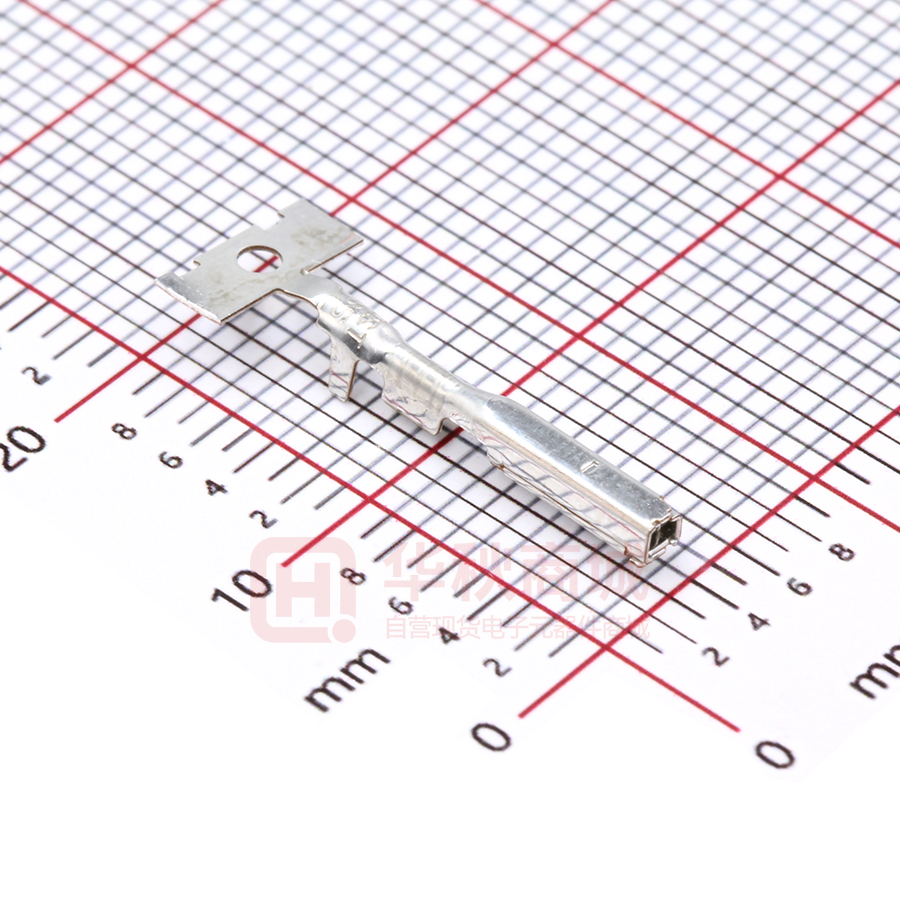

SMSA-A011T-M1.2

MSACONNECTOR Wire-to-wire Features ●20 circuits, Wire-to-Wire Connection ●Connector Position Assurance (CPA) Design ●Unsealed Inline Connector ●1.2 mm Terminal Compliant with USCAR Standards 1.2 mm unsealed wire-to-wire connector system for automotive applications. 1 10 20 Specifications ¡Current rating: 14 A AC, DC max (0.75 mm2, Single circuit) ¡Voltage rating: 14 V AC, DC ¡Temperature range: - 40°C to +105°C (including temperature rise in applying electrical current) ¡Contact resistance: Initial value/ 8 mΩ max. After environmental tests/ 8 mΩ max. ¡Insulation resistance: 100 MΩ min. ¡Withstanding voltage:1,000 VAC/minute ¡Applicable wire: FLRY-A 0.35 to 0.75 mm2 FLRY-B 0.75 mm2 ∗ Compliant with ELV/RoHS. ∗ Contact JST for details. 1 MSA CONNECTOR Female terminal Applicable wire range SS barrel Size Model No. SS qSMSA-A011T-M1.2 0.35 1.2 to 1.4 9,000 S qSMSA-A031T-M1.2 0.5 to 0.75 1.6 to 1.9 8,500 SS wSMSA-A011A-M1.2 0.35 1.2 to 1.4 9,000 S wSMSA-A031A-M1.2 0.5 to 0.75 1.6 to 1.9 8,500 Conductor (mm2) Insulation O.D. Q’ty/reel (mm) Material and Finish 15 qCopper alloy, tin-plated (reflow treatment) wCopper alloy, nickel-undercoated, Contact area: silver-plated Barrel area: tin-plated 1.83 7.3 S barrel 16 1.83 7.3 Female connector Circuits 20MSA-RBC-1A-A-K Q’ty/box Housing Color 378 Black Material Housing: PBT Retainer: Glass-filled PBT, Natural (White) CPA: Glass-filled PBT, Natural (White) (28.1) 22 20 Model No. Note: Color/Key codes other than above-mentioned housing are also available. Contact JST for details. 28 CPA 15.7 19.3 Housing Retainer 2 MSA CONNECTOR Male terminal Applicable wire range SS barrel 8 Size Model No. SS qSMSAW-A011T-M1.2 0.35 1.2 to 1.4 9,000 S qSMSAW-A031T-M1.2 0.5 to 0.75 1.6 to 1.9 9,000 SS wSMSAW-A011A-M1.2 0.35 1.2 to 1.4 9,000 S wSMSAW-A031A-M1.2 0.5 to 0.75 1.6 to 1.9 9,000 Conductor (mm2) Insulation O.D. Q’ty/reel (mm) (7.8) Material and Finish qCopper alloy, tin-plated (reflow treatment) wCopper alloy, nickel-undercoated, Contact area: silver-plated Barrel area: tin-plated (24.5) S barrel (8.8) 8 (25.5) Male connector Circuits 20 Model No. 20MSA-PB-1A-A-K Q’ty/box Housing Color 216 Black Material 41.2 Housing: PBT Retainer: Glass-filled PBT, Natural (White) Note: Color/Key codes other than above-mentioned housing are also available. Contact JST for details. 31.2 10 20 22.6 1 11 18.9 Housing Retainer 3 MSA CONNECTOR Assembly layout (23.1) (46.9) Clip layout 9.7 8.5 14 0.7 1.4 +0.1 0 5.3 +0.1 0 21.5 7.3 Recommended clip layout Crimping machine, Applicator Strip terminal Crimping machine SMSA-A011( )-M1.2 SMSA-A031( )-M1.2 SMSAW-A011( )-M1.2 SMSAW-A031( )-M1.2 AP-K2N Crimp applicator MKS-L Dies Crimp applicator with dies MK/SMSA-A011-12 APLMK SMSA-A011-12 MK/SMSA-A031-12 APLMK SMSA-A031-12 MK/SMSAW-A011-12 APLMK SMSAW-A011-12 MK/SMSAW-A031-12 APLMK SMSAW-A031-12 Note: 1. Contact JST for details. 2. When crimping operation is conducted using an applicator and die set other than the above, JST cannot guarantee the performance of the terminal. 4 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: JST: SMSA-A031T-M1.2 SMSA-A011T-M1.2
