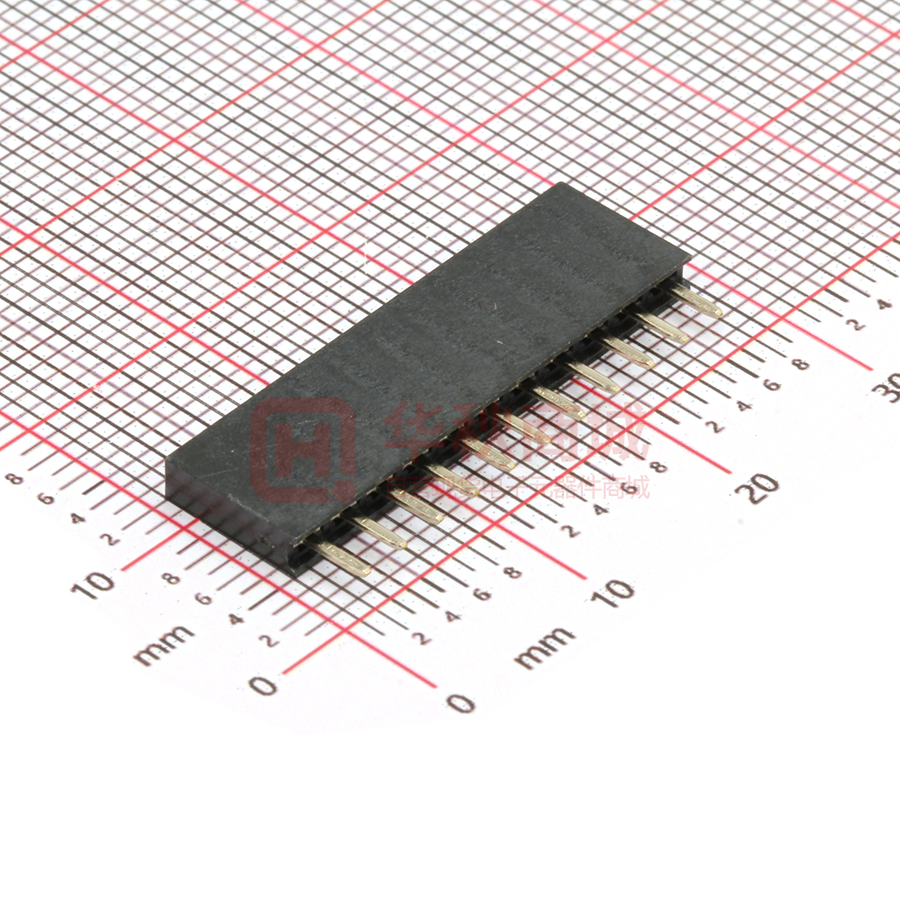

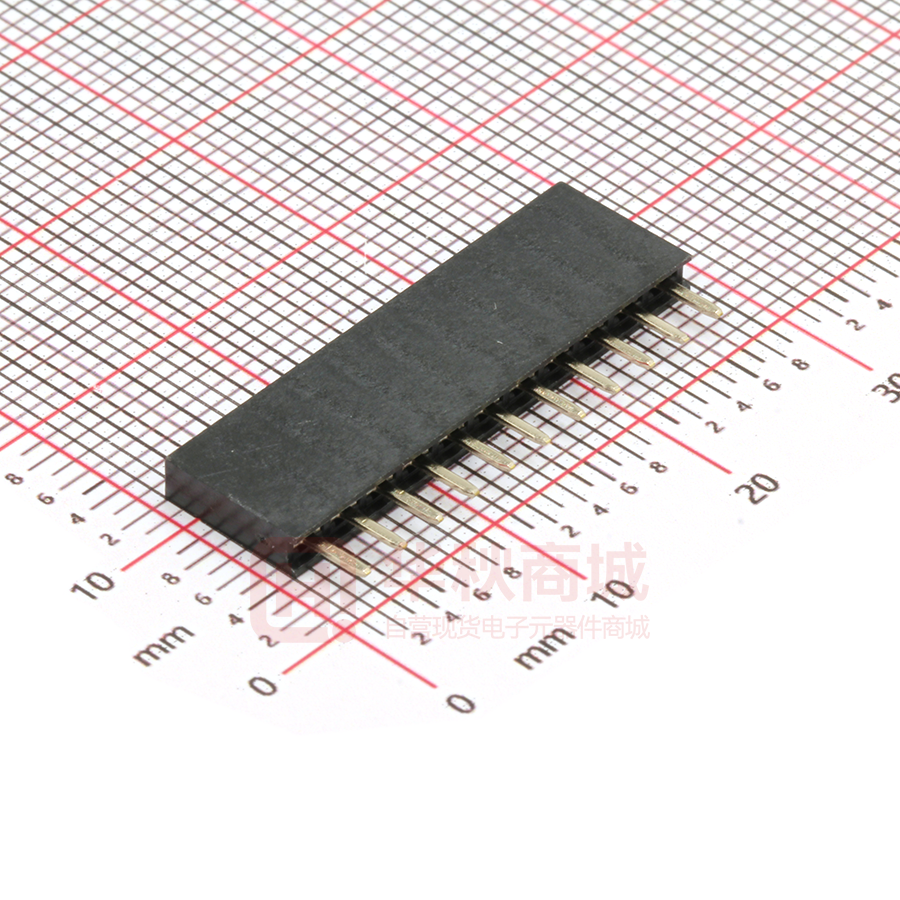

KH-2.54FH-1X11P-H8.5

SPECIFICATIONS ∅1.02 RECOMMEND P.C.B LAYOUT PCB TOLERANCE: ±0.05 (TOP VIEW) Current Rating: 3Amps Insulation Resistance:1000M Ω Min Contact Resistance: 20 mΩ Max Withstanding Voltage: AC 1000V Operation Temperature:-40 °to+105° Contact Material: Brass Standard: PBT Insrlator Material: Polyester(UL 94V-0) Contact Plating: Gold Flash Max.Processing Temp: 200 °C for30-60seconds (220 °C for5seconds) Code Description (1) Pin Spacing：254=2.54mm (2) Product Name：FH=Female Header (3) No.of Rows:1=Single Row ;2=Dual Row (4) No.of Pins Per Row:1～40 (5) Insulator Material Height:50=5.0mm;85=8.5mm (6) Connector Type:S=Straight;R=Right Angle;M=SMT (7)Connector Material Length:30=3.0mm;32=3.2mm (8) Insulator Material Width: 50=5.0mm;55=5.5mm (9) Contact Plating: G0=Gold Flash；AU15=Au 1.5u" (10)Connector Material Type:U=U Type;Y=Y Type (11)Insulator Material Option: A=BK-PBT;B=BK-PA6T;C=BK-PA46;D=KB-LCP;S=Special 深圳市金航标电子有限公司 WWW.BDS666.COM KH-2.54FH-1X11P-H8.5 0755-83044319 UNLESS OTHEWIXE SPECIFIED TOLERANCE X :±0.3 X.X :±0.2 X.XX:±0.1 X° :±5° X.X° :±1° X.XX°:±0.5° CHECKED: LI BEI LIN 12/03/07 DRAWM NAME: SIZE REV A4 A CHECKED: 2.54FH No. of DIM.A 1 GYS 1xnPin H8.5 DIP SCALE PROUCT NO. UNIT PROJECT / / APPROVED: PAGE 1/1 / / 0.00 DIM.B 2.54 No. of DIM.A DIM.B No. of DIM.A DIM.B No. of DIM.A DIM.B
