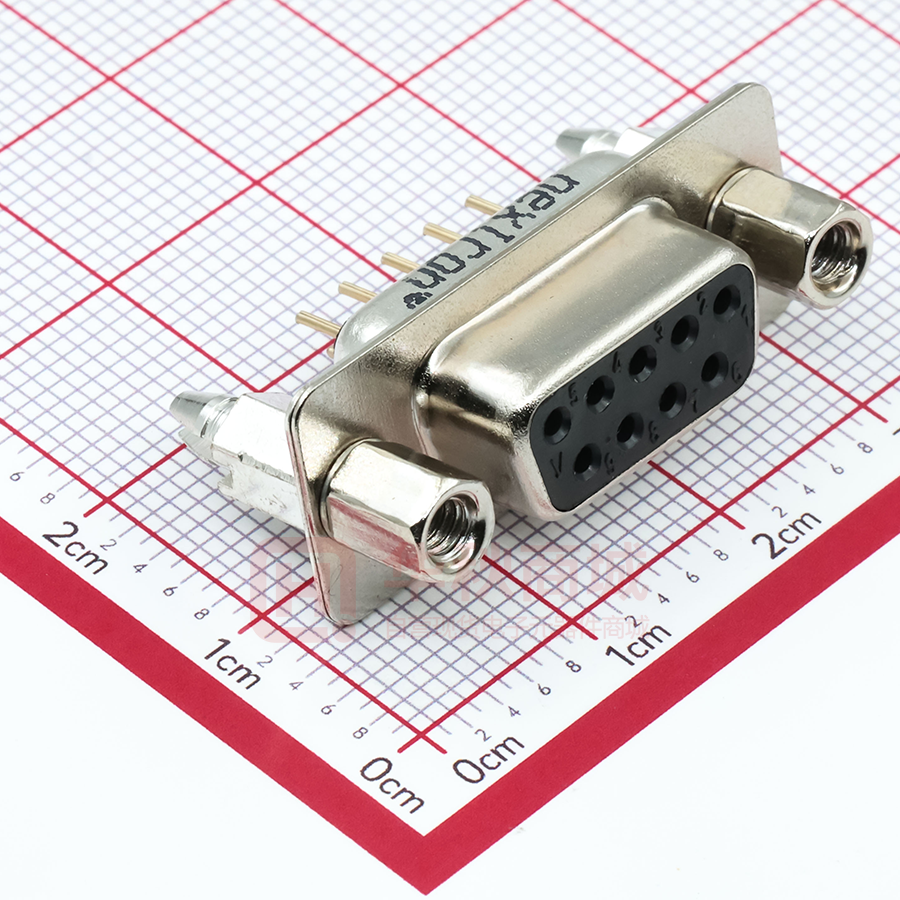

Z-SUBDPAF5071002

1 2 3 4 5 DIM E 2.84 DIM D 2-Ø3.0 °±1 B 8 A MATERIAL AND FINISH Insulator:PBT+30%G.F(UL94V-0) Contact:Copper Alloy Nickel Undercoated Selective Gold Plated Finish:Metal Iron With Tin Plated 10 2.77 7 SPECIFICATIONS: Current rating:3.0A AC/DC Voltage rating:250V AC/DC Contact resistance:30m ohm MAX Insulation resistance:5000M ohm MIN Withstanding voltage:1000V AC for one minute Operating temperature range:-40°C~+85°C DIM C±0.38 DIM B±0.25 DIM A±0.20 A 6 ° PART NO.: B C D D 1 TYPE 2 TYPE 3 TYPE FRONT RIVET 4 TYPE 5 TYPE BOARD LOCK -NUT RIVET #4-40 HEX SCREW +HEX NUT H H REAR RIVET RIVETED W/ SHIELD ONLY RIVETED W/ FRONT RIVET RIVETED W/ REAR RIVET RIVETED W/ NUT RIVET ICS RO N XT NE 38.38 47.04 53.04 7.90 12.50 15P 24.66 33.32 39.14 7.90 12.50 9P 16.33 24.99 30.81 7.90 12.50 A B D C B REV. 1 C inch mm ± ** ± ** ± 0.20 ± 0.30 X°± 3° 4 PLACE This file is automatically issued by EPDM and is not valid without the issue date 2 ECR-20049 D =1 ECN-19105 C =1 ECN-150091 UPDATE 2020/04/03 3 PLACE 2019/11/22 2 PLACE 2015/7/27 1 PLACE DESCRIPTION 3 DATE 4 CONTACT PLATED:(CONTACT AREA) 1=FULL GOLD 1u" 2=GOLD 3u" 3=GOLD 5u" 4=GOLD 10u" 5=GOLD 15u" 6=GOLD 30u" CONTACT MATERIAL 7=PHOSPHOR BRONZE E D SIZE A3 ANGLES 5 inch ±. ** ±. ** ±. ** ±. ** NAME: D-SUB DP TYPE FEMALE PCB SOLDER TYPE PART NO: Z-SUBDPXFXX7XXXX APPD: Peter 廖小瓊 CHKD: Linson曾偉雄 6 NEXTRONICS ENGINEERING CORP. TITLE: CUSTOMER DWG 2020/04/17 DWG NO: 2020/04/17 010-0000-636 DRAW: DESIGN: Lu陳惠枝 E C SCALE SHEET REV. 2020/04/17 7 1/1 1/1 8 CONFIDENTIAL: THIS DOCUMENT CONTAINED THE INFORMATION IS PROPRIETARY AND CONFIDENTIAL TO Nextronics Engineering Corp. NO PERSON IS ALLOWED TO USE COPY, PUBLISH OR OTHERWISE DISCLOSE THE INFORMATION TO OTHERS, UNLESS BY THE PRIOR WRITTEN EXPRESS AUTHORIZATION OF Nextronics Engineering Corp. (C)COPYRIGHT- Nextronics Engineering Corp. A5 D DIMENSION N TIO RA 2020/04/17 25P GENERAL TOLERANCE: (UNLESS SPECIFIED) PO ISSUE DATE 7.90 12.50 UNITS: mm R CO ENGINEERING 54.84 63.50 69.32 C INSULATOR MATERIAL 0=PBT 2=NYLON NUT POST HEIGHT(H) 0=5.8mm(STD) 1=4.8mm 37P POS. NO. RIVETED W/ HEX SCREW + HEX NUT MOUNTING OPTIONS E INSULATOR COLOR 0=BLACK 6=BLUE 9=WHITE MOUNTING OPTIONS 1=RIVETED W/SHIELD ONLY 2=RIVETED W/FRONT RIVET 3=RIVETED W/REAR RIVET 4=RIVETED W/NUT RIVET 5=RIVETED W/HEX SCREW +HEX NUT 3.9±0.3 0.60 LOGO 0=NO LOGO 2=NEXTRON LOGO NO. OF CONTACTS A=9PIN B=15PIN C=25PIN E=37PIN 10.7 16.4±0.38 5.8 Z-SUB DP * F * * 7 * * * * D-PRD-034 D
