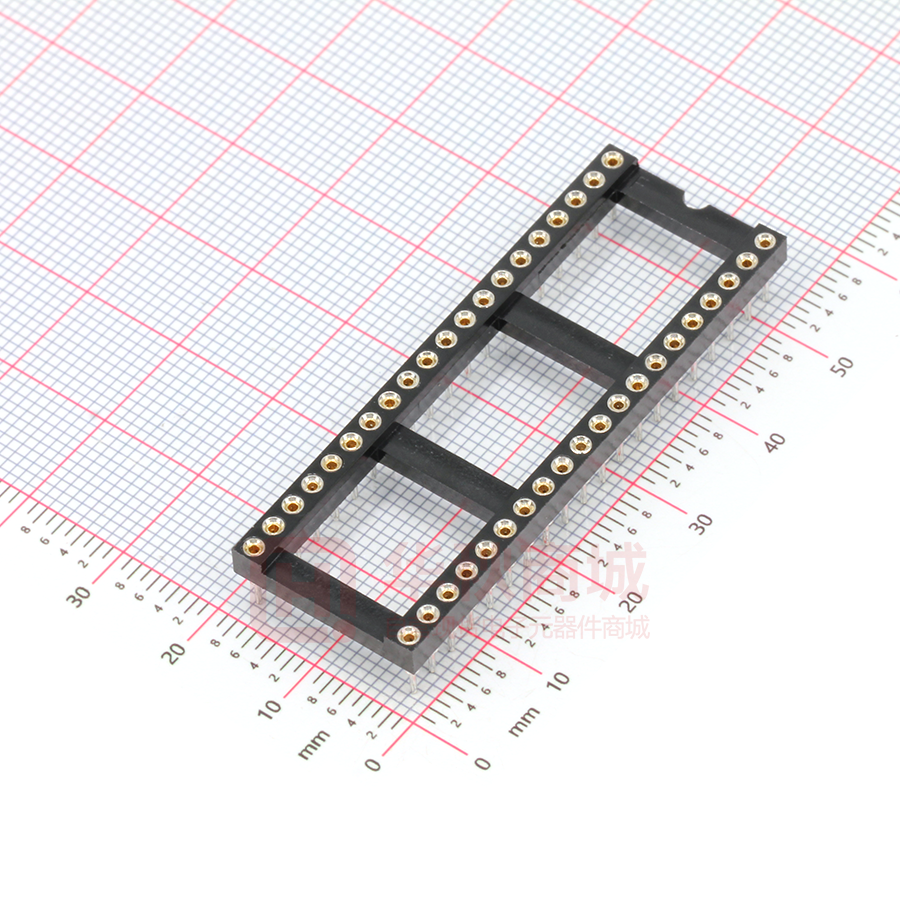

100-406-100-1001-00

1 2 3 4 5 7 6 E E Ω Ω D D 三型 四型 六型 九型 A 7.62 10.16 15.24 22.86 C B C 4.14 6.68 11.76 19.38 C 10.12 12.66 17.74 25.36 Ordering Information R - 1 0 0 - X X X - X X - 1001 - 00 B B Dip Spacing RoHS Code Definition Code Blank R No-RoHS 06 ... 6Pin 64 64Pin JHJM A P.C.Board Layout NUMBER OF PIN RoHS Number of PIN ... Code 3 4 6 9 Definition Housing type Code Definition 1 2 without bar 7.62 10.16 15.24 TITLE: PART. NO.: 100-406-100-1001-00 DWG NAME: 3 4 5 2.54 1.778 DESIGNED BY DRAWN BY A CUSTOM NO.: REVISION: 2 Definition SHENZHEN JUNHAO ENGINEERING CO.,LTD UNITS: mm SCALE: 1 0 7 深圳市君灏精密工业有限公司 XX芯X型圆孔IC插座系列 CHECkED BY Code with bar 22.86 PART. NAME: APPROVED BY PITCH 6 7 Toleance x. ± 0.50 x.x ± 0.30 x.xx ± 0.10 xx° ± 1°
