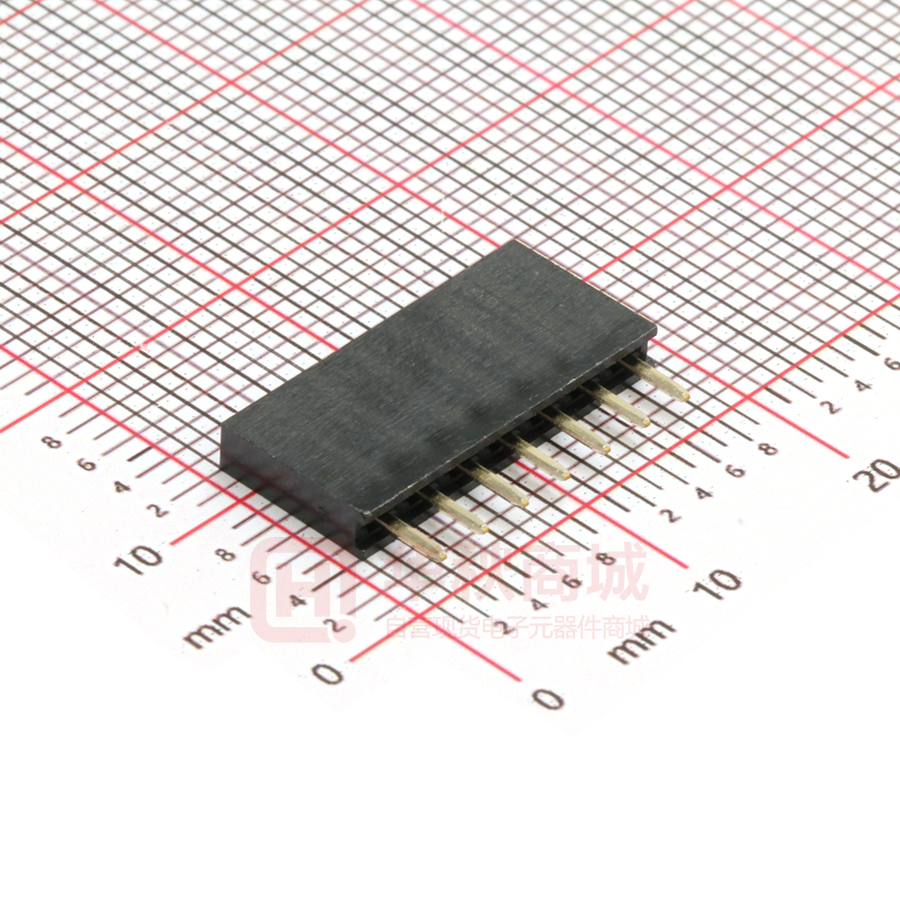

PM254V-11-07-H85

Ordering Information: 2.50±0.25 Circuit 1 2.54±0.10 A±0.20 B±0.25 PM254V-11-xx - **** - *** - * - *** 1 2 3 4 5 1.Part No. 2.Size(H): (blank): 8.50mm H71: 7.10mm H57: 5.70mm H50: 5.00mm H35: 3.50mm(B:B-0.50mm) H110: 11.00mm 3.Size(D): (blank): 3.20mm(H85,H71,H57,H50,H110) D26: 2.60mm(H35) D21: 2.10mm(H50) 4.Finish: (blank): Gold over Nickel T: Tin over Nickel 5.Material: (blank): PBT,UL94V-0 6T: Nylon 6T,UL94V-0 GWT: Nylon 6T,UL94V-0,GWT 750°C SPECIFICATIONS: Current Rating: 3A AC,DC Voltage Rating: 250V AC,DC Temperature Range: -40°C ~ +105°C Contact Resistance: 20mΩ Max Insulation Resistance: 1000MΩ Min Withstanding Voltage: 1500V AC/minute Pin Material:Brass/Gold over Nickel Material:PBT,UL94V-0(Black) Ordering Information & Dimensions Circuits D(3.20±0.25) H±0.25 2.54±0.10 Dim(mm) Circuits B Circuits Dim(mm) A B 2P 2.54 5.58 15P 35.56 38.60 28P 68.58 71.62 3P 5.08 8.12 16P 38.10 41.14 29P 71.12 74.16 7.62 A A B 10.66 17P 40.64 43.68 30P 73.66 76.70 5P 10.16 13.20 18P 43.18 46.22 31P 76.20 79.24 4P Pin 0.64x0.40 Dim(mm) 6P 12.70 15.74 19P 45.72 48.76 32P 78.74 81.78 7P 15.24 18.28 20P 48.26 51.30 33P 81.28 84.32 8P 17.78 20.82 21P 50.80 53.84 34P 83.82 86.86 9P 20.32 23.36 22P 53.34 56.38 35P 86.36 89.40 10P 22.86 25.90 23P 55.88 58.92 36P 88.90 91.94 11P 25.40 28.44 24P 58.42 61.46 37P 91.44 94.48 12P 27.94 30.98 25P 60.96 64.00 38P 93.98 97.02 13P 30.48 33.52 26P 63.50 66.54 39P 96.52 99.56 14P 33.02 36.06 27P 66.04 69.08 40P 99.06 102.10 ∅1.02±0.05 P.C.B LAYOUT 2.54mm Female Header Connectors PM254V-11-xx-H85
