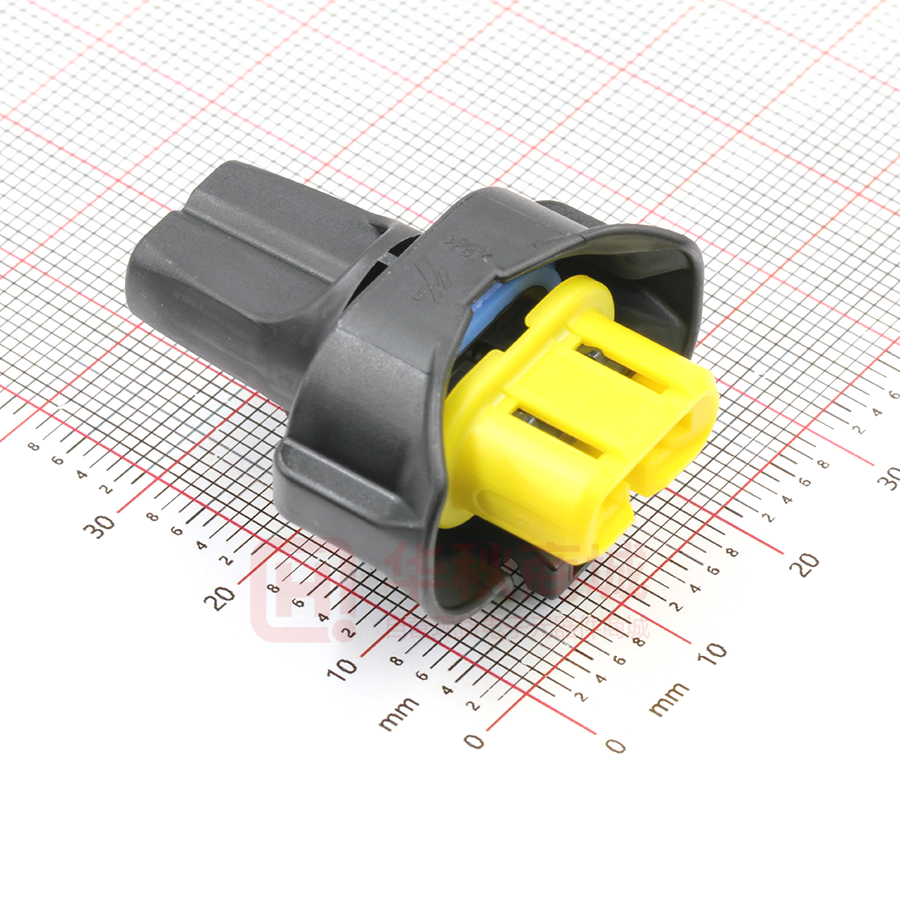

240PC023S4019

NOTA / NOTES CONNECTEUR DOIT ETRE CONFORME AU CDC : -SPECIFICATION INTERNE I 0045 -STE 96 488 121 99 FEMALE CONNECTOR ACCORDING TO SPECIFICATION PSA: -SPECIFICATION INTERNE I 0045 -STE 96 488 121 99 INTERFACE SUIVANT IEC 60061-1 FEUILLES 7004-110-1 INTERFACE ACCORDING TO IEC 60061-1 SHEETS 7004-110-1 DOSSIER DE PRECONISATION N USER MANUAL N 6.10 P $U 022 N° D'EMPREINTE (GRILLE) CAVITY MOULD NUMBER (TPA) P$U 022 CONDITIONNEMENT SUIVANT NORME E 7 303 150 G MASSE DU PRODUIT LIVRABLE 34.80 #0.50 POSITION VERROUILLEE LOCKED TPA PACKAGING ACCORDING TO STANDARD E 7 303 150 G : 6g 38.00 #0.90 POSITION DE LIVRAISON DELIVERY POSITION / DELIVERY CONNECTOR WEIGHT: 6g REPERES ALVEOLES (GRILLE) CAVITY POSITIONING (TPA) SIGLE MVL MVL LOGO PORTE-CLIPS FEMALE HOUSING MATIERE MATERIAL JOINT INTERFACIAL INTERFACIAL SEAL GRILLE TPA COUPE F-F 8.00 17.40 31.60 #0.40 22.50 #0.40 CONTACTS DCS-1 FEMALE TERMINAL DCS-1 CONTACTS DCS 1 CLIPS DCS 1 / CLIP DCS1 2.8x0.8 SECTION 0.50-1.00 mm² FEMALE TERMINAL DCS-1 2.8x0.8 SECTION 0.50-1.00 mm² CuSn Sn 6 001 05 31 12198447 CLIP DCS1 2.8x0.8 SECTION > 1.00-2.50 mm² FEMALE TERMINAL DCS-1 2.8x0.8 SECTION > 1.00-2.50 mm² CuSn Sn 6 001 05 41 12198436 JOINT UNITAIRE SUR FIL POUR DCS 1 SINGLE WIRE SEAL (SWS) DCS1 BOUCHON CAVITY PLUG SILICONE BLANC/ WHITE 211 M 0013 15340264 JOINT UNITAIRE SUR FIL ISOLANT FIL 1.28-1.90 SINGLE WIRE SEAL (SWS) INSULATION WIRE 1.28-1.90 SILICONE ROUGE/ RED 211 M 0009 15327786 JOINT UNITAIRE SUR FIL ISOLANT FIL 1.99-3.00 SINGLE WIRE SEAL (SWS) INSULATION WIRE 1.99-3.00 SILICONE BLEU/ BLUE 211 M 0010 10757056 DESIGNATION DESCRIPTION MATIERE/ MATERIAL COULEUR/ COLOUR REFERENCE MVL/ MVL'S REFERENCE REPERES ALVEOLES (ISOLANT) CAVITY POSITIONING (FEMALE HOUSING) REFERENCE DELPHI/ DELPHI'S REFERENCE CONTACTS DCS-2 FEMALE TERMINAL DCS-2 CuSn/CrNi CLIP DCS2 2.8x0.8 SECTION 1.00-2.50 mm² FEMALE TERMINAL DCS-2 2.8x0.8 SECTION 1.00-2.50 mm² CuSn/CrNi 6 001 29 11 Sn 6 001 29 31 Sn 6 001 29 41 10811334 N° D'EMPREINTE (ISOLANT) CAVITY MOULD NUMBER (FEMALE HOUSING) 10789065 10779097 JOINT UNITAIRE SUR FIL POUR DCS 2 SINGLE WIRE SEAL (SWS) DCS2 BOUCHON CAP 6 099 40 07 10779160 JOINT UNITAIRE SUR FIL ISOLANT FIL 1.20-2.00 SINGLE WIRE SEAL (SWS) INSULATION WIRE 1.20-2.00 SILICONE BLEU BLUE 6 099 40 15 10779162 JOINT UNITAIRE SUR FIL ISOLANT FIL 2.00-2.70 SINGLE WIRE SEAL (SWS) INSULATION WIRE 2.00-2.70 SILICONE ROUGE RED 6 099 40 23 10779159 JOINT UNITAIRE SUR FIL ISOLANT FIL 2.70-2.90 SINGLE WIRE SEAL (SWS) INSULATION WIRE 2.70-290 DESIGNATION DESCRIPTION JAUNE YELLOW SILICONE MATIERE/ MATERIAL ECHELLE 1:1 SCALE 1:1 1.95 6 099 40 34 COULEUR/ COLOUR REFERENCE MVL/ MVL'S REFERENCE 10779161 REFERENCE DELPHI/ DELPHI'S REFERENCE 1.95 #0.10 #0.10 DATEUR (XX:ANNEE) DATE (XX:YEAR) - - A 04 024 TOLERANCES #0.08 1.60 SILICONE VERT GREEN #0.10 CLIP DCS2 2.8x0.8 SECTION 0.50-1.00 mm² FEMALE TERMINAL DCS-2 2.8x0.8 SECTION 0.50-1.00 mm² Sn 2.00 CuSn/CrNi COULEUR/ COLOUR REFERENCE MVL MVL'S REFERENCE REFERENCE DELPHI DELPHI'S REFERENCE ECHELLE 1:1 JAUNE/ YELLOW 240 PC 02 3S 4 019 10810649 0.20 CLIP DCS2 2.8x0.8 SECTION 0.22-0.35 mm² FEMALE TERMINAL DCS-2 2.8x0.8 SECTION 0.22-0.35 mm² INDICE PIECE FEMALE HOUSING PART ISSUE NUMBER CONTACTS DCS 2 CLIPS DCS 2 / 1.95 #0.10 A 07 029 GRIS/ GREY 240 PC 02 3S 8 019 33523196 - #0.1 - PORTE-CLIPS FEMALE HOUSING PBT 0% FV PBT 0% GF GRILLE TPA PBT 30% FV PBT 30% GF JOINT INTERFACIAL INTERFACIAL SEAL DESIGNATION DESCRIPTION SILICONE MATIERE/ MATERIAL NOIR/ BLACK 240 I 0 013 JAUNE/ YELLOW 240 M 4 031 GRIS/ GREY 240 M 8 031 BLEU/ BLUE 240 M 041 COULEUR/ COLOUR REFERENCE MVL/ MVL'S REFERENCE DELPHI P/N ADDED UPDATE ACCORDING TO DM N° 03017 : 16 CAVITIES GRID MOULD + AUTO ASSY PROCESS ADD TRANSLATE ENGLISH MODIFICATION FEMALE HOUSING CHANGE INTERFACIAL SEAL DM - 05-101C #2° - SEE TABLE SEE TABLE A1 - 01/12/1999 DEUBEL 2014/10/08 F FAURIE 2014/10/08 S LACOTE 2014/10/08 Pascal MENARD 240FT0101 2 VOIES DCS2 2.8 x 0.8 240FT0101 PGJ 19 LAMP CONNECTOR SERIAL RELEASED FRA-0750 C 1 240PC023SX019 1 See Table - 1:1 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Aptiv: 240PC023S4019 240PC023S8019 240PC023S8019-B
