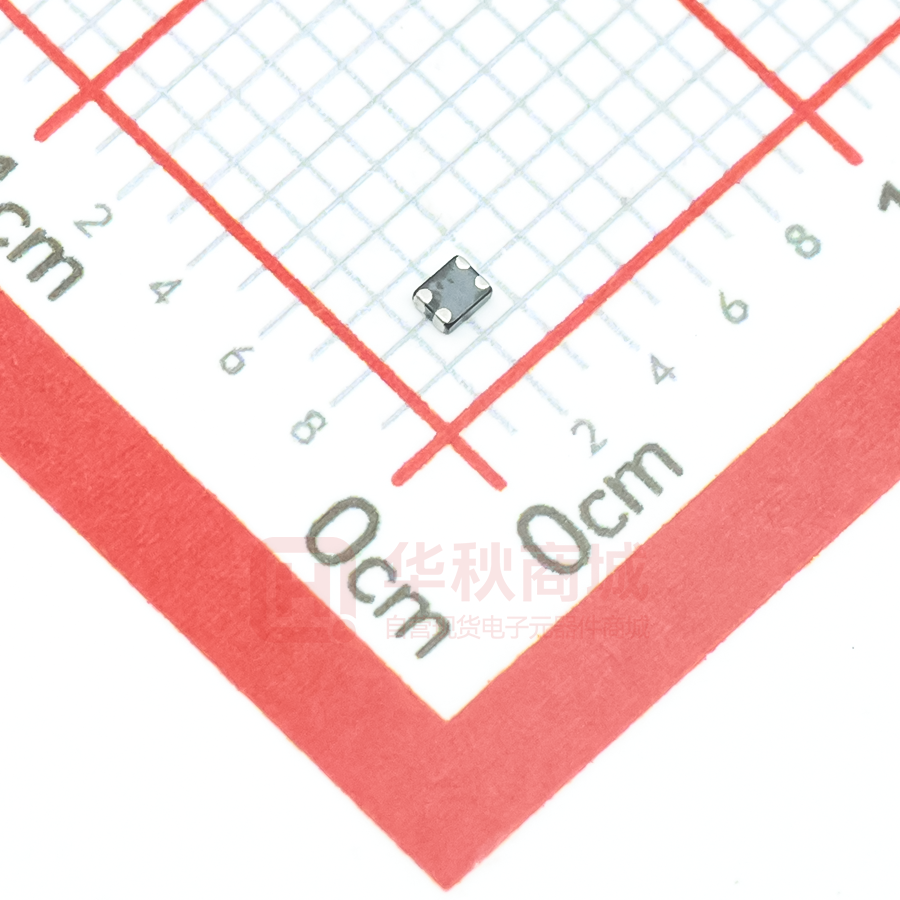

SMM1210C900NST

SMM1210C Serise Common mode Noise Filters ◆ Features 、 、 、 、 、 × Pb × 1 Small and thin (L 1.25 mm W 1.0 mm H 0.50 mm) 2 Reduce the common mode noise and reform the signal wave by high-coupled inductors 3 The strong multi-layer structure provides high resistance to reflow soldering heat and a high mounting reliability 4 Magnetic shield type 5 RoHS compliant ◆ PRODUCT IDENTIFICATION ◆ Application 、 、 、 1 USB data lines such as PCs, DSC, Mobile phone. 2 LVDS data lines such as PCs, TV. 3 IEEE1394 data lines such as PCs, TV. SMM (1) 1210 (2) C (3) 900 N S T (4) (5) (6) (7) (1) Series Type (2) Chip Size mm :Length X Width (3) Material type : With maganetic shield(B/C/H) (4) Nominal Impedance:120=12Ω 900=90Ω (5) Inductance Tolerance M=±20%, N=±25% Y=±30% (6) Company Code (7) Packaging: P – Embossed paper tape, 7" reel E – Embossed plastic tape, 7" reel T – Tape & reel （ ） ◆ Construction ； ： ◆ Dimensions in mm Part No. (inch size) SMM1210C Rev.01 Dimensions(mm) A B C 1.25±0.15 1.00±0.15 0.50±0.10 Page 1 of 3 D ± 0.20 0.15 E ± 0.55 0.10 F Mass (Weight:mg/pc.) 0.30 0.10 3.0 ± www. sunltech.com SMM1210C Serise ◆ Circuit Configuration(No Polarity) The pin numbers shown here are for reference purposes only. Confirm the actual pin number arrangement with the exchanged specification documents. ◆ Specifications Impedance (Ω) at 100 MHz Part Number Rated Voltage Rated Current DC Resistance Common Mode Differential Mode (V DC) (mA DC) (Ω)max. SMM1210C360NST 36Ω±25% 20Ω max. 5 200 1.00 SMM1210C900NST 90Ω±25% 15Ω max. 5 160 1.75 SMM1210C121NST 120Ω±25% 18Ω max. 5 140 2.20 20Ω max. 5 130 2.70 SMM1210C201MST 200Ω±20% Category Temperature Range –40 °C to +85 °C ◆ Impedance Characteristics (Typical) SMM1210C360NST Rev.01 SMM1210C900NST Page 2 of 3 www. sunltech.com SMM1210C Serise ◆ Impedance Characteristics (Typical) SMM1210C201MST SMM1210C121NST Rev.01 Page 3 of 3 www. sunltech.com
