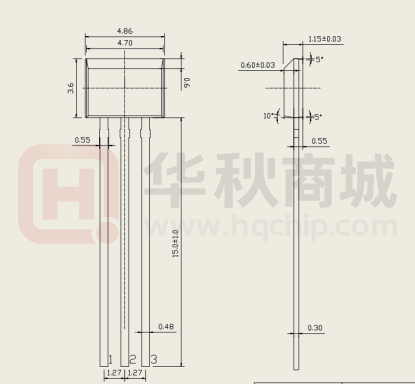

Matrix Opto Co., Ltd WS-Series Bipolar Latch-type Hall-Effect IC WS331 散件包装（３００件／包） 双极锁存型霍尔效应集成电路芯片 双极锁存型霍尔效应集成电路芯片ＷＳ３３１是一种ＩｎＳｂ传感器＋Ｓｉ－ＡＳＩＣ混合锁存型集成电路，具有超高灵敏度和宽工作电 压范围内的低温漂移。  特点  应用领域 ●超高灵敏度，典型Ｂｏｐ　３0Ｇｓ ●流量传感 ●工作点在－３０℃￣１２０℃温度范围内的 ●无刷直流电机转子的位置传感 低温漂移 ●宽工作电压范围２．３Ｖ￣４０Ｖ ●内置上拉电阻  功能框图 ●角度和速度感应 ●行程传感  封装外形图（单位：ＭＭ　） Copy Right Reserved JZWI-DS-020 Version2.1 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd WS-Series Bipolar Latch-type Hall-Effect IC  绝对最大额定值（２５℃）  推荐的操作条件 参数 符号 范围 单位 电源电压 VCC -0.3~40 工作电压 Topr 储存温度 Tstg 参数 符号 最小 最大 单位 V 电源电压 VCC 2.3 18 V -40~150 ℃ 操作温度 Topr -30 120 ℃ -40~150 ℃ 附注：强调超出“绝对最大额定值”所列的限制，可能会造成 永久性设备损坏。  磁特性 除非另有说明，否则ＶＣＣ＝１２Ｖ，Ｔｏｐｒ＝２5℃。 1mT=10Gs 参数 符号 最小 典型 最大 单位 Ｂ工作点 Bop 10 30 60 Gs Ｂ释放点 Brp -60 -30 -10 Gs 磁滞 Bhys - 60 - Gs Copy Right Reserved JZWI-DS-020 Version2.1 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd WS-Series Bipolar Latch-type Hall-Effect IC  电气特性 除非另有说明，否则ＶＣＣ＝１２Ｖ，Ｔｏｐｒ＝２５℃。 1mT=10Gs 参数 符号 条件 最小 典型 电源电压 VCC 工作 2.3 电源电流 ICC ＶＣＣ＝１２Ｖ，输出＝高 输出漏电流 ILEAKAGE 输出饱和电压 VSAT 内置上拉电阻 RL 最大 单位 12 33 V - 4 8 mA - 0.1 10 μA 0.4 V 14 KΩ ＶＣＣ＝１２Ｖ，输出＝低 6  闭锁式操作特性 Copy Right Reserved JZWI-DS-020 Version2.1 Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd WS-Series Bipolar Latch-type Hall-Effect IC  典型特征  订购信息 产品 封装 标记　ＩＤ 包装类型 数量 WS331 TO92S Wafer ID Pack 300 pcs JZWI-DS-020 Version2.1 Copy Right Reserved Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion. Matrix Opto Co., Ltd WS-Series Bipolar Latch-type Hall-Effect IC  文件履历表 版本 日期 描述 1.0 2021.06.07 初始版本发行 2.0 2022.03.12 格式重新排版，参数信息进一步完善 2.1 2023.06.13 修订内容（调整为中文版本） JZWI-DS-020 Version2.1 Copy Right Reserved Matrixopto.Co.,Ltd is the owner of the trademarks used in this document, which has the exclusive right to prevent any third parties not having the owner’s consent from using in the course of trade identical or similar signs for goods or services where such use would result in a likelihood of confusion.
